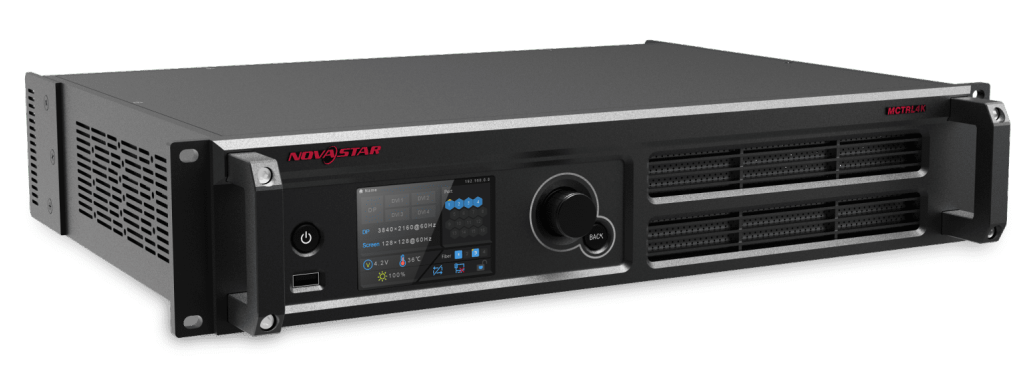

MCTRL4K*

The NovaStar MCTRL4K is a professional 4K LED display controller designed for driving ultra-high-resolution LED screens in rental, staging, broadcast, and fixed installation applications. With support for up to 8.8 million pixels, HDR, low-latency processing, and multiple input formats, it delivers exceptional image quality and reliable performance for demanding LED display systems.

From The Manufacturer

The MCTRL4K is an LED display controller with an ultra-large loading capacity developed by NovaStar. A single unit supports resolutions up to 4096 × 2160 @ 60 Hz and custom resolutions with a maximum width or height of 7680 pixels. It features HDR support, low-latency processing, pixel-level calibration, 3D capability, and advanced image optimization technologies to provide outstanding visual performance for professional LED display applications.

Key Features

• Supports up to 4096 × 2160 @ 60 Hz (8.8 million pixels)

• Custom resolutions up to 7680 pixels wide or high

• HDR10 and HLG support

• Ultra-low latency operation (less than 1 ms)

• 16 × Gigabit Ethernet outputs

• 4 × 10G optical fiber outputs

• HDMI 2.0, DisplayPort 1.2, and Dual-Link DVI inputs

• 8-bit, 10-bit, and 12-bit video processing

• Pixel-level brightness and chroma calibration

• 3D support with compatible NovaStar accessories

• Web interface for configuration

• Multi-controller cascading support

Specifications

• Product Type: LED Display Controller

• Maximum Loading Capacity: 8.8 Million Pixels

• Maximum Resolution: 4096 × 2160 @ 60 Hz

• Custom Resolution: Up to 7680 pixels (width or height)

• Video Inputs:

  • 1 × DisplayPort 1.2

  • 1 × HDMI 2.0

  • 2 × Dual-Link DVI

• Outputs:

  • 16 × Gigabit Ethernet (Neutrik)

  • 4 × 10G Optical Fiber

• Supported Bit Depths: 8-bit, 10-bit, 12-bit

• HDR Formats: HDR10, HLG

• 3D Support: Yes (with NovaStar EMT200)

• Configuration: Web Interface and NovaLCT Software

• Latency: Less than 1 ms

• Calibration: Pixel-level Brightness and Chroma Calibration

Included

• NovaStar MCTRL4K LED Display Controller

• Power cable

• User documentation

Applications

• Live events

• Concert touring

• Broadcast studios

• Corporate AV

• Houses of worship

• Sports venues

• Command and control centres

• Rental and staging

• Permanent LED installations

Included Accessories

• Power cable

• Documentation

Accessories (Not Included)

• NovaLCT software

• Receiving cards

• Fiber optic cables

• Ethernet cables

• EMT200 3D emitter

• LED display panels

Size

• Manufacturer specification not available

Weight

• Manufacturer specification not available

Electrical/Thermal

• Rack-mount controller

• AC mains powered

• Designed for continuous professional operation
