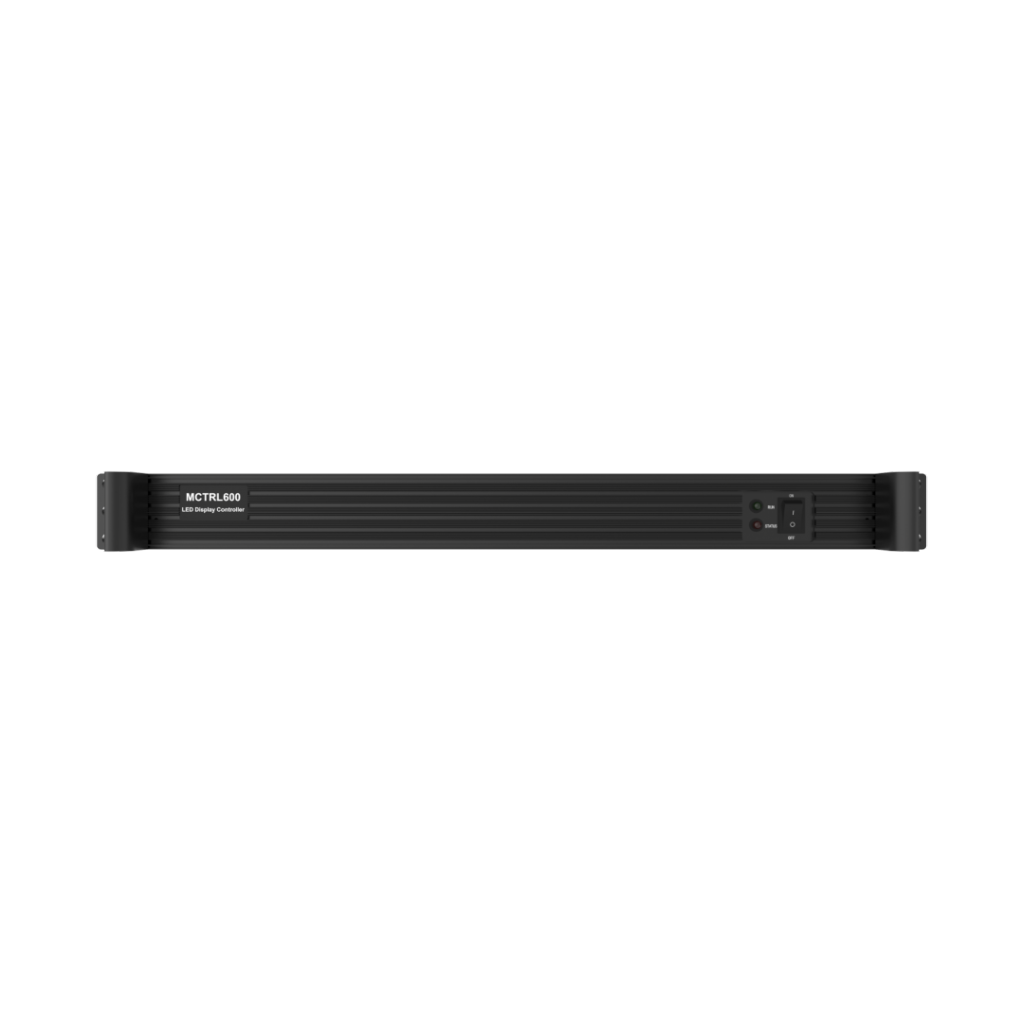

MCTRL600

The NovaStar MCTRL600 is a professional LED display controller designed for driving full-colour LED screens in rental, staging, broadcast, and fixed installation applications. Supporting resolutions up to 1920 × 1200 @ 60 Hz and a loading capacity of 2.3 million pixels, it delivers reliable image processing, flexible input options, and stable signal transmission for professional LED display systems.

From The Manufacturer

The MCTRL600 is an independent LED display controller developed by NovaStar with a single-unit loading capacity of 1920 × 1200 @ 60 Hz. It supports DVI video input and HDMI audio input while providing six Gigabit Ethernet outputs for connection to LED receiving cards. Designed for professional applications, it offers simple operation, stable performance, and excellent image quality for LED displays.

Key Features

• Independent LED display controller

• Maximum loading capacity of 2.3 million pixels

• Supports resolutions up to 1920 × 1200 @ 60 Hz

• 4 × Gigabit Ethernet outputs

• DVI video input

• HDMI video input

• USB control interface

• Light sensor connector for automatic brightness adjustment

• Cascading support for larger LED displays

• Compatible with NovaLCT configuration software

Specifications

• Product Type: LED Display Controller

• Maximum Loading Capacity: 2.3 Million Pixels

• Maximum Resolution: 1920 × 1200 @ 60 Hz

• Maximum Width: 4096 Pixels

• Maximum Height: 2560 Pixels

• Video Input: 1 × DVI

• Vidoe Input: 1 × HDMI

• Ethernet Outputs: 6 × Gigabit RJ45

• USB Port: USB Type-B

• Light Sensor Port: Yes

• Control Software: NovaLCT

• Power Supply: 100–240 VAC, 50/60 Hz

Included

• NovaStar MCTRL600 LED Controller

• IEC Power Cable

• USB Cable

• User Documentation

Applications

• LED video walls

• Rental and staging

• Concert touring

• Broadcast studios

• Houses of worship

• Corporate AV

• Digital signage

• Sports venues

Included Accessories

• IEC power cable

• USB cable

• User documentation

Accessories (Not Included)

• LED receiving cards

• Ethernet cables

• DVI video cable

• Flight case

• Light sensor

Size

• 482.6 × 250 × 50 mm (19 × 9.8 × 2.0 in)

Weight

• 2.9 kg

Electrical/Thermal

• Input Voltage: 100–240 VAC, 50/60 Hz

• Maximum Power Consumption: 16 W

• Designed for continuous professional operation

• Rack-mountable 1U chassis
