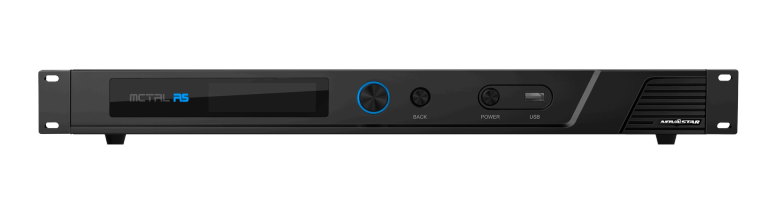

MCTRLR5

The NovaStar MCTRL R5 is a professional LED display controller designed for large and creatively configured LED screens. Supporting display rotation at any angle, a loading capacity up to 3840 × 1080 @ 60 Hz, multiple professional video inputs, eight Gigabit Ethernet outputs, and fibre connectivity, it is ideal for concerts, live events, sports venues, monitoring centres, and fixed LED installations.

From The Manufacturer:

The MCTRL R5 is the first LED display controller of NovaStar that supports display rotation. A single MCTRL R5 features a loading capacity of up to 3840 × 1080 @ 60 Hz.

It supports custom resolutions within this capacity, meeting the configuration requirements of ultra-long or ultra-wide LED displays. Working with compatible receiving cards, the MCTRL R5 supports free screen configuration in SmartLCT and allows the display to be rotated at any angle.

NovaStar recommends the MCTRL R5 primarily for rental and fixed applications including concerts, live events, monitoring centres and sports venues.

Key Features:

• LED display controller with free display rotation

• Loading capacity up to 3840 × 1080 @ 60 Hz

• Supports custom resolutions within its loading capacity

• 1 × HDMI 1.4 input

• 1 × Dual-Link DVI input

• 1 × 6G-SDI input

• 8 × Gigabit Ethernet outputs

• 2 × fibre-optic outputs

• Supports display rotation at any angle

• NovaStar G4 image engine

• Supports pixel-level calibration

• Quick manual screen brightness adjustment

• Front-panel USB firmware updates

• Supports cascading multiple controllers

• GENLOCK synchronization support

Specifications:

• Product Type: LED Display Controller

• Maximum Loading Capacity: 3840 × 1080 @ 60 Hz

• Pixel Capacity Per Input: Up to 4,140,000 Pixels

• HDMI Input: 1 × HDMI 1.4

• DVI Input: 1 × Dual-Link DVI

• SDI Input: 1 × 6G-SDI

• Ethernet Outputs: 8 × Neutrik Gigabit Ethernet

• Fibre Outputs: 2

• Control: Ethernet / USB

• GENLOCK: IN and LOOP

• Display Rotation: Any Angle

• Configuration Software: SmartLCT / NovaLCT

• Input Voltage: AC 100–240 V, 50/60 Hz

• Rated Power Consumption: 25 W

• Operating Temperature: -20°C to +60°C

• Operating Humidity: 10%–90% RH, Non-Condensing

Included:

• NovaStar MCTRL R5 LED Display Controller

• Suitcase

• Accessory Box

• Power Cord

• Ethernet Cable

• USB Cable

• HDMI Cable

• DP Cable

Applications:

• LED video walls

• Concerts and touring

• Live events

• Creative LED displays

• Sports venues

• Monitoring centres

• Rental and staging

• Fixed LED installations

Included Accessories:

• Suitcase

• Power cord

• Ethernet cable

• USB cable

• HDMI cable

• DP cable

Accessories (Not Included):

• LED receiving cards

• Fibre converters

• Fibre-optic cables

• Additional Ethernet cables

• LED display panels

Size:

• 482.6 × 334.6 × 52.0 mm

Weight:

• 4.3 kg

Electrical/Thermal:

• Input Voltage: AC 100–240 V, 50/60 Hz

• Rated Power Consumption: 25 W

• Operating Temperature: -20°C to +60°C

• Operating Humidity: 10%–90% RH, Non-Condensing
