ME 36

Condenser capsule head for MZH series gooseneck microphones (supercardioid/lobe pre-polarized).

From The Manufacturer:

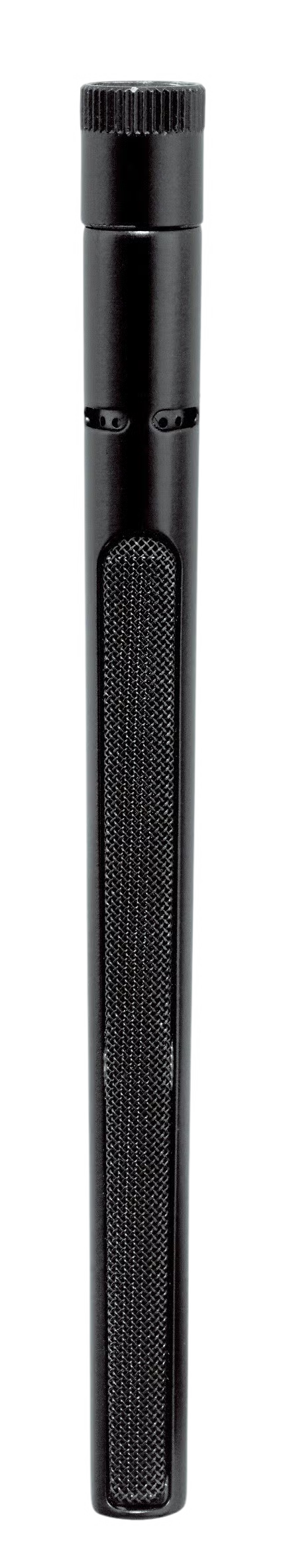

The ME 36 is a permanently polarized condenser microphone capsule for use with Sennheiser MZH goosenecks. This mini shotgun microphone features a hyper cardioid / lobar directivity for an outstanding background noise rejection. In combination with the 15 cm short gooseneck MZH 3015 it facilitates inconspicuous placement. The ME 36 is suitable for a very wide range of applications including: presentation, conference, public address, studio, broadcast, video and others.

Features:

• Highly directional mini shotgun for prominent voice reproduction

• Elegant, pure design for inconspicuous placement

• For use with Sennheiser MZH goosenecks

• Interference tube/capsule housing rotates for optimum alignment

• Corrosion resistant gold plated contact points

• Smooth response across all frequencies

System Specifications:

• Frequency response

• 40 – 20000 Hz

• Acoustic operating principle

• pressure gradient transducer/ interference tube transducer

• Pick-up pattern

• super-cardioid/lobar

• Sensitivity

• 18 mV/Pa

• Electrical impedance

• 50 Ω

• Min. terminating impedance

• 1 kΩ

• Equivalent noise level

• 34 dB (CCIR) 23 dB(A)

• Power supply via MZH

• P12 – P48

• Current consumption microphone

• 250 μA

• Dimensions

• ⌀ 8.2 x 96 mm

• Weight (without MZH)

• 17 g

• Connector

• special coax connector
