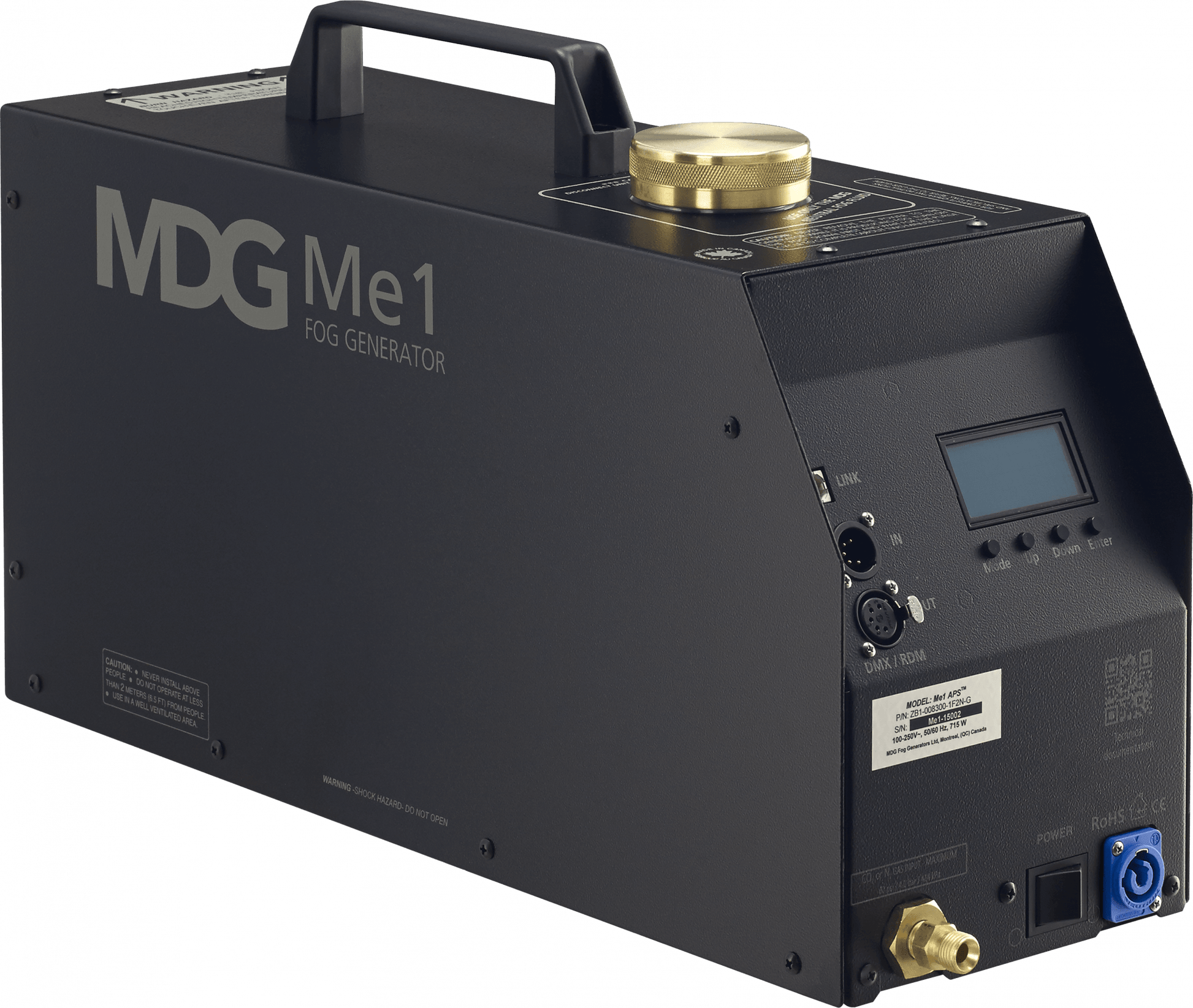

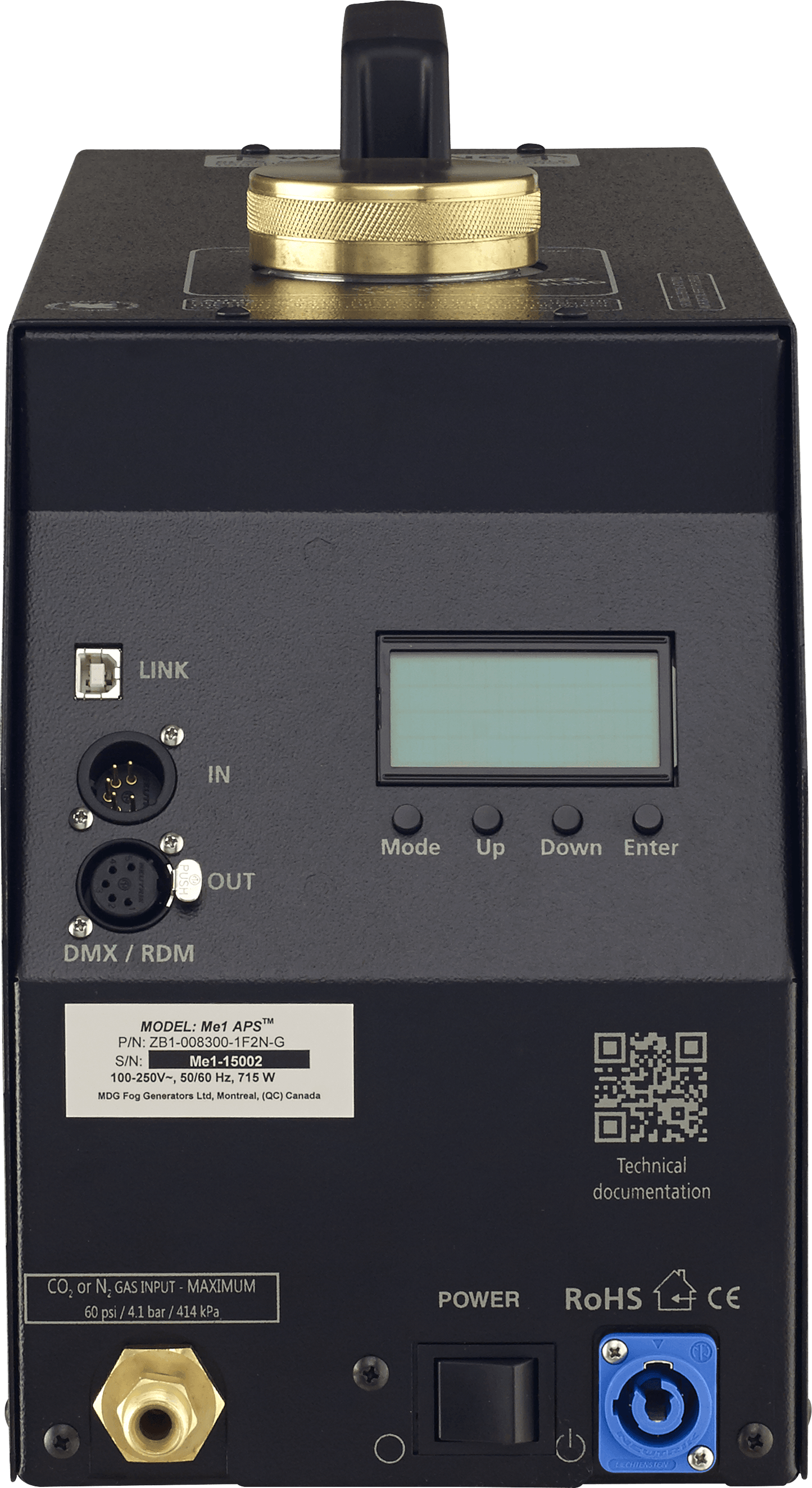

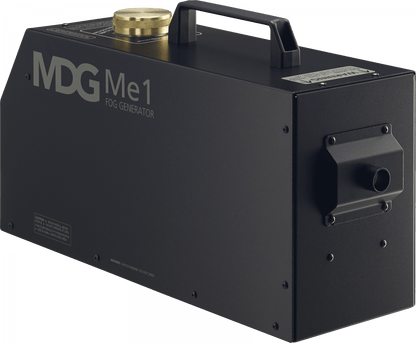

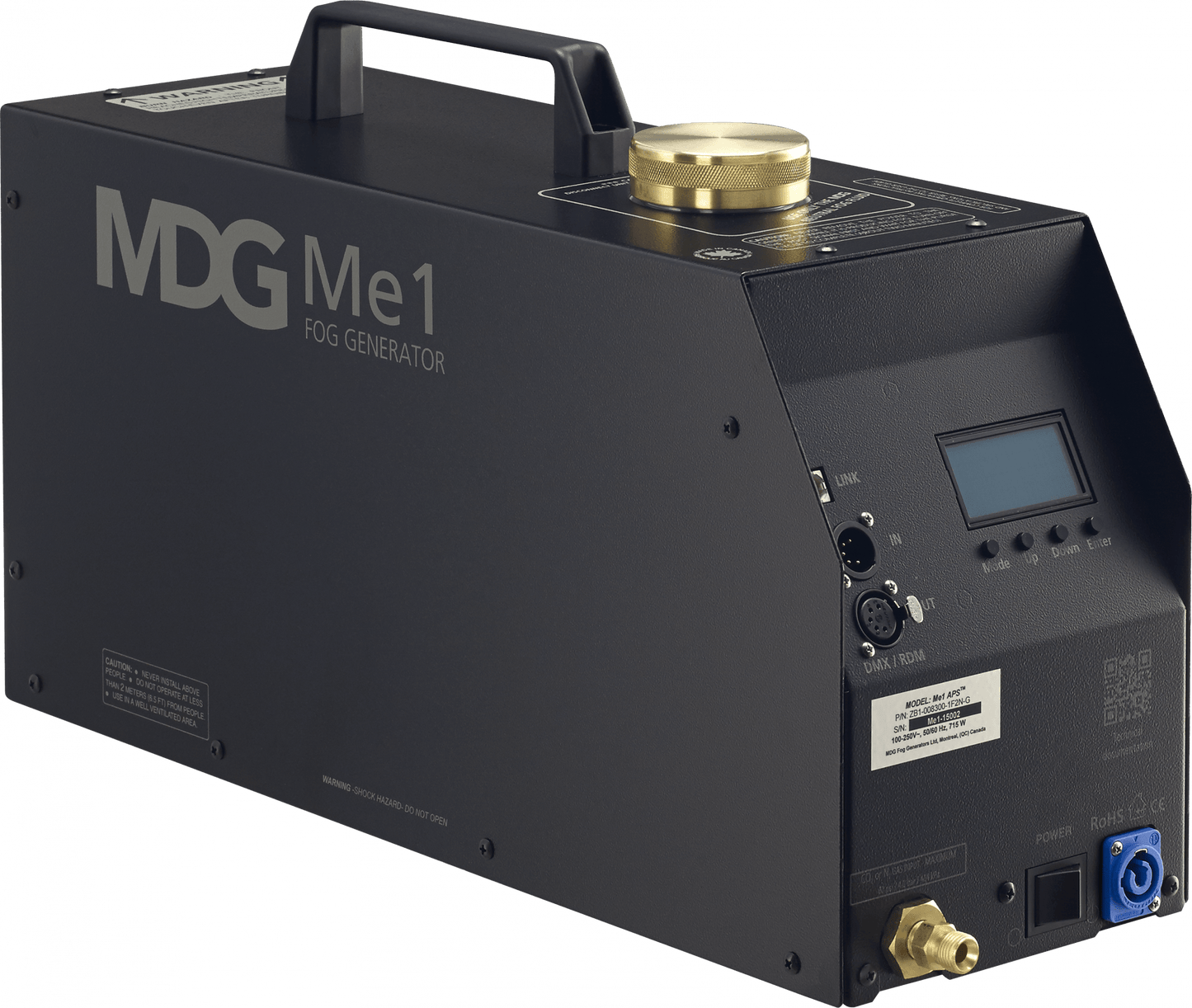

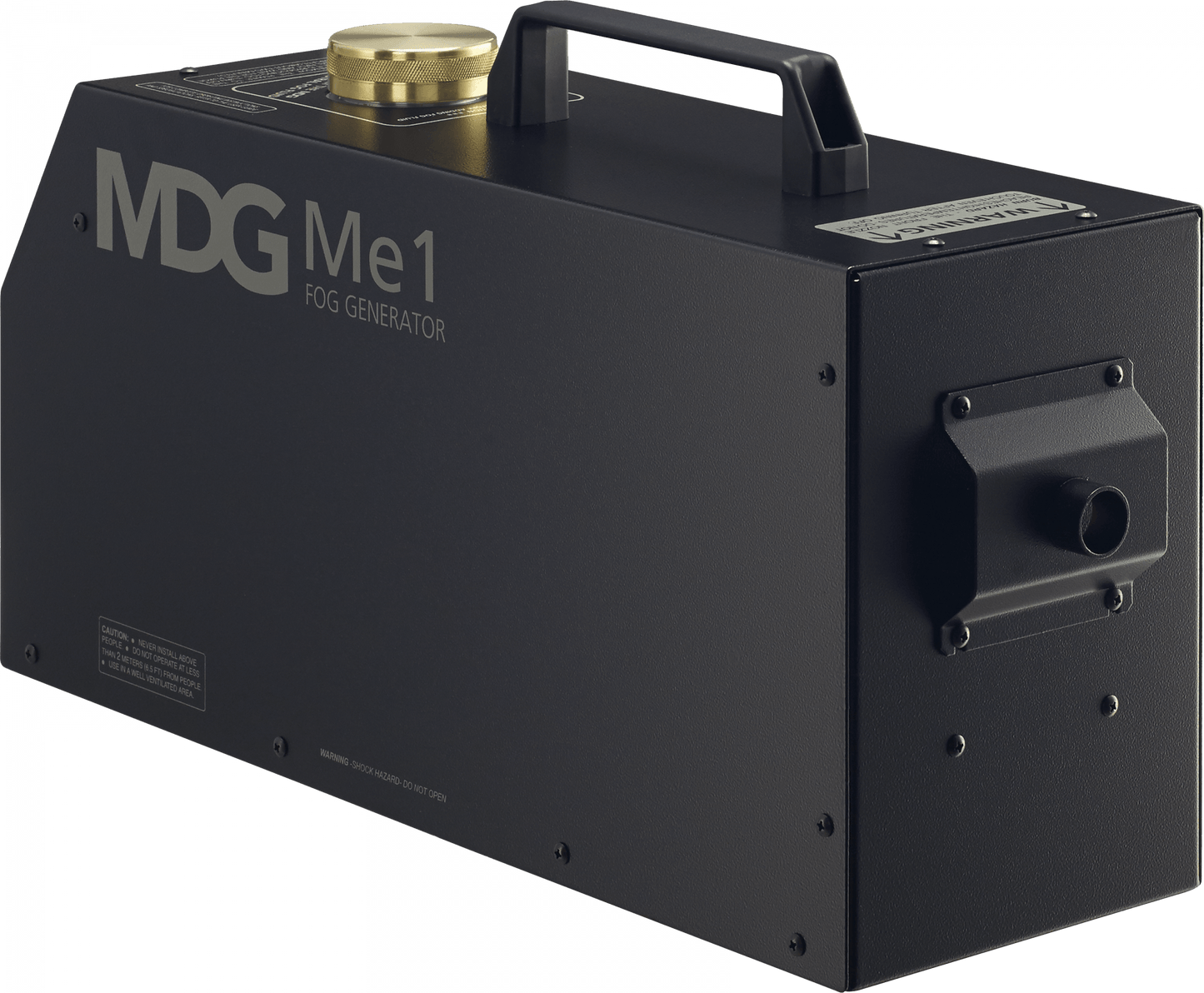

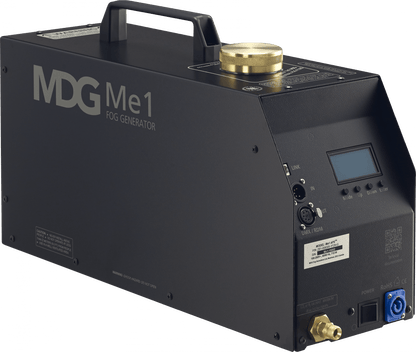

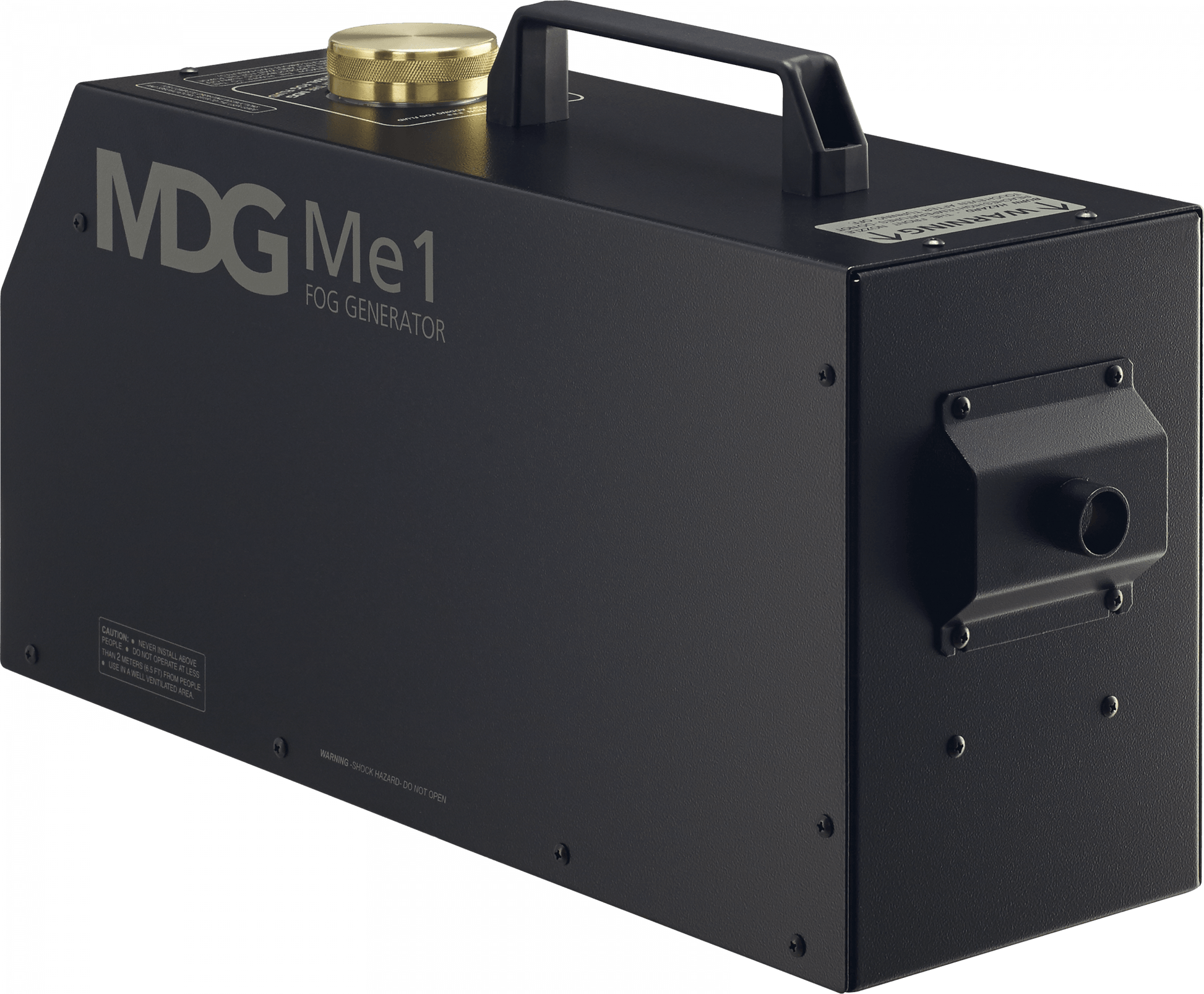

Me1, single high output fog generator

The MDG Me1 is a single-nozzle fog generator ideal for smaller venues.

From the Manufacturer:

MDG’s evolution of fog.

Me1 is the first and smallest in our powerful Me family of fog generators.

Features:

• Variable fog output: 0-100% fog output control from your DMX/RDM device, or direct local control.
• Second personality: MAX 3000APS configuration setting.
• Fluid consumption: At maximum output (2.76 bar / 40 psi) Me1 uses only 1 L (0.26 US gallon) of fluid per hour.
• Numerous control options: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
• 100% duty cycle: At all output levels Me1 produces a high-quality, consistent fog as long as there is fluid and gas.
• APS™ (Automatic Purging System): This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.
• Single fog output: With its single nozzle, the maximum fog output is 100 m3 (3,531 ft3) per minute.

Specifications:

• Maximum fog output: 100 m3 (3,531 ft3) per minute
• Fluid consumption: 1 L (30 oz / 0.26 US gallon) per hour at 2.76 bar / 40 psi
• Gas type: CO2 or N2
• Gas consumption: 1 kg (2.2 lb) per hour at 2.76 bar / 40 psi
• Control: 4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.
• Reservoir capacity: 2.5 L (0.66 US gallon)
• APS™ (Automatic Purging System): Standard
• Fog colour: Pure white
• Particle size: 0.5 - 0.7 microns
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Neutral
• Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
• Power consumption: 715 W

Dimensions

• Length: 61 cm (24”)
• Width: 18 cm (7”)
• Height: 30 cm (12”)
• Weight: 15.62 kg (35 lb)
• Shipping weight: 29.12 kg (64 lb) with flight case
• Approval: CB, CSA and UL Certified. CE Declaration
