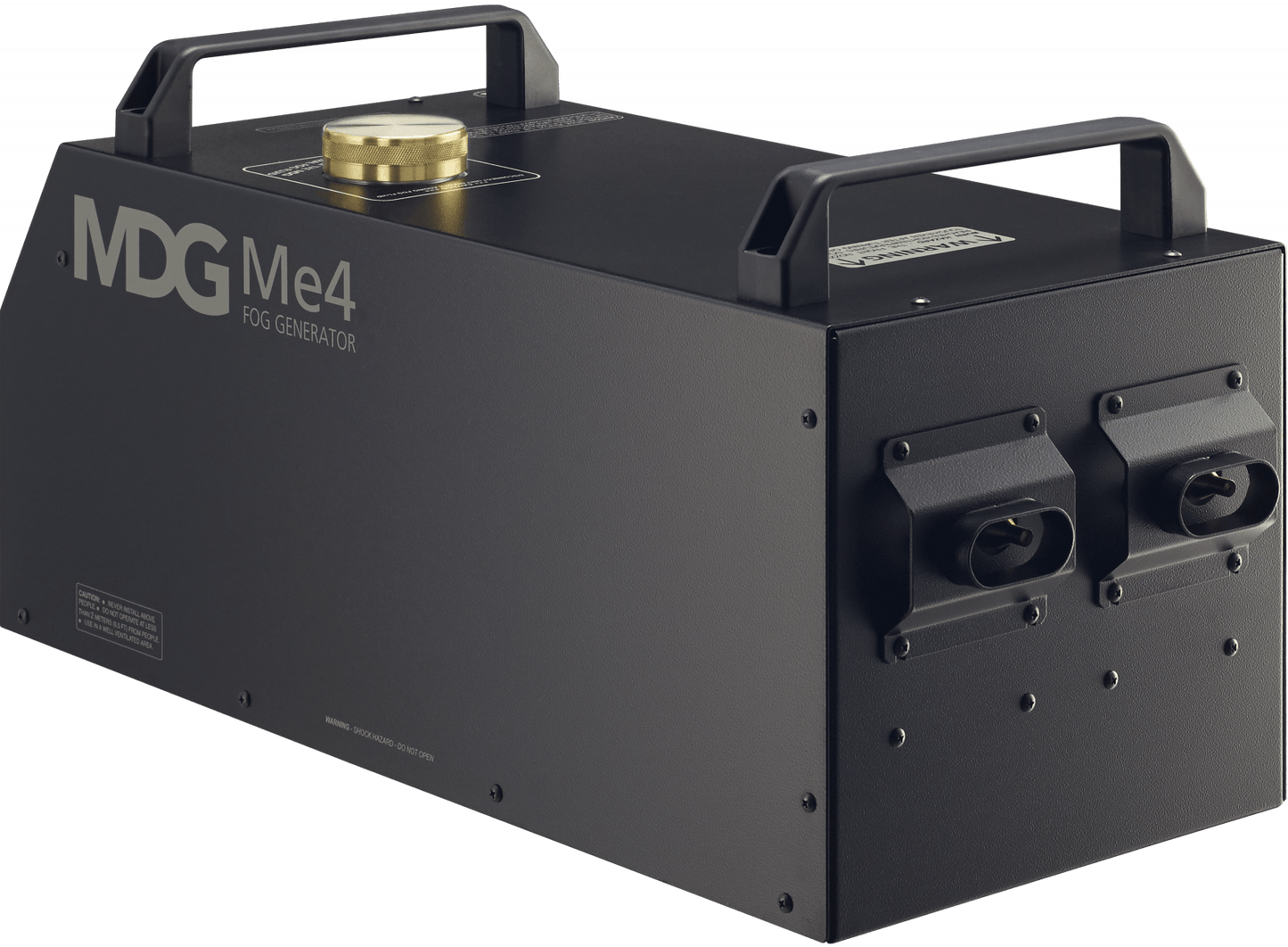

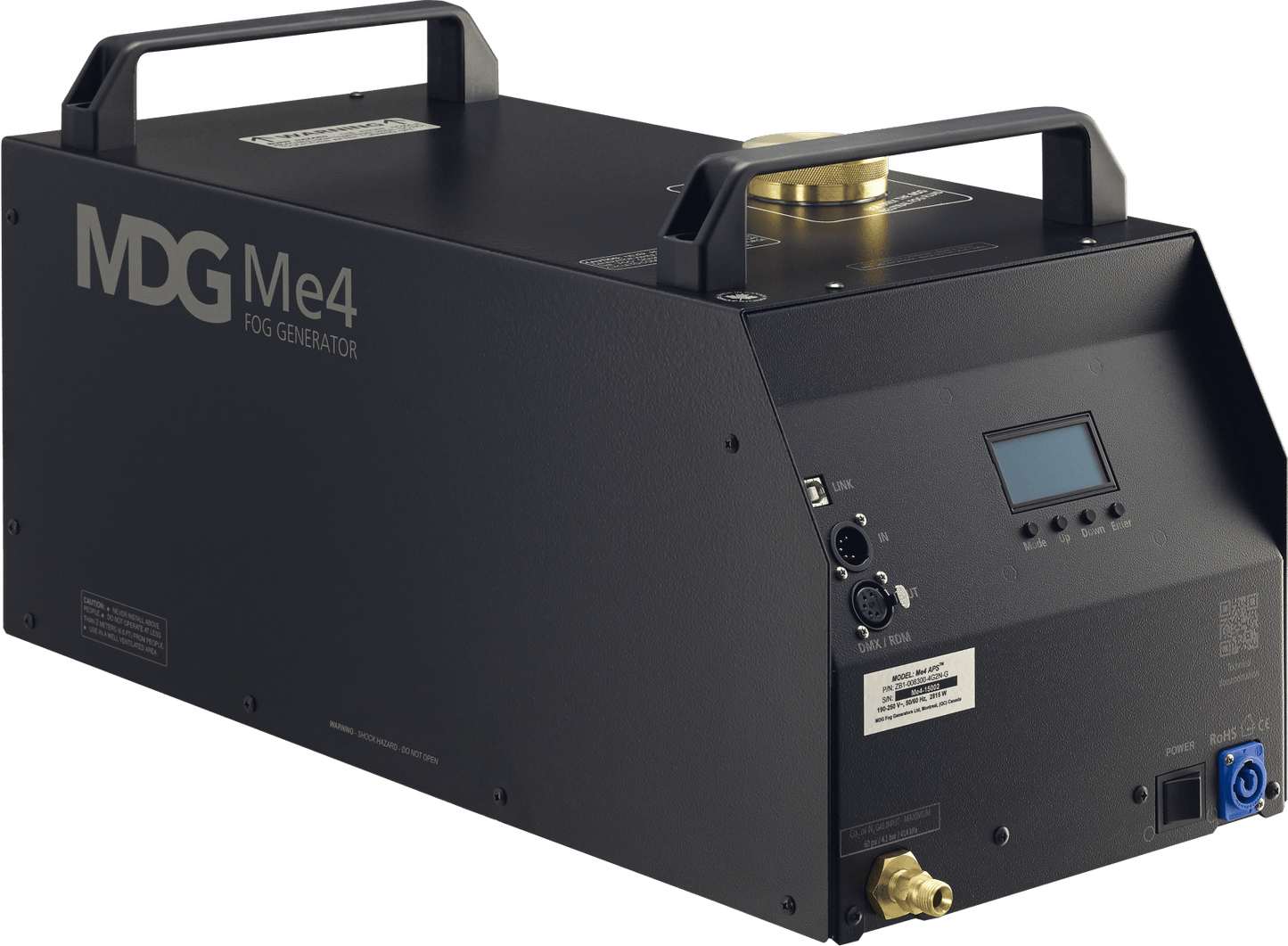

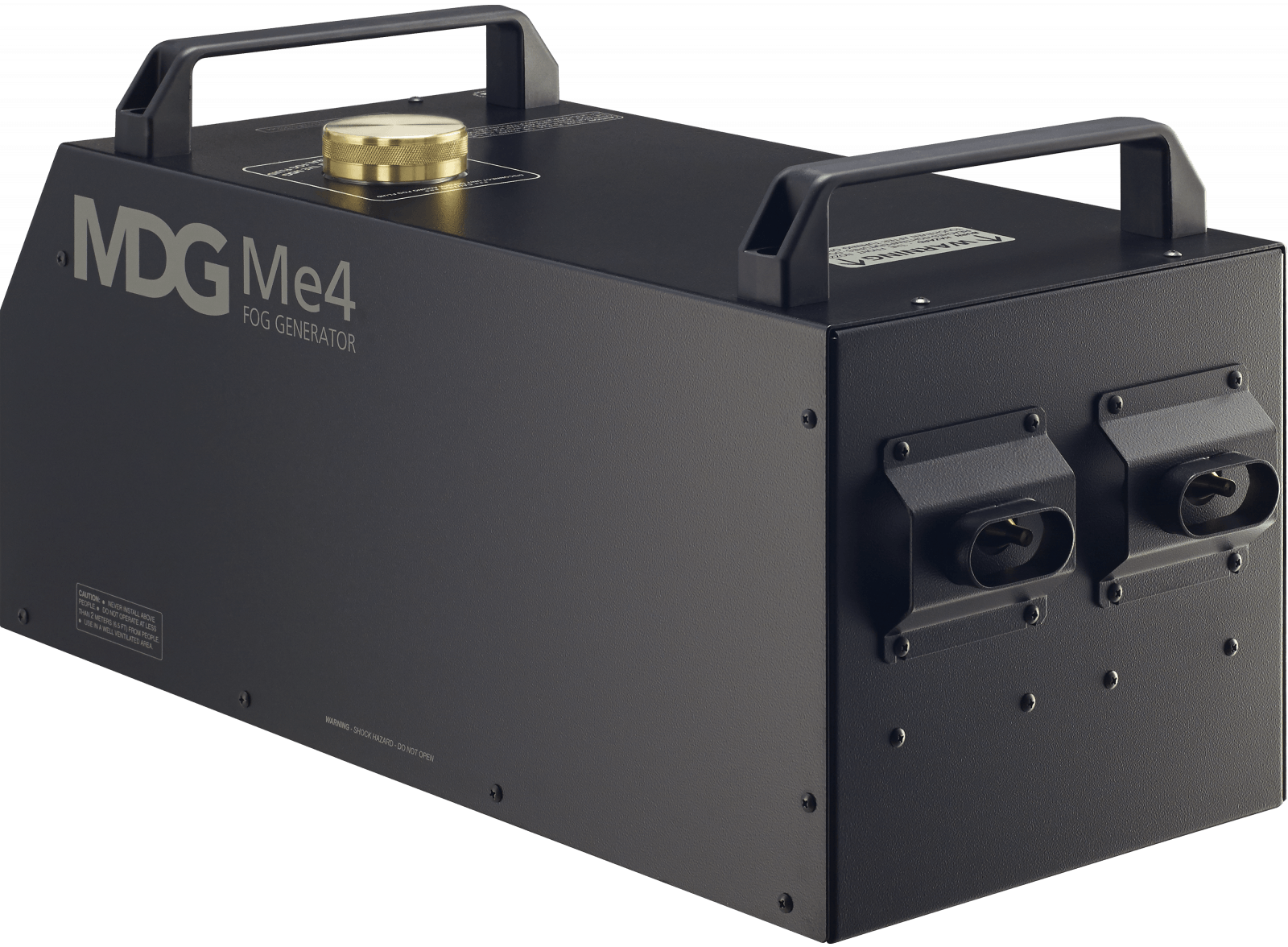

Me4, quad high output fog generator

The MDG Me4 is a powerful four-nozzle fog generator, for large venues that need high amounts of high-quality fog.

From the Manufacturer:

Bringing Me-power to the four.

The powerful Me4’s quadruple output is ideal when you need seriously high amounts of fog.

Features:

• Variable fog output: 0-100 % fog output control from your DMX/RDM device, or direct local control.
• Fluid consumption: At maximum output (2.76 bar / 40 psi) Me4 uses only 4 L (1.06 US gallon) of fluid per hour.
• 100% duty cycle: At all output levels Me4 produces a high-quality, consistent fog as long as there is fluid and gas.

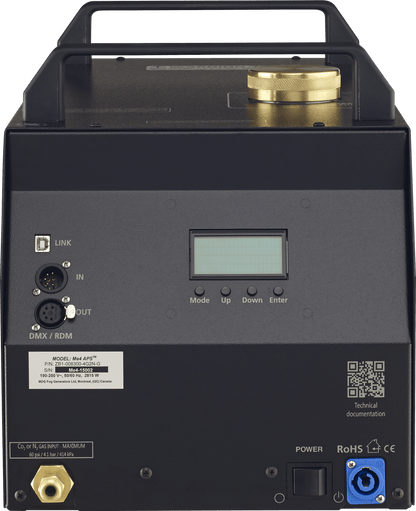

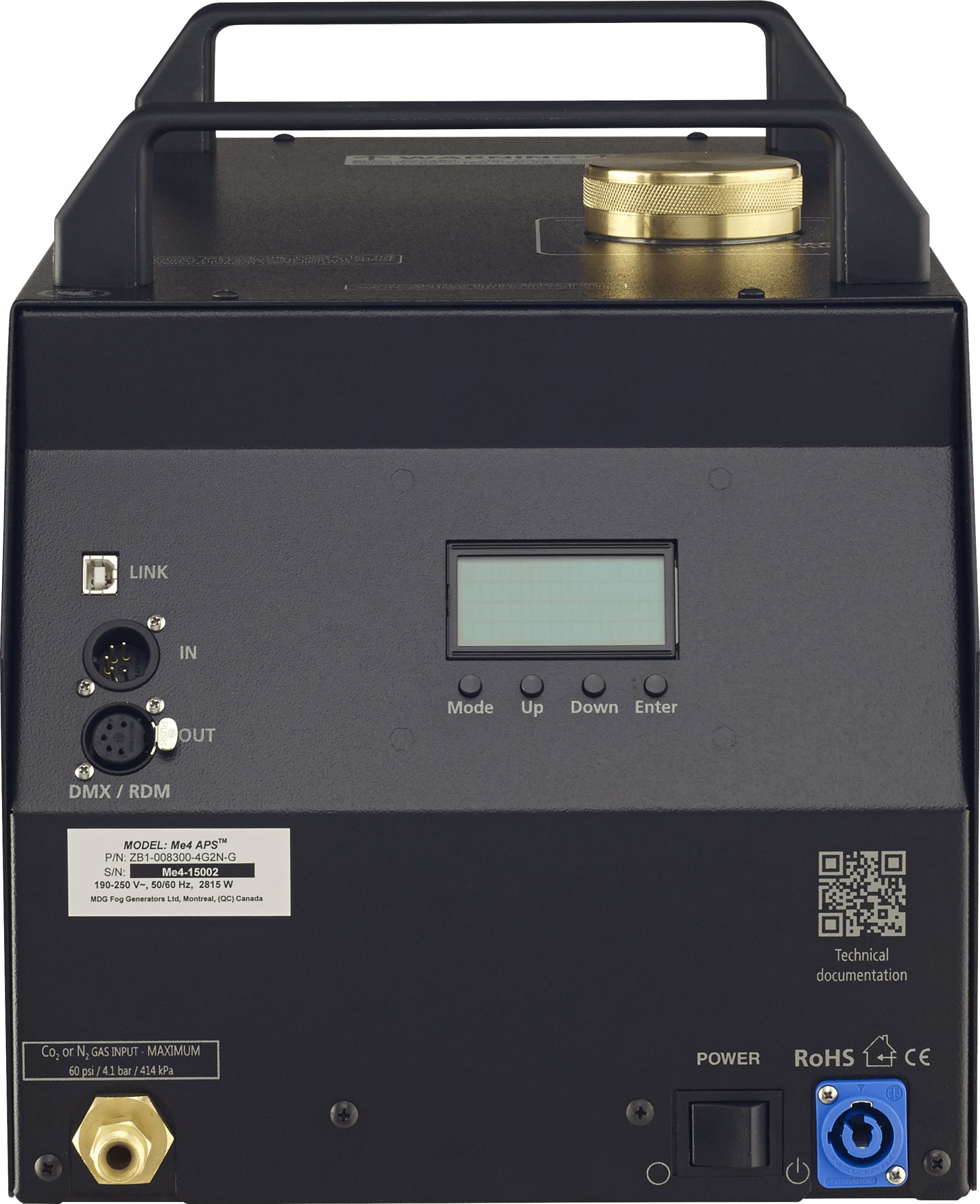

• Numerous control options: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
• APS™ (Automatic Purging System): This system purges the heating modules after the first heating cycle and after every emission of fog preventing residual build up and clogging.
• Quad fog output: With its four nozzles, the maximum fog output is 400 m3 (14,126 ft3) per minute.

Specifications:

• Maximum fog output: 400 m3 (14,126 ft3) per minute
• Fluid consumption: 4 L (1.06 US gallon) (per hour at 2.76 bar/40 psi)
• Gas type: N2
• Gas consumption: 3.4 kg (7.5 lb) per hour at 2.76 bar / 40 psi
• Control: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
• Reservoir capacity: 6.5 L (1.7 US gallon)
• APS™ (Automatic Purging System): Standard
• Fog colour: Pure white
• Particle size: 0.5 - 0.7 microns
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Neutral
• Operating voltage: 190 - 250 VAC, 50/60 Hz single phase
• Power consumption: 2,815 W

Dimensions

• Length: 68.5 cm (27”)
• Width: 28 cm (11”)
• Height: 30 cm (12”)
• Weight: 33 kg (72 lb)
• Shipping weight: 44 kg (97 lb) with flight case
• Approval: CB, CSA and UL Certified. CE Declaration
