Sku:
MEG045
Mega Bar RGBA EP
- Regular price
- $239.99
- Regular price
-
- Sale price
- $239.99
- Unit price
- per
Shipping calculated at checkout.
Vendor: Eliminator
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

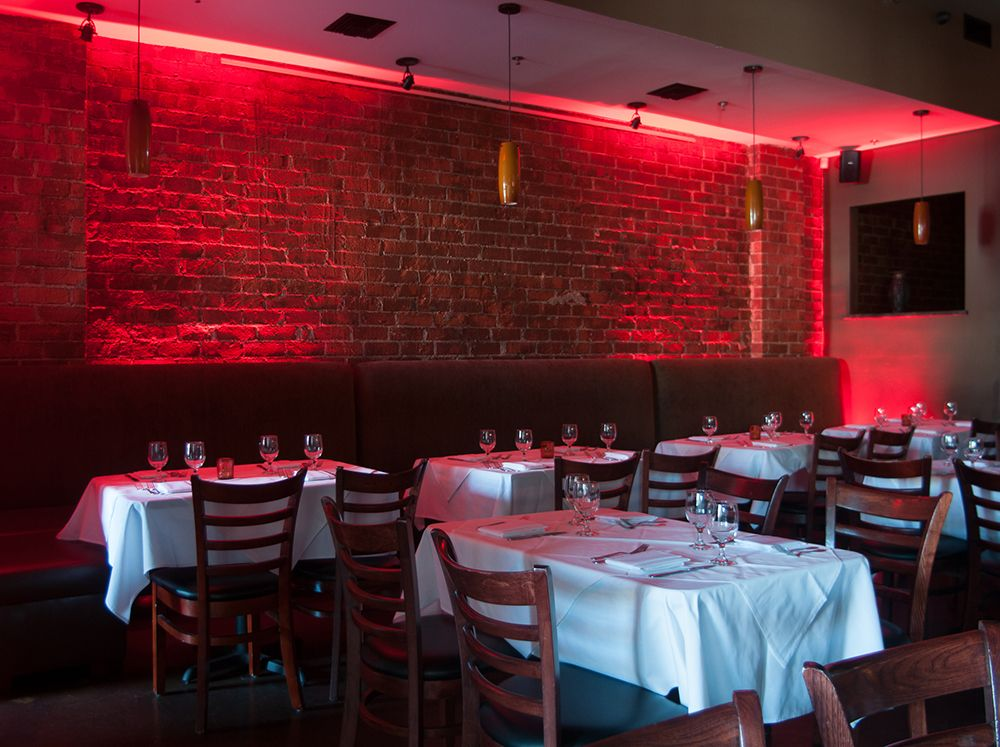

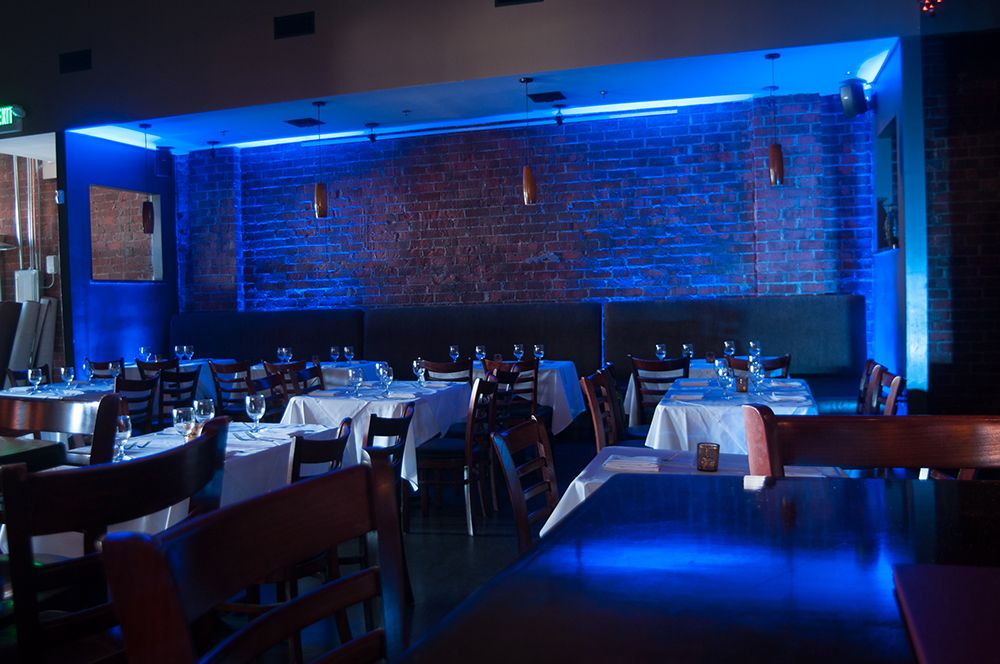

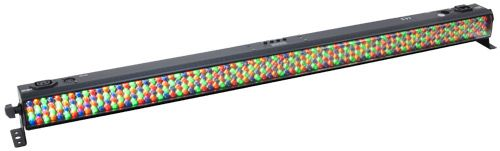

The Eliminator Lighting Mega Bar RGBA EP is a high quality, durable 42-inch RGBA LED linear fixture designed for high quality color mixing for stage or wall washing.
Source:
• 1-Meter (42-inch) indoor Linear Fixture with 320, 10mm RGBA LEDs (64 Red, 96 Green, 96 Blue & 64 Amber)
• Beam angle: 30-degree
• Long life LED (Rated at 50,000 hrs.)
• Light output: 650 LUX @ 2M; 275 LUX @ 4M (30-degree beam)
Effects:
• Variable RGBA color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
• 48 built-in Color Macros
• LED pulse & strobe effect
• Flicker Free
• Refresh Rate: 410Hz
• Electronic Dimming: 0 - 100%
Control:

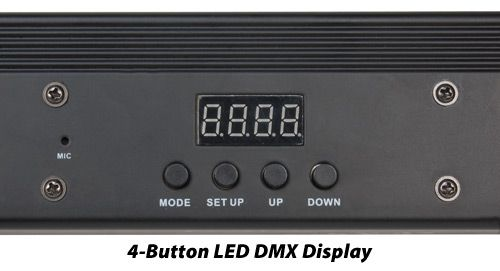

• 4-button LED display on rear panel
• 7 DMX Channel modes: 4, 6, 7, 9, 10, 18 or 34 channel modes
• 6 Operational modes: Manual Color Mode; Static Color Change Mode; Auto (Program Run) Mode; Sound Active Mode; RGBA Manual Control Mode and DMX-512 Mode
• DMX-512 Protocol
• Compatible with ADJ RFC wireless remote control (sold separately)
Connections:

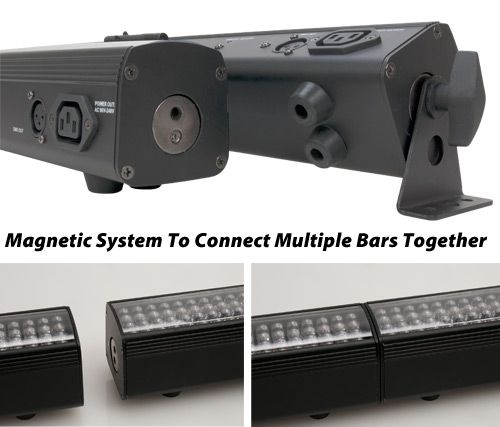

• Magnetic End Caps Designed to Ensure the Precise Alignment of Multiple Bars
• 3-pin DMX Input/Output
• IEC In/Out AC outlets on rear to daisy chain power (up to 20 units)
• With Wired Digital Communication Network
Electrical:
• Multi-voltage: 100-240V, 50/60Hz
• Power Draw: 32W max
Dimensions / Weight:
• Dimensions (LxWxH): 41.75” x 3” x 5.75” / 1060 x 73 x 145mm
• Weight: 6 lbs. / 2.7 kg.
What’s Included:
• Includes mounting brackets to mount on a wall or set on the ground
• Power cable length: 1.8 meter (IEC)
Tech Specs
Optics:
Light Source Type: RGBA LEDs (64 Red, 96 Green, 96 Blue & 64 Amber)
Minimum Beam Angle: 30.0°
Maximum Beam Angle: 30.0°
Control
DMX Channel Modes: 4, 6, 7, 9, 10, 18 or 34
DMX 3-Pin Connectors?: Yes
Physical:
Length: 41.75 in
Width: 3 in
Height: 5.75 in
Weight: 6 lb
Electrical
Voltage Range: AC 100V-240V 50/60Hz
Maximum Wattage: 32w
Power Cable Connector - Fixture Side: PowerCON
Main Power Connector on Included Cable: Edison
