Sku: MAB

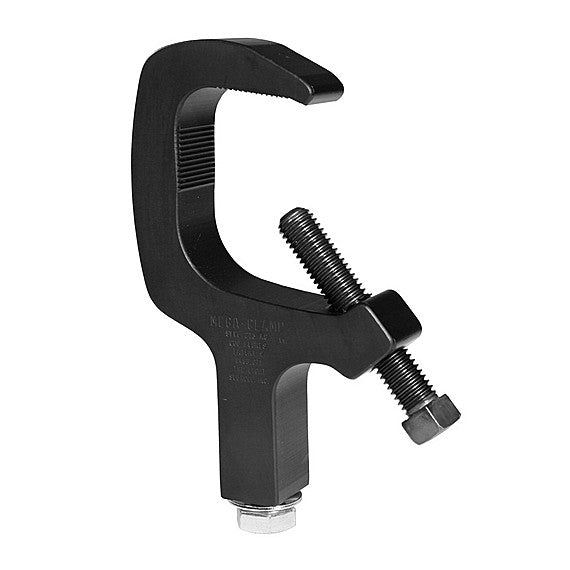

Mega-Clamp (Black)

Regular price
$14.29
Regular price
Sale price
$14.29
Shipping calculated at checkout.
Vendor: The Light Source

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The world’s standard theatrical lighting C clamp, the Mega-Clamp, is created from high tensile, aircraft grade, extruded aluminum. The Mega-Clamp’s 600 pound design load is twice as strong as most cast iron clamps.

In 1993, the Mega-Clamp was introduced to the industry. Microgrooves on the one-piece solid clamp body grip the pipe securely, preventing the fixture from rocking. With 600 lbs. of spring load when compressed, the Belleville spring washer keeps the fixture from drifting after small pan adjustments are made. Usually a wrench is not needed to tighten the pan bolt after minor adjustments.

The Mega-Clamp fits from 1” pipe to 2” pipe (1-1/4” OD tube to 2.5” OD tube).

In the Box:

  • (1) Mega-Clamp (Black)

     Features:

    • Min. Pipe Size: 1" pipe, 1.315" OD
    • Max Pipe Size: 2" pipe, 2.5" OD
    • Working Load Limit: 600 lb 273 kg

    Tech Specs

    Physical:

    Length: 5.88 in

    Width: 3.68 in

    Height: 1 in

    Weight: 0.85 lb
