Mega Flat PAK8 EP

The Eliminator Lighting Mega Flat Pak EP is an entry level lighting par kit made for mobile entertainers. This kit is a simple and easy to use solution to add uplighting. backlighting or front lighting to your stage.

From the Manufacturer:

The Eliminator Lighting Mega Flat Pak EP is a convenient solution for the mobile entertainer to provide uplighting or mobile stage at any event.

Details:

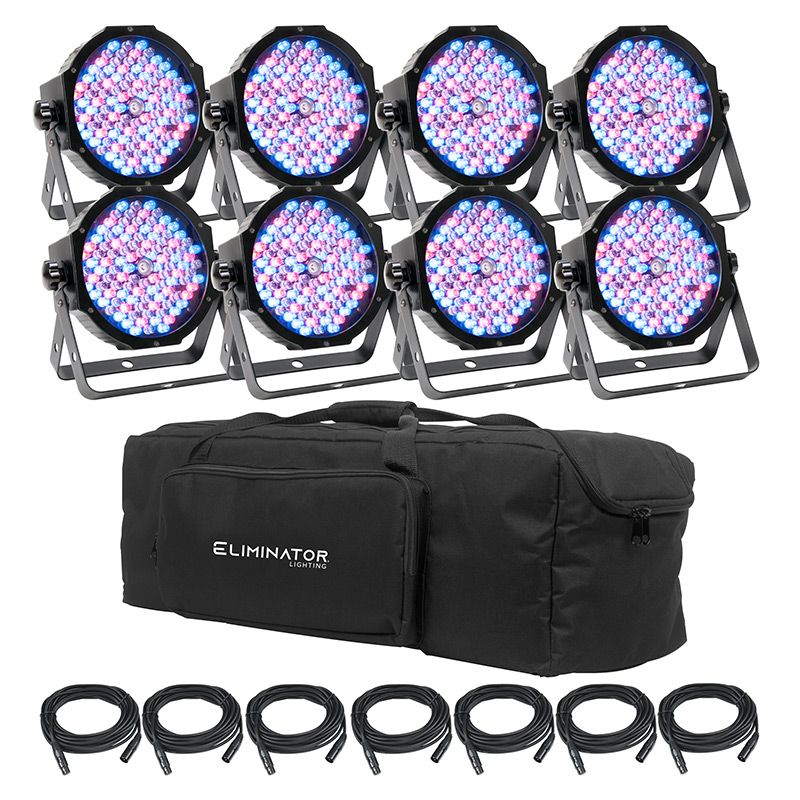

The Eliminator Lighting Mega Flat Pak EP is a convenient solution for the mobile entertainer to provide uplighting or mobile stage at any event It includes eight (8) of the popular Eliminator Lighting Mega Par Profile EP LED Wash Fixtures, (8) IEC to Edison power cables and a soft carrying case to protect your Mega Par Profile EP’s during transport and dust-free while storing.

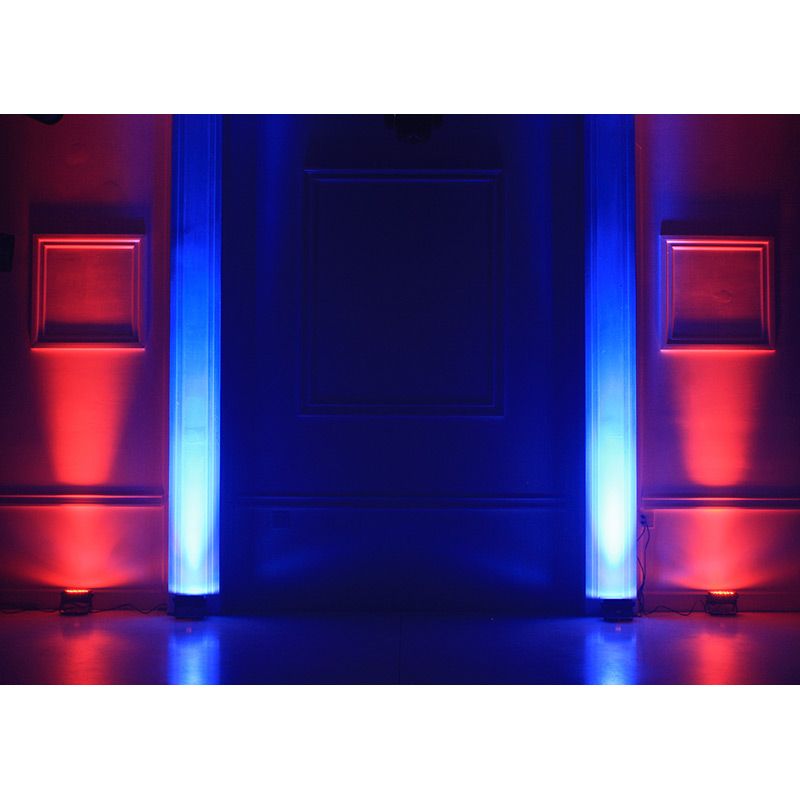

The Mega Flat Pak EP slim design and vibrant RGB + UV output is perfect for Uplighting, stage washing and wall washing. The carrying case easily fits four Mega Par Profile Plus’s and the DMX cables, plus a space for a small LED Controller (controller sold separately).

Features:

• Smooth RGB+UV Color Mixing (fast or slow color change operation)

• Power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• Display Inversion Mode

• Color strobe effect

• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)

Specifications:

• Source

• 107x 10mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED)

• Light output: 345 LUX @ 2M; 92 LUX @ 4M (30-degree beam)

• Beam Angle: 30 degrees

• Long Life LEDs (50,000 hrs.)

• Control

• 5 DMX Channel modes: 4/5/6/9/10 channels

• • 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, & DMX Controlled

• • 16 Sound Active shows

• • 32 Built-in shows (16 Color Changing Shows & 16 Color Fading Shows)

• • 64 built-in Color Macros

• • Stand Alone or Primary/Secondary Configuration

• • 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)

• • With Wired Digital Communication Network

• • Electronic Dimming: 0-100%

• • 4-button function display

•


• Connections

• 3-pin DMX In/Out

• IEC AC IN/OUT on rear to daisy chain power (up to 33 @ 120V and 60 @ 230V)

• Electrical

• Multi-voltage Operation: AC 100 - 240V, 50/60Hz

• Power Draw: 16W Max

• Dimensions

• Dimensions (LxWxH): 9”x 8.75”x 3.5”/ 225x220x85mm

• Weight

• Weight: 3 lbs./ 1.1 kg

What’s Included:

• Includes scissor yoke to hang on truss, mount on a wall or set on the ground

• Power cable length: 1.8 meter (IEC)
