Sku: MC2051

MEGA Node 8

Regular price
$899.00
Regular price
Sale price
$899.00
Shipping calculated at checkout.
Vendor: Mega Lite

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

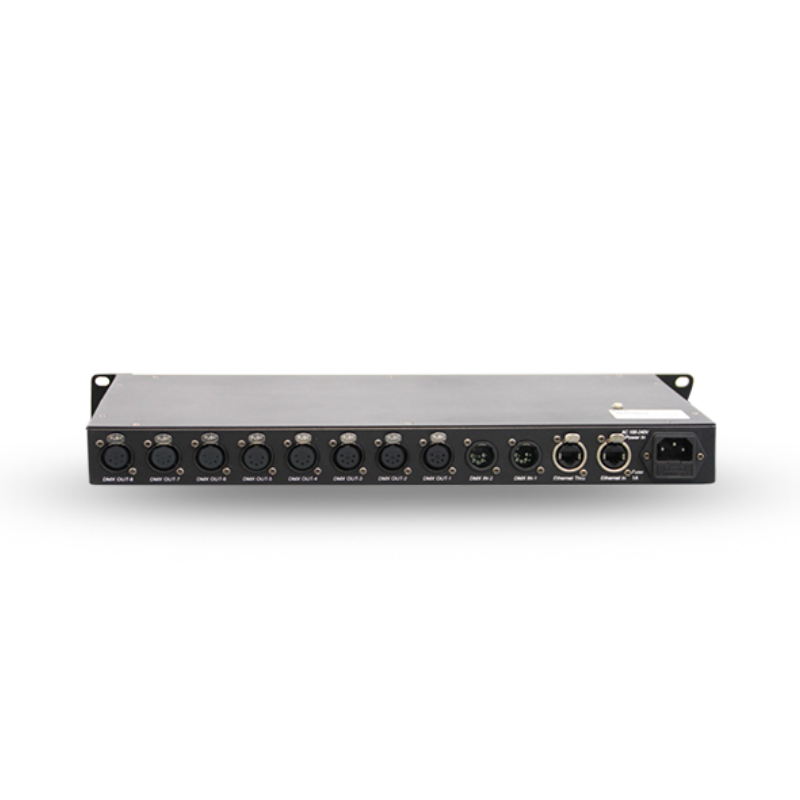

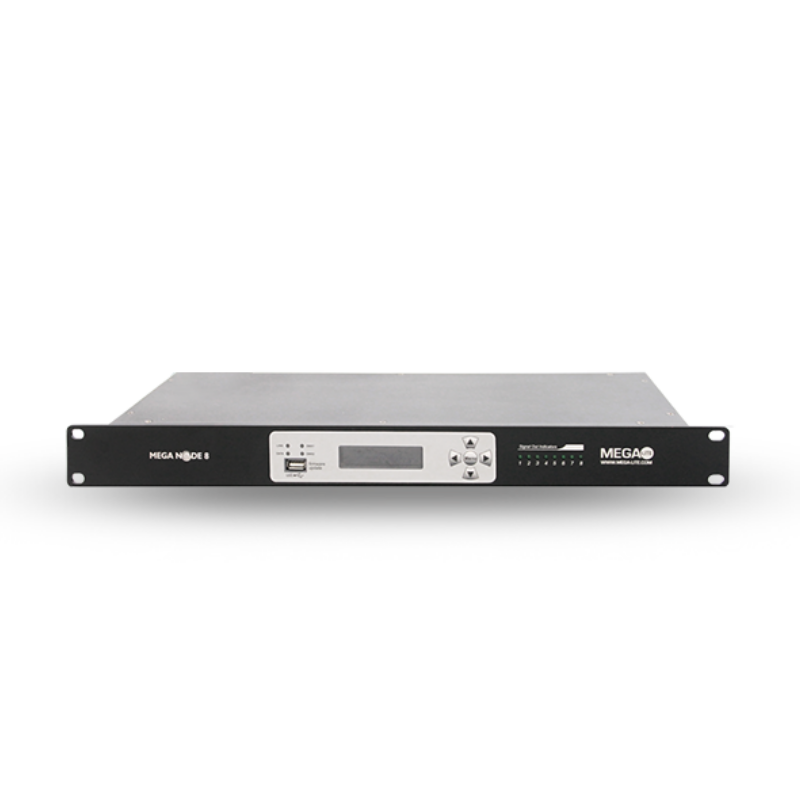

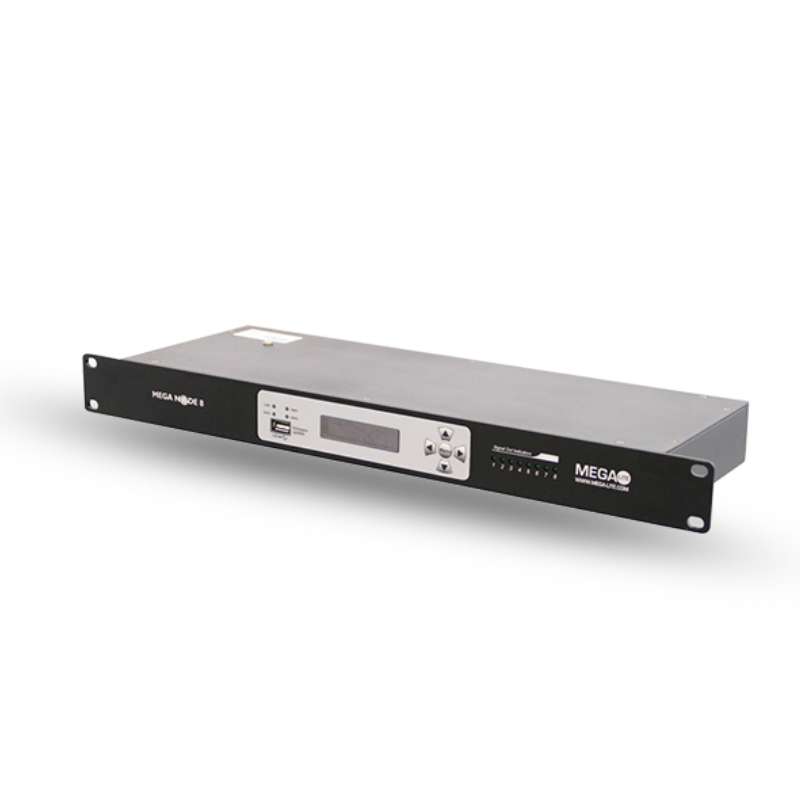

A basic, no-nonsense eight port Art-Net rack mountable DMX interface.

The MEGA Node 8 is a versatile ArtNet to DMX adapter designed to expand DMX networks. Each node converts Ethernet data into 8 universes of DMX signal. Pair one or more nodes with Enlighten, Disco, or Lumen8 products to add up to 24 additional universes and give yourself better control over your setup.

In the Box:

  • (1) MEGA Node 8
  • (1) Power Cable

Features:

  • Power input: AC 110-240V 50-60Hz
  • Data Inputs: EtherCon & 3 Pin XLR In (or 5 Pin)
  • Data Outputs: (8) DMX Outputs (3-Pin or 5-Pin XLR) with LED signal indicator
  • Connectors: 2 RJ45 TCP/IP 10/100M Ethernet Connectors
  • Signal Conversion: ArtNet to DMX Signal Conversion
  • LCD Display



Tech Specs

Control

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: Yes

Electrical

Voltage Range: 100-240

Maximum Wattage: 6w

Power Cable Connector - Fixture Side: IEC

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 1 year
