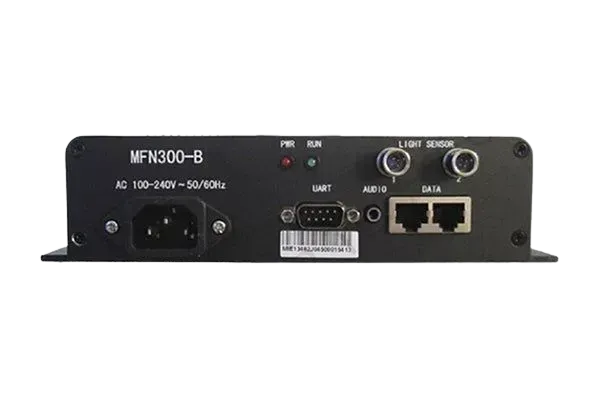

MFN300B

The NovaStar MFN300-B is a multifunction control box designed to enhance the monitoring and management capabilities of NovaStar LED display systems. It provides environmental monitoring, power control, automatic brightness adjustment, and timer functions, making it an ideal solution for professional LED installations and digital signage applications.

From The Manufacturer:

The MFN300-B Multifunction Box offers RS-232 serial or Gigabit Ethernet communication with support for two receiving cards. It integrates a timer function, replacing a timer and delayer, while providing reliable environmental detection including temperature and humidity monitoring, eight-way power switch control, four-way light sensor connectivity for automatic brightness adjustment, and audio output support.

Key Features:

• Supports communication via RS-232 or Gigabit Ethernet

• Connects to two NovaStar receiving cards

• Integrated timer function

• Eight-way power switch control

• Four-way ambient light sensor inputs

• Temperature and humidity monitoring

• Audio output support

• Automatic screen brightness adjustment

• Desktop enclosure design

• Designed for NovaStar LED display systems

Specifications:

• Product Type: Multifunction Box

• Communication: RS-232 Serial, Gigabit Ethernet

• Receiving Card Support: Up to 2

• Power Switch Control: 8 Channels

• Ambient Light Sensor Inputs: 4

• Environmental Monitoring: Temperature and Humidity

• Rated Voltage: 4.5–5.5 VDC (5 V Typical)

• Rated Current: 0.38 A (Typical)

• Control Voltage: Up to 250 V

• Operating Temperature: -20°C to 75°C

• Operating Humidity: 0–99%

• Enclosure: Desktop Box

Included:

• NovaStar MFN300-B Multifunction Box

• Power Cord

• Signal Cable

• User Documentation

Applications:

• LED video wall installations

• Digital signage

• Control rooms

• Broadcast studios

• Houses of worship

• Rental and staging

• Corporate AV

• Sports venues

Included Accessories:

• Power cord

• Signal cable

• Documentation

Accessories (Not Included)

• NovaStar receiving cards

• Ambient light sensors

• Temperature and humidity sensors

• Ethernet cables

• LED display controller

Size:

• 280 × 163 × 48 mm (11 × 6.4 × 1.9 in)

Weight:

• 1.15 kg (2.54 lb)

Electrical/Thermal:

• Operating Voltage: 4.5–5.5 VDC (5 V Typical)

• Rated Current: 0.38 A

• Power Control Voltage: Up to 250 V

• Operating Temperature: -20°C to 75°C

• Operating Humidity: 0–99%
