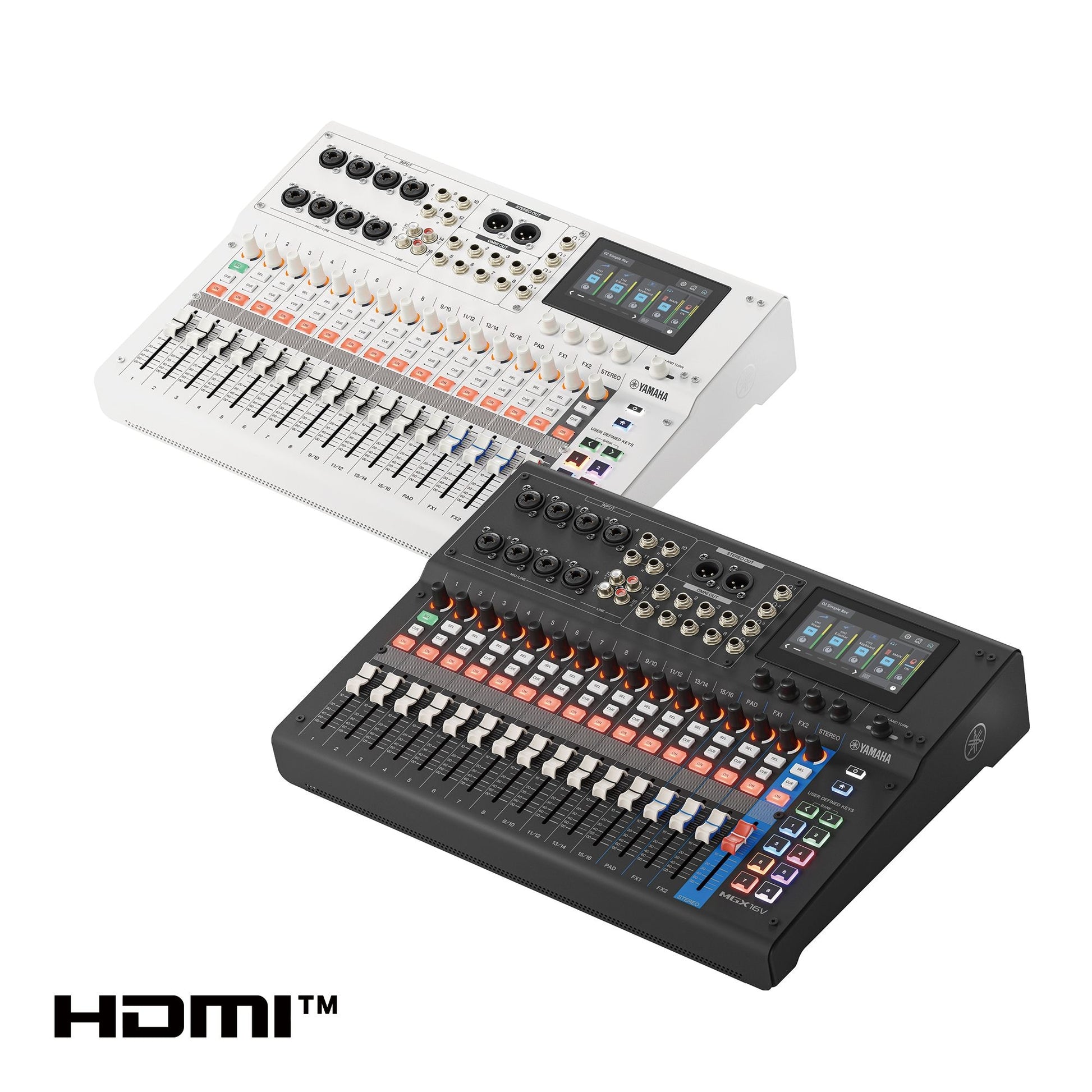

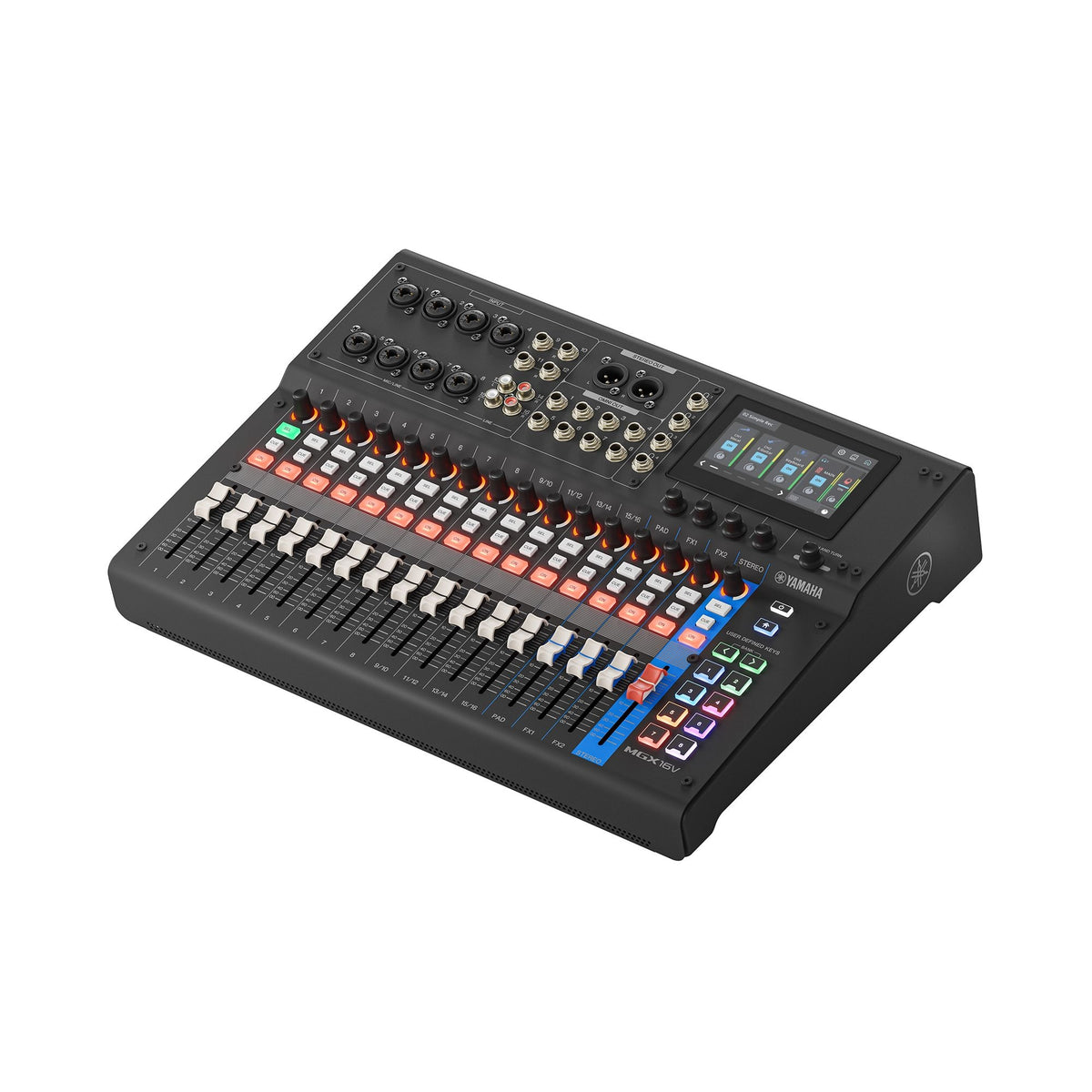

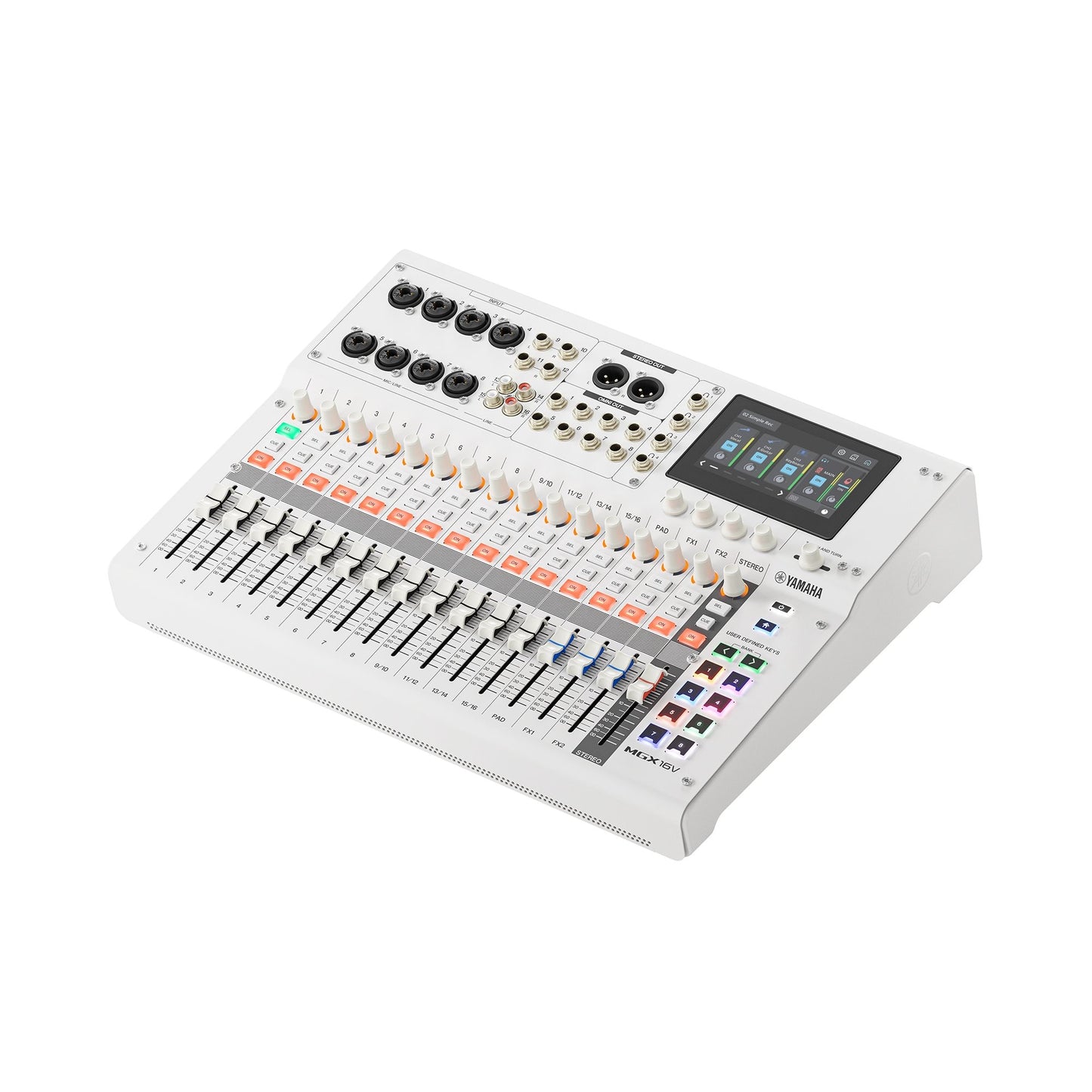

MGX16V

The Yamaha MGX16V is a 22-channel digital mixing console with a built-in HDMI-USB audio/video interface, offering versatile capabilities for live sound, installed sound, podcasting, streaming, and recording applications.

From the Manufacturer

Building on the legacy of the Yamaha MG series—already established as a global standard in mixing consoles—MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.

In addition to the essential features and versatility you expect from a professional mixer, the MGX16V also integrates an HDMI-USB audio/video interface with capture and pass-through functionality. This enables users not only to mix and output audio in a variety of ways, but also to simultaneously capture video to a PC and record or stream it together with the audio.

For musicians, sound engineers, producers, as well as artists, streamers and content creators, the ability to seamlessly integrate high-definition video into their workflow opens up new creative possibilities in a wider range of environments. In any application that involves content with both audio and video, the MGX16V will elevate your production quality and captivate your audience.

Features

• 8 premium-quality MGX mic preamps on Mic/Line combo inputs, along with 8 Line inputs, 2 XLR outs, 8 TRS OMNI outs, and 4 headphone ports for smooth collaboration and versatile monitoring
• Extensive mixing capacity with 8 mono channels, 4 stereo channels, a dedicated Sound Pad, and 2 FX channels, supported by a bus architecture comprising 8 MIX buses, 2 FX buses, 1 CUE bus, and 1 STEREO bus
• Yamaha “True Sound” philosophy and high-performance AD/DA converters deliver an 86 dB gain range with ultra-low distortion and a 125 dB dynamic range at stereo output
• Onboard creative tools including Gate, Compressor, EQ, Reverb, Amp Simulators, and Voice Changer for shaping your signature sound
• Impressively low weight of just 10.8 lbs through meticulous engineering and careful material selection, without compromising rugged durability
• Optimized Integration: dual MAIN/SUB USB ports with flexible routing — USB MAIN: 22-track recording/22-track playback; USB SUB: 2-track recording/2-track playback
• Convenient Bluetooth audio input for easily bringing wireless audio sources into live performances, streaming, and studio sessions
• Eight customizable pads for real-time sound effects that also function as user-defined keys
• microSD multi-track recording — record up to 16 tracks of audio and play back 2 tracks directly from a microSD card
• Fast, intuitive control via a core mixer section with sixteen 60 mm faders and send knobs, a feature-packed touchscreen GUI, four customizable knobs, and the TOUCH AND TURN knob
• Intelligent assistive tools: Auto Gain, Clip Safe, Total FX (including Ducker and Multi-Band Compressor), and Delay for lip-sync adjustment
• Scene Recall function for switching instantly between setups or applications, pairable with Simple Mode for extra support
• Customizable user-defined keys (eight pads, four knobs) with assignments manageable across four banks
• Built-in HDMI-USB audio/video interface with capture and pass-through functionality — Capture: 4K/60fps, 1080p/240fps; Pass-through: 4K/60fps, 1080p/240fps
• Bundled with a complete suite of Steinberg music production software plus the free MixKey software mixer
• Seamless integration with Yamaha’s CC1 USB controller and Elgato Stream Deck, plus OBS Studio compatibility, for a fully customizable workflow
• Recommended use: Live sound, installed sound, podcasting, live streaming, video production, recording, and hybrid live events

Firmware Update Highlights (V1.2)

Firmware V1.2 unlocks new levels of efficiency for the MGX16V with streamlined Sound Pad management, save-and-recall functionality, expanded controller support, deeper Steinberg connectivity, and integrated effects plugins—helping you work faster, stay organized, and maintain a seamless workflow from content creation and recording to live production.

• Trim Audio with Sound Pad Editor: Easily manage and prepare audio files for Sound Pads using the dedicated desktop editor. Transfer sounds directly from your computer and fine-tune them with simple trimming tools to set precise start and end points.
• Save, Transfer, and Recall with microSD: Quickly save, transfer, and restore console settings using a microSD card. Move configurations between compatible consoles and maintain secure backups of critical settings.
• Seamless Control with CC1 or Stream Deck: Take command of your workflow with seamless control from the Yamaha CC1 controller or Elgato Stream Deck for quick access to key functions.
• Deeper Integration with Steinberg Software: Control mixer channels, adjust parameters, and configure built-in effects directly from your computer via Cubase, Nuendo, and MixKey.
• Basic FX Suite V4.0 Plugin Integration: Bring the signature processing of MGX directly into your computer-based workflow. Available in VST, AU, and AAX formats for consistent sound shaping from studio to stage.

Specifications

I/O Connectors

• Analog Input: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Analog Output: 2 XLR, 8 TRS
• USB TO HOST: 2 (USB Type-C, MAIN: 32-bit / SUB: 16-bit)
• Phones: 4 TRS (100 mW+100 mW @40 Ohm)
• DC: 1 (Barrel type, DC power IN)
• microSD Card Slot: 1
• Bluetooth: 1 Bluetooth audio input (Bluetooth 5.0, A2DP)
• HDMI: 1 IN / 1 THRU (Audio/Video input/capture/pass-through)

User Interface

• 4.3-inch touch screen, 16 x 60 mm fader, 16 x SEND knob, 5 x rotary encoder (4 x screen knob, 1 x “TOUCH AND TURN”)

Recording & Playback

• USB: 22-track recording, 22-track playback
• USB (SUB): 2-track recording, 2-track playback
• microSD Card: Up to 16-track recording, 2-track playback

Sound

• Sampling Frequency Rate: 96 kHz – 44.1 kHz
• Signal Delay: Less than 0.4 ms (INPUT to STEREO OUT @ Fs=96 kHz)
• Frequency Response: +0.0 / -0.5dB 20 Hz to 20 kHz, reference to the nominal output level @1 kHz, Input Gain= Min.
• Dynamic Range: 125 dB typ., DAC to STEREO OUT; 115 dB typ., INPUT to MAIN OUT, Input Gain=Min.
• Total Harmonic Distortion: Less than 0.002% 20 Hz to 20 kHz @+4 dBu, MIC INPUT to STEREO OUT, Input Gain=Min.
• Equivalent Input Noise: -128 dBu typ., Input Gain= Max.
• Residual Output Noise: -108 dBu, ST main off
• Crosstalk: -120 dB, adjacent INPUT/STEREO OUT channels, Input Gain= Min. @1 kHz
• Gain Range: 86 dB

Mixing Capacity

• Input Channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX
• Mix Buses: 8 (mono)
• Stereo Buses: 1
• FX Buses: 2
• Cue Buses: 1

On-Board Processors

• DSP: Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)

Power

• Power Requirements: DC16 V/2.4 A, PA-300C AC power adapter (100 V-240 V, 50 Hz/60 Hz)
• Power Consumption: 38.4 W

Dimensions & Weight

• Width: 419 mm (16.5″)
• Height: 96 mm (3.8″)
• Depth: 319 mm (12.6″)
• Net Weight: 4.9 kg (10.8 lb)

Operating Environment

• Operating Temperature: 0 – 40°C
• Storage Temperature: -20 – 60°C

Optional Accessories

• RK-MGX16 Rack Mount Kit (for MGX16 and MGX16V)

What's in the Box

• MGX16V Digital Mixing Console
• Start Guide
• Safety Guide
• Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus)
• Basic FX Suite License Card
• AC Power Adapter (PA-300C)
