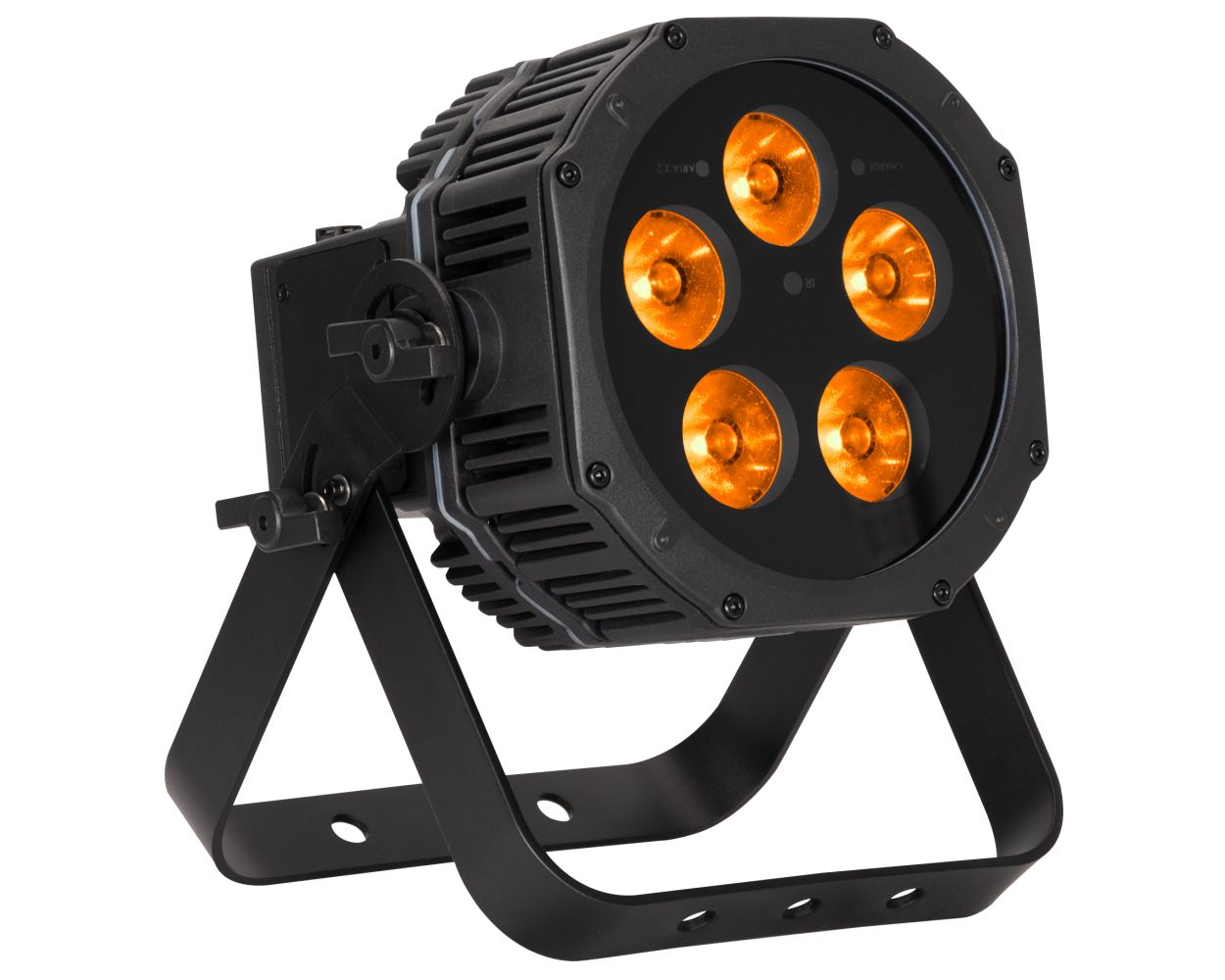

Mirage Par H IP

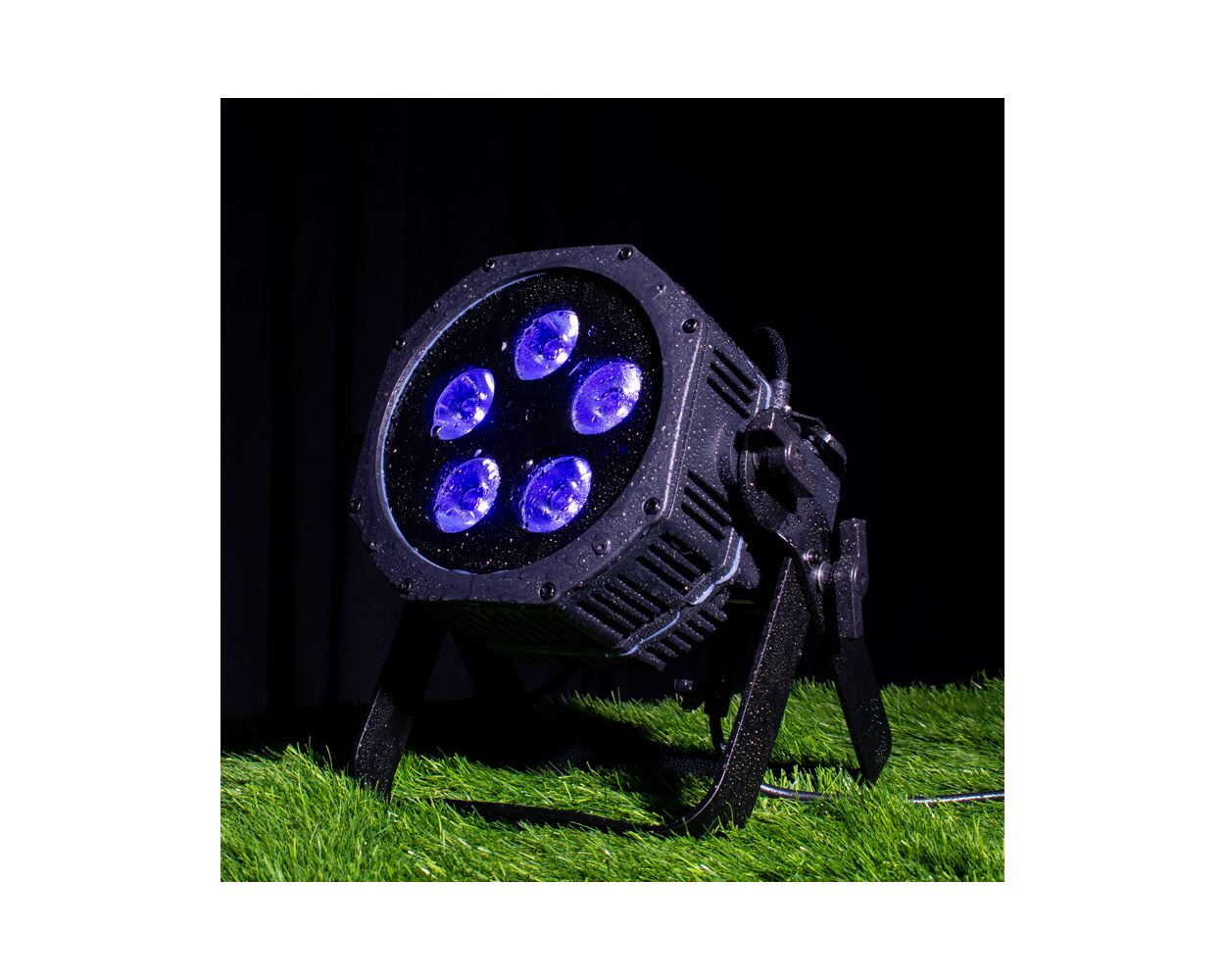

The Mirage Par H IP is an outdoor rated, battery powered wireless DMX PAR type fixture. It is a versatile fixture for those looking for a par that is quick to setup and outdoor rated.

From the Manufacturer:

Mirage Par H IP is an IP65-Rated, battery-powered, wireless DMX versatile LED Par designed for modern professionals looking for dynamic lighting solutions for event productions, installations and staging applications.

Specifications:

• Source:

• (5) 20W Hex Color RGBAL+UV LED's

• 50,000 Hour Average Life

• **may vary depending on several factors, including but not limited to environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

• Optical:

• 2,300K ~ 9,900K White Color Temperature Range

• Beam Angle: 17°

• Physical:

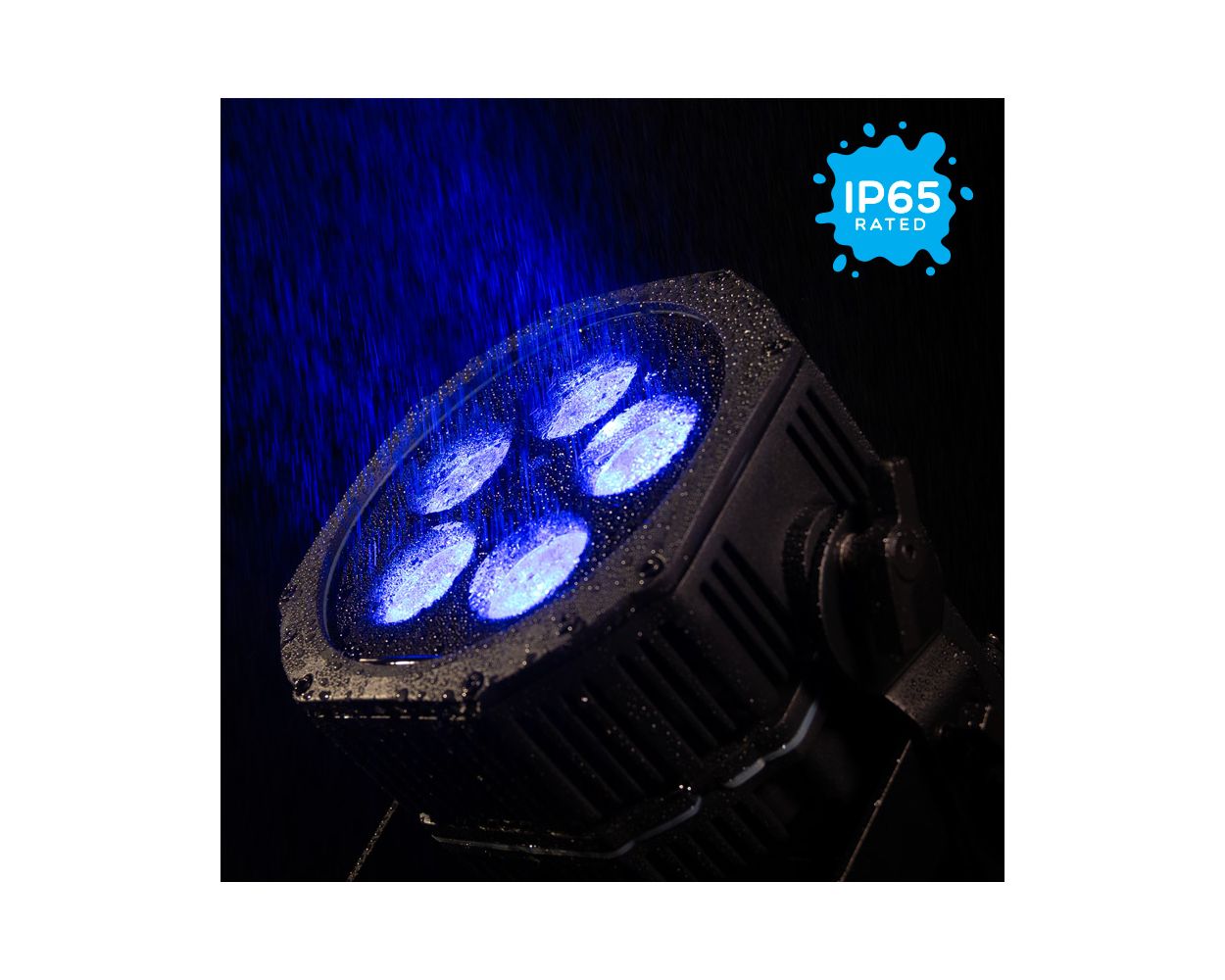

• IP65 Housing

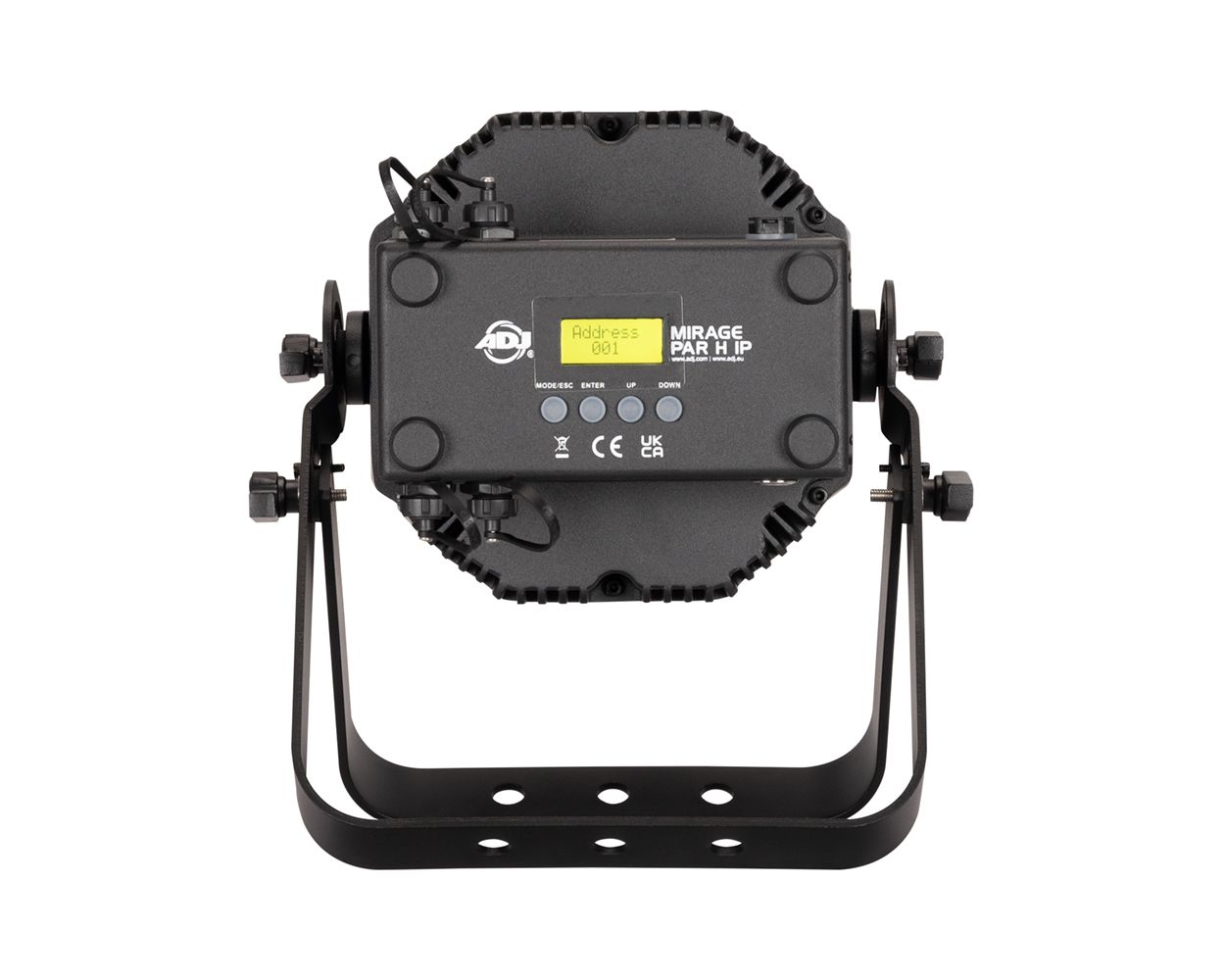

• Digital display

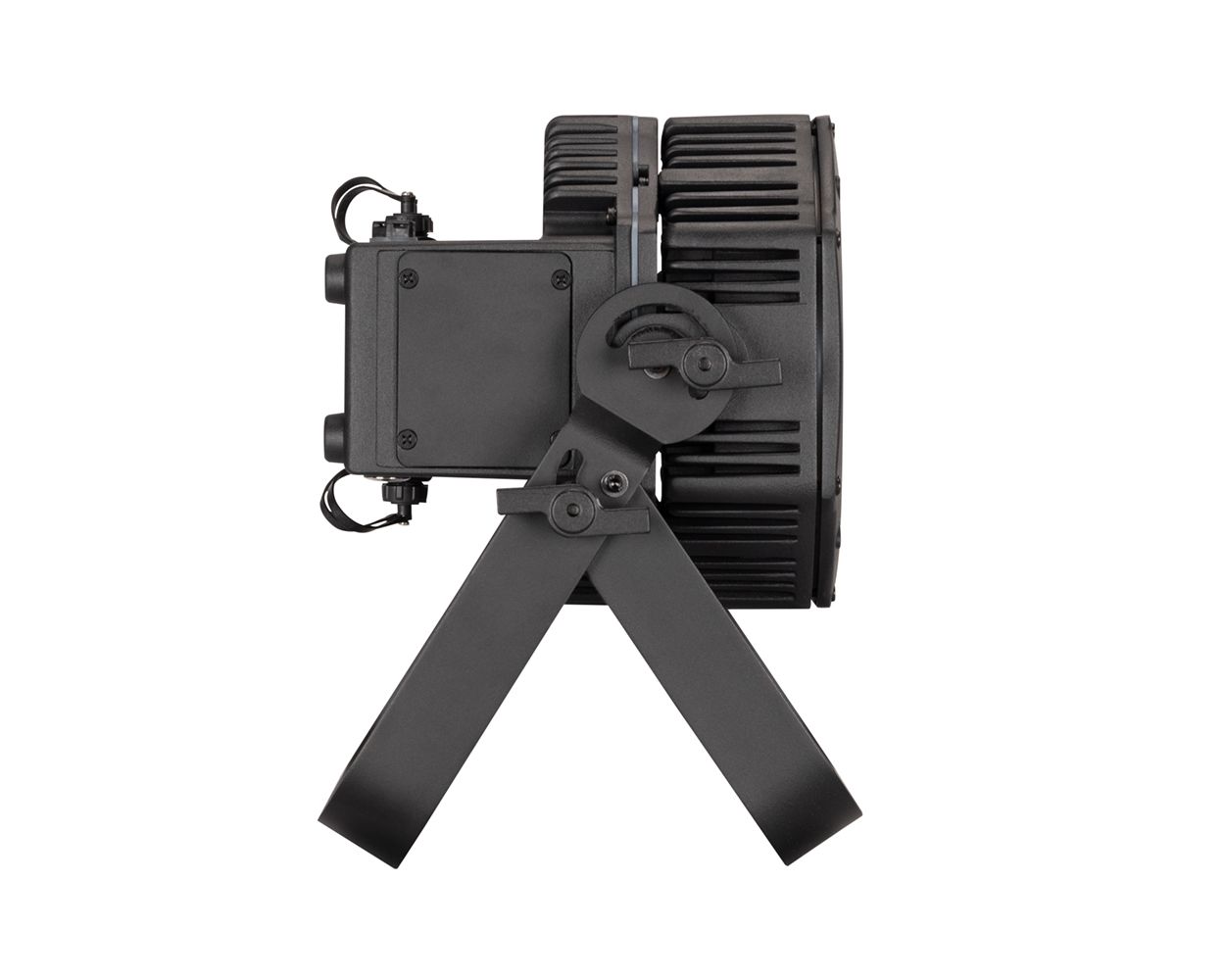

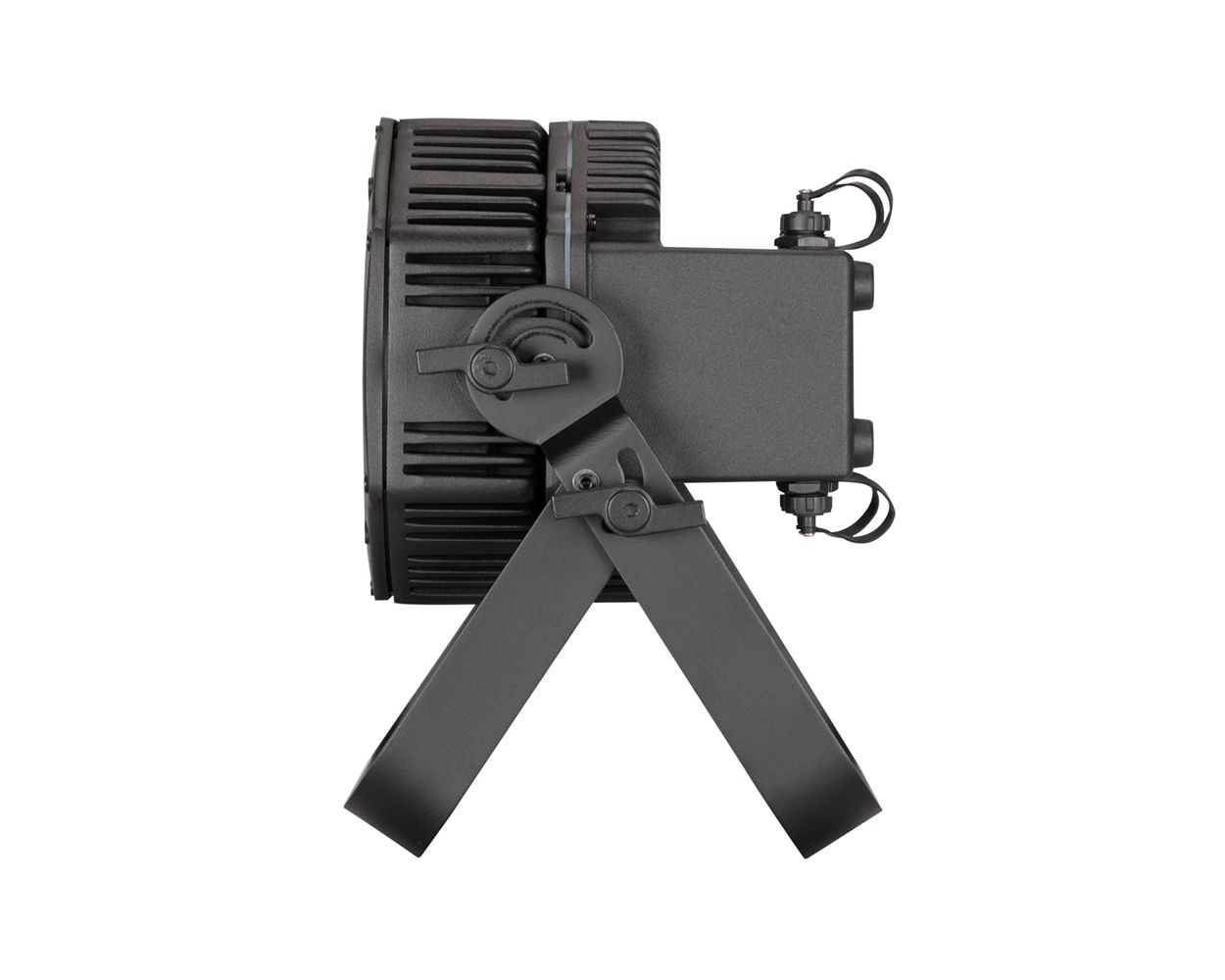

• Adjustable, hanging / kickstand bracket

• Control:

• DMX512

• Aria X2 Wireless Management / DMX System

• Bluetooth

• RDM and RDM Net Compatible

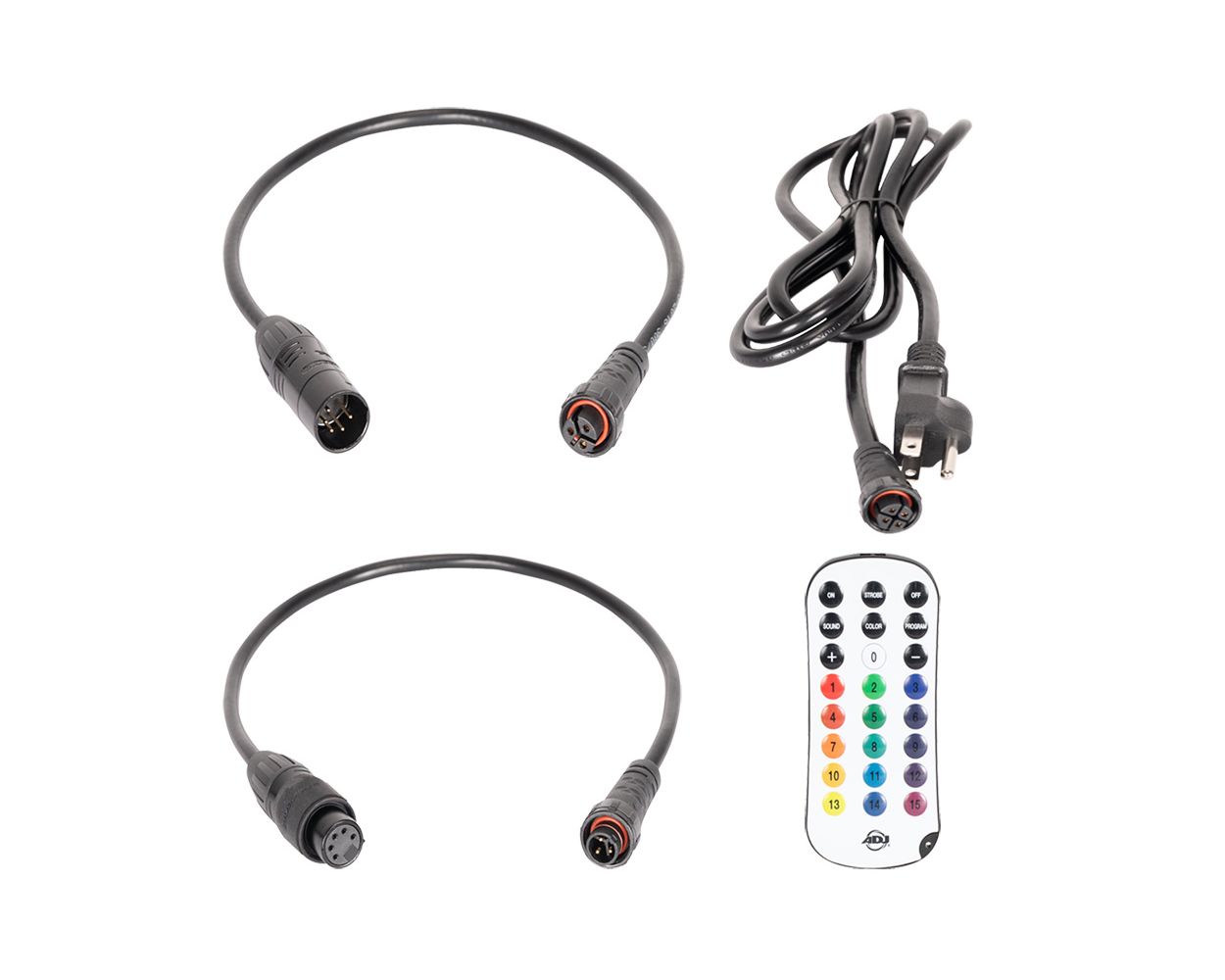

• IR (Includes UCIR24 wireless remote)

• (6) DMX Channel Modes (5, 6, 9A, 9B, 15 & 17 Channel modes)

• On-board Manual Control Mode

• Primary / Secondary Mode

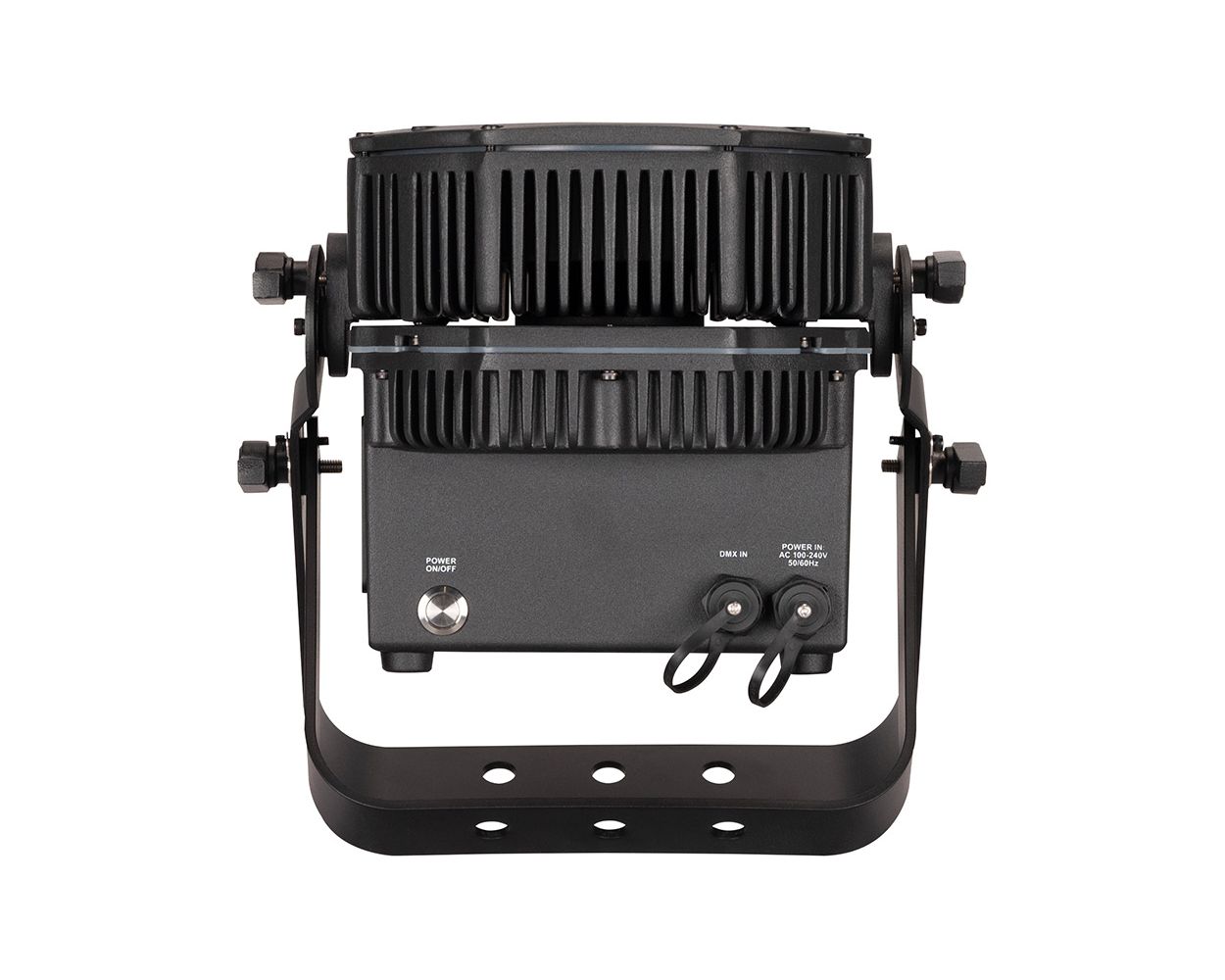

• Connections:

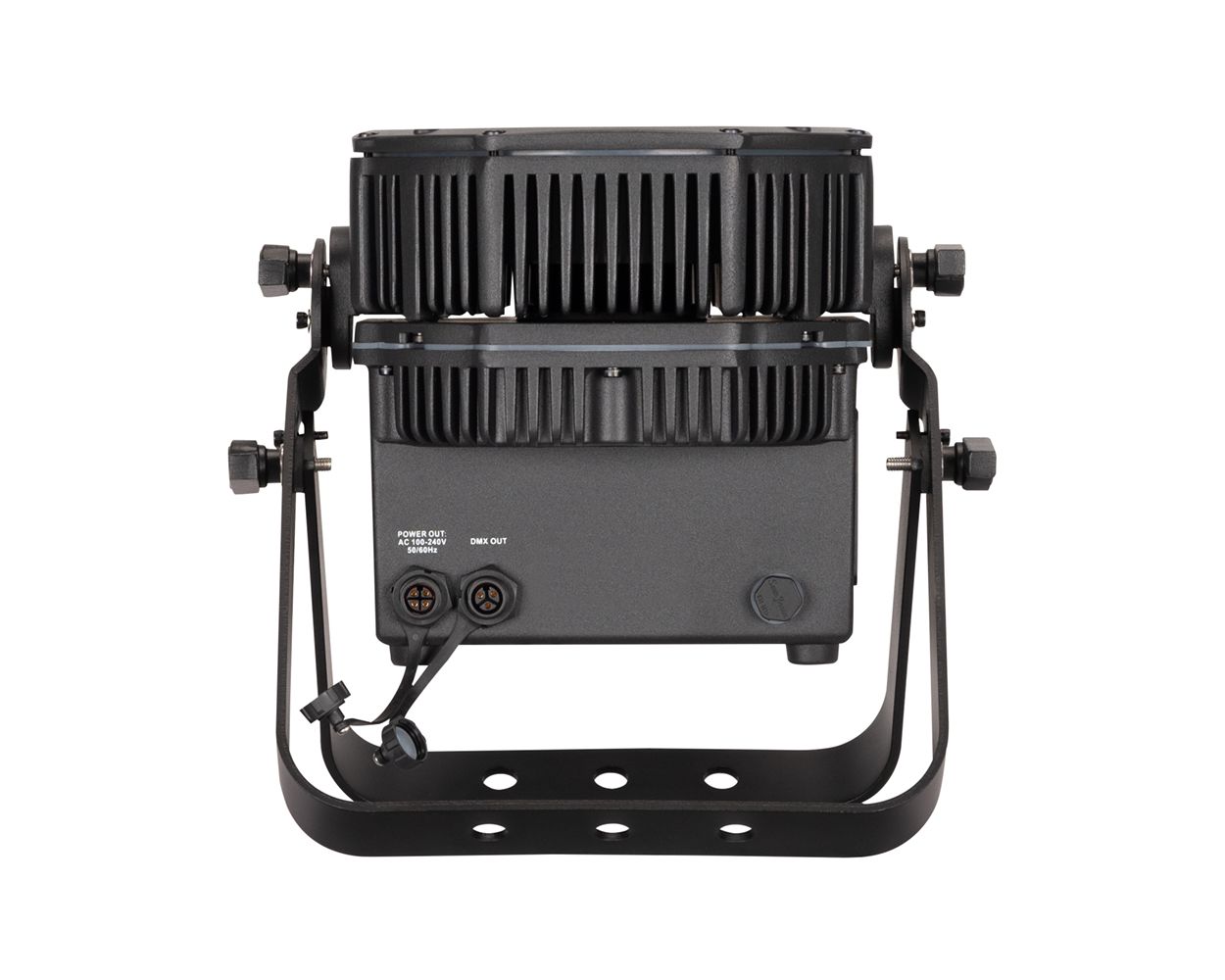

• Chogori IP65 data locking connectors

• Chogori IP65 power connectors

• Dimensions & Weight:

• Length: 11.1” (282mm) x 10.6” (269mm) x 10.4” (265mm)

• Weight: 11.9 lbs. (5.4 kg)

• Power:

• AC100-240V/50Hz-60Hz Input

• 60W Power Consumption

• Link 14 pieces @120VAC or 28 pieces @ 230VAC

• Battery:

• Rechargeable Lithium-ion

• Battery Capacity: 6,600mAh

• Battery Voltage: 22.2V

• Charge Time: 5 Hours (To Full)

• Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged

• Battery Cycles: 500

• Thermal:

• Ambient Operational Temperature: -4°F to 104°F (-20°C to 40°C)

• Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Features

• 5 Pixel, Hex Color LED (RGBAL+UV) LED Par Battery or Wall Powered

• Battery operation can be selected by the user for durations ranging from 5 to 20 hours

• Built-In Programs

• Variable White Color Temperature Control (2,700K ~ 9,900K)

• User Selectable LED Refresh Rates (900Hz ~ 25K)

• 6 User-Selectable Dim Modes

• 4 User-Selectable Dim Curves

• Electronic Strobe (0.3Hz ~ 11Hz)

• Electronic Dimming
