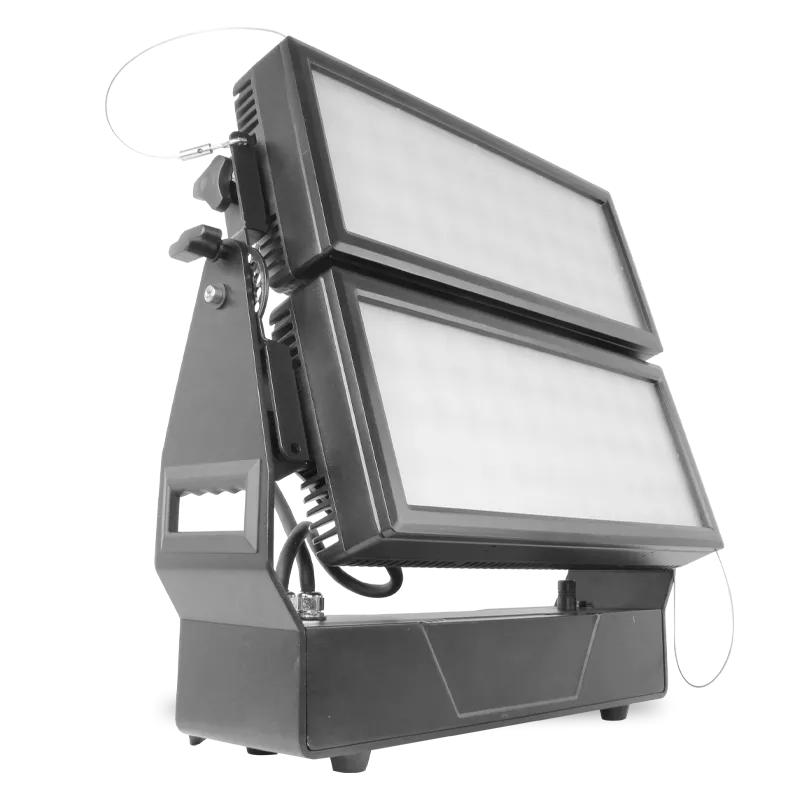

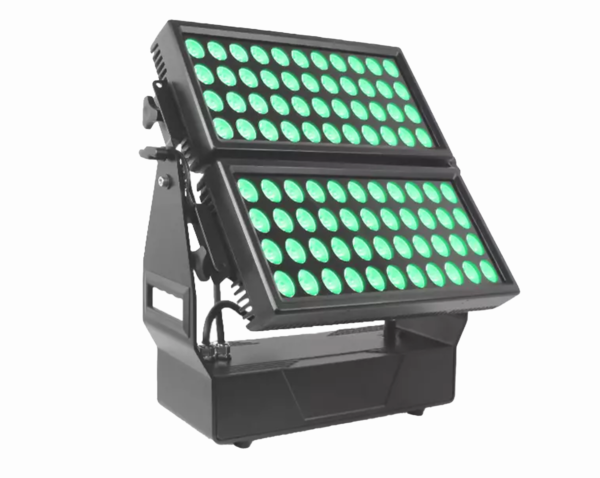

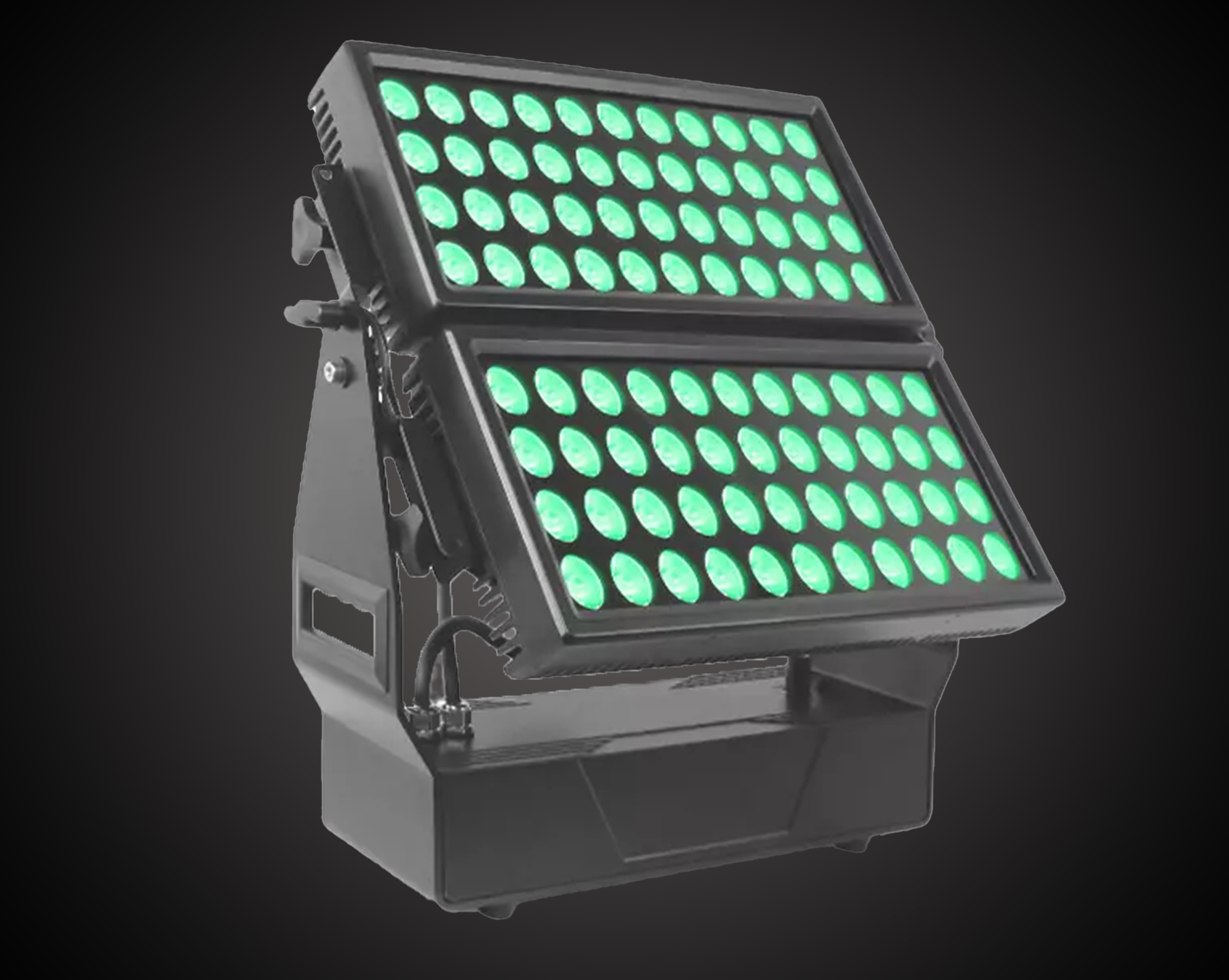

Mist Panel 88X20 IP

The Mist Panel is a durable and powerful flood light that is great for medium sized indoor and outdoor events. It is also suitable for noise sensitive environments with it's fanless design.

From The Manufacturer:

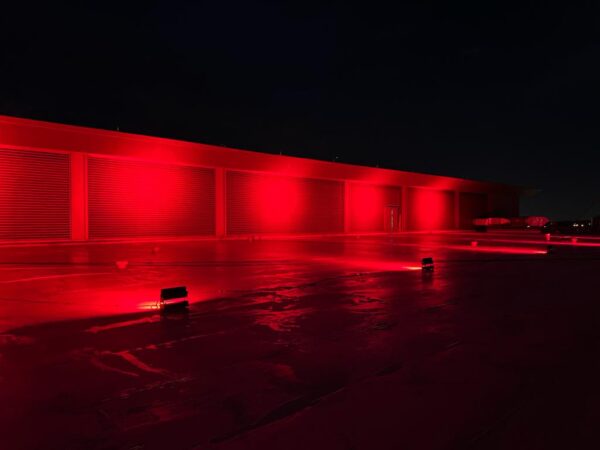

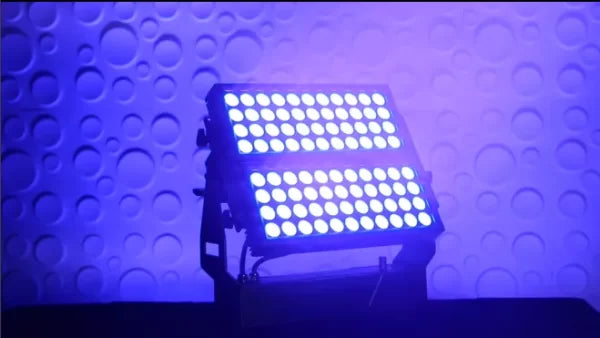

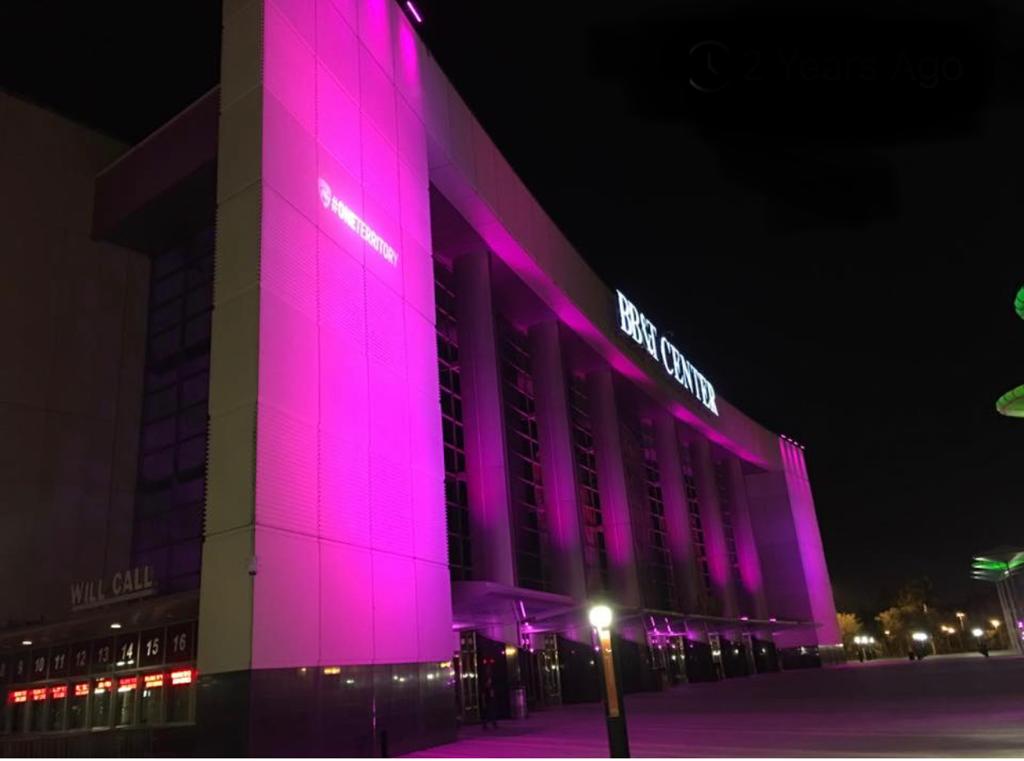

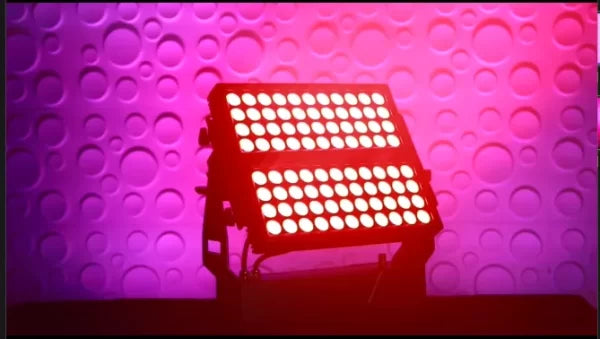

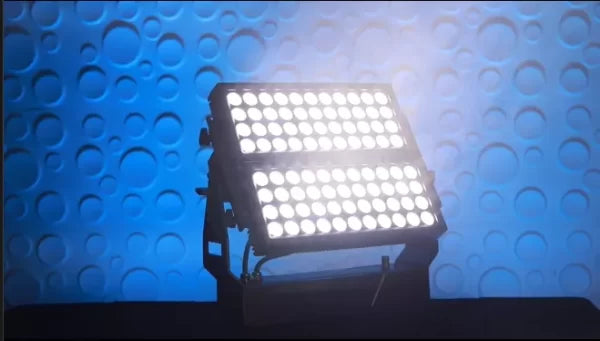

Mist Panel 88×20 IP is a powerful & rugged floodlight that can be used for both indoor & outdoor events. Equipped with (88) 20watt RGBW LED’s that can wash a large area with its 15º or 20º wide beam angle and smooth color mixing. It provides an even wash, color mixing/chasing, strobing, and fading along with W-DMX in order to obtain the desired programming the user is looking for. It’s built with Die Casting Aluminum housing that is IP-65 rated, withstanding the outdoor environmental factors such as humidity, rain, dust. Ideal for large indoor/outdoor events, buildings, house of worship, arenas, etc.

Specifications:

• Light Source

  • LED Power: (88) 20w LED’s

  • LED Color: 4in1 (RGBW)

  • Flicker Free Technology: No flickering during filming or video

  • 50,000 hours LED lifetime

  • Color Temperature: 2,000-10,000k

  • CRI: 85

• Power Supply

  • Voltage: AC90-264V

  • Max Power: 1600w

• Optics

  • Beam Angle: 15º/ 20º

  • Dimming: 0-100%

  • Strobe: 1-20 times/sec

• Features

  • Housing: Die-casting Aluminum

  • Magnetic Frost Filter: 15/25/45/60º (Optional)

  • Barn Doors Optional

  • Color Output: Linear Color System

  • Tilt: 220º

  • Display screen: 4 Button Display

  • DMX in & out: 3-Pin DMX input & output

  • Power in & out: True One PowerCon™ input & output

• Control

  • Control Protocol: DMX 512/ RDM/ W-DMX

  • Control System: DMX, Auto run, Master/Slave, and Sound

  • DMX Channels: 2CH, 3CH, 4CH, 9CH, 12CH

  • 21 Built in Auto Programs

  • 11 Kinds of Color Temperature White

• Working Environment

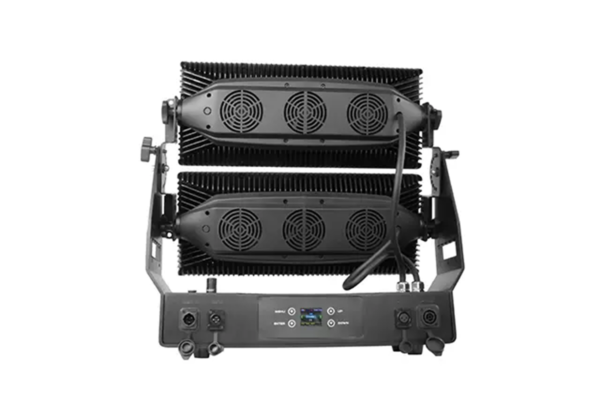

  • Cooling System: Active forced air temperature regulated fans/ Automatic over temperature protection

  • IP Grade: IP-65

• Dimensions

  • Net Weight: 55 lbs/25 kgs

  • Single Carton Size: 24.6 x 16.9 x 17.2 in/625 x 430 x 437 mm (LxWxH)

• Accessories

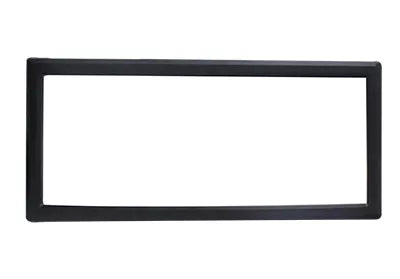

  • Magnetic Frost Filter: 15/25/45/60º (Optional)

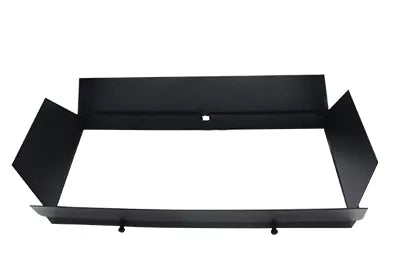

  • Magnetic Barn Doors (Optional)

In the Box:

• (1) Double Mist Panel
• (1) Locking Power Cable (IP65)
