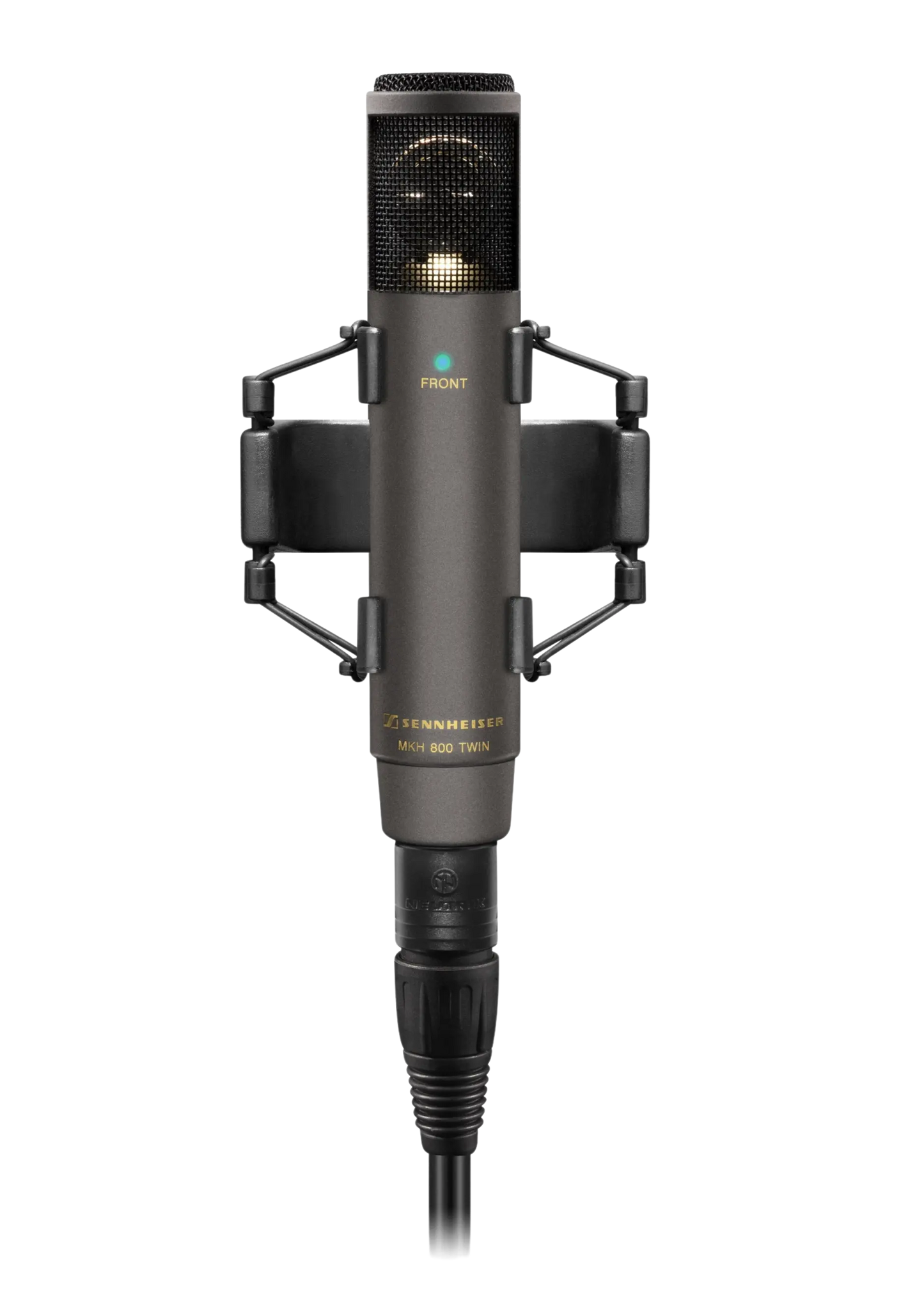

MKH 800 TWIN NX

The Sennheiser MKH 800 Twin NX is a universal studio condenser microphone, designed to be unobtrusive for flexible usage.

From the Manufacturer:

Universal studio condenser microphone of exceptional quality. Pick-up patterns can be remotely adjusted and optimized under monitoring conditions. High transducers linearity minimizes signal distortions.

The MKH 800 TWIN is a universal studio condenser microphone of exceptional quality. It includes a dual capsule consisting of two symmetrical push-pull transducers with high linearity. This is a "side fire" microphone with the two cardioid pick-up patterns of the transducer aligned back-to-back across the axis of the microphone. The signals of both transducers are not combined in the microphone in order to generate differing pick-up patterns but are available separately as two channels at the microphone output. This allows the pick-up patterns of the MKH 800 TWIN to be remotely adjusted. The signals can be combined in any desired way in the mixing console in order to create all pick-up patterns from omni-directional to figure-8 with an infinite number of intermediate stages. Based on the legendary MKH 800, this microphone opens up to a new dimension of studio recordings.

Features:

• Color: Nextel grey
• The remote adjustability and the variable pick-up patterns make the MKH 800 TWIN a universal main microphone, soloist microphone or supporting microphone.
• The pick-up patterns can be set and optimised under monitoring conditions. In other words, it is not necessary to fix the pick-up patterns definitively before recording.
• A wide range of mixes for stereo and surround are possible (including in parallel).
• Saving of the microphone signals in two channels also allows an unlimited range of mixes to be realised at a later date.
• The high sensitivity ensures interference-free signal paths as a result of high signal levels. The inherent noise of downstream microphone amplifiers is thus of minor importance.
• Very low inherent noise prevents the masking of filigree sound structures. The depth of the acoustic can be heard more clearly too.
• High linearity of the transducers minimises the signal distortions and ensures the transparency of the sound even at high sound levels.
• The frequency response extends to 50 kHz, thus improving the resolution for complex acoustic details.
• Stable pick-up patterns minimise sound distortion in the direct and diffuse field.
• Negative acoustic effects caused by the housing and the sound inlet basket are minimised.
• The small, slim design and the optionally dark housing design (Nextel) make it visually unobtrusive.

Specifications:

• Frequency response 30 - 50,000 Hz: Pick-up pattern 2x cardioid
• Sensitivity (free field, no load) (1 kHz): 40 mV/PA ±1 dB
• Nominal impedance: 100 Ω
• Min. terminating impedance: 2 kΩ
• Max. SPL: 136 dB SPL / 1 kHz
• Max. output voltage: 4 V
• Equivalent noise level
  •  A-weighted: approx. 12 dB
  •  CCIR-weighted: approx. 20 dB
• Noise voltage
  •  A-weighted: 3 μV
  •  CCIR-weighted: 8 μV
• Dynamic range
  •  A-weighted: 122 dB
  •  CCIR-weighted: 114 dB
• Power supply: 48 V ±4 V
• Current consumption: 2x 3.1 mA
• Dimensions: Ø 27 x 136 mm
• Weight: 172 g
• Temperature range storage: -20 °C to + 70 °C
• Connector: XLR-5M

What's in the box:

• MKH 800 TWIN
• MZQ 80 microphone clamp
• MZS 80 shock mount
• AC 20 adaptor cable
• Transport case
• Quick Guide
• Safety Instructions
