MX2000 Pro

The DVS LED NovaStar MX2000 Pro controller is fully customizable and ideally suited for large events, xR/VP studios, TV production, e-sports, exhibition halls, and other large fixed installation applications.

From the Manufacturer:

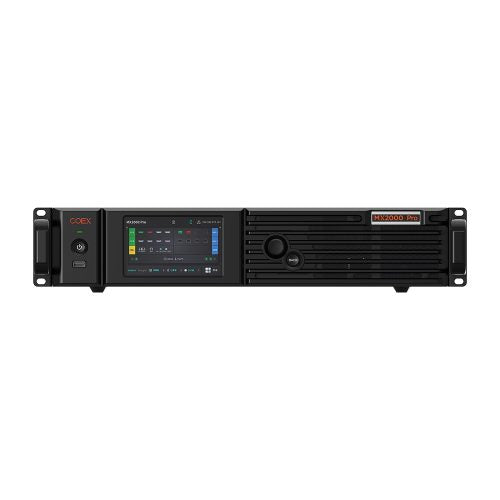

The NovaStar MX2000 Pro is 2RU a professional 8K LED display controller designed as part of the COEX control system series. Its remarkable features include 12-bit color depth, 360 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability, providing precise brightness control, true-to-life color fidelity, and excellent image quality. Its card-based modular design is specifically tailored for future LED displays, allowing for flexible input and output card configurations that are stable and easy to maintain. With a compact 2U size, it supports up to 8x 4K or 4x 8K video inputs, with a maximum load capacity of 35.3 million pixels, making it ideal for large-screen configurations.

Additionally, it supports seamless backup and automatic switching between devices and cards. In case of any malfunction, it promptly switches over while issuing automatic alerts, ensuring stable output on-site. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

The MX2000 Pro offers many advantages such as highly integrated design, premium image quality, powerful performance, tremendous load capacity, and easy control. It is widely used in rental services for large events, xR/VP studios, large fixed installation applications, TV production, e-sports events, exhibition halls, and other application scenarios.

NOTE: The MX2000 Pro requires a CVT10 Fiber Convertor to connect to LED screens via RJ45.

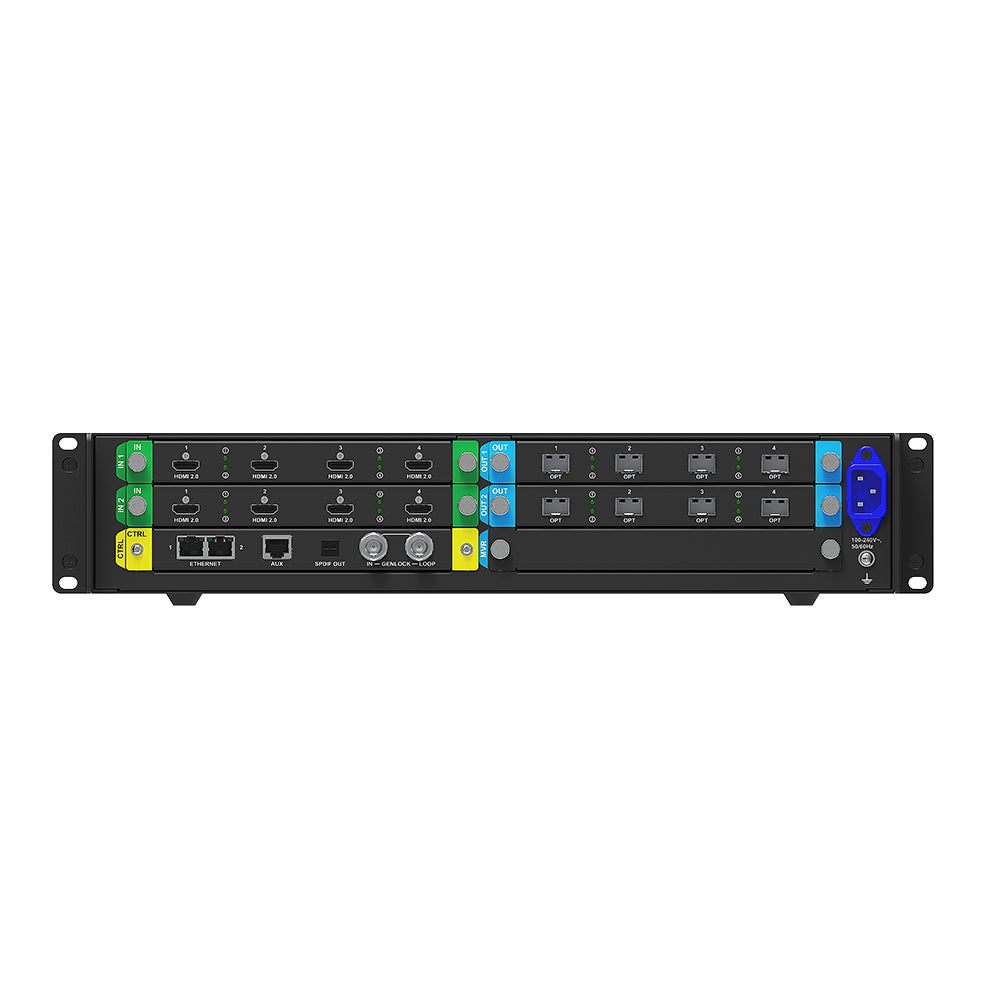

Available Cards:

• MX_4xDP1.2: 4x Display Port 1.2 Input Card
• MX_4xHDMI2.0: 4x HDMI 2.0 Input Card
• MX_4x12G SDI: 4x 12G SDI Input Card
• MX_2xHDMI2.1: 2x HDMI 2.1 Input Card
• MX_4x10G Fiber: 4x 10G Fiber Output Card

Specifications:

• Rack Space: 2U
• Minimum Cards Required: 1x Input Card, 1x Output Card
• Max Input Cards: 2 (32 Input Channels)
• Max Fiber Output Cards: 2
• Pixel Load Capacity: 35.8M Pixels
• Max Layers: 32
• Power Consumption: 210W
• Dimensions: 19" L x 3.5" W x 18" H
• Weight: 34.4 lbs
• Warranty: 3-Years
