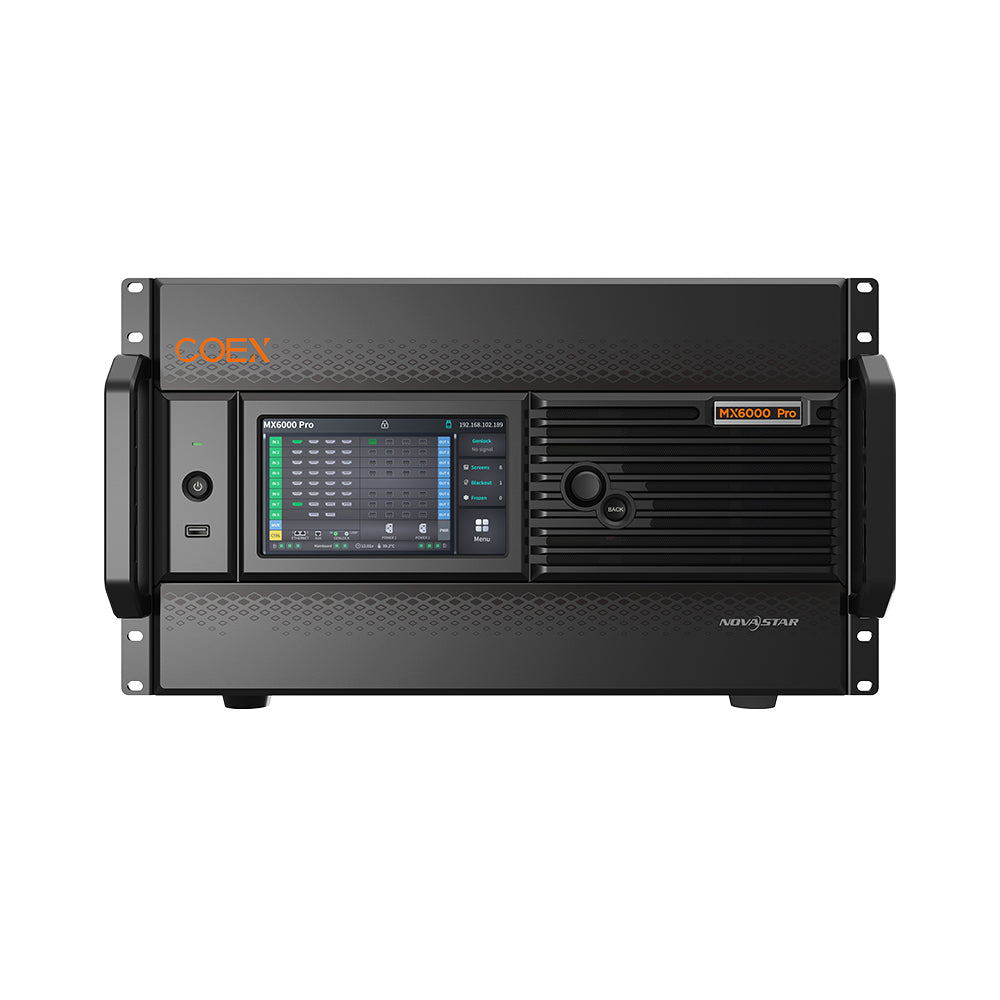

MX6000 Pro

The DVS LED NovaStar MX6000 Pro controller is fully customizable and ideally suited for large events, xR/VP studios, TV production, e-sports, exhibition halls, and other large fixed installation applications.

From the Manufacturer:

The NovaStar MX6000 Pro is 6RU a professional 8K LED display controller designed as part of the COEX control system series. Its remarkable features include 12-bit color depth, 360 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability, providing precise brightness control, true-to-life color fidelity, and excellent image quality. Its card-based modular design is specifically tailored for future LED displays, allowing for flexible input and output card configurations that are stable and easy to maintain. With a compact 2U size, it supports up to 8x 4K or 4x 8K video inputs, with a maximum load capacity of 35.3 million pixels, making it ideal for large-screen configurations.

The MX6000 Pro offers a wide range of options with up to seven different input cards supporting 8K, 4K, and AVoIP. For output, it supports two types of output cards: 4x 10G fiber and 1x 40G fiber. These cards can be configured flexibly to accommodate either 1G or 5G bandwidth for the control system, catering to different requirements. Additionally, it supports seamless backup and automatic switching between devices, cards, and Ethernet ports. In case of any malfunction, it promptly switches over while issuing automatic alerts, ensuring stable output on-site. To further enhance the user experience, it is complemented by the advanced control software, VMP, enabling users to have better control and management capabilities.

The MX6000 Pro offers many advantages such as highly integrated design, premium image quality, powerful performance, tremendous load capacity, and easy control. It is widely used in rental services for large events, xR/VP studios, large fixed installation applications, TV production, e-sports events, exhibition halls, and other application scenarios.

NOTE: The MX6000 Pro requires a CVT10 Fiber Convertor to connect to LED screens via RJ45.

Available Cards:

• MX_4xDP1.2: 4x Display Port 1.2 Input Card
• MX_4xHDMI2.0: 4x HDMI 2.0 Input Card
• MX_4x12G SDI: 4x 12G SDI Input Card
• MX_2xHDMI2.1: 2x HDMI 2.1 Input Card
• MX_4x10G Fiber: 4x 10G Fiber Output Card

Specifications:

• Rack Space: 6U
• Minimum Cards Required: 1x Input Card, 1x Output Card
• Max Input Cards: 8
• Max Fiber Output Cards: 8
• Pixel Load Capacity: 141M Pixels
• Max Layers: 32x4K Layers / 8x8K Layers
• Power Consumption: 640W
• Dimensions: 19" L x 21" W x 12" H
• Weight: 55.4 lbs
• Warranty: 3-Years
