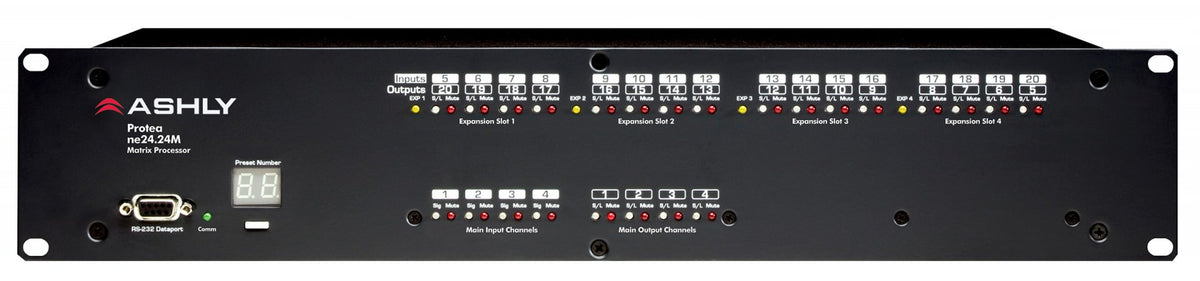

ne24.24mt (8x8)

The Ashly ne24.24MT (8x8) Protea DSP Audio Matrix Processor is a network-enabled DSP matrix processor for zoned systems requiring input/output matrixing with signal processing.

From the Manufacturer

Our widely-popular Protea™ ne24.24M Matrix Processor will more than satisfy your requirements for any zoned system. When your install requires input/output matrixing with signal processing it doesn’t get much easier than programming your channels using Protea™ ne Software on your PC. The ne24.24M uses modular expansion cards to provide up to 24-channels of audio matrixing and processing. The base unit offers a 4-input/4-output configuration. Each input and output expansion card has an individual DSP processor allowing you to expand the total input or output 4 channels of DSP processing at a time. These cards are easily installed in the field without the need to reprogram the device.

Matrixing allows you to route any input to any output and control individual levels once they have been assigned. Fixed path architecture and extensive processing power per channel will reduce the amount of time it takes to set up your system.

An optional GPO Logic Card allows the ne24.24M to trigger projection screens, curtains or lights. The logic card is installed in place of a 4-input or 4-output card and occupies one of the four expansion slots.

Whether you are designing or installing a system for corporate boardrooms, restaurants, courtrooms, houses of worship, left/center/right high output speaker systems in performance spaces, auditoriums or conference centers, the Protea™ ne24.24M Matrix Processor will more than satisfy your requirements for any zoned system.

Features

• 10/100 Ethernet & RS-232 computer interface standard
• Extensive DSP available via Protea DSP
• Easy and intuitive user interface
• Control with free Ashly Remote iOS App
• Mic/line inputs
• 24-bit A/D–D/A audio resolution
• Up to 24-channels of audio processing
• 4x4 base unit configuration
• Expand inputs or outputs 4-channels per module
• Modules easily field installable
• Euroblock connectors for audio, preset recall, DC remote level control and data in/out
• 31 preset locations
• Remote controls for level, preset recall and programmable functions
• Third-party control-friendly
• Input and output metering viewable in dBu
• Multi-level security
• Safety/Compliance: cTUVus, FCC, CE, RoHS
• 5-year warranty
• Supports the IPv4 communication protocol only (IPv6 is not supported)
• Recommended use: Zoned systems requiring input/output matrixing with signal processing, corporate boardrooms, restaurants, courtrooms, houses of worship, left/center/right high output speaker systems in performance spaces, auditoriums, conference centers

Specifications

Note: 0dBu = 0.775 VRMS

Inputs & Outputs

• Input: Active Balanced, 18k Ohms
• Input Gain Range: -50dB – +12dB, Selectable Polarity
• Output: Active Servo Balanced, 112 Ohms
• Output Gain Range: -50dB – +12dB, Selectable Polarity
• Input/Output Level: +20dBu (Max)

Audio Performance

• Frequency Response: 20Hz–20kHz, ±0.25 dB
• THD: <0.01% @ 1kHz, +20 dBu
• Dynamic Range: >110dB (20Hz–20kHz) Unweighted
• Output Noise: <-90 dBu Unweighted

Digital Processing

• Input A/D, Output D/A: 24-bit
• DSP Processors: 24-bit signal, 48-bit filters, 56-bit accumulator
• Sample Rate: 48kHz
• Propagation Delay @ 48kHz: 1.46ms
• Link Groups: All DSP functions can be linked to 1 of 16 link groups

Gain & Matrix Mixer

• Gain: -50dB to +12dB, off, polarity invert
• Remote Level Control: 8 available, 0dB to -∞
• Remote RD8C Gain: Enable per channel, 0dB to -∞
• WR-5 (neWR-5) Remote Gain: 0 to -50dB, Mute
• Matrix Mixer Gain (0.5dB increments): Off, -50 to +12dB
• Matrix Mixer Mute: Per channel
• Enable Ducking at Mixer: Yes
• Ducking LED: Per channel if enabled

Equalization

• Parametric 15 Band Frequency: 20-20kHz
• Parametric 15 Band Level: -30dB to +15dB
• Parametric 15 Band Q Value: 0.016 to 3.995 Octave
• Hi/Low Shelf: 6/12 dB/oct
• Hi/Low Shelf Frequency: 20Hz–20kHz
• Hi/Low Shelf Level: -15dB to +15dB
• All Pass Frequency: 20Hz–20kHz
• Variable Q HP/LP Frequency: 20Hz–20kHz
• Variable Q HP/LP Q Value: 3.047 to 0.267
• Notch/Bandpass Frequency: 20Hz–20kHz
• Notch/Bandpass Q Value: 92.436 to 0.267

Crossover

• Configurations: 2 Way, 3 Way, 4 Way Crossover & High Pass/Low Pass Filters
• Bessel & Butterworth Filters: 12/18/24/48 dB/oct
• Linkwitz-Riley Filter: 12/24/48 dB/oct
• Frequency: Off, 20Hz–20kHz

Delay

• Speaker Delay @ 48kHz: 0–21ms
• Delay @ 48kHz: 0–682ms

Dynamics

• Compressor Threshold: -20dBu to +20dBu
• Compressor Ratio: 1.2:1 – ∞
• Compressor Attack: 0.2 to 50ms
• Compressor Release: 5ms/dB to 1000ms/dB
• Compressor Detector: Peak/Average
• Compressor Attenuation Bus: 1 available
• Compressor Metering: In, Out, Attenuation, Graphical
• Autoleveler Target Level: -40dBu to +20dBu
• Autoleveler Action: Gentle, normal, aggressive, user defined
• Autoleveler Maximum Gain: 0dB to +27dB
• Autoleveler Ratio: 1.2:1 to 10:1
• Autoleveler Threshold Below Target: -30dB to 0dB
• Autoleveler Gain Increase/Decrease Rate: 5ms/dB to 1000ms/dB
• Autoleveler Hold Time: 0-6 sec
• Autoleveler Metering: Attenuation
• Ducking: High/Low Priority, Trigger, Filibuster, Ducked Program
• Ducking Trigger Threshold: -80dBu to +20dBu
• Ducking Release: 5ms/dB to 1000ms/dB
• Ducking Depth: 0dB to -30dB, -∞
• Ducking Metering: Input
• Gate Threshold: -80dBu to +20dBu
• Gate Range: off, 100dB to 0dB
• Gate Attack: 0.2ms/dB to 50ms/dB
• Gate Release: 5ms/dB to 1000ms/dB
• Gate Metering: Gate LED, Graphical

Tools

• Audio Metering Range: -60dBu to +20dBu
• Audio Metering Increments: 1dB
• Peak Hold Indicator: Yes
• Signal Generator: Pink noise, White noise, Sine wave
• Signal Generator Level: Off, -50dBu to +20dBu
• Sine Wave Frequency: 20Hz–12kHz

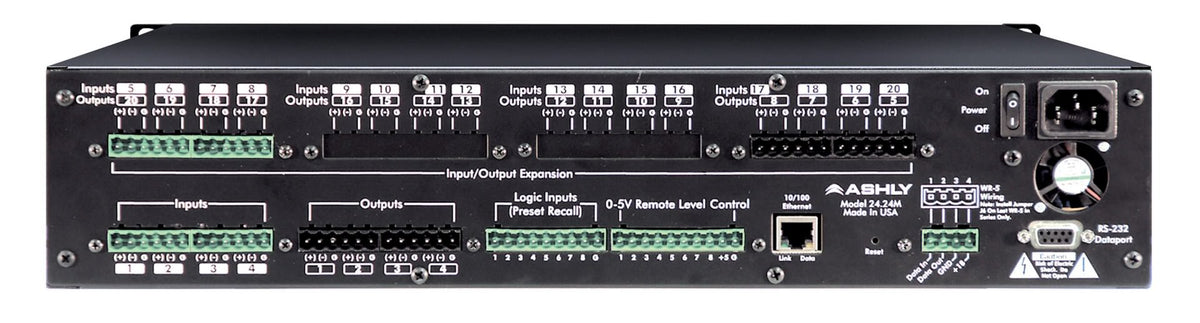

Rear Panel & Connections

• Controls: Remote level control, Data In/Out ports, Preset Recall, Logic Inputs, On/Off switch
• Connections: 10/100 Ethernet port, RS-232, Euroblock In/Out
• Power Cord: 3-Prong, Detachable

Weight, Dimensions & Power

• Dimensions: 19"L x 3.5"H x 8.5"D (483mm x 89mm x 216mm)
• Unit Weight: 8.9lbs (4.04kg)
• Shipping Weight: 12lbs (6kg)
• Power Requirements: 90 – 240VAC, 50/60Hz, 40W
• Environmental: 40–120°F (4–49°C), noncondensing

Compatible Accessories

Internal Modules

• 4-Channel, Input Module
• 4-Channel, Output Module
• GPO Logic Output Option Module

External Remotes

• WR-1 2-Channel Level Control
• WR 1.5 Preset Recall and Level Control
• WR-2 Four-Position Preset Recall Switch
• WR-5 Programmable Button Controller
• RD/RW8 8-Channel Fader Remote
• neWR-5 Programmable Network Button Controller
• FR-8 8-Channel Network Fader Remote
• FR-16 16-Channel Network Fader Remote
• Ashly Remote Application for Apple® iPad®
