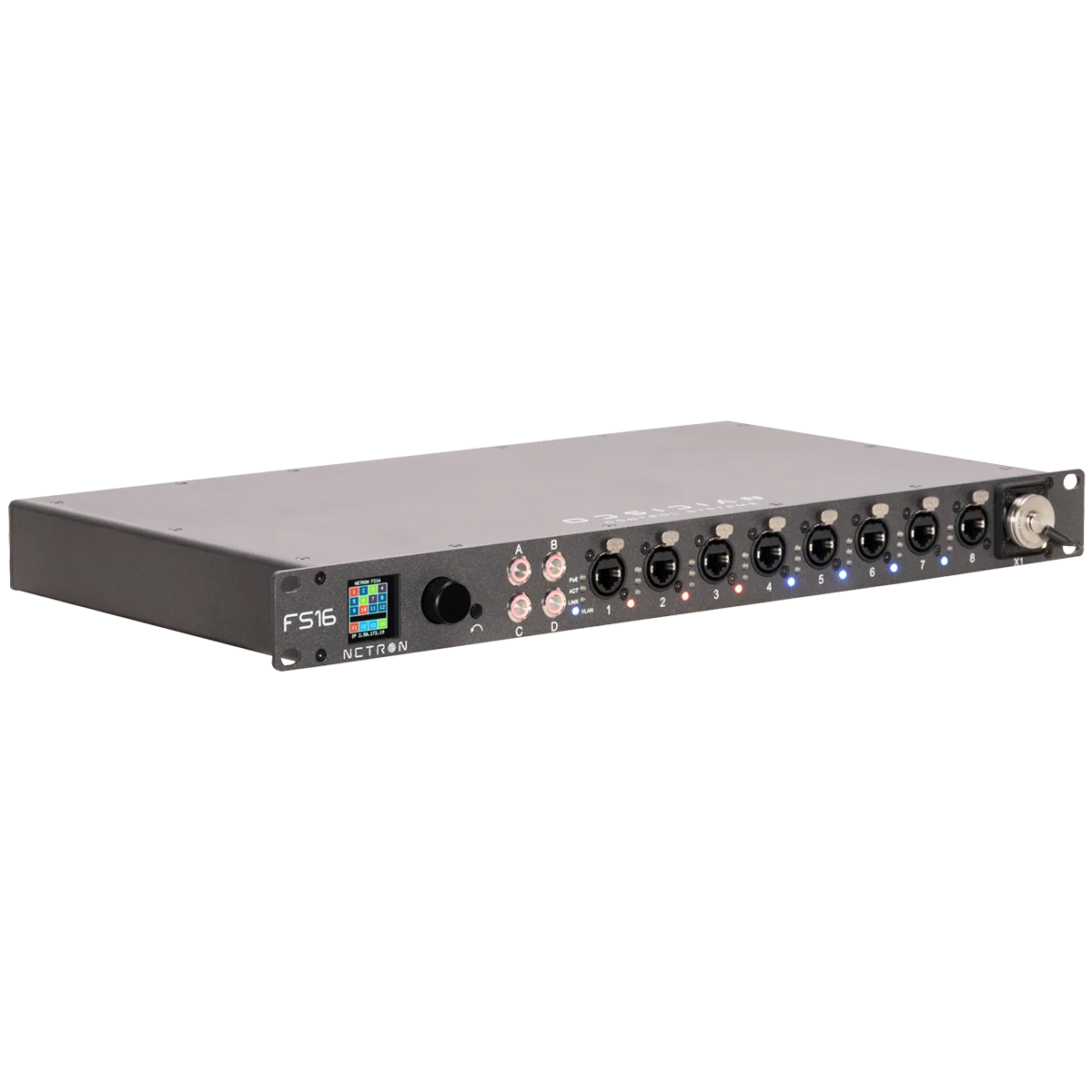

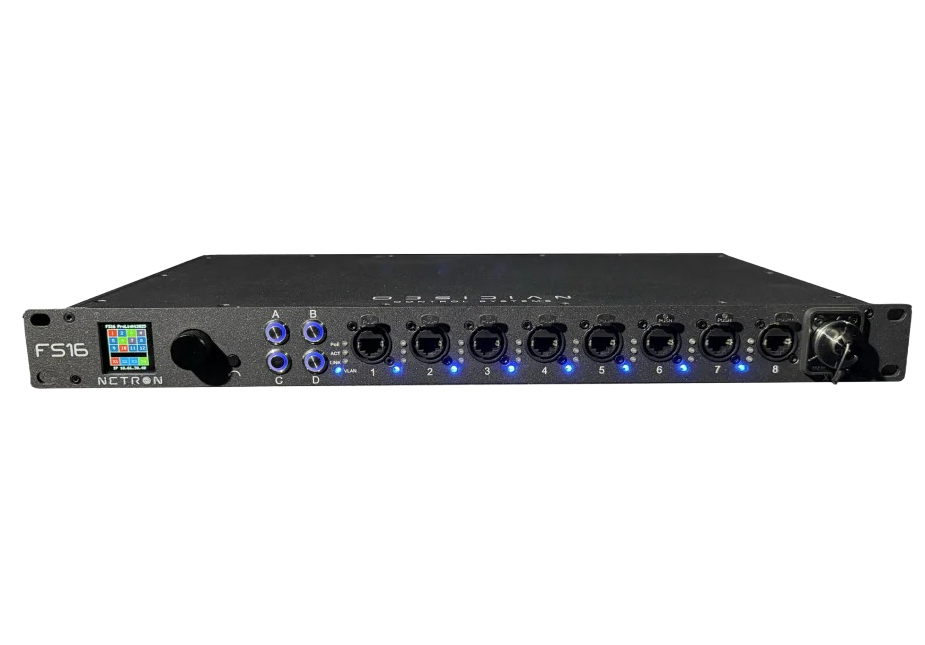

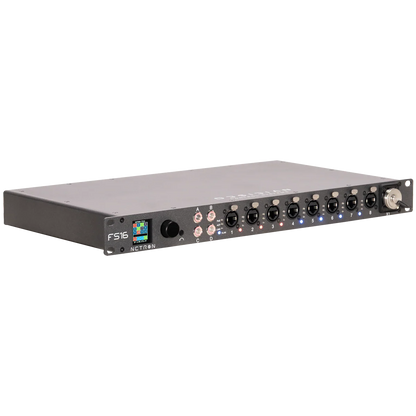

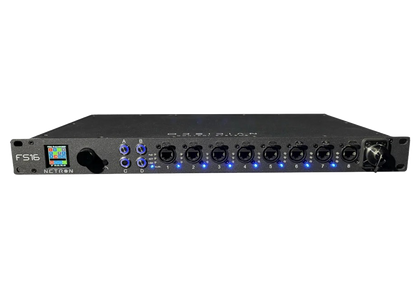

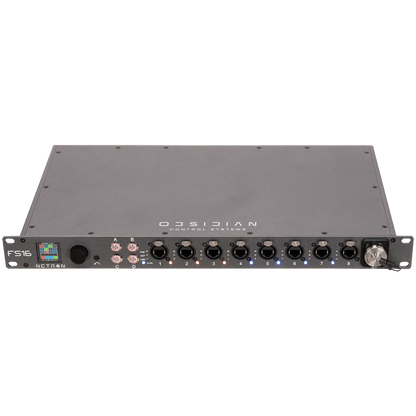

NETRON FS16

The NETRON FS16 is a powerful rackmount network switch featuring 12 Gigabit ports, 4x fiber ports, and PoE+ support for distributing data and power across lighting and entertainment networks.

From the Manufacturer

The NETRON FS16 is a powerful rackmount network switch featuring 12 Gigabit ports, 4x fiber ports, and PoE+ support. With a total PoE power budget of 180W, the FS16 is ideally suited to distribute data and power to NETRON nodes or any other PoE+ compatible network appliance.

Highly optimized for processing the high data volume found in today's ever-growing lighting systems, the NETRON FS16 distributes a variety of entertainment protocols without delay, ensuring instant reaction times and flawless execution.

The FS16 incorporates four dedicated preset buttons on the front, which are ideally positioned to work as a Network Selector switch. Instant recall of signal routing allows main and backup consoles or various front-of-house setups to be activated at a moment's notice and without delay. Instant network selections are also possible using an external remote control over a simple RJ45 cable, or the remote web interface.

Designed for live production and installations, the 1U rack-mount housing is convection cooled and offers direct settings from the integrated OLED display. Remote configuration is possible using the integrated web interface or the NETRON Central Utility (CLU) for easy discovery, status feedback, and feature management.

Features

• 1U full-width network switch optimized for data-intensive entertainment applications
• 12 Gigabit locking RJ45 ports
• 4 D-sized swappable ports preinstalled with SEETRONIC Duplex Fiber ports (S02DF, D-Size)
• 4 SFP ports, preconfigured with (1) 10Gbps MMF 850nm and (3) 1.25Gbps MMF 850nm
• Art-Net and sACN support
• Compatible with X-Net, HogNet, MA-Net, ETC Net3, and various other protocols
• Factory and user presets for plug-and-play setups
• Preset recall for network selection, setting, and routing
• PoE and PoE+ support with dedicated PoE power switch
• OLED display for direct feature adjustments
• Remote configuration via internal webpage
• Convection-cooled design
• Powder-coated aluminum 1U rack housing
• Recommended use: Live production, touring, permanent installations, and any application requiring distribution of data and PoE+ power to NETRON nodes or other PoE+ compatible network devices

Specifications

Mounting

• 1U rackmount

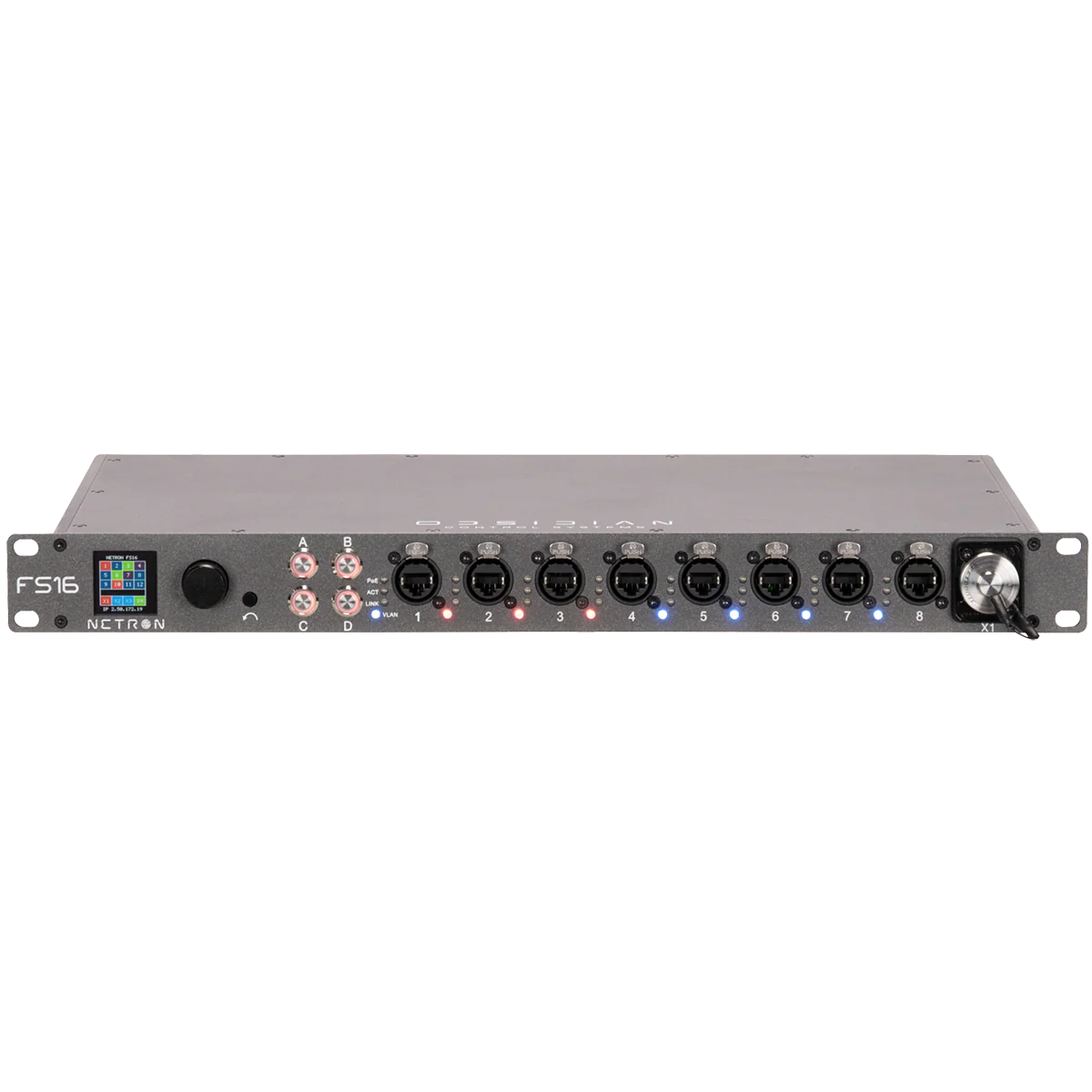

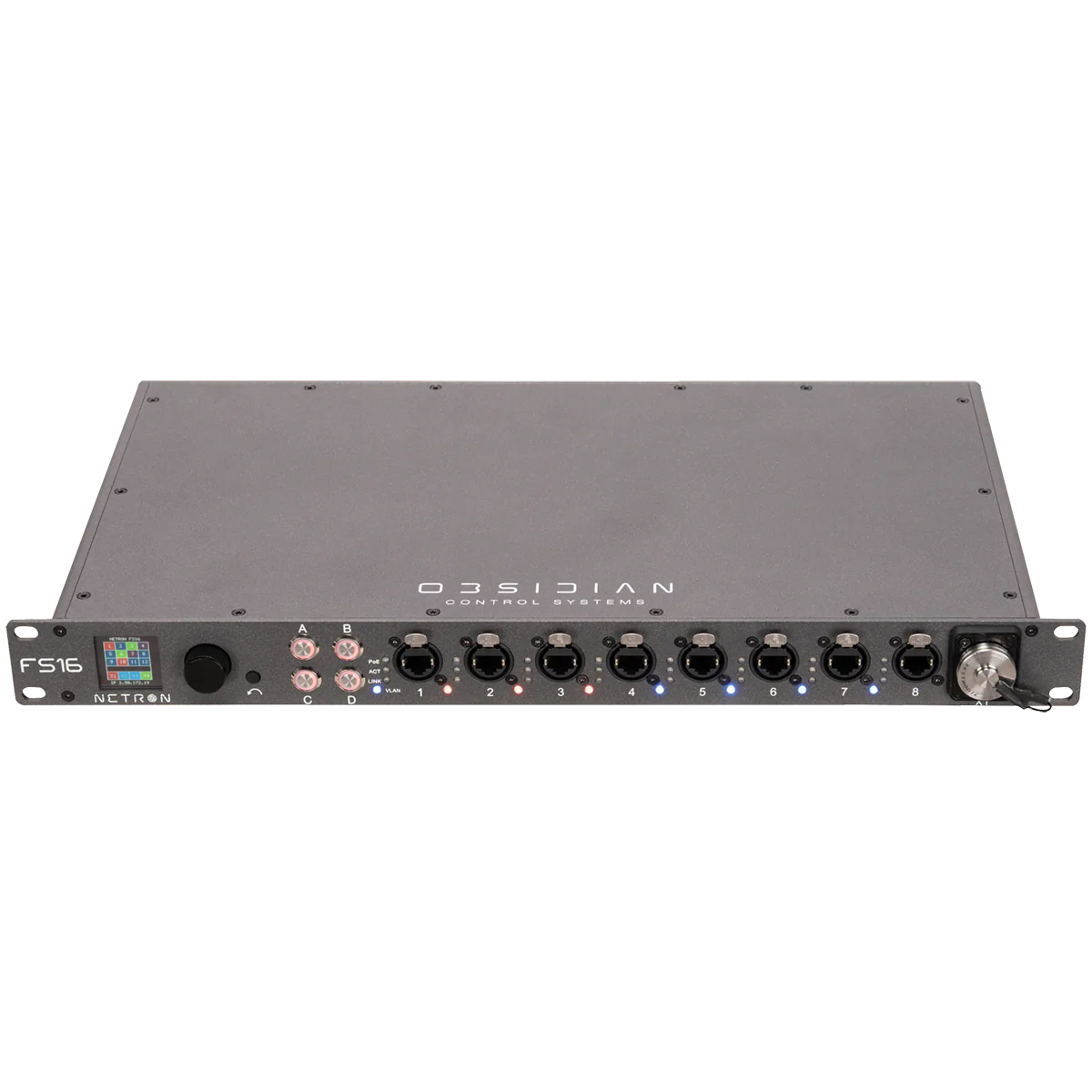

Connections – Front

• (8) Locking RJ45 Ethernet network connections
• (1) SEETRONIC SO2DF (LC and DUO compatible), 10 Gbps Multimode, 850nm, 300m
• Per-port LED feedback for Activity, PoE, and VLAN
• Full-color OLED display
• Encoder with Push to Select / Exit button
• (4) Network Selector / Preset Recall buttons

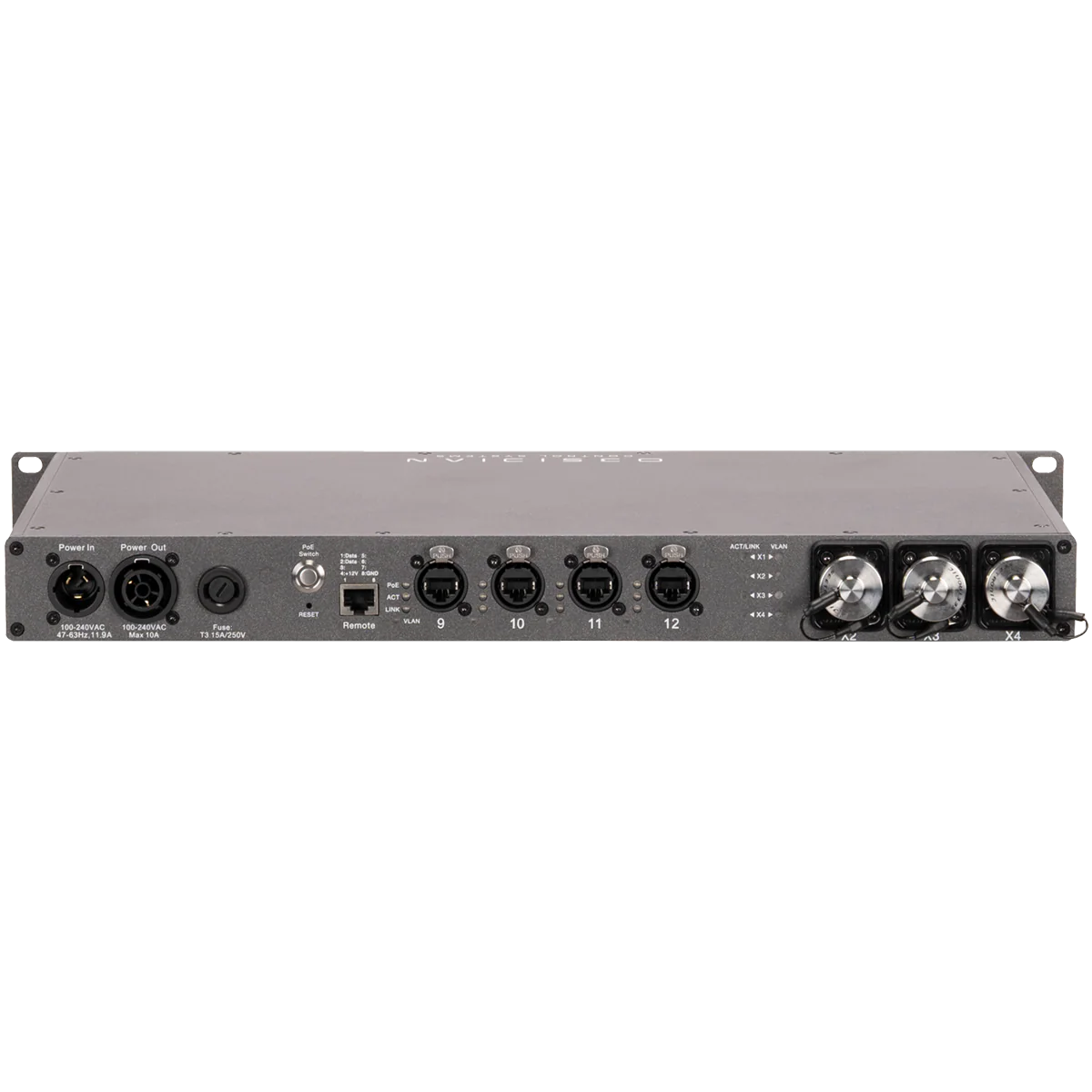

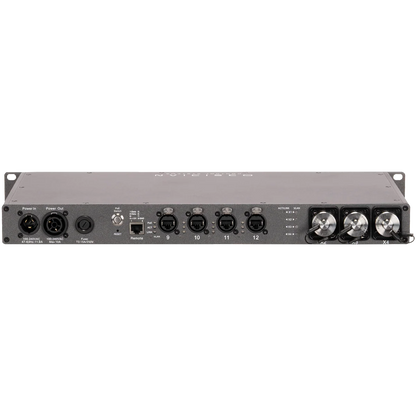

Connections – Rear

• IP65 locking Power In/Thru
• (4) Locking RJ45 Ethernet network connections
• (3) SEETRONIC SO2DF (LC and DUO compatible), 1.25Gbps Multimode, 850nm, 300m
• RJ45 remote port for optional button station
• Per-port LED feedback for Activity, PoE, and VLAN
• PoE power switch
• Reset button

Protocols – Support

• sACN, Art-Net
• ONYX X-Net, MANet2, MA-Net3, HogNet, ETC Net3
• Dante
• Broadcast, Unicast, Multicast
• IEEE 802.3, 802.3ab, 802.3x, 802.1p, 802.3at, 802.3af, 802.1Q, IGMPv2, IGMPv3

Ethernet Features

• PoE (15W), PoE+ (30W), max power per port setting
• IGMP Querier, IGMP Snooping
• VLAN (6 groups, trunk, color coding)
• DHCP server per VLAN
• Dante compliant QoS preset
• Total switching capacity: 48 Gbps

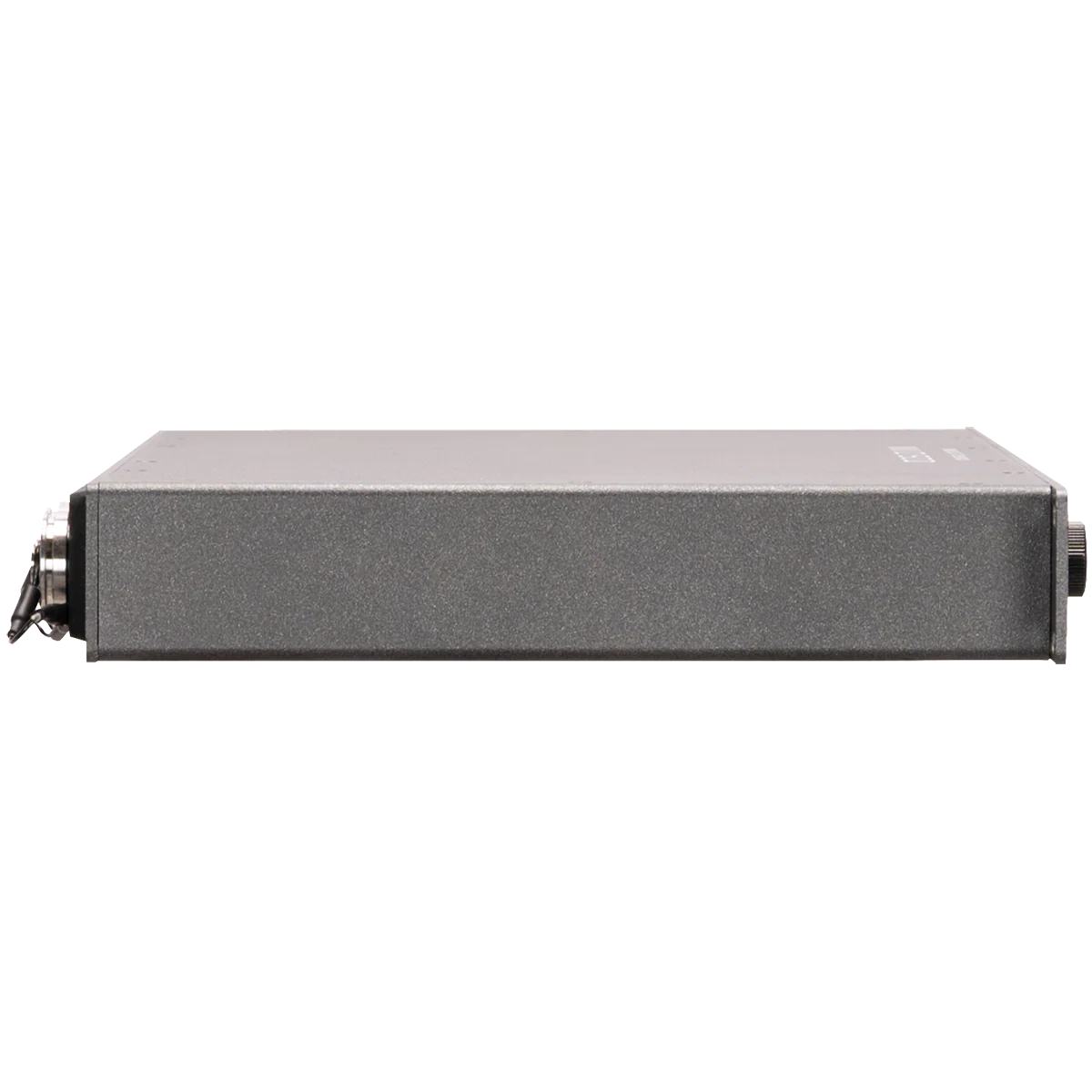

Physical

• Depth: 10.33 in. (262.3 mm)
• Width: 19 in. (482.5 mm)
• Height: 1.4 in. (44 mm)
• Weight: 7.05 lbs (4.2 kg)

Electrical

• PoE 802.3at (max 30W per port)
• 100–240 V nominal, 50/60 Hz
• 180W max power consumption
• PoE, PoE+

Approvals / Ratings

• CE | cETLus | FCC | UKCA | IP20

What's in the Box

• 5ft (1.5m) locking IP65 power cable (EU or US version)
