Netron NS8

The NS8 is a high quality 8 port network switch that comes in an outdoor and indoor rated version.  This is the indoor version.

From the manufacturer:

The NETRON NS8 is a compact network switch featuring 8 Gigabit ports and PoE+ support.

With a total power budget of 100W the NS8 is ideally suited to distribute data and power to NETRON nodes or any other PoE compatible network appliance.

Highly optimized for processing the high data volume found in today's ever-growing lighting systems, the NETRON NS8 distributes a variety of entertainment protocols without delay, ensuring instant reaction times and flawless execution.

Designed for live production and installations with a rugged housing it offers flexible mounting options to cover any situation, including rack, truss, DIN-rail and wall mount hardware.

Features:

• Gigabit Network Switch optimized for data intensive entertainment applications

• Artnet and sACN support

• X-Net, HogNet, MA-Net, ETC Net3 and various other protocols

• Factory and user presets for plug and play setups

• PoE and PoE+ support

• PoE power switch

• Remote configuration via internal webpage

• Convection cooled design

• Powder-coated aluminum ½ rack housing

Video Review:

Specification:

• Mounting

• Connections

  • (8) Locking RJ45 Ethernet network connections

  • LED Feedback for Activity, Link, PoE, VLAN

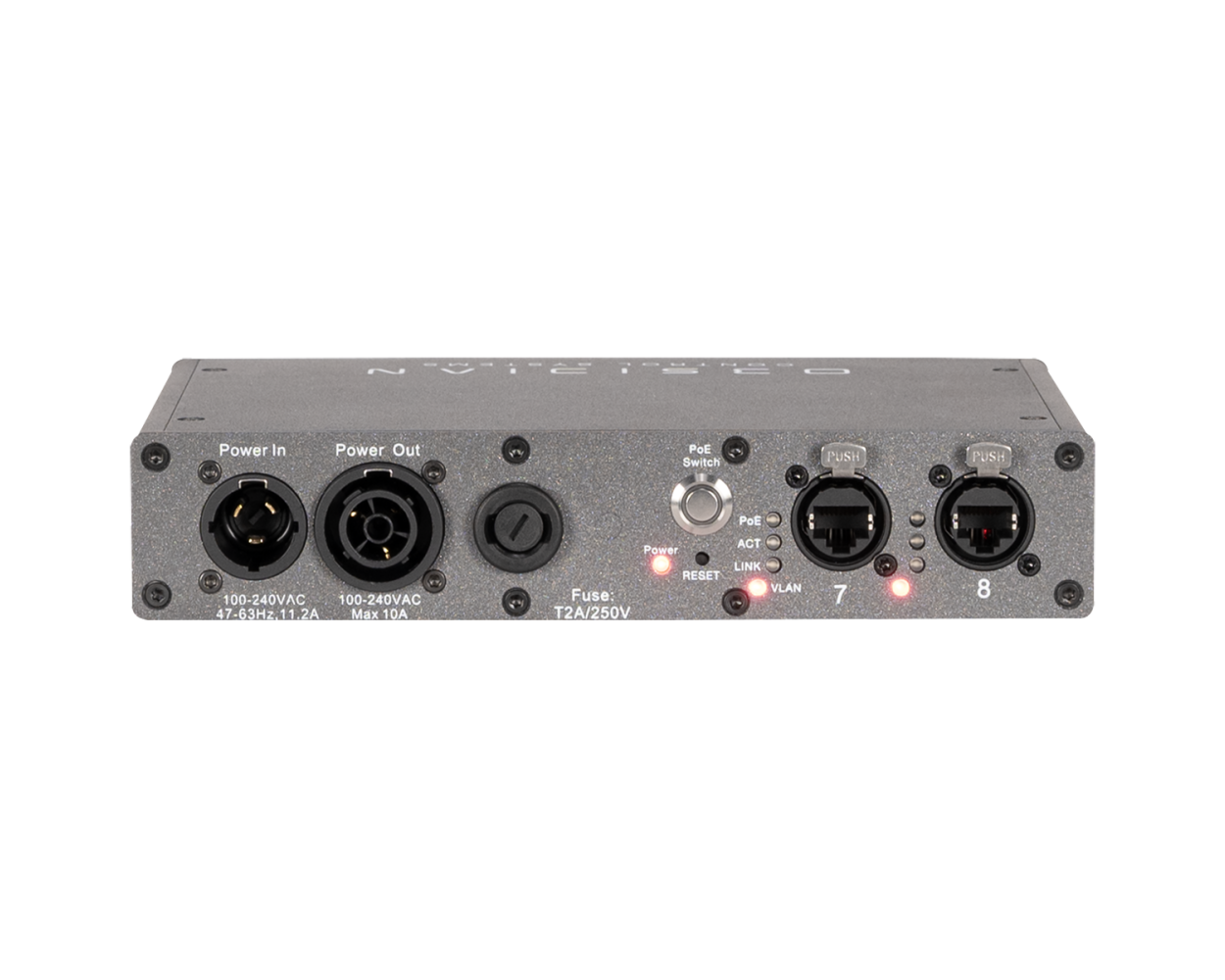

  • Locking Power In/Thru

  • PoE Power Switch

• Protocols

  • sACN, Art-Net

  • ONYX X-Net, MANet2, MA-Net3, HogNet, ETC Net3

  • Dante

  • Broadcast, Unicast, Multicast

  • IEEE 802.3, 802.3ab, 802.3x, 802.1p 802.3at, 802.3af, 802.1Q, IGMPv2,v3

  • PoE (15W), PoE+ (30W), Max power per port setting

  • IGMP Querier, IGMP Snooping

  • VLAN (6 Groups, Trunk, Color Coding)

  • DHCP Server per VLAN

  • Dante compliant QoS Preset

  • Total Switching Capacity: 10Gbps

• Physical

  • Length: 147 mm (5.8 in.)

  • Width: 215 mm (8.5 in.)

  • Height: 42 mm (1.65 in.)

  • Weight: 1.1 kg (2.4 lbs)

• Electrical:

  • 100-240 V nominal, 50/60 Hz, 109W

  • PoE, PoE+

  • 100W Total PoE Budget

• Approvals/Ratings

  • cETLus / CE / IP20 / FCC

  • cETLus / CE / IP66 / FCC

  • NS8:

What’s Included:

• NS8

  • 1.5m locking IP65 power cable (EU or US version)

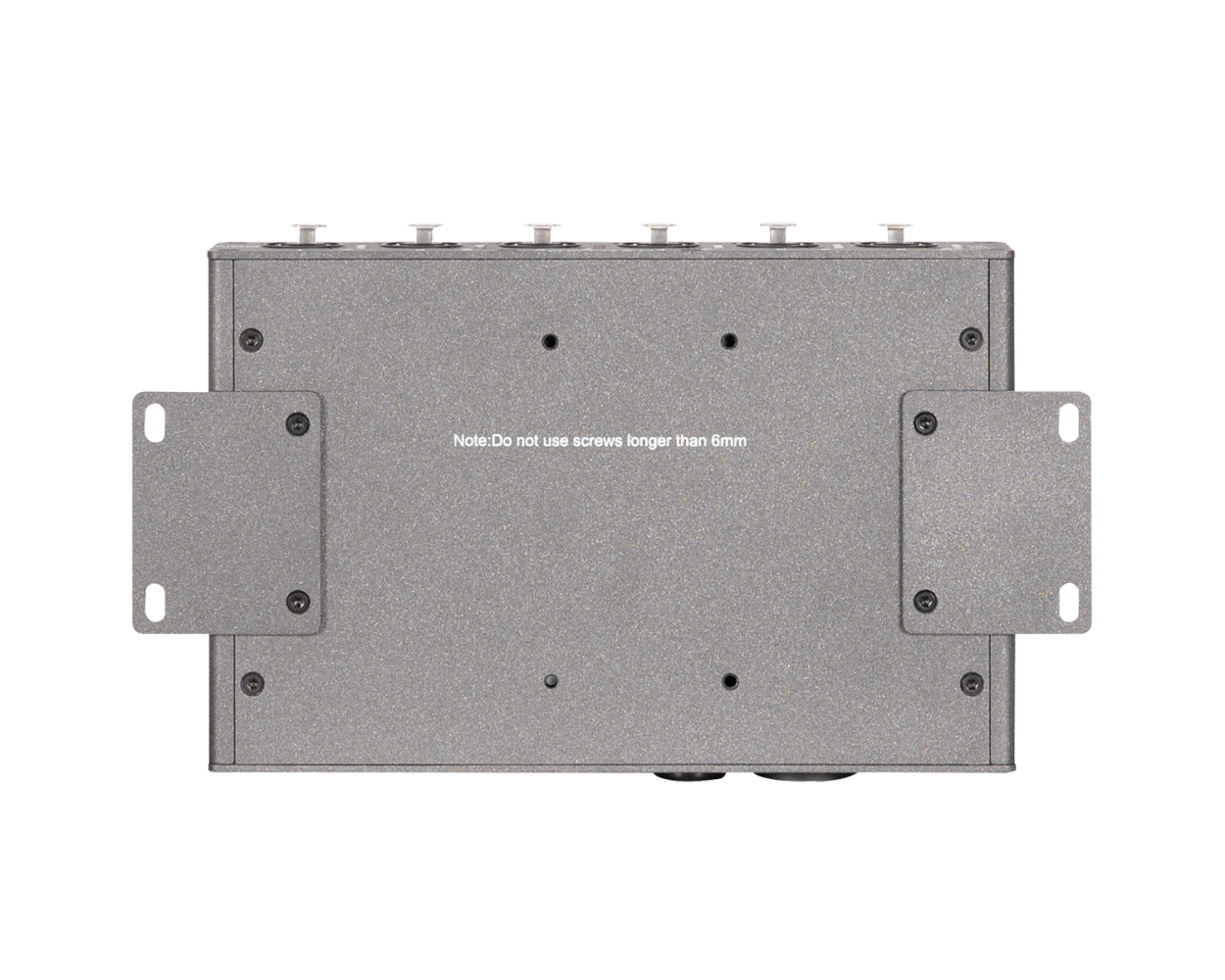

  • (2) Wallmount plates

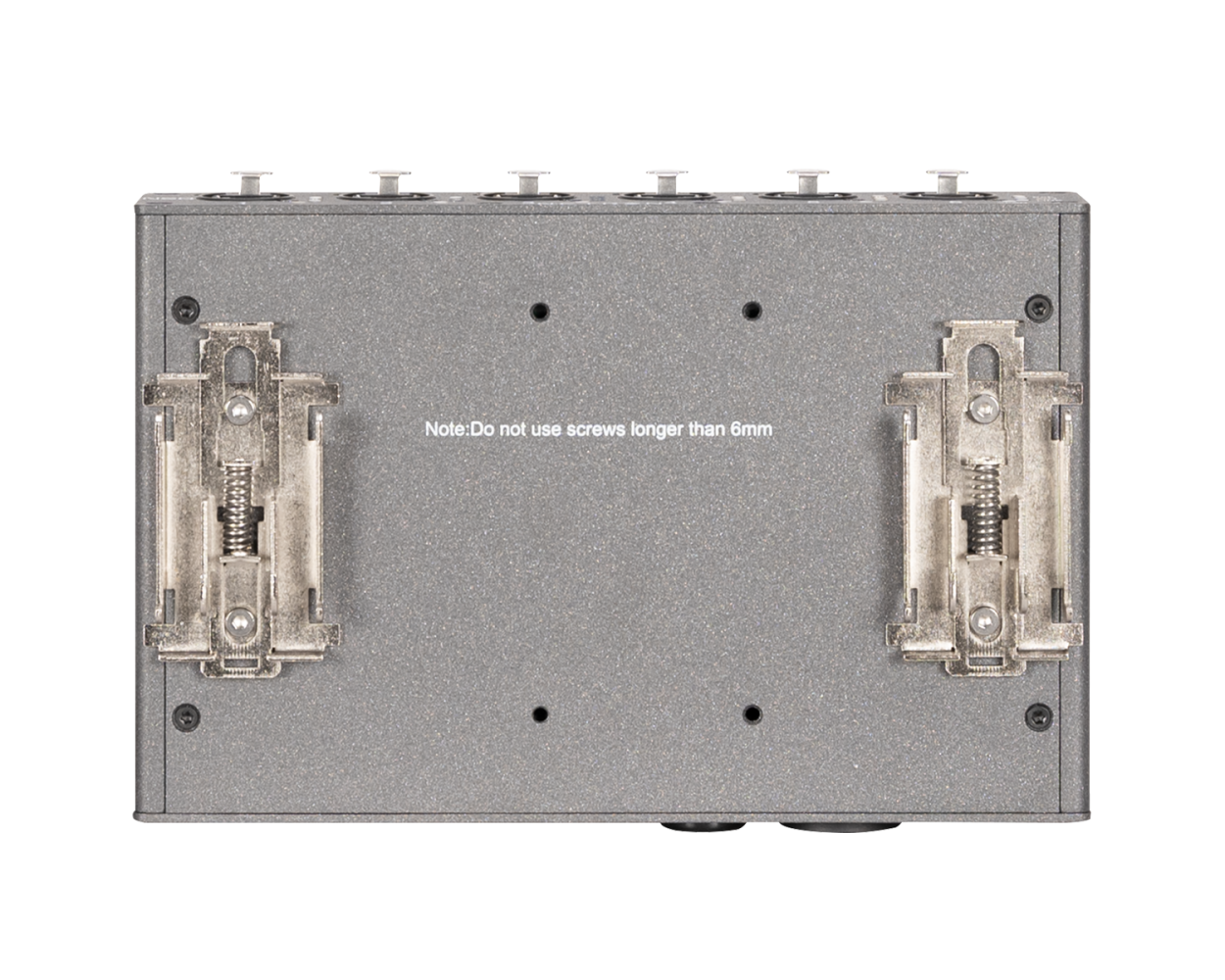

  • (2) DIN-Rail clamps
