NovaStar KU20 Processor
This item is in stock and ready to ship. Typical processing time is one business day.
Description
Description
The KU20 is a really cool little processor - up to 2.6 million pixels across 6x Ethernet outputs, and it offers signal input via 10G Optical and HDMI. Plus, it now offers manual scaling!
This processor does not have a video switcher, but does offer scaling, making it a great choice for a lot of events or installations.
From the Manufacturer:
The KU20 is a compact, cost-effective LED video controller designed to operate NovaStar’s advanced COEX control system. It offers advanced image processing functions to maximize image quality and LED screen performance. It offers robust features including Image Boost Mode, 22Bit+, Grayscale Calibration, Low Latency Support, High Frame Rate (120Hz), Manual Scaling Frame Multiplexing, Shutter Fit & More. Making it an ideal solution for small-scale Studio and Broadcast applications.
KU20 offers precise control through the all-new VMP control software that provides users with ease of use and simplified operation. It operates on panels equipped with NovaStar’s Armor series receiving cards with the full suite of features and functions available on the flagship A10S Pro receiving card.

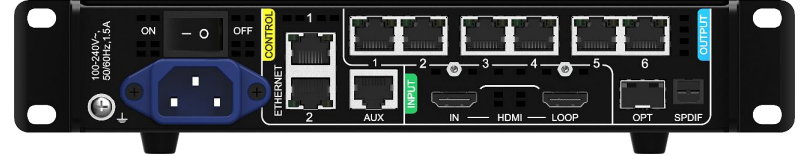

KU20 can support up to 2.3M pixels and is equipped with 6x Ethernet output ports + 1x 10G Optical Port along with HDMI In + Loop. KU20 is half rack unit size.
NOTE: The KU20 now offers scaling! Supported on Firmware v1.1.0 with COEX Software v1.2.0
Key Features:
- VMP/COEX Compatible
- Manual Input Scaling
- Low-Latency Support
- 22Bit+ Image Booster
- GrayScale Calibration
- Shutter Fit
- Frame Multiplexing
- Phase Offset
- High Frame Rate Support – Up to 120Hz
In the Box:
- 1 x IEC Power Cable
- 1 x Ethernet Cable
- 1 x HDMI Cable
Specifications:
- # of outputs: 6
- Scaler options: Auto-Fit and Manual Scaling
- Video Input Types: HDMI, Optical
- Video Output Types: HDMI (loop)
- Rack Space: 1
- Genlock: No
Control:
- Control Protocol: Novastar
- Max Supported Resolution: 1920x1200
- Max Supported LEDs: 2.3 million
Power:
- Input Voltage: 100-240v
Warranty: Backed by a 7-year warranty.
Tech Specs
Physical:
Length: 11.42 in
Width: 10.01 in
Height: 1.99 in
Weight: 4 lb
Electrical
Voltage Range: 100-240v
Maximum Wattage: 25w
Power Cable Connector - Fixture Side: Locking IEC
Main Power Connector on Included Cable: Edison
Warranty
Warranty: 1 Year
