Sku:
VX400

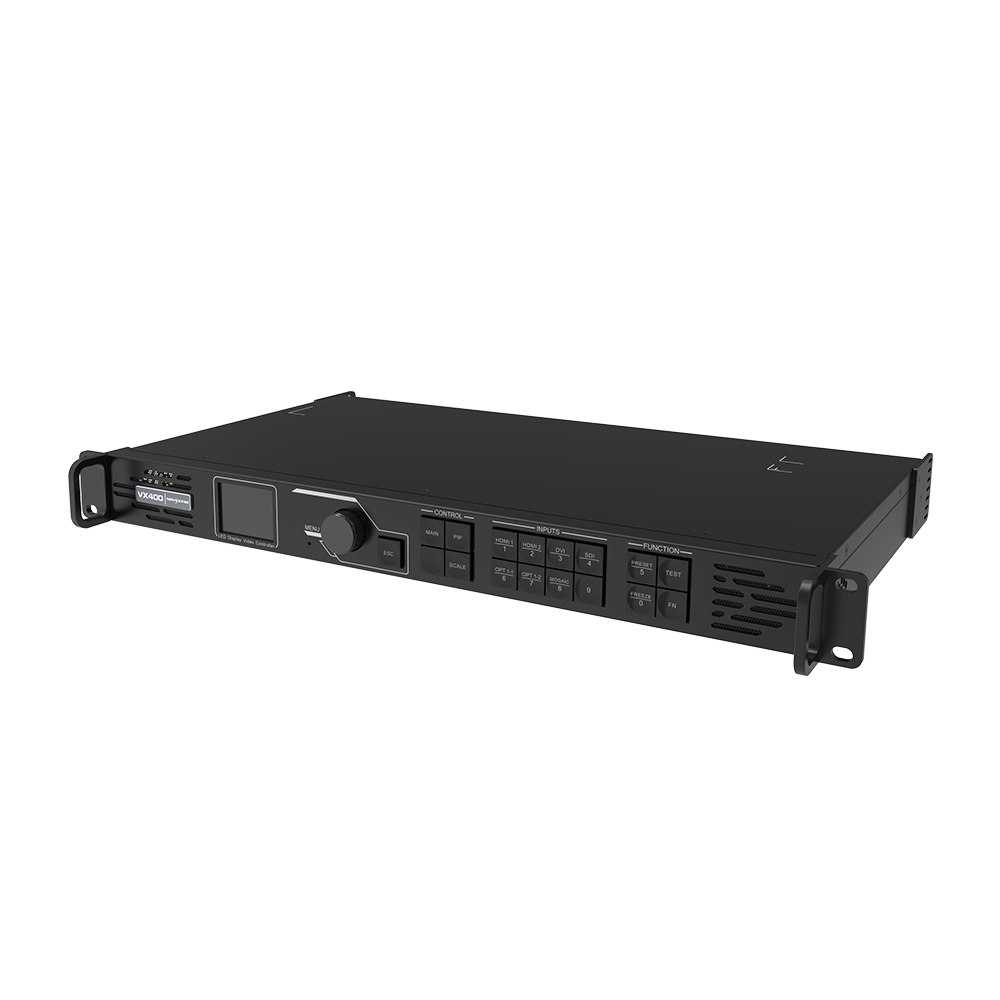

NovaStar VX400 Processor
- Regular price
- $1,098.00
- Regular price
-
- Sale price
- $1,098.00
- Unit price
- per
Shipping calculated at checkout.
Vendor: DVS LED
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The Novastar VX400 is a complete processor with switching/scaling and loading of up to 2.3 million pixels. It includes auto-fit functionality as well as a variety of useful inputs including SDI.
From the Manufacturer:
The VX400 is NovaStar’s new all-in-one controller that integrates video processing and video control into a single unit. It features 4x Ethernet output ports capable of driving up to 2.6 million pixels along with 2x optical fiber input/outputs for long-distance signal transmission and native light-sensor connectivity for automatic brightness adjustment.
The VX400 is capable of receiving a variety of HD video signals with switching capabilities and PIP mode. VX400 features auto-fit scaling that can automatically fit input sources to configured screen size at the click of a single button and offers onboard screen configuration without requiring a computer connection. With popular inputs including Dual-HDMI, DVI, and 3G-SDI, VX400 can be widely used in applications capable of driving common LED screen sizes and pixel pitches for rental, fixed installations, and more.
If you haven't purchased an LED wall before, please request a quote after adding items to cart to ensure you build a complete system.
In the Box:
- 1 x IEC Power Cable
- 1 x HDMI to DVI Cable
- 1 x USB Cable
- 1 x Ethernet Cable
- 1 x HDMI Cable
- 1 x Quick Start Guide
- 1 x Certificate of Approval
- 1 x Safety Manual
Specifications:
- # of outputs: 4
- Scaler options: Auto-Fit and Manual Scaling

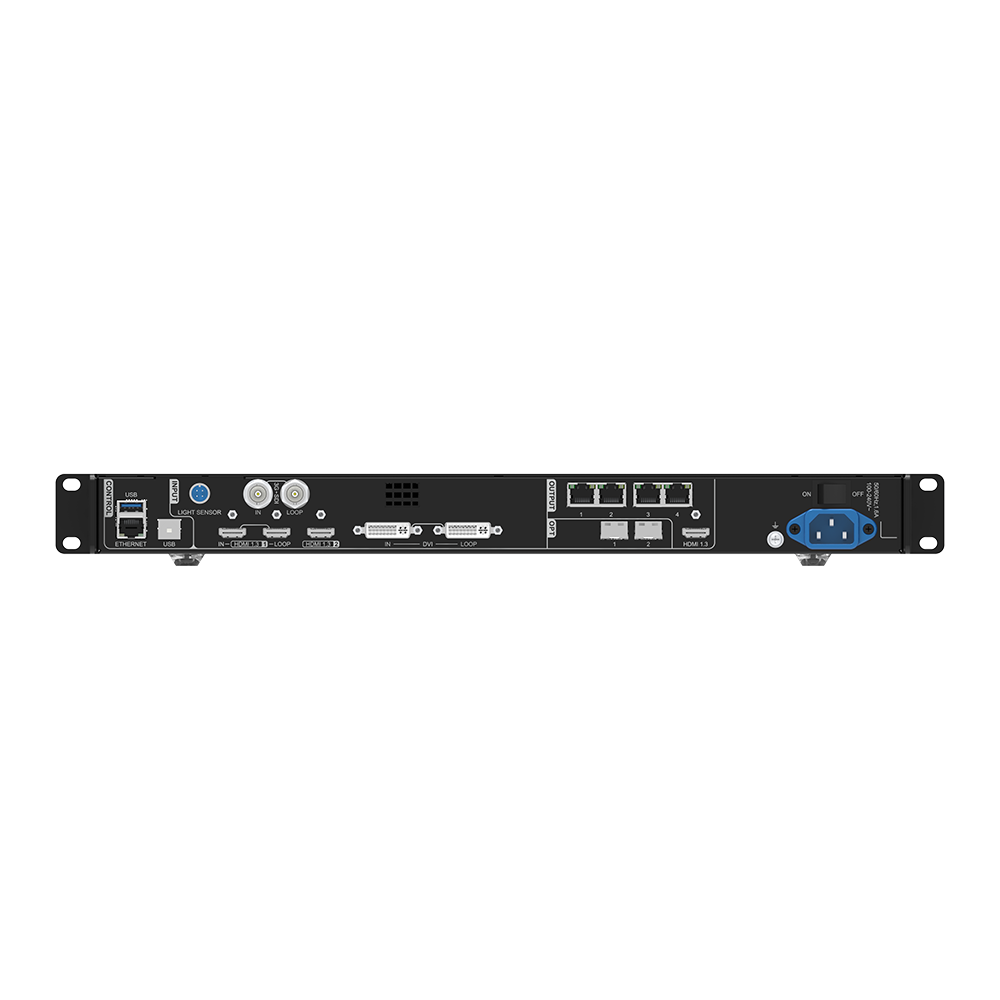

- Video Input Types: SDI, HDMI, DVI, Optical
- Video Output Types: HDMI
- Rack Space: 1
Control:
- Control Protocol: Novastar
- Max Supported Resolution: 1920x1200, SDI 1920x1080
- Max Supported LEDs: 2.3 million
Power:
- Input Voltage: 100-240v
Tech Specs
Physical:
Length: 11.76 in
Width: 19 in
Height: 1.72 in
Weight: 8.82 kg
Electrical
Voltage Range: 100-240v
Maximum Wattage: 35w
Power Cable Connector - Fixture Side: IEC
Main Power Connector on Included Cable: Edison
Warranty
Warranty: 1 Year
