Sku: NXD986

Onyx NX DMX

$449.00
$449.00
Shipping calculated at checkout.
Vendor: OBSIDIAN Control Systems

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

Looking for the most inexpensive way to get 2 universes out of ONYX on a PC?  This is it, and it works via USB.

From the Manufacturer:

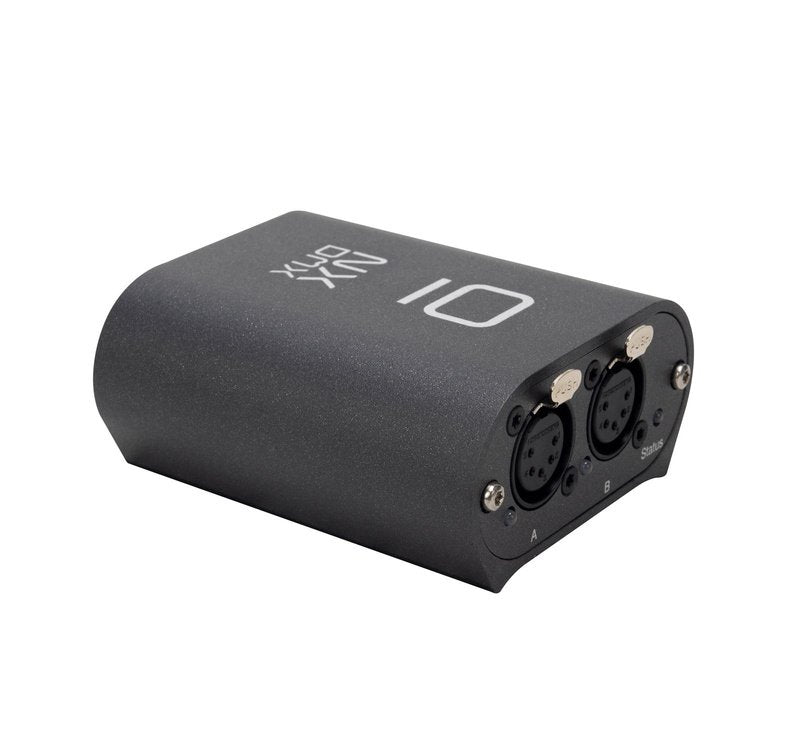

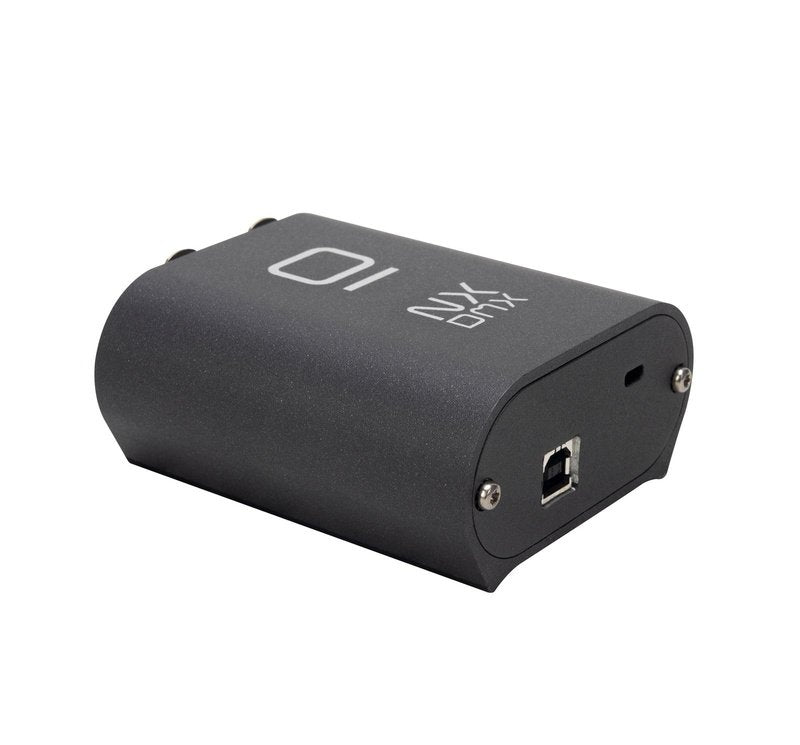

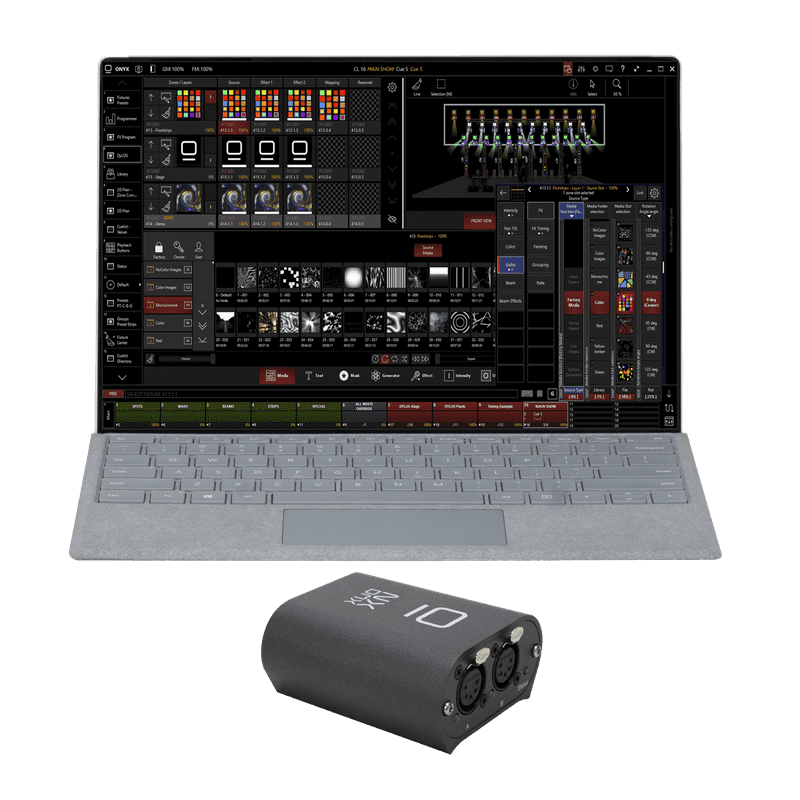

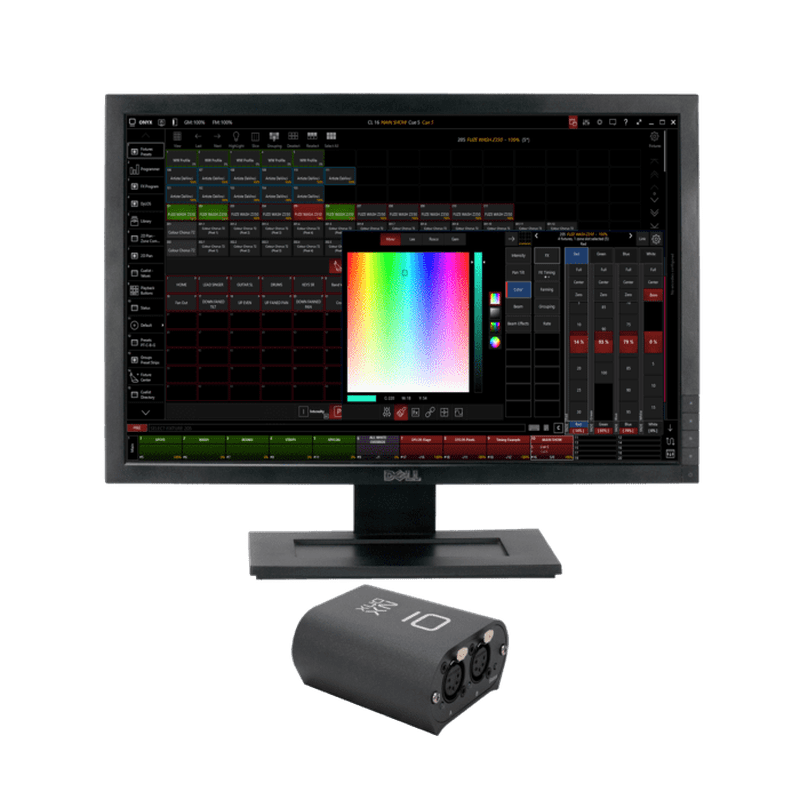

NX DMX is a USB powered 2-Port DMX Node. As a member of the innovative ONYX platform from Obsidian Control Systems the NX DMX provides instant access to DMX In and Outputs as well as RDM communication. The device is plug and play and requires no drivers or additional configuration to integrate with ONYX. It is designed to work with any PC but also works with any ONYX console as a fast and affordable way to add two additional DMX ports.

NX DMX enables the ONYX NOVA PC license for up to 4 Universes. When connected to an ONYX licensed PC or ONYX console the NX DMX is assignable to any one of 255 Universes.

NX DMX allows for the full ONYX system to be used in many situations, from small events and tradeshows to clubs and churches. Many technicians utilize ONYX through the NX DMX as an affordable but powerful test station due to ONYX' outstanding library support.

From the GEAR Pro's:

The NX DMX gets you (2) universes of DMX with RDM out of ONYX via USB.  You can also get (2) more universes out via networked DMX (sACN and/or Art-Net).  This does NOT unlock MIDI/OSC/Timecode.

In the Box:

  • (1) Obsidian NX DMX
  • (1) Obsidian USB Cable

Features:

  • ONYX NOVA License (4 Universes)
  • Plug and Play 2 Port DMX Node for ONYX
  • USB powered
  • DMX In/Out and RDM support
    Expand any ONYX console or PC system
  • Rugged design



Tech Specs

Control

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 3.7 in

Width: 3.3 in

Height: 1.7 in

Weight: 0.6 lb

Electrical

Voltage Range: 5 VDC (USB)

Power Cable Connector - Fixture Side: USB B

Main Power Connector on Included Cable: USB A
