Sku: NXP122

ONYX NX P

$2,190.00
$2,190.00
Sold out
Shipping calculated at checkout.
Vendor: OBSIDIAN Control Systems

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The ONYX NX P is a killer add-on, motorized playback wing for ONYX Consoles and PC systems.  They fit a lot into a small package at a great price, and even include a Nova+ software license!

From the Manufacturer:

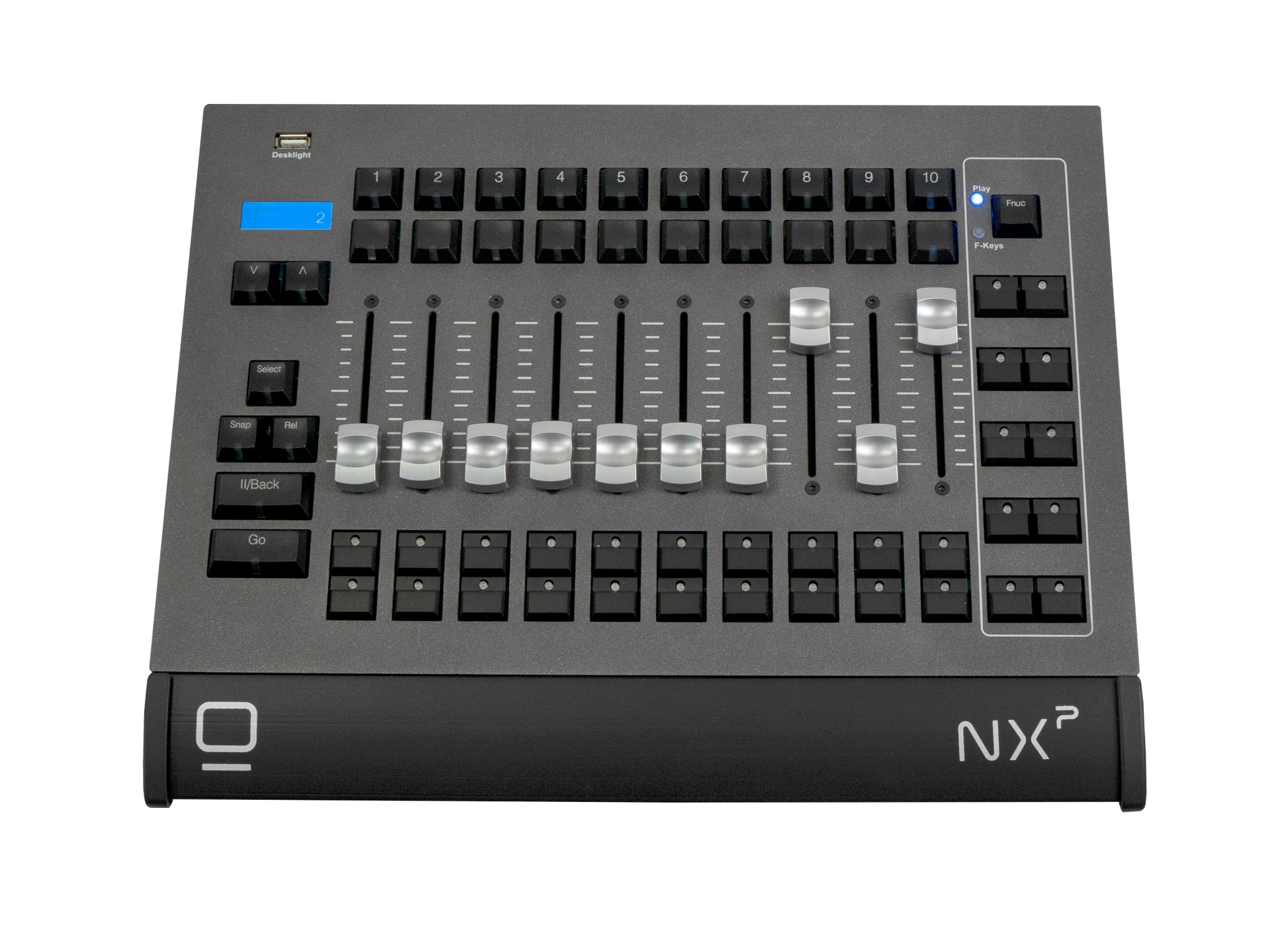

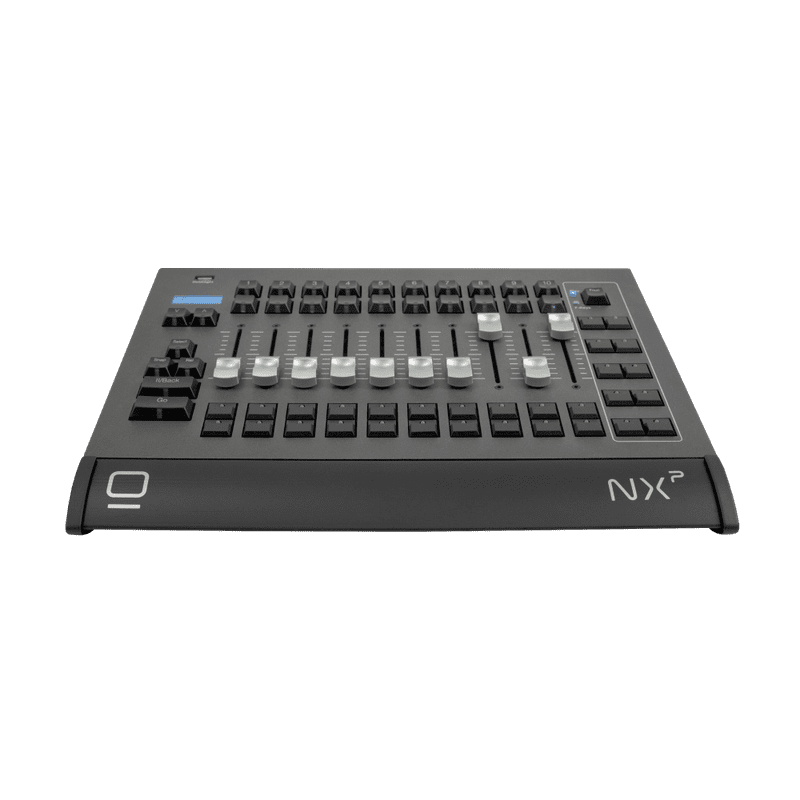

The NX P is a motorized fader wing for ONYX. The ideal expansion for the NX1 console and ONYX PC systems, it replicates the full playback section of the NX1 console.  Four integrated DMX ports provide instant connectivity to the lighting system.

Multiple NX P wings can be connected to any ONYX console or PC system, expanding direct access with 20 playbacks at a time. The flexible button array can be mapped to playback control or powerful function keys. The NX P replicates the layout and all functionality of the NX 1 and NX4 console surfaces so all operation is seamless and intuitive.

A simple magnetic alignment system allows attachment on any side of the NX1 console or NX K command pad. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.

From the GEAR Pro's:

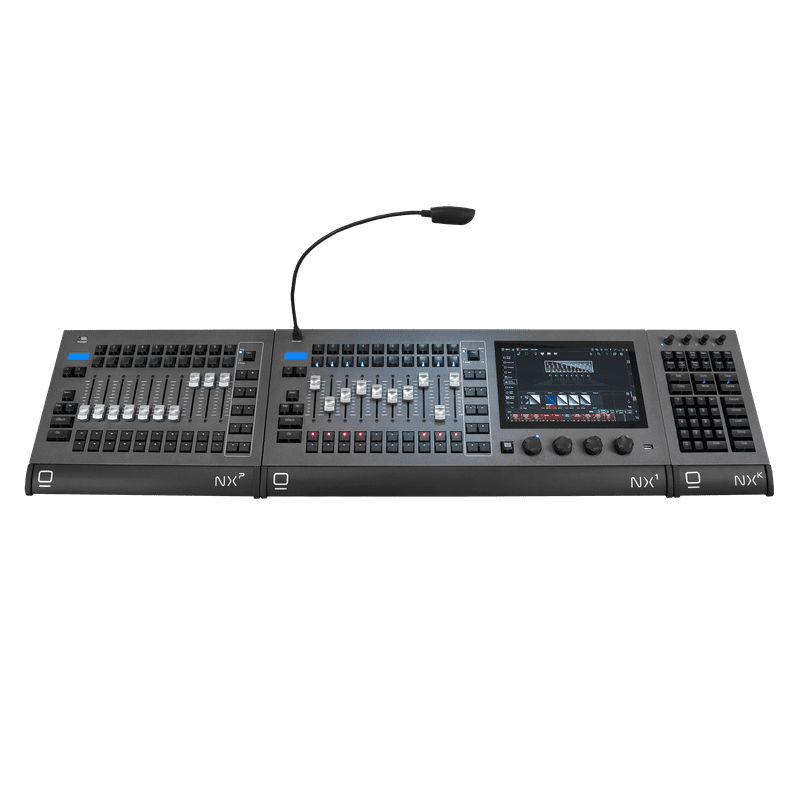

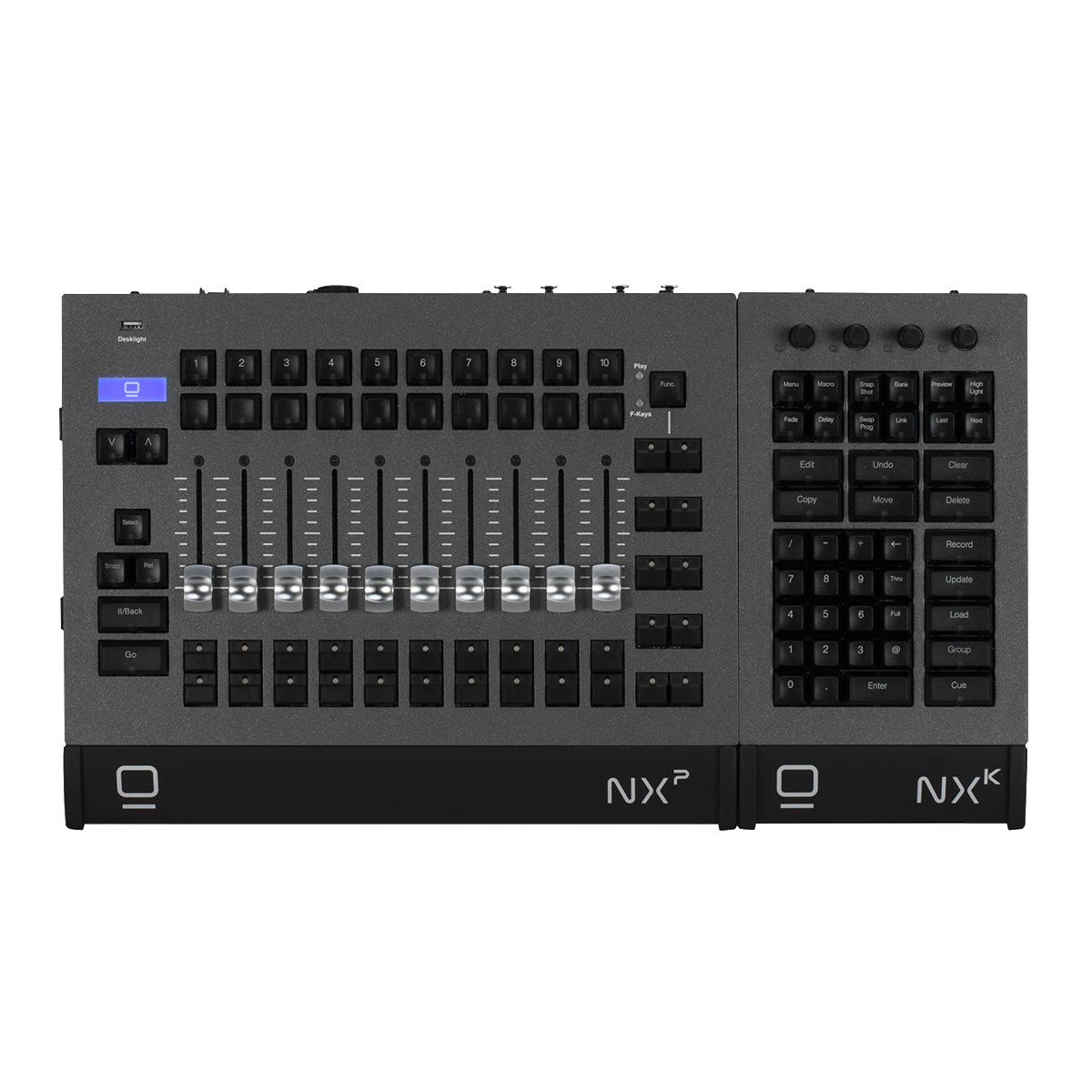

The ONYX NX P fits in perfectly with the NX K and NX 1 consoles as a complete, 20-motorized fader console with full programming section and more!  Or, grab the NX P and use it by itself with a PC.  Or plug it in to an ONYX console for an additional 10 faders.  Or grab up to 16 of these and plug them into a ONYX console for 160 additional faders and 160 playback buttons!  The choice is yours!

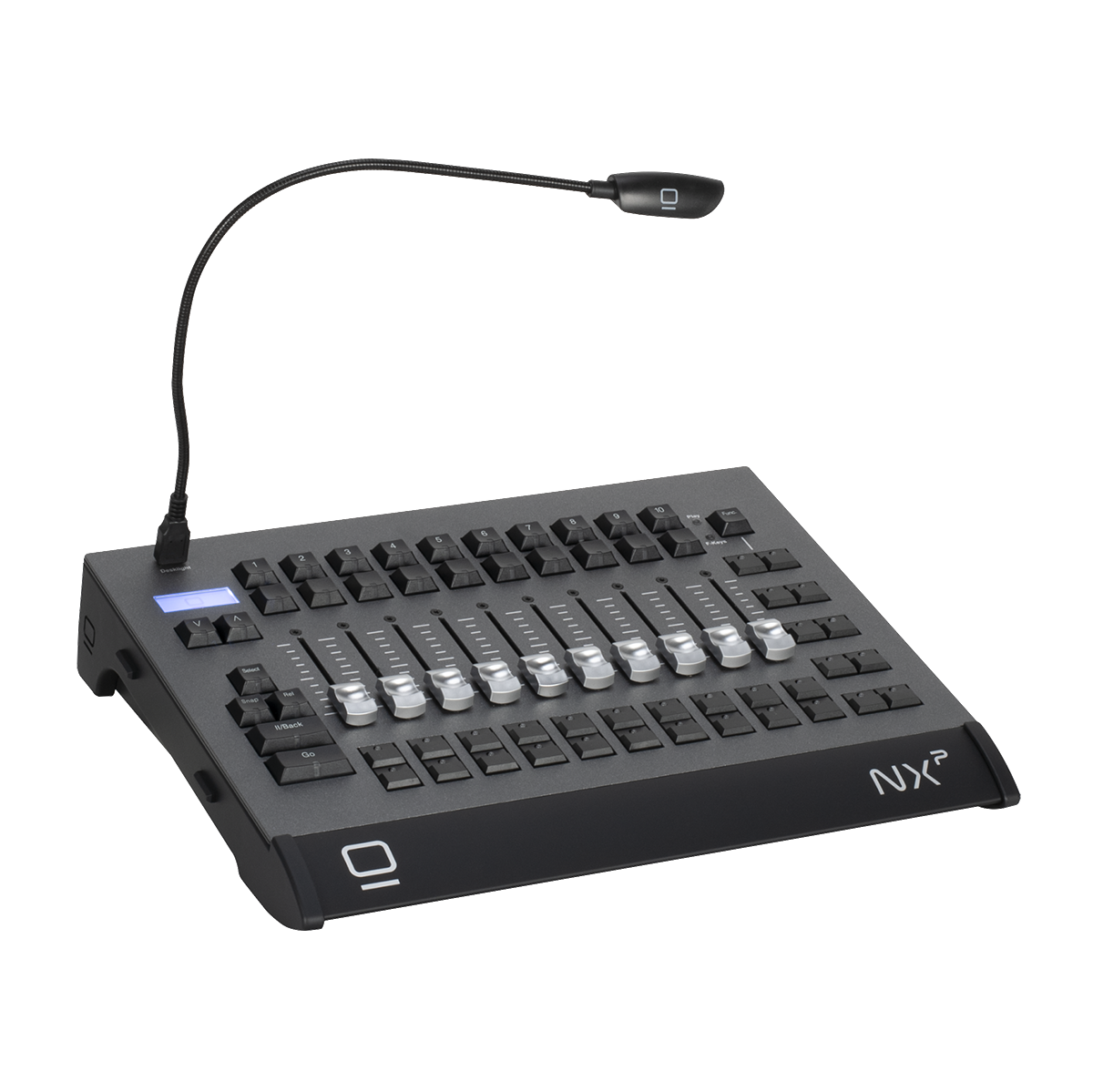

If you didn't get the idea that I really like these from the last paragraph, then how about this - not only does it have high-quality faders, a desklamp included, and a dust cover...but it also have a PowerCon True1 power plug!  Note, that the initial pictures from Elation do show a PowerCON True1 passthrough, but this has been omitted for the final consoles.

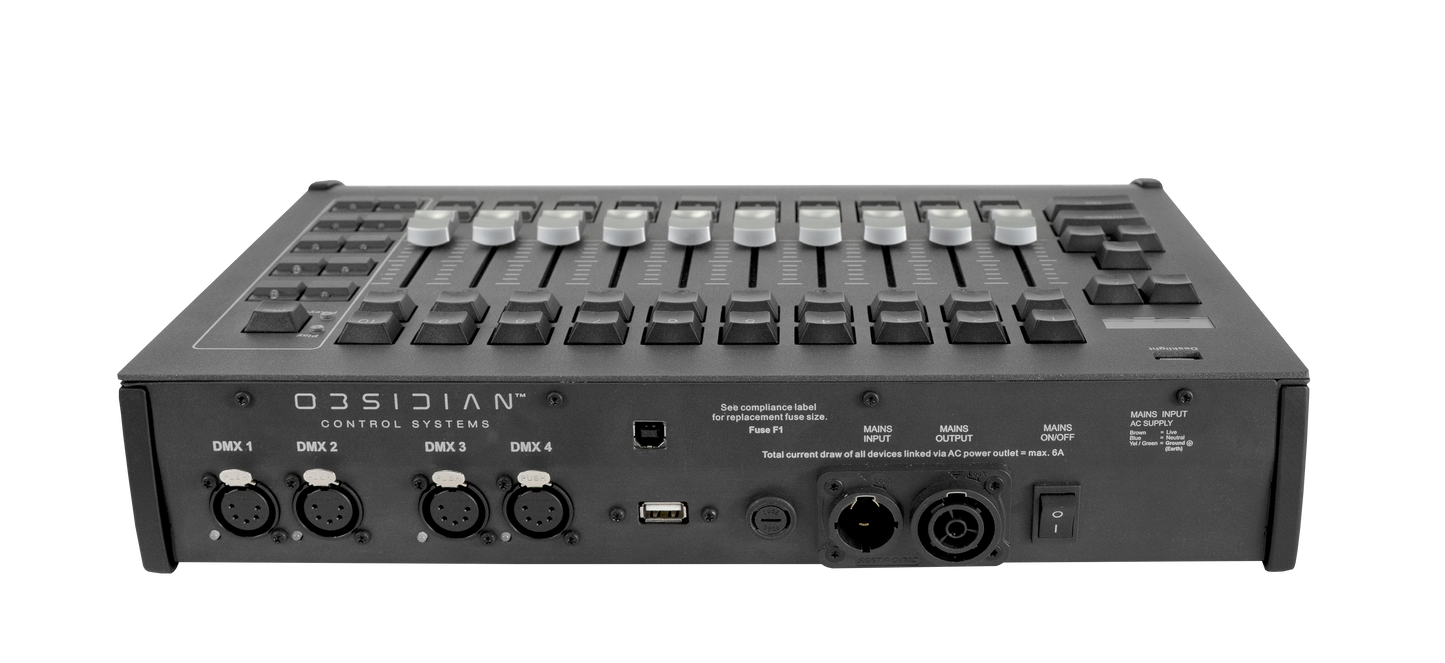

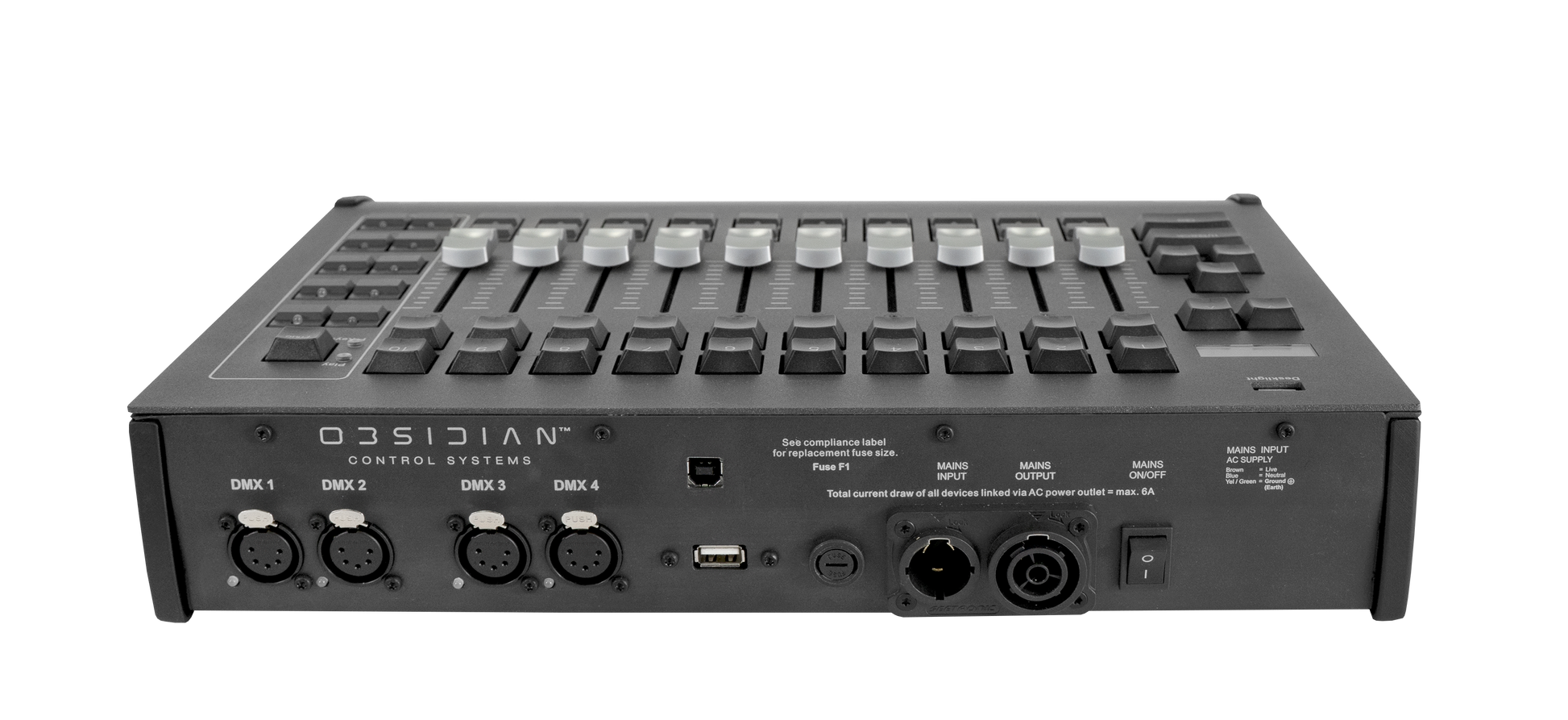

This is a seriously nice console wing or PC surface!  On PC, you get the Nova+ license, which unlocks (4) Universes of DMX (and yes, it has (4) DMX output jacks), and MIDI/OSC/Timecode capability!

Video Review

In the Box:

  • (1) Obsidian NX P
  • (1) LED USB desk lamp
  • (1) Dust Cover
  • (1) USB 3.0 recovery drive
  • (1) IP65 Locking power cable

Features:

  • Portable and compact motorized playback wing
  • 10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section
  • 4x DMX Ports integrated
  • ONYX Nova+ License (4 Universes + MIDI/OSC/ Timecode support)

Tech Specs

Control

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 11.75 in

Width: 14.7 in

Height: 2.8 in

Weight: 9.9 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison
