Sku: NXS671

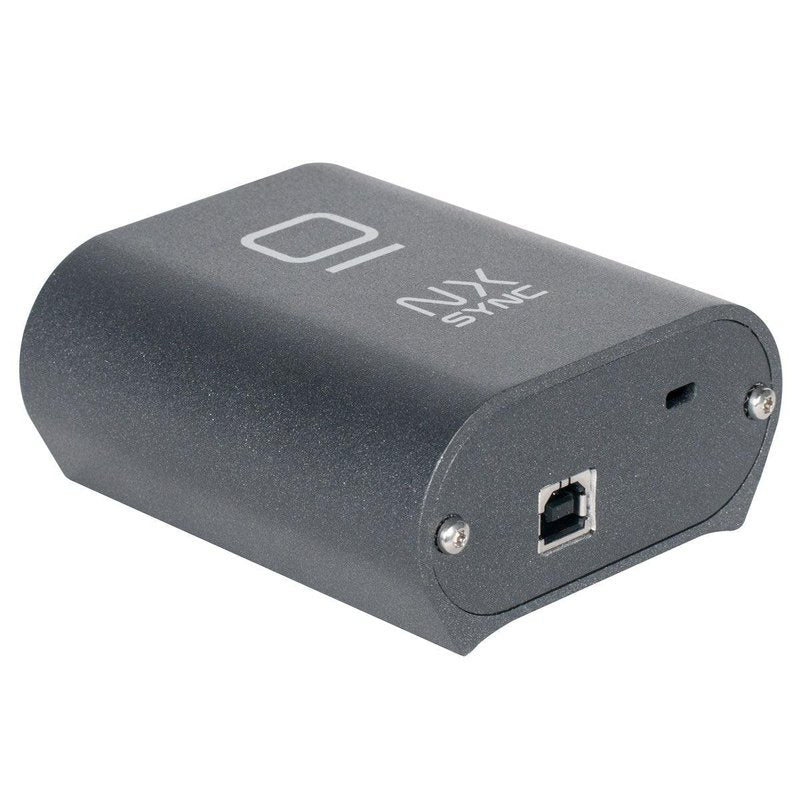

ONYX NX SYNC

$400.00
$400.00
Sold out
Shipping calculated at checkout.
Vendor: OBSIDIAN Control Systems

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • USDC
  • Visa

Description

Caret Down

The NX Sync is one of the most confusing pieces of the ONYX world.  Is it a re-branded boy band from the 90's?  Is it a DMX interface?  It's neither!  It's a great way to get timecode (LTC) into an ONYX PC or console.

From the Manufacturer:

The NX SYNC captures timecode in various SMPTE formats from its 3-pin XLR connection and converts it to a MIDI Timecode (MTC) stream, where it can be read into ONYX or any other MIDI Timecode compatible software. Additionally, it also has the power to take MTC and send it back out as SMPTE.

The NX SYNC contains a powerful hardware architecture for instant processing and minimal frame delays. It allows the ONYX software to read Linear Timecode (LTC) signals for perfect cue synchronization with external devices like sound or video playback systems.

The NX SYNC does not require custom drivers, and in addition to working with ONYX, it can be used as a SMPTE to MTC/ MTC to SMPTE device for both Windows 10 and MAC OS software applications.

From the GEAR Pro's:

The NX Sync is one of the most confusing pieces of the ONYX world.  Is it a re-branded boy band from the 90's?  Is it a DMX interface?  It's neither!  It's a great way to get timecode (LTC) into an ONYX PC or console.

Tip - in ONYX, select "MTC" as the NX Sync actually converts the LTC into MTC, and that's how the console or PC sees it.

In the Box:

  • (1) Obsidian NX SYNC
  • (1) Obsidian USB Cable

Features:

  • Two 3-pin XLR connectors for LTC Timecode In/Out
  • SMPTE Timecode @ 24, 25, 29.97 and 30 frames per second
  •  Native Plug-and-Play USB Connection for ONYX, PC and MAC (no custom drivers required)
  • USB Powered
  • Convenient, space-saving, stackable design
  • Rugged impact-resistant housing

Tech Specs

Physical:

Length: 3.7 in

Width: 3.3 in

Height: 1.7 in

Weight: 0.6 lb

Electrical

Voltage Range: 5 VDC (USB)

Power Cable Connector - Fixture Side: USB B

Main Power Connector on Included Cable: USB A

View full details
