Sku: NX1007

ONYX NX1

$3,990.00
$3,990.00
Shipping calculated at checkout.
Vendor: OBSIDIAN Control Systems

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Style: New

Description

Caret Down

The ONYX NX1 is a really exciting little console.  For the price that other brands provide a "JR" console with limited functionality and output, you get a full ONYX console with 8 universes of DMX and more!  See our full take below:

From the Manufacturer:

The NX1 is the essential lighting controller in the innovative and powerful ONYX platform. Fully featured and unrestricted if offers the complete ONYX experience without compromises in an ultra-compact package.

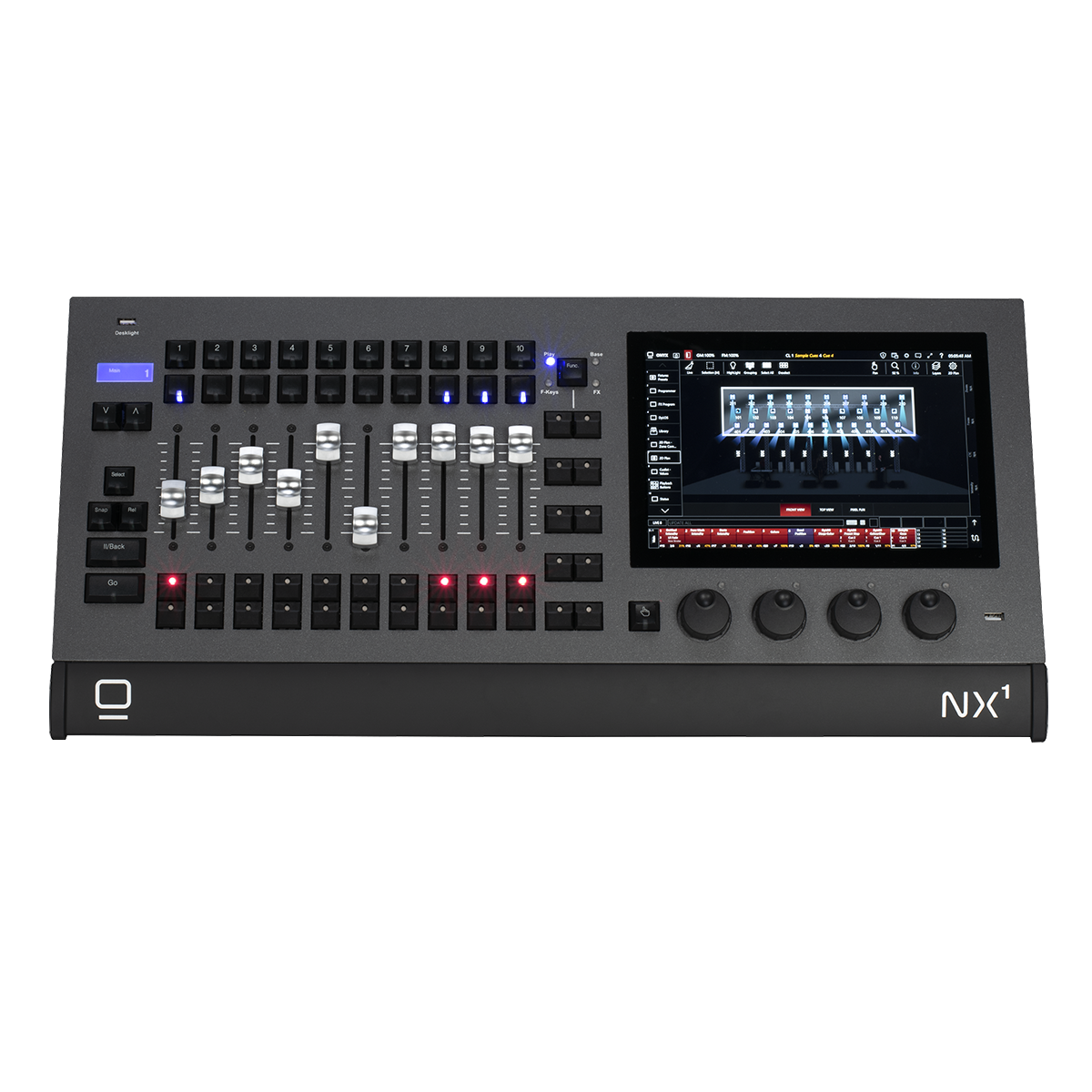

Utilizing the full ONYX Operating System the NX1 includes a high-brightness 10.1" HD multi-touch screen; 4 assignable parameter encoders; 10 full motorized playbacks with four freely assignable buttons plus and extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design.

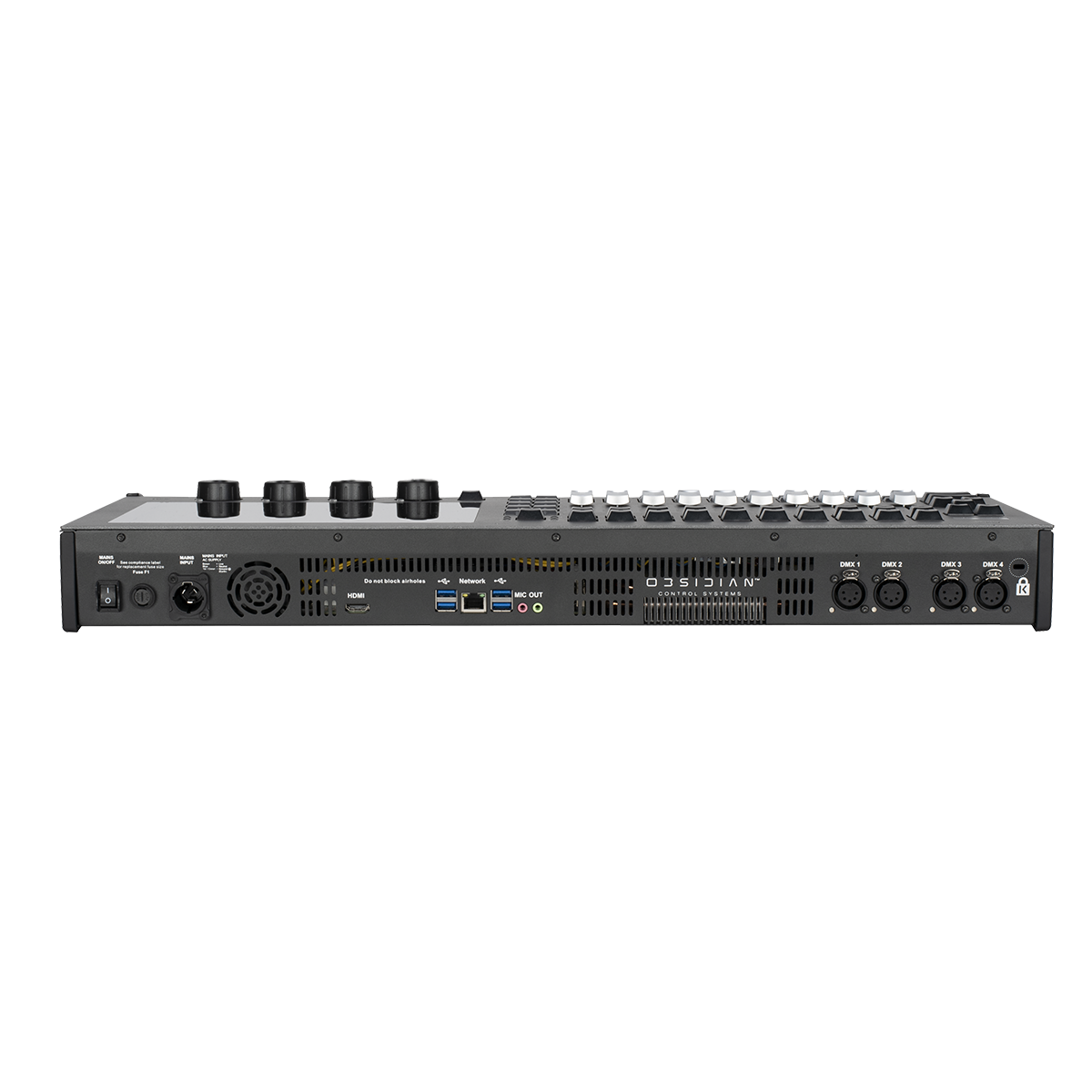

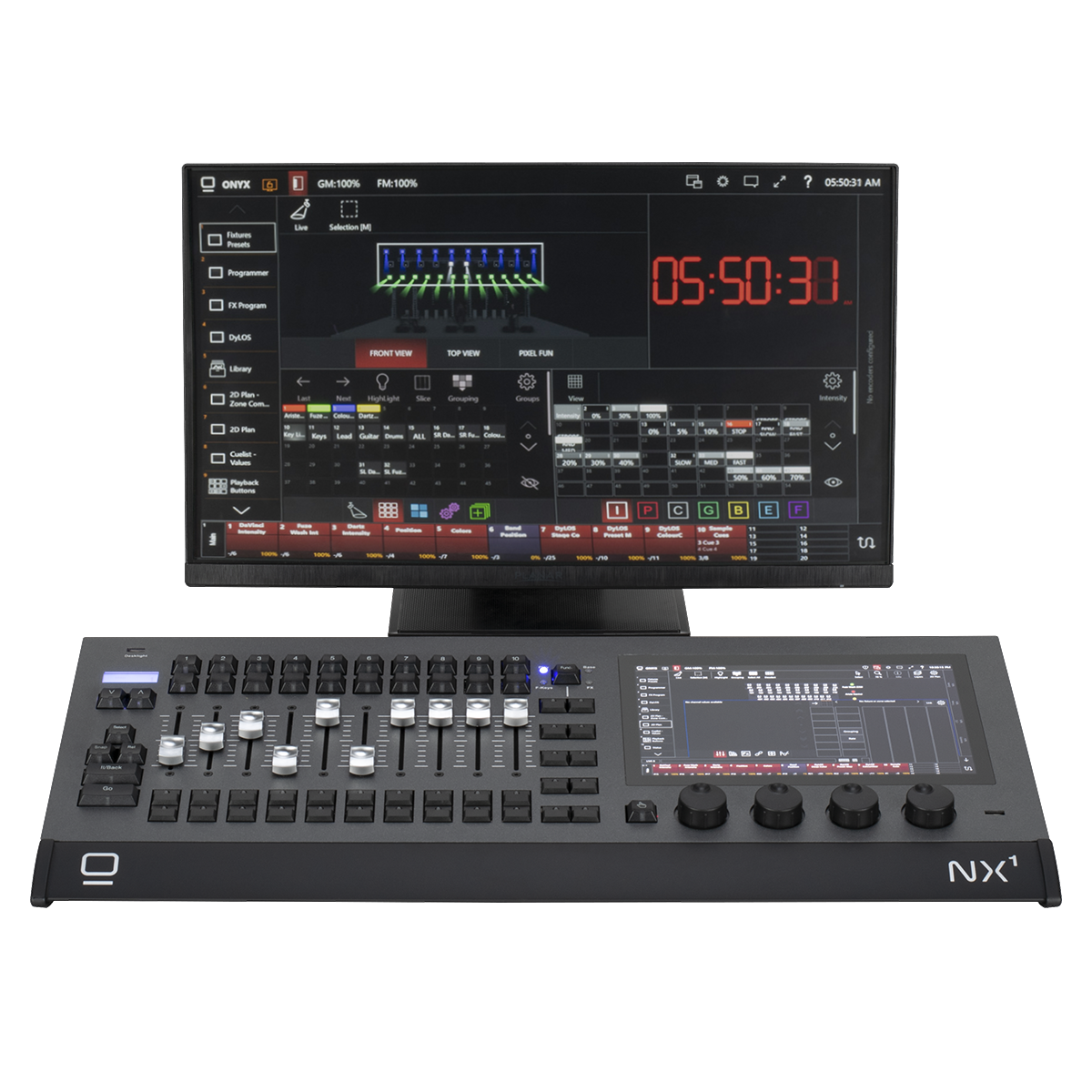

Including the latest in industrial components the NX1 contains a powerful new Intel processor, high speed NVMe SSD drive and 8GB of DDR4 RAM, allowing fast boot times, instant operation and the ability to process 8 Universes right inside the console. With four DMX ports, a Gigabit network port for up to 8 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 1 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at anytime.

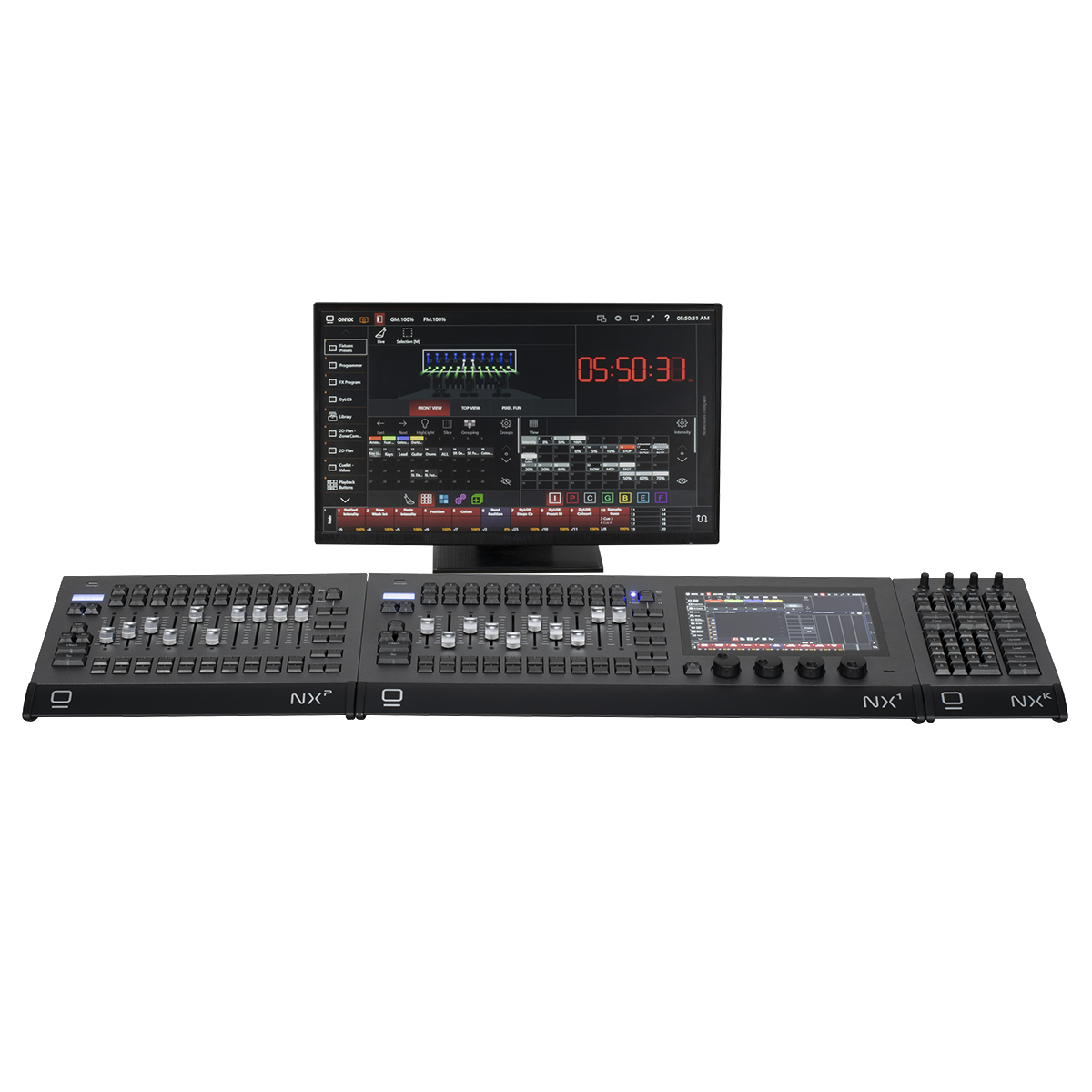

The NX1 is further expandable with the dedicated NXK keypad and the NXP motorized playback wing. A simple magnetic alignment system allows attachment on either side of the NX1. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.



From the GEAR Pro's:

We like this console.  For years, we've been looking for a ONYX console that hit that "mid-range" price point, and this is it.  Unlike a lot of it's competitors, it has 8 universes of DMX unlocked (4 ports onboard, the rest via network), desk lamp included, the full ONYX software, and motorized faders.  I (David) do not know of any other console at this price that has both good software AND motorized faders.   This is epic!

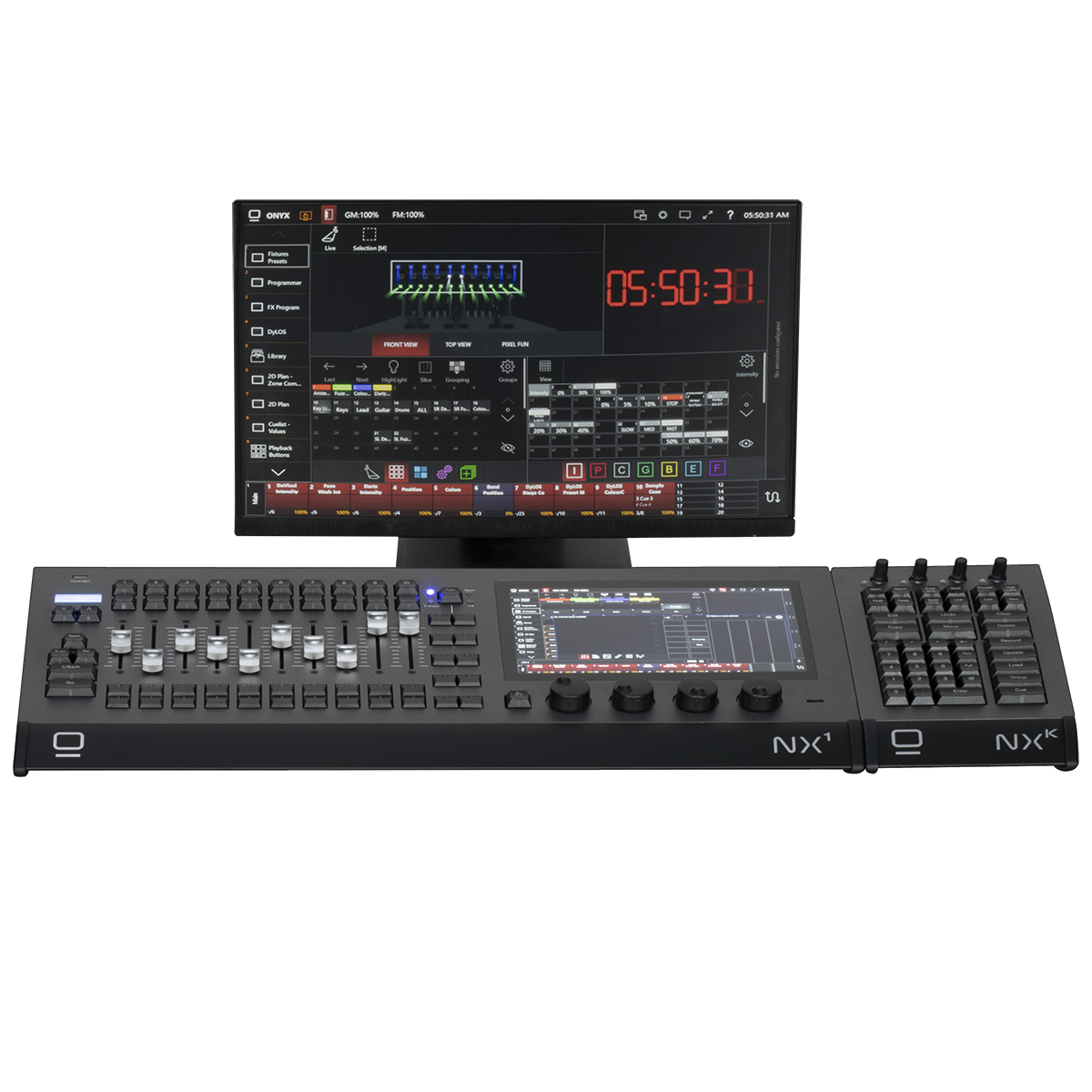

Pair the NX1 with a NX K for faster programming (highly recommended, they're not expensive), and add more faders with the NX P as desired!



Video Review

In the Box:

  • (1) Obsidian NX1

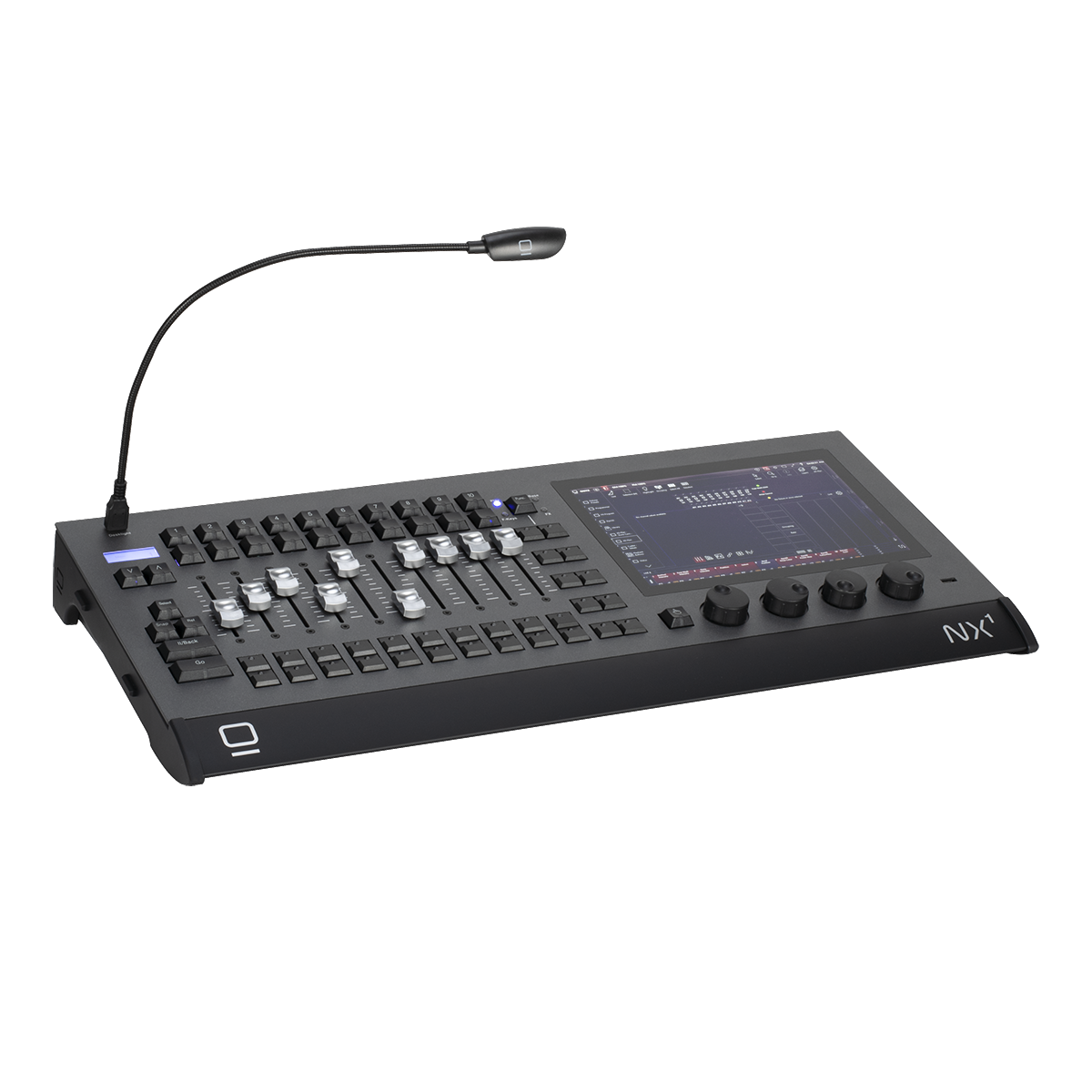

  • (1) LED USB desk lamp
  • (1) Dust Cover
  • (1) USB 3.0 recovery drive
  • (1) IP65 Locking power cable

Features:

  • Portable and compact fully featured lighting console
  • 10.1” Full HD multi touch screen, 1x external touch display
  • ONYX Essential License (8 Universes)
  • Fully integrated industrial processing
  • 10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section

Tech Specs

Control

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 11.75 in

Width: 25 in

Height: 2.8 in

Weight: 17.8 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 104w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison

ONYX NX1
ONYX NX1
Caret Down

Recommended products

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jason

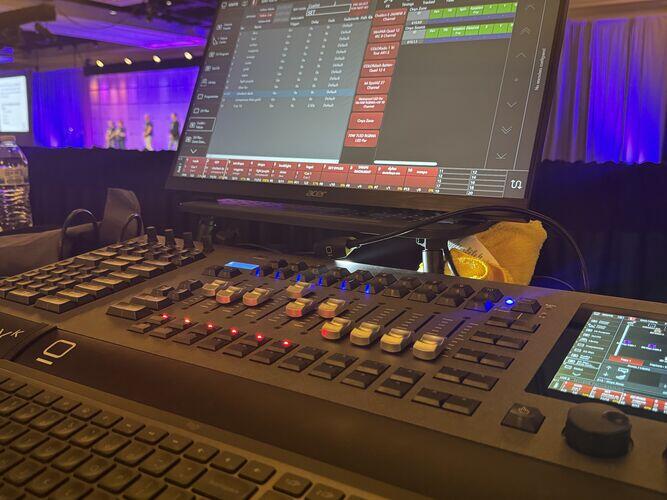

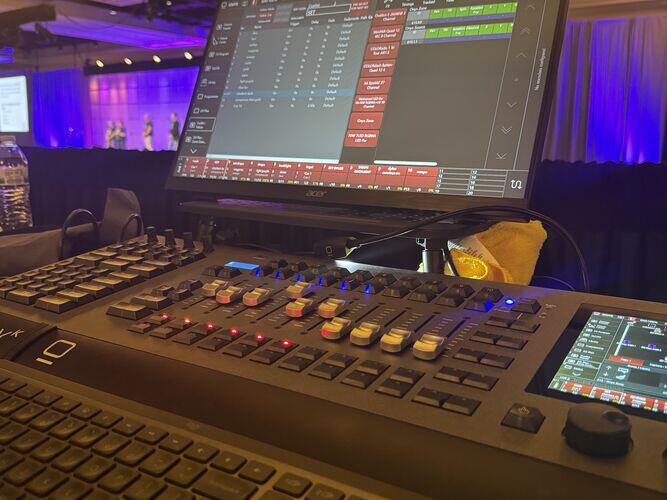

Great. Loving everything about this set up at the moment. Set up with 2 Ep4’s and it was quick and easy to get DMX to my downstage truss with an Ethernet line to nodes. Love the portability. Have my whole rig in a Pelican 1615 air and it’s 50 pounds exactly. Dylos is pretty sweet and look forward to spending some more time using that feature.
