Sku: OBEY10

Obey 10

$139.99
$139.99
Shipping calculated at checkout.
Vendor: Chauvet DJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

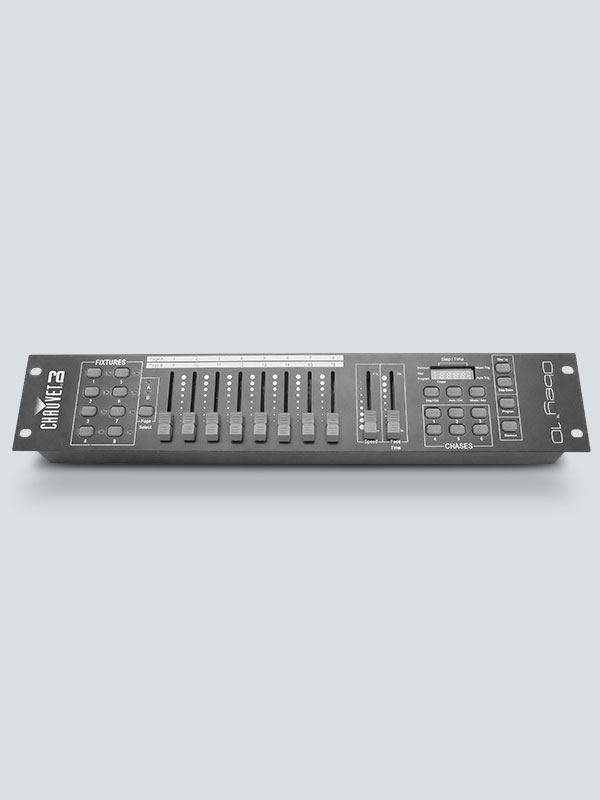

The Chauvet Obey 10 is a small, inexpensive, yet powerful DMX controller for up to eight lighting sources, each with 16 channels and up to six programmed chases. For intricate and impressive visual effects, program up to 999 steps per chase. Music can be used to trigger programs either automatically or manually. The control panel includes 8 universal channel sliders, quick access scanner buttons, and an LED display indicator, and channel assignments are easily reprogrammed. All of this in a rack-mountable frame that takes up two 19-inch rack spaces.

From the Manufacturer:

Obey 10 is a compact controller ready to handle all the complexities of today’s lighting fixtures. Capable of controlling up to 8, 16-channel fixtures, the Obey 10 can store 6 sets of chases containing up to 999 scenes each. Also offered is the ability to grab any fixture on the fly, and set up your fixture’s movements to be beat activated or run automatically without input from the operator.

Highlight

  • Compact, universal DMX controller capable of handling all the complexities of today's lighting fixtures

  • Easily control up to 8 intelligent lights with up to 16 channels each

  • Increase design flexibility with 128 channels of DMX control

  • Enhance light shows with 6 sets of chase effects containing 999 steps each

  • Sequential linking of chases

  • Grab any fixture on the fly and set it to automatic or sound-activated mode

  • Conveniently mounts using the double space (2U) mounting rack

In the Box:
  • (1) External power supply
  • (1) Quick Reference Guide
  • (1) Warranty card

     Features:

    • DMX Channels:128
    • DMX Connectors:3-pin XLR
    • Rackmount:2U
    • Input Voltage:9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
    • Weight:3.9 lb (1.8 kg)
    • Size:19 x 3.5 x 3.5 in (483 x 89 x 89 mm)
    • Approvals:CE
    • Rackmount: 2U

    Tech Specs

    Control

    DMX 3-Pin Connectors?: Yes

    Physical:

    Length: 19 in

    Width: 3.5 in

    Height: 3.5 in

    Weight: 3.9 lb

    Electrical

    Voltage Range: 100 to 240 VAC

    Main Power Connector on Included Cable: 9 VDC, 500mA (external power supply: 100 to 240 VAC, 50/60 Hz)

    Obey 10
    Obey 10

    $139.99
