Sku: OBEY40

Obey 40

Regular price
$159.99
Regular price
Sale price
$159.99
Shipping calculated at checkout.
Vendor: Chauvet DJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

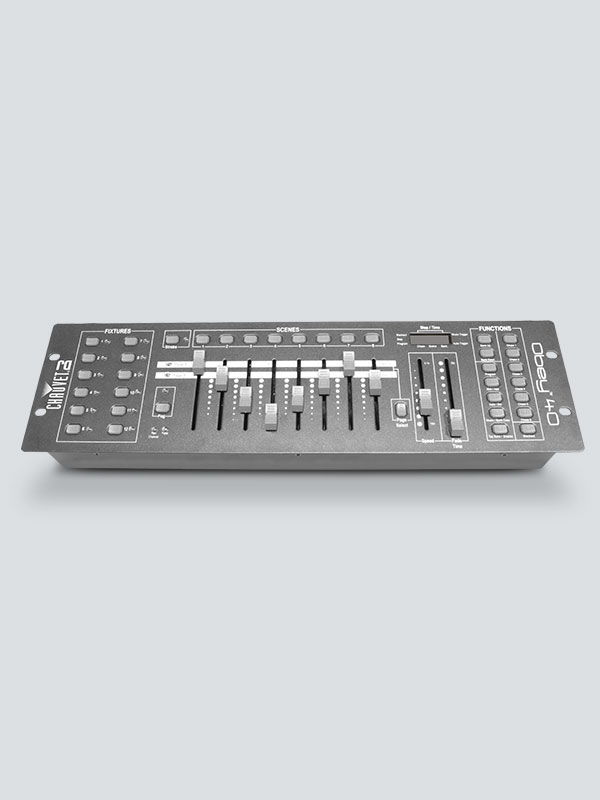

The Chauvet Obey 40 DMX Controller is a low-cost solution for your stage lighting requirements. Up to 12 fixtures with 16 channels each can be controlled. It is possible to have 30 banks on 8 scenes or up to 240 scenes. Fog and strobe control, beat activation, and sequential chase linking are among the other features.

From the Manufacturer:

The Obey 40 is the next step up from the Obey 10, allowing for control of up to 12 fixtures at 16 channels each. With a slightly larger size comes a larger capacity: the Obey 40 has 30 banks on 8 scenes, or up to 240 scenes. The Obey 40 offers the flexibility of its little brother but also adds fog and strobe control and MIDI compatibility.

Highlight
  • Universal DMX controller capable of handling all the complexities of today's lighting fixtures

  • Easily control up to 12 intelligent lights with up to 16 channels each

  • Includes 192 channels of DMX control and 30 banks of 8 scenes for a maximum of 240 scenes

  • Enhance light shows with 6 sets of chase effects containing 240 scenes

  • Increase effects with fog and strobe control, beat activation, tap-sync and auto run

  • Capability to grab any fixture on the fly and sequentially link chases

  • Increase flexibility with MIDI compatibility and DMX polarity selector

  • Conveniently mounts using the 3-space (3U) mounting rack

In the Box:
  • (1) External power supply
  • (1) Quick Reference Guide
  • (1) Warranty card

     Features:

    • DMX Channels:192
    • DMX Connectors:3-pin XLR
    • Rackmount:3U
    • Input Voltage:9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
    • Weight:5.7 lb (2.6 kg)
    • Size:19 x 3.5 x 6.7 in (483 x 89 x 171 mm)
    • Approvals:CE

    Tech Specs

    Control

    DMX 3-Pin Connectors?: Yes

    Physical:

    Length: 19 in

    Width: 3.5 in

    Height: 6.7 in

    Weight: 5.7 lb

    Electrical

    Voltage Range: 100 to 240 VAC

    Main Power Connector on Included Cable: 9 VDC, 500mA (external power supply: 100 to 240 VAC, 50/60 Hz)
