Sku: OBEY70

Obey 70

$229.99
$229.99
Sold out
Shipping calculated at checkout.
Vendor: Chauvet DJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

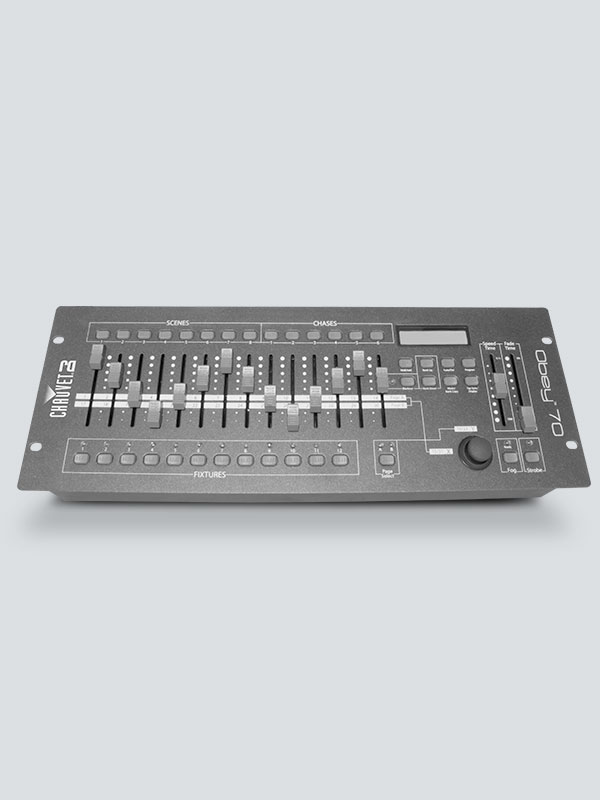

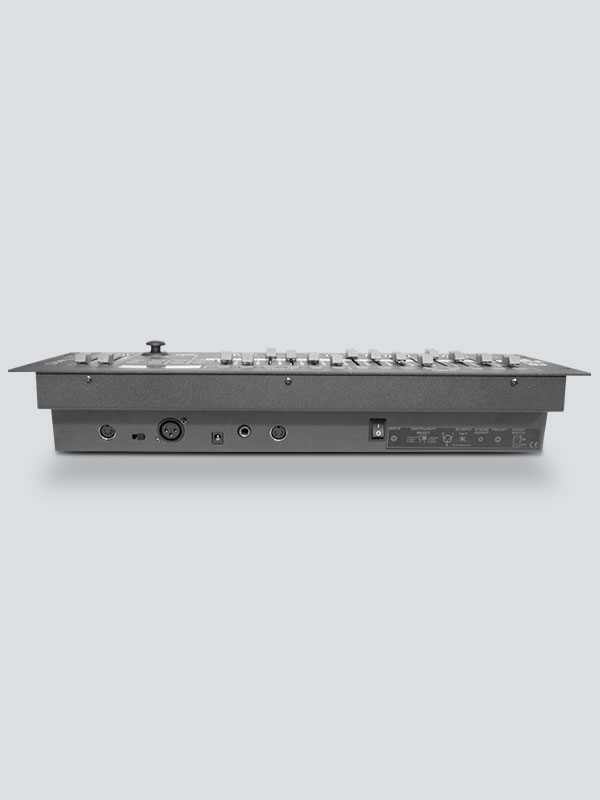

A 4RU rack-mountable lighting controller, the Chauvet Obey 70 Universal DMX-512 Controller. It supports up to 12 DMX-enabled lighting fixtures, each with up to 16 DMX channels of control. It can also control DMX-enabled strobes and fog machines through dedicated buttons, a 1/4" strobe connector, and a 5-pin fog machine connector. The strobe button's LED button will flash at the same pace as the strobe. It also has a tap-sync button and beat activation to let you match the lighting to the music.

From the Manufacturer:

Bigger shows call for more accessibility and ease of programming. The Obey 70 bridges the gap between smaller rack mount controllers and massive control desks. 14 faders and an assignable joystick allow for easy programming of up to twelve 32-channel fixtures. The Obey 70 can store up to 6 sets of chases containing 240 scenes on 384 total channels of control. Also at your fingertips are fog and strobe control as well as MIDI compatibility.

Highlight

  • Universal DMX controller capable of handling all the complexities of today’s lighting fixtures

  • Easily control up to 12 intelligent lights with up to 32 channels each

  • Includes 384 channels of DMX control and 30 banks of 8 scenes for a maximum of 240 scenes

  • Enhance light shows with 6 sets of chase effects containing 240 scenes

  • Increase effects with fog and strobe control, beat activation, tap-sync and auto run

  • Increase flexibility with MIDI compatibility, DMX polarity selector and assignable pressure-sensitive joystick

  • Conveniently mounts using the 4-space (4U) mounting rack

In the Box:
  • (1) External power supply
  • (1) Quick Reference Guide
  • (1) Warranty card

     Features:

    • DMX Channels:384
    • DMX Connectors:3-pin XLR
    • Rackmount:4U
    • Input Voltage:9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
    • Weight:7.3 lb (3.3 kg)
    • Size:19 x 7 x 2.8 in (483 x 178 x 71 mm)
    •  Approvals:CE
    • Rackmount: 4U

    Tech Specs

    Control

    DMX 3-Pin Connectors?: Yes

    Physical:

    Length: 19 in

    Width: 7 in

    Height: 2.8 in

    Weight: 7.3 lb

    Electrical

    Voltage Range: 100 to 240 VAC

    Main Power Connector on Included Cable: 9 VDC, 500mA (external power supply: 100 to 240 VAC, 50/60 Hz)
