OCTO LITE

The ENTTEC OCTO Lite is a compact 8-universe eDMX-to-SPI LED pixel controller in a 4-module DIN-rail form factor, supporting up to 1,360 RGB or 1,024 RGBW pixels with Art-Net, sACN, and ESP input.

From the Manufacturer

The OCTO Lite delivers 8 universes of eDMX-to-pixel conversion using the same proven OCTO architecture trusted in installations worldwide. Supporting up to 1,360 RGB or 1,024 RGBW pixels per controller (680 RGB / 512 RGBW per port), the OCTO Lite handles Art-Net, sACN, and ESP protocols and outputs SPI (NZR) pixel data at up to 100fps. With an industry-leading input voltage range of 5–60V DC, the OCTO Lite can be powered directly from the LED pixel strip or dots via either port — eliminating the need for separate power supplies or extra wiring. Dual RJ45 Ethernet ports enable flexible network daisy-chaining of up to 8 units for optimal synchronization between outputs.

Over 20 pixel protocols are supported out of the box, with and without a clock line, and a custom protocol creation feature allows users to define protocols for any pixel fixture directly through the web interface — no firmware request required. Configuration, firmware updates, real-time universe buffer inspection, and network statistics are all managed through the user-friendly web interface. An Identify/Reset button sets all 8 output universes to maximum output (255) for 10 seconds, allowing wiring verification without an active data source or network connection. The OCTO Lite mounts to a TS35 DIN rail or surface mounts using included accessories. Note: the OCTO Lite does not support standalone mode, split port functionality, KiNet protocol, or PLink Injectors.

Features

• 8-universe eDMX-to-SPI pixel conversion (4,096 channels total)
• Supports up to 1,360 RGB pixels (680 per port) or 1,024 RGBW pixels (512 per port)
• Art-Net, sACN, and ESP input protocols supported
• SPI (NZR) data output at up to 100fps
• Wide input voltage range: 5–60V DC — can be powered directly from LED pixel strip or dots via either port

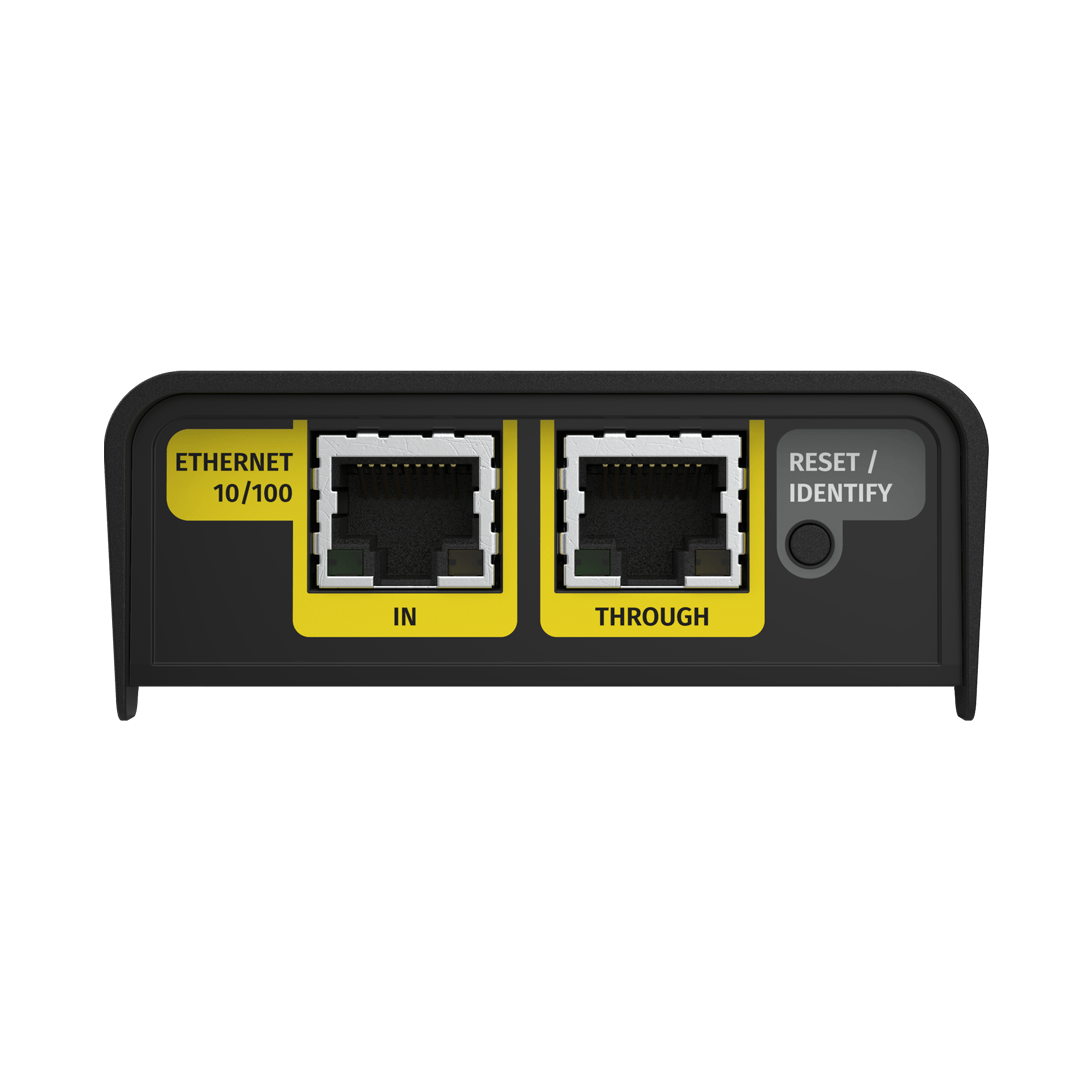

• Dual RJ45 Ethernet ports (10/100Base-T) for network passthrough and daisy-chaining up to 8 units
• 20+ pre-listed pixel protocols supported (with and without clock line); custom protocol creation available via web interface
• Web interface for configuration, firmware updates, real-time universe buffer inspection, and network statistics
• Identify/Reset button sets all outputs to 255 for 10 seconds for wiring verification without a live data source
• DHCP or static IP configuration (default: 192.168.0.10)

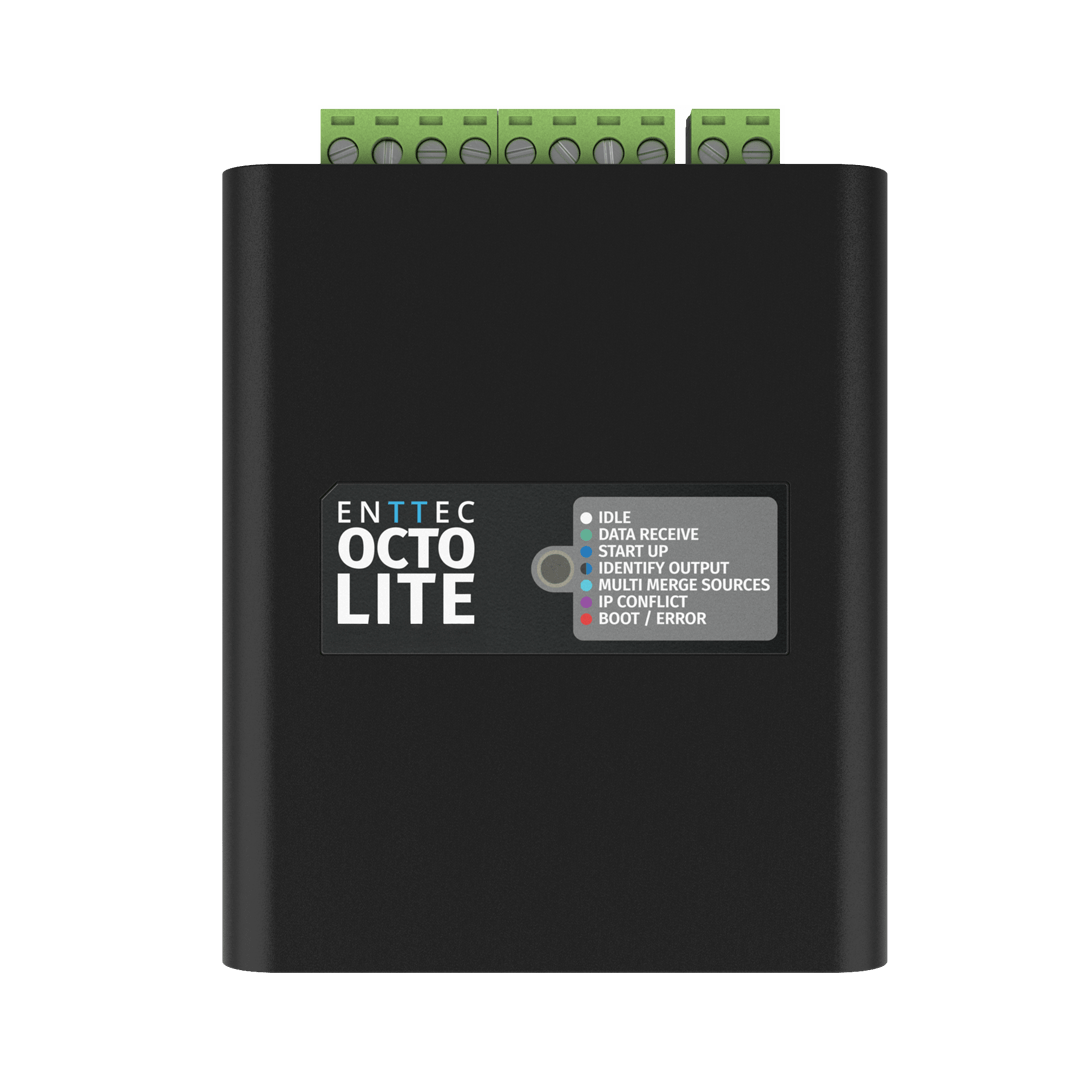

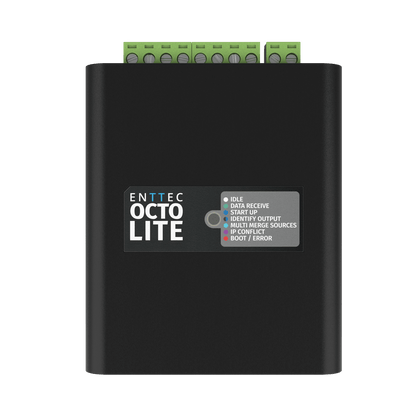

• Forward-facing LED status indicator; network link/activity indicators integrated into RJ45 ports
• Network discovery via ENTTEC EMU software
• IGMPv2 support
• 4-module DIN-rail ABS housing; TS35 DIN-rail or surface mount with included accessories
• Fanless convection cooling
• 3-year manufacturer warranty
• Recommended use: Architectural accent lighting, retail installations, entertainment venues, compact LED pixel installations requiring up to 8 universes

Specifications

Control

• eDMX Input Protocols: Art-Net, sACN, ESP
• Data Output Type: SPI (NZR)
• Max. eDMX to Pixel Conversion: 8 universes (4,096 channels)
• Max. Pixels per Device: 1,360 RGB (680 per port) / 1,024 RGBW (512 per port)
• Max. Frame Rate: 100fps
• Network Speed: 10/100Base-T
• Network Configuration: Static (default 192.168.0.10) / DHCP
• Recommended Devices per Chain: Up to 8 for optimal output synchronization
• Network Discovery: ENTTEC EMU software
• Firmware Updates: Via web interface

Supported Pixel Protocols

• APA102, APA104, GS8208B, SJ1221 (16-bit), SK6805, SK6812, SK6813, SM16703, SM16704, SPXL (16-bit), TLC5973 (16-bit), TM1804, TM1812, TM1814, UCS1903, UCS2903, UCS2904, UCS7604 (16-bit), UCS8903 (16-bit), UCS8904 (16-bit), WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, WS2818, 9PDOT (16-bit)
• Custom protocol creation available via web interface

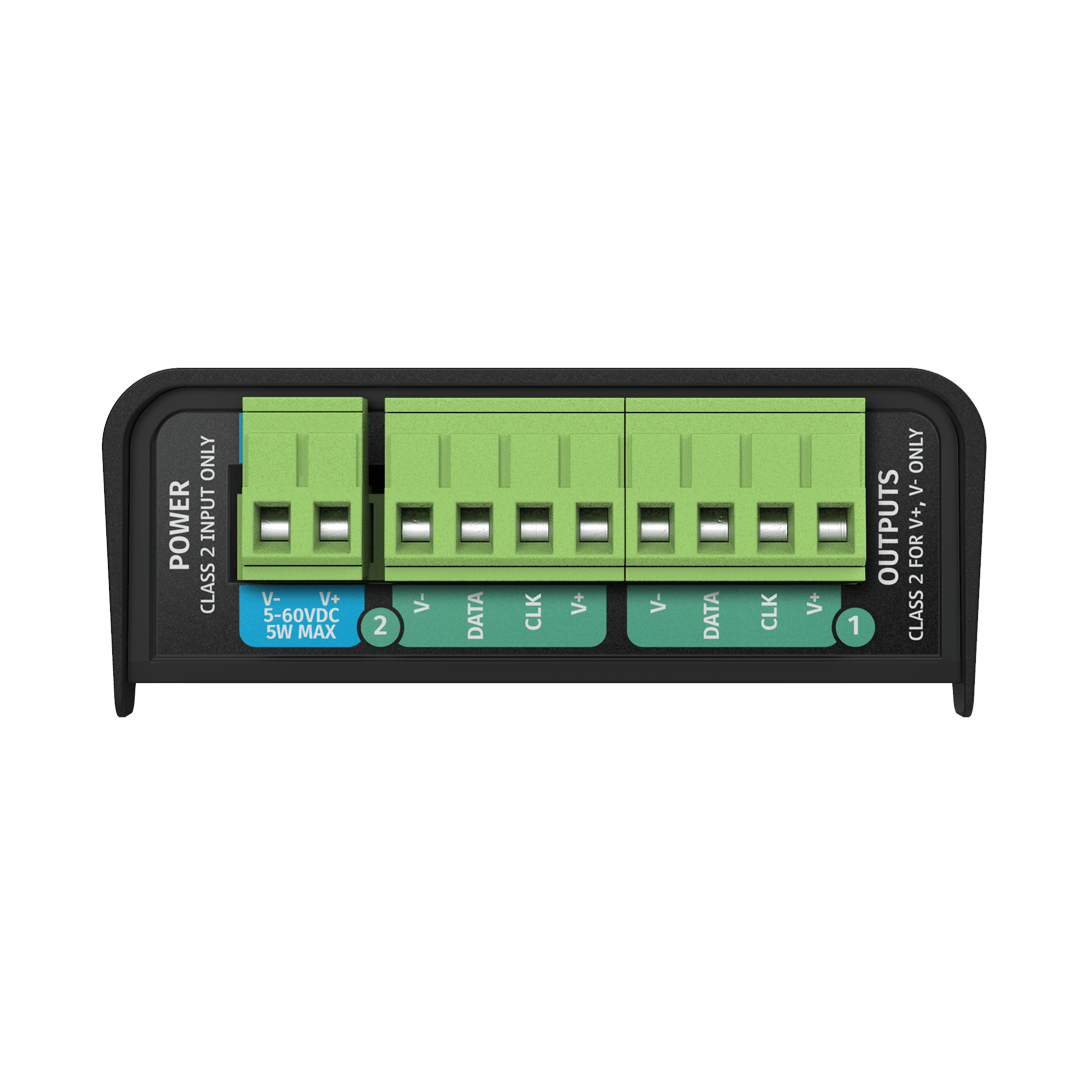

Connections

• Network: 2 x RJ45 (10/100Base-T)
• Data Output: 2 x 4-pin screw terminal
• Power Input: 1 x 2-pin screw terminal

Electrical

• Input Voltage: 5–60V DC
• Max. Power Draw: 5W
• Max. Heat Dissipation: 4.5W
• Cooling Method: Convection

Construction / Physical

• Body Material: ABS plastic
• IP Rating: IP20

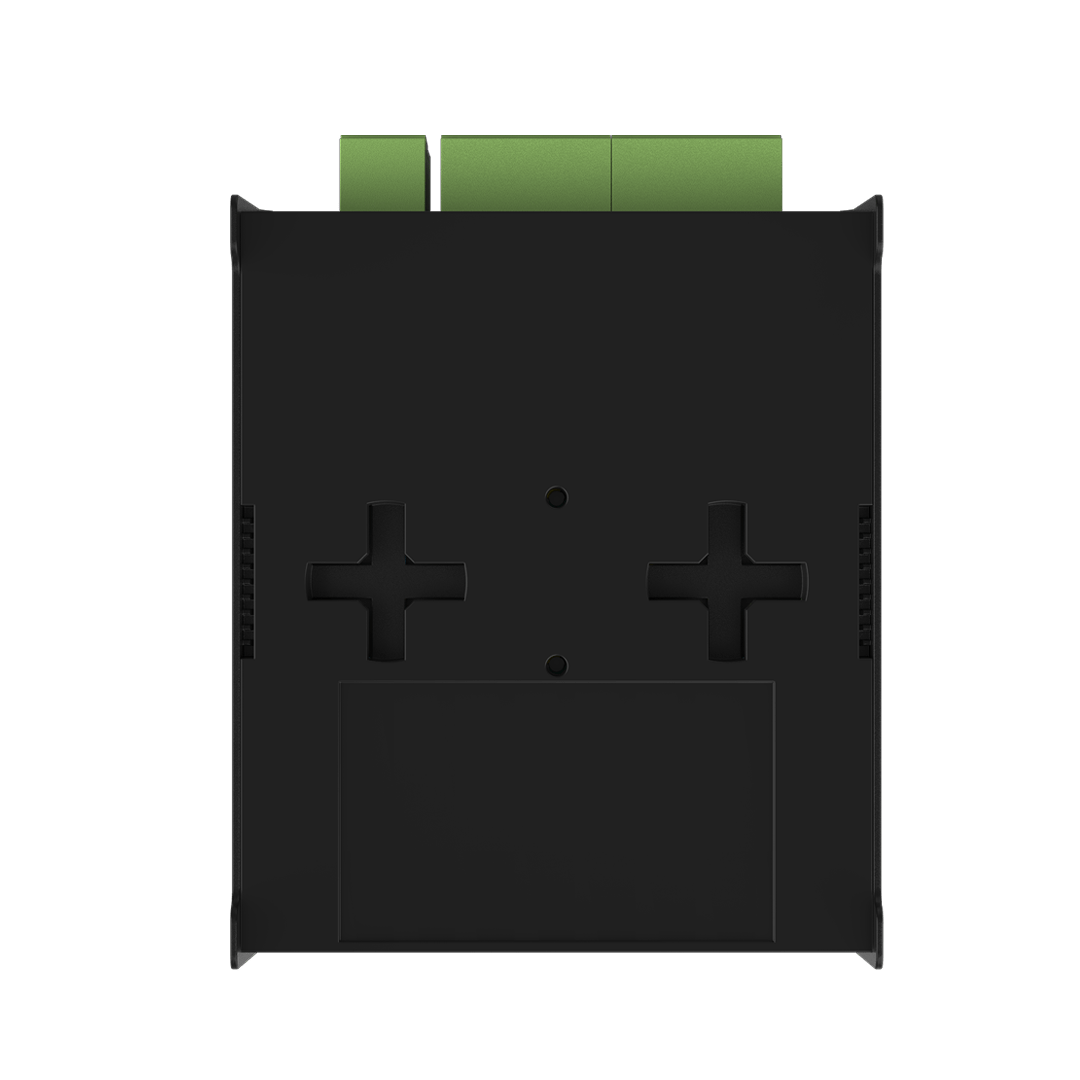

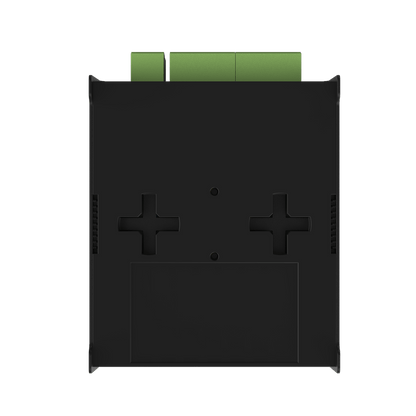

• Mounting Options: Surface mount, TS35 DIN-rail mount
• Unit Dimensions: 100.5 x 77.9 x 31 mm
• Unit Weight: 0.08 kg / 0.18 lbs
• Shipping Dimensions: 160 x 145 x 43 mm
• Shipping Weight: 0.15 kg / 0.33 lbs

Environmental

• Operating Temperature: -20°C to 50°C / -4°F to 122°F
• Operating Humidity: 5–95% (non-condensing)

Certifications

• Compliance: FCC (USA), RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK)
• Warranty: 3-year return to base manufacturer warranty
