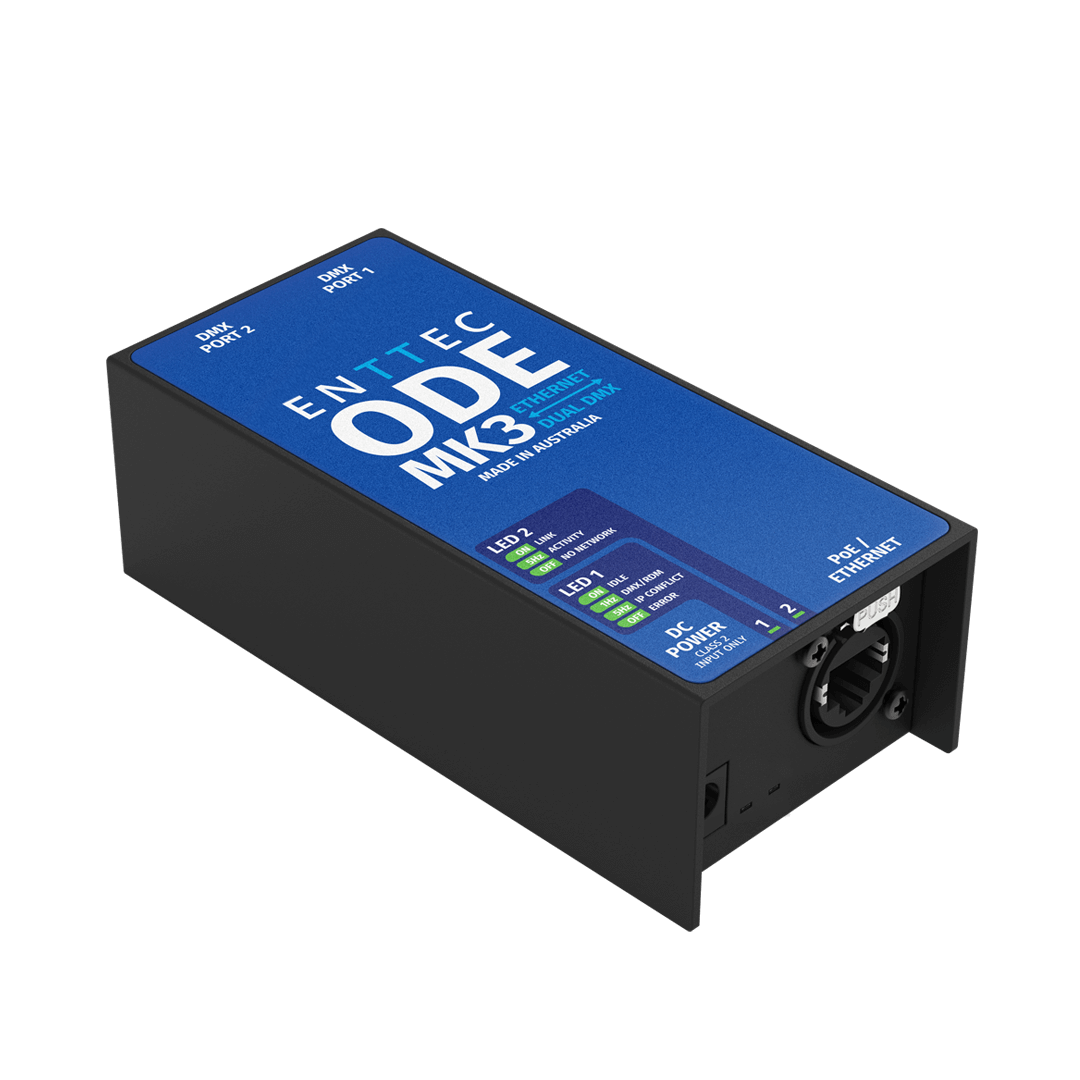

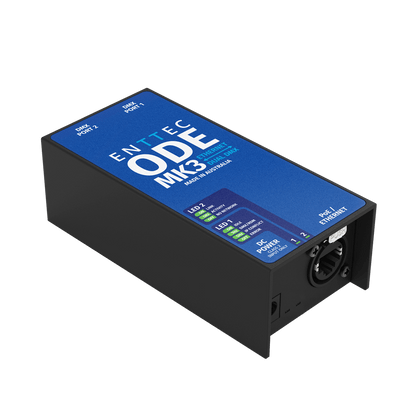

ODE Mk3

The ENTTEC ODE Mk3 is a robust, installation-grade 2-universe bi-directional Ethernet to DMX/RDM converter with PoE or 12–24V DC input, supporting Art-Net, sACN, and ESP protocols in a compact portable form factor.

From the Manufacturer

The ODE Mk3 is ENTTEC's latest evolution of their trusted bi-directional DMX-Ethernet interface, engineered to connect DMX fixtures to Ethernet network infrastructure with minimal setup. Supporting 2 universes of bi-directional eDMX to DMX512-A conversion with Art-RDM (ANSI E1.20) support, the ODE Mk3 is compatible with a wide range of devices and allows for fast deployment of DMX systems. It converts in both directions across all supported protocols: Art-Net to/from DMX, sACN to/from DMX, and ESP to/from DMX — with broadcast, unicast, and multicast options where applicable.

All configuration and firmware updates are managed through a localhost web interface accessible from any computer on the network, with a 'Current Port Buffer' for live DMX value monitoring and troubleshooting on site. ArtSync support ensures fully synchronized Art-Net data across the installation when receiving from the same source. Power is supplied via IEEE 802.3af PoE or 12–24V DC input, and the device is ready to operate within seconds of receiving power. Purchase includes a 6-month premium ENTTEC EMU software license.

Features

• 2-universe bi-directional Ethernet to DMX512-A/RDM conversion
• Art-Net (with/without RDM), sACN, and ESP input and output protocols supported
• ANSI E1.20 RDM supported
• Bidirectional protocol conversions: Art-Net ↔ DMX, sACN ↔ DMX, ESP ↔ DMX (broadcast, unicast, and multicast options)
• Art-Net merging from up to 2 sources
• ArtSync support for synchronized Art-Net output across the installation
• PoE powered via IEEE 802.3af or 12–24V DC input
• EtherCon (RJ45) network port for reliable locking connection
• 2 x 5-pin XLR bi-directional DMX ports
• Localhost web interface for configuration, live DMX monitoring via Current Port Buffer, and firmware updates
• DHCP or static IP configuration (default: 192.168.0.10)
• IGMPv2 support

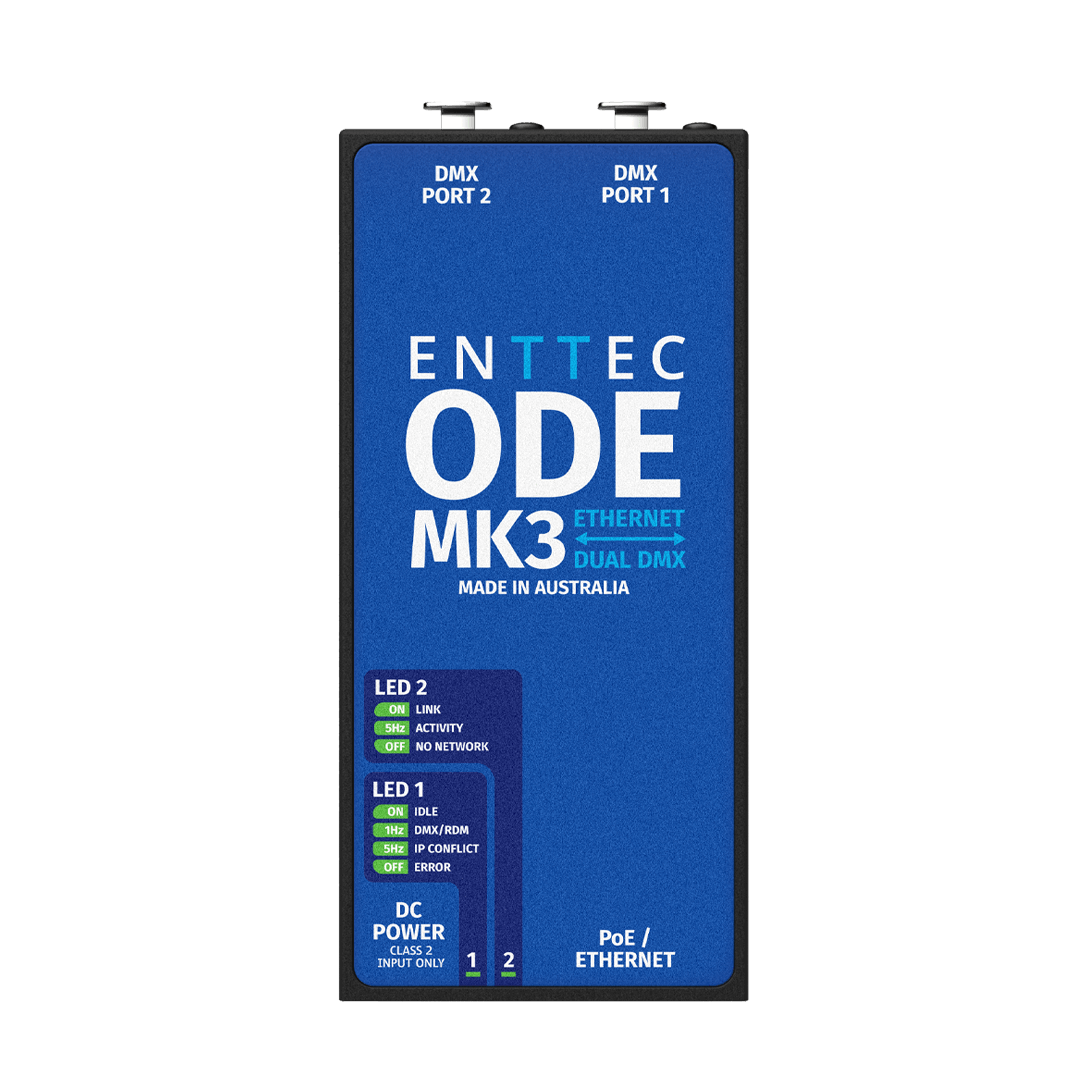

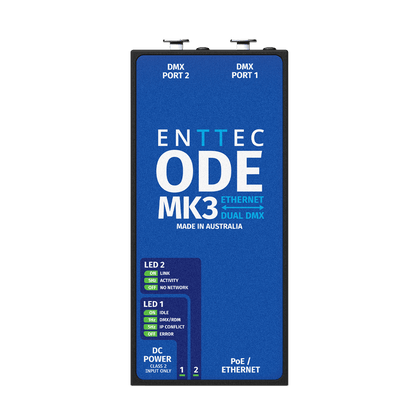

• LED status, network link, and activity indicators for at-a-glance monitoring
• Ready to operate within seconds of receiving power
• Compact, portable ABS form factor
• Includes 6-month premium ENTTEC EMU software license
• UL Listed; FCC, CE/WEEE, UKCA, and RCM certified
• 3-year manufacturer warranty
• Recommended use: Architectural and entertainment DMX networks, permanent installations, touring productions requiring compact Ethernet-to-DMX conversion

Specifications

Control

• eDMX Protocols: Art-Net, Art-RDM, sACN, ESP
• DMX Protocols: USITT DMX512-A, ANSI E1.20 RDM
• Max. Channels: 2 universes (1,024 ch)
• Max. Refresh Rate: 44fps
• Art-Net Merging: 2 sources
• DMX & RDM Timings: Break time 300ms, MAB 15ms
• Network Speed: 10/100Base-T
• Network Configuration: DHCP / Static (default 192.168.0.10)
• IGMP Version: IGMPv2
• Configuration & Firmware Updates: Web browser

Connections

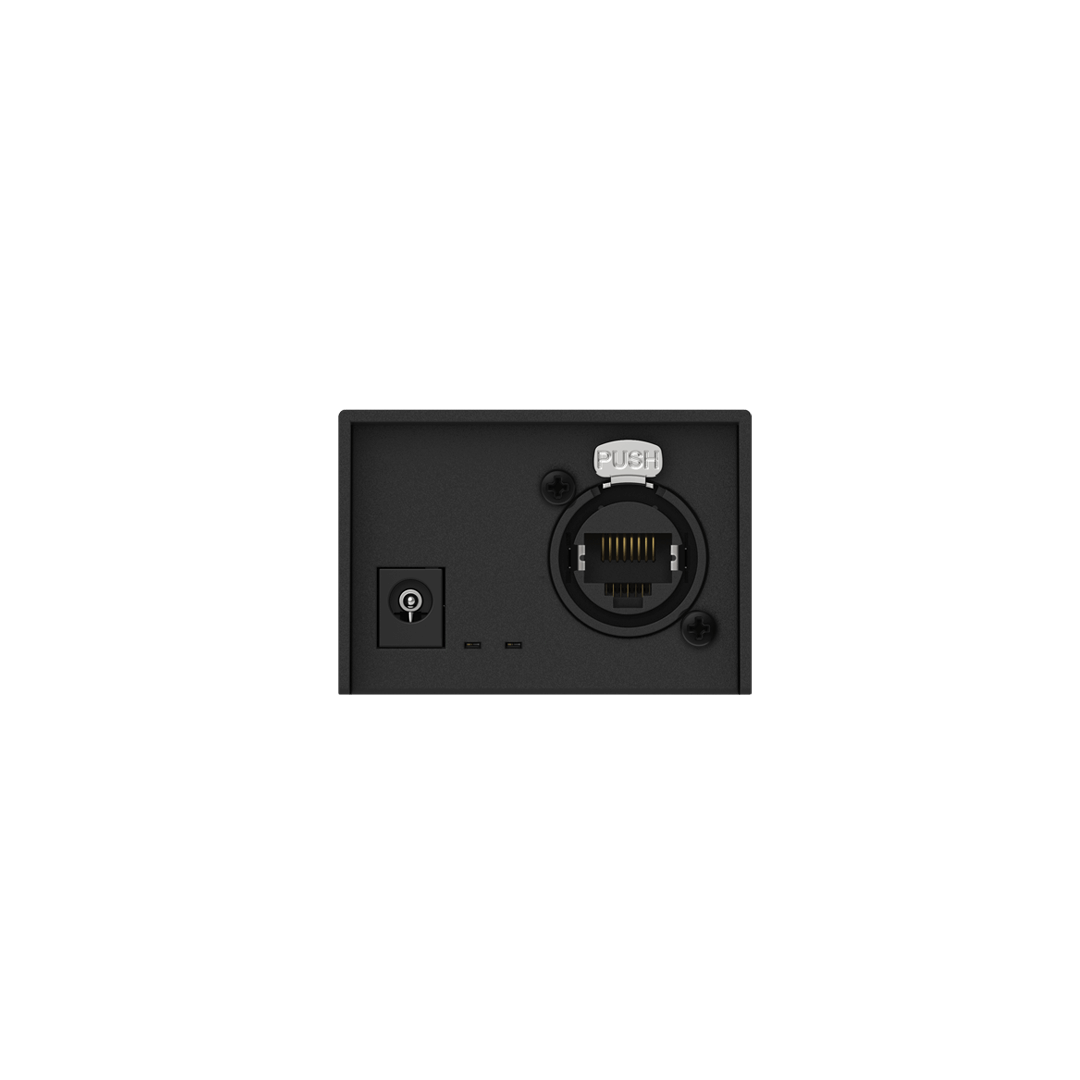

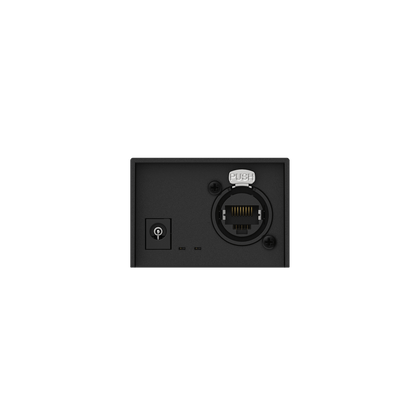

• Network: 1 x EtherCon (RJ45)

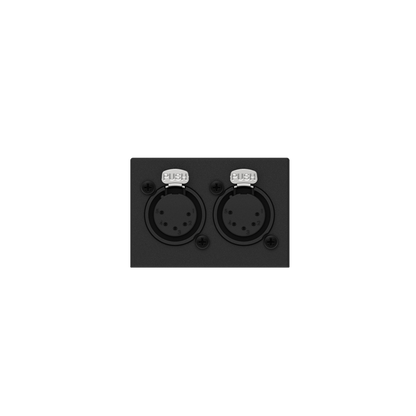

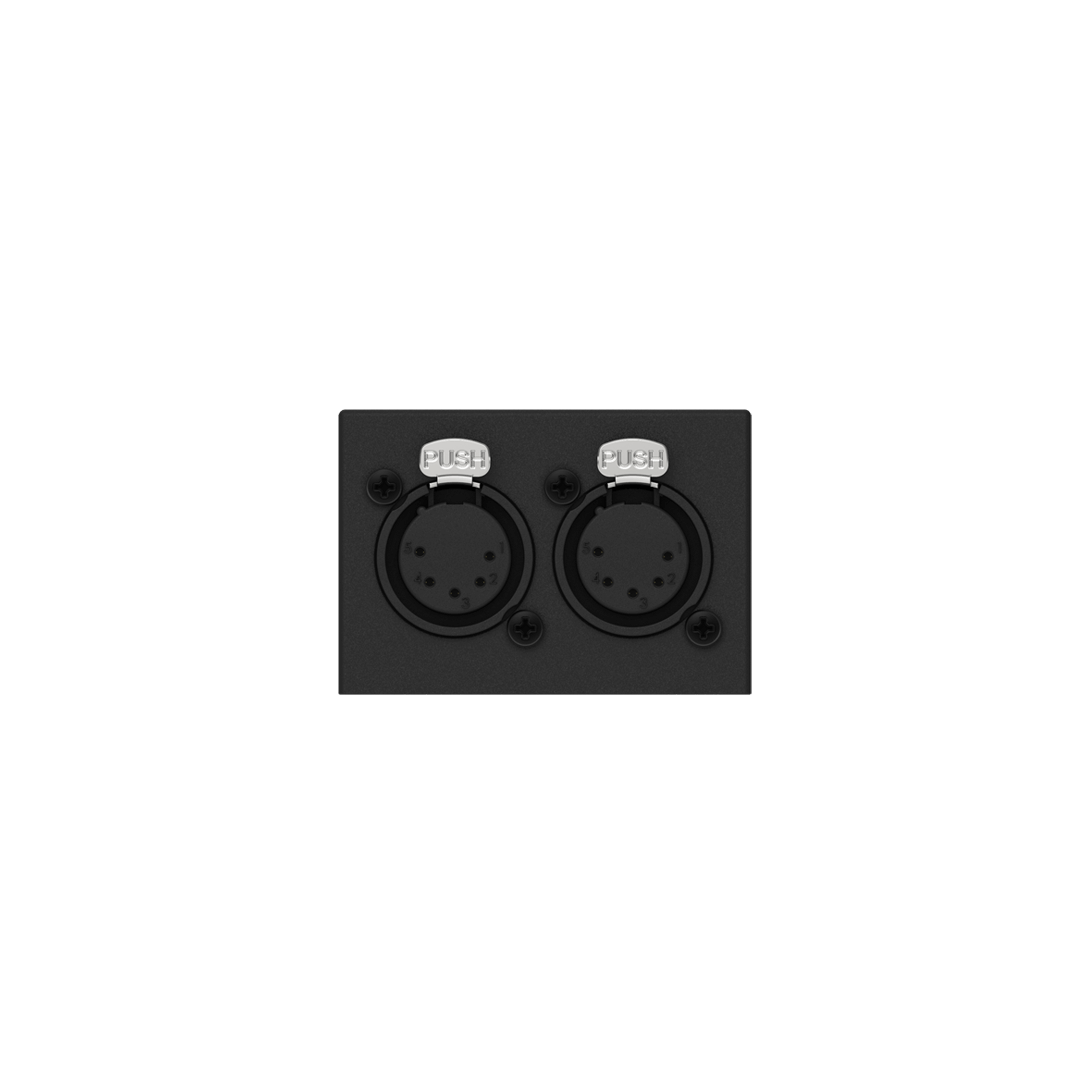

• DMX: 2 x bi-directional female 5-pin XLR
• Power Input: DC jack

Electrical

• Power over Ethernet: IEEE 802.3af
• DC Input Voltage: 12–24V DC
• Current Draw: 57–187mA
• Max. Power Draw: 2.3W

Construction / Physical

• Body Material: ABS plastic
• IP Rating: IP20
• Unit Dimensions: 129 x 58 x 40 mm
• Unit Weight: 0.10 kg / 0.22 lbs
• Shipping Dimensions: 235 x 159 x 69 mm
• Shipping Weight: 0.45 kg / 0.99 lbs

Environmental

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 5–95% (non-condensing)

Certifications

• Compliance: UL Listed, FCC (USA), RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK)
• Warranty: 3-year return to base manufacturer warranty
