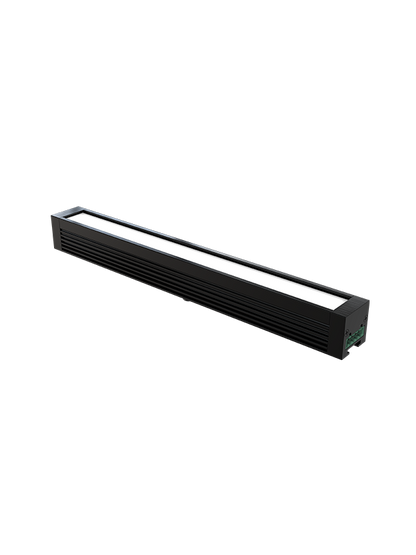

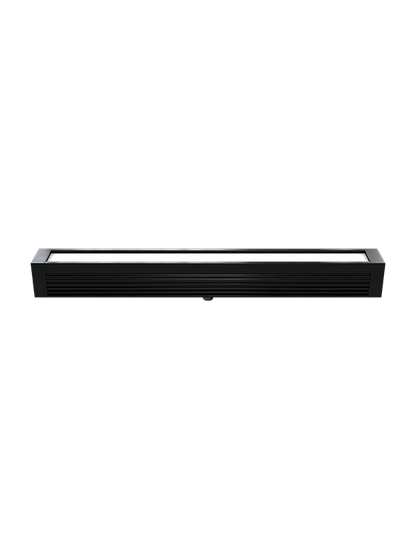

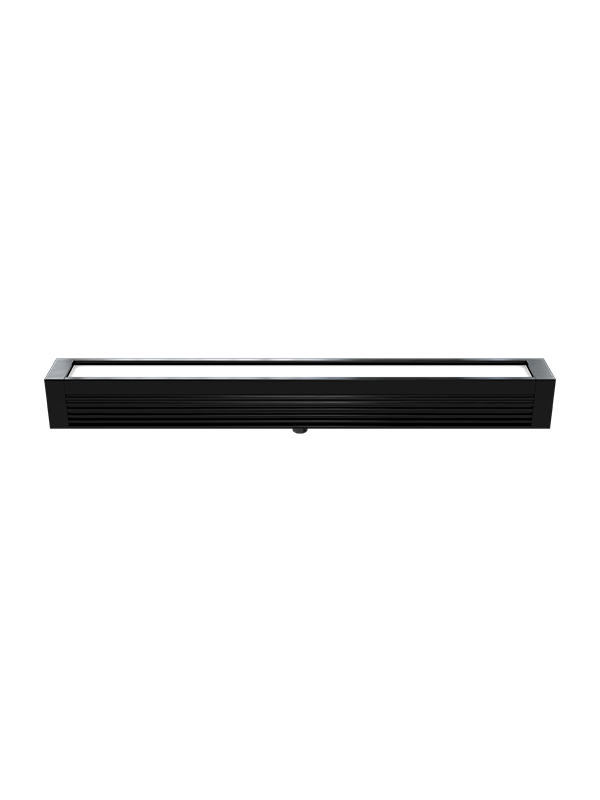

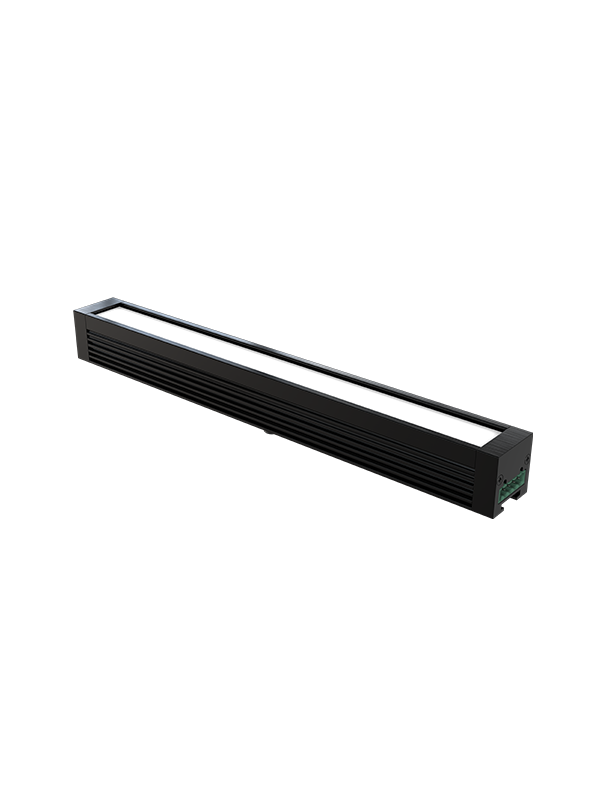

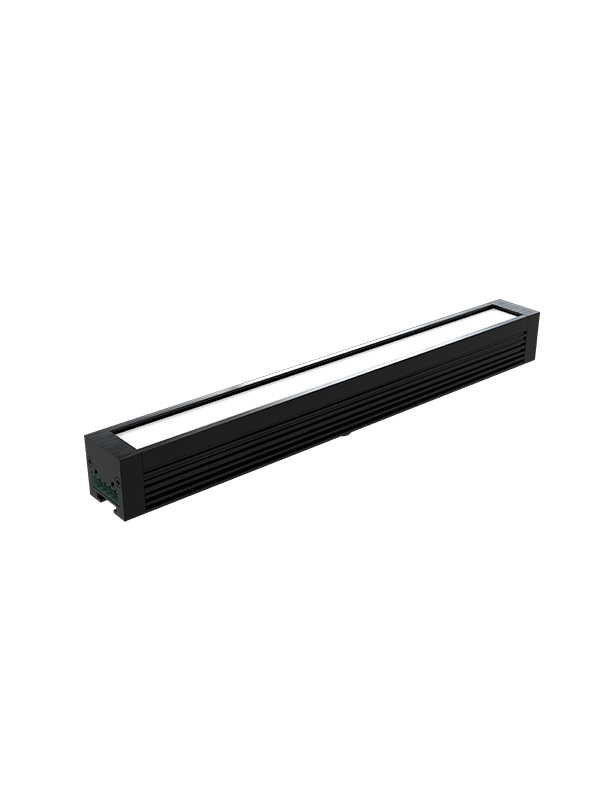

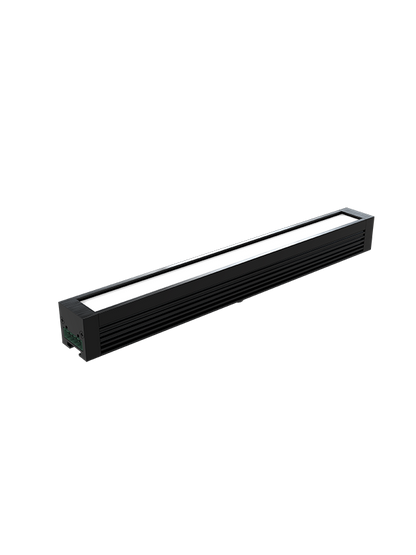

OnAir Flex 12

A light intended for studio applications, it is silent and has good quality light.

From the Manufacturer:

Full spectrum LED soft catch light for short throw studio applications. Easily add a glint to eyes when photographing or filming. High quality 2800K-10000K white light as well as color from a lightweight DMX-controllable lighting accessory that weighs under 1 lb. Completely silent operation. Operated via onAir Flex Drive 2, offering ultra-smooth 16-bit dimming control and adjustable PWM to perform beautifully on camera.

Features:

• Full spectrum LED soft catch light for short throw studio applications

• High quality white light and color

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera via onAir Flex Drive

• Completely silent operation for use in studio applications

• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme via onAir Flex Drive.

Specifications:

• Optical

• Light Source: 12 LEDs (tri-color RGB) 1.5 W, (150 mA), 50,000 hours life expectancy.

• Light Source: 12 LEDs (WW) 0.36 W, (150 mA), 50,000 hours life expectancy

• Color Temperature (range): 2800 to 10000 K

• Color Temperature (at full): 9190 K

• CRI: 96

• Beam Angle - Medium: 96.1° x 64.3°

• Beam Angle - Light: 111° x 62°

• Beam Angle - Heavy: 93.3° x 72.2°

• Field Angle - Medium: 148.8° x 123.8°

• Field Angle - Light: 149.8° x 126.3°

• Field Angle - Heavy: 151.7° x 136°

• Lumens - Medium: 765 lm

• Lumens - Light: 810 lm

• Lumens - Heavy: 734 lm

• Illuminance - Medium : 17 lux @ 5 m

• Illuminance - Light : 16 lux @ 5 m

• Illuminance - Heavy : 15 lux @ 5 m

• Selectable PWM: via onAir Flex Drive

• Construction/Physical

• Dimensions: 12.8 x 1.46 x 1.37 in (326 x 37 x 35 mm)

• Shipping Dimensions: 15 x 6.5 x 4 in (381 x 165 x 102)

• Weight: 0.975 lb (0.442 kg)

• Exterior Color: Black

• Housing Material: Extruded Aluminum

• Connection

• Power Connection: Phoenix connector to Bare-wire

• Physical Linking: Phoenix connector to Bare-wire

• Control

• Control Protocol:DMX

• DMX Channels: 8 or 10

• Modes/Personalities: 8ch-RGBWx2, 10ch-RGBW+Dx2

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 26 W, 0.28 A @ 120 V, 60 Hz

• Power and Current: 24 W, 0.31 A @ 208 V, 60 Hz

• Power and Current: 24 W, 0.29 A @ 230 V, 50 Hz

• Cable

• Connector: Phoenix

• Pins: 5

• Certifications/Qualifications

• CE, MET, FCC, UKCA

• IP Rating: IP20, dry location

• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included?

• OnAir Flex 12

• 6cm Cable

• 12cm Cable

• Blanks Connectors

• Light Filter

• Heavy Filter

Required Accessories:

• onAir Flex Drive
