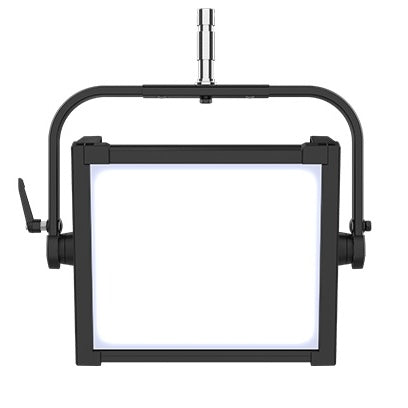

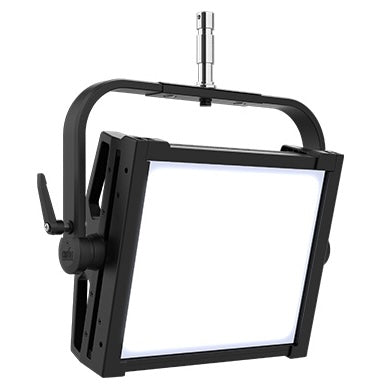

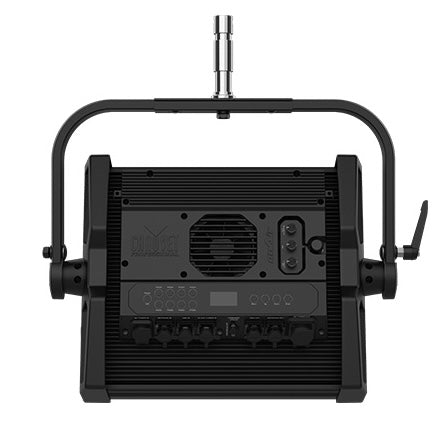

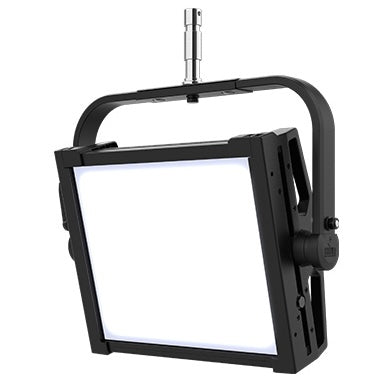

OnAir Panel 1 IP

The OnAir Panel 1 IP can produce a high quality white light and can also add some color and has a onboard control menu to make control really simple.

From the Manufacturer:

onAir Panel 1 IP is a rugged IP65, full-spectrum LED soft light with a 1×1 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir IP Panel 1 features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs

Features:

• Full-spectrum LED 1x1 format soft light panel style fixture for broadcast, film, and special events

• IP65 rating for all weather use indoors or out.

• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

• Virtual color wheel with color matched to popular gel colors

• +/- Green adjustment and emulated red-shift via DMX or on-board control

• RDM (Remote Device Management) and CRMX Wireless Control for added flexibility

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• Virtually silent operation for use in studio applications

• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.

• Easily switch mounting options from Jr Pin to Omega Bracket

• Drop-in slot for diffusers and intensifier filter (sold separately)

• Rugged design for years of rough use in the most extreme conditions.

• Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.

• USB port for fixture software updates

• 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Specifications:

• Optical

• Light Source: 224 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.

• Light Source: 224 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy.

• Color Temperature (range): 2800 to 8000 K

• Color Temperature (at full): 7566 K

• CRI: 95

• Beam Angle: 99.3°

• Field Angle: 154°

• Lumens: 10,092

• Illuminance: 165 lux @ 5 m

• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

• Dynamic Effects

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Strobe Rate: 0 to 28 Hz

• Standalone Color Mixing: Yes

• Color Temperature Presets: Yes

• Dim Modes: 4

• Dim Curves: 4

• Built-in Automated Programs: Yes

• Construction/Physical

• Dimensions: 22 x 5.74 x 21.81 in (559 x 146 x 554 mm)

• Weight: 28 lb (12.7 kg)

• Exterior Color: Black

• Housing Material: Aluminum alloy

• Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

• Power Input: Seetronic Powerkon IP65

• Power Output: Seetronic Powerkon IP65

• Power Input: 28 VDC, 3-pin IP65 XLR

• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible

• Cable Length (power): 5 ft (1.5 m)

• Software Connection: USB

• Control

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

• Power Input: Seetronic Powerkon IP65

• Power Output: Seetronic Powerkon IP65

• Power Input: 28 VDC, 3-pin IP65 XLR

• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible

• Cable Length (power): 5 ft (1.5 m)

• Software Connection: USB

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V, 17 units @ 240 V

• Power and Current: 184 W, 1.524 A @ 120 V, 60 Hz

• Power and Current: 187 W, .891 A @ 208 V, 60 Hz

• Power and Current: 180 W, .824 A @ 230 V, 50 Hz

• Certifications/Qualifications

• CE, MET, FCC,

• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve

• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included?

• onAir Panel 1 IP

• Seetronic Powerkon IP65

• Omega bracket with mounting hardware

• onAir Panel 1 IP Medium Diffusion Filter

• TV Junior Spigot

Optional Accessories:

• onAir Panel 1 IP Barndoor

• onAir Panel 1 IP 60° Honeycomb

• onAir Panel 1 IP 30° Honeycomb

• onAir Panel 1 IP Light Diffusion Filter

• onAir Panel 1 IP Medium Diffusion Filter

• onAir Panel 1 IP Heavy Diffusion Filter

• onAir Panel 1 IP Intensifier

• onAir Panel 1 IP Pole Yoke

• Professional Clamps: CTC-50HC, CTC-50HCN

• Seetronic Powerkon power linking cables

• 5-pin DMX Cables

• Ethernet Cables
