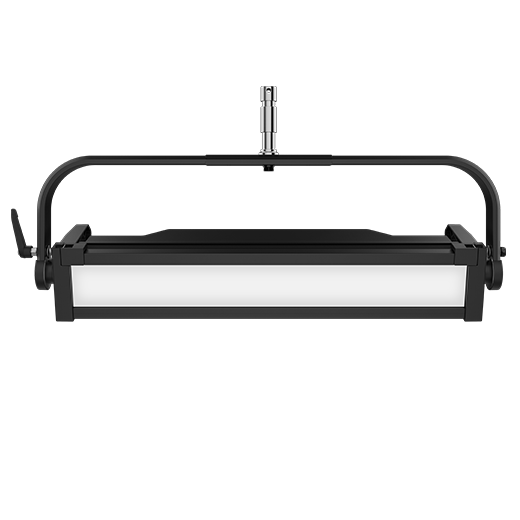

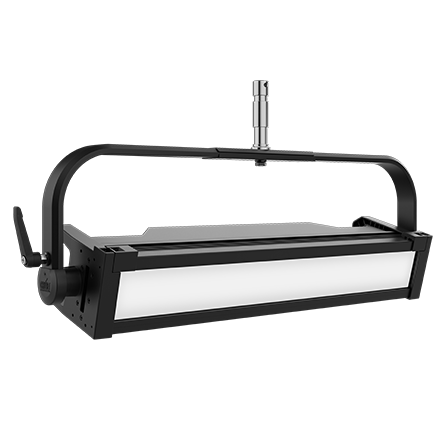

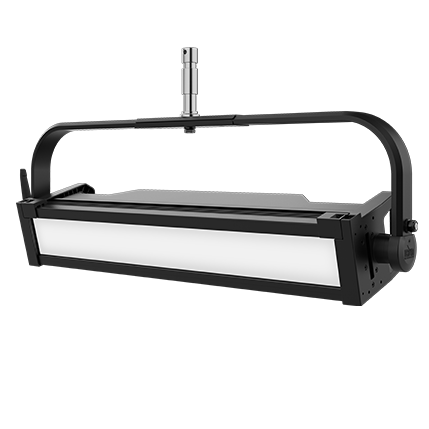

OnAir Panel 3 IP

This is an outdoor-rated full-spectrum LED fixture for broadcast use. It creates a high quality white and has a smooth dimming curve making it great for filming

From the Manufacturer:

onAir Panel 3 IP is a rugged IP65 full-spectrum low-profile 1×3 format LED soft light capable of facing all of the elements, indoors or out. Ready to go on location for any broadcast setting, onAir IP Panel 3 features a superior quality of white light with high CRI/TLC and TM-30 scores, a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, the ability to produce a pop of color to achieve the exact look you are aiming to create, along with built-in customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket. Drop-in slot for diffusers and intensifier filters ensures ease of use when changing accessories. Adjustable PWM ensures camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs. DMX, RDM, CRMX, Art-Net, sACN, and onboard control options make for flexible operation.

Features:

• Full-spectrum LED linear format soft light panel style fixture for broadcast, film, and special events

• IP65 rating for all weather use indoors or out.

• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

• Virtual color wheel with color matched to popular gel colors

• +/- Green adjustment and emulated red-shift via DMX or on-board control

• RDM (Remote Device Management) and CRMX Wireless Control for added flexibility

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• Virtually silent operation for use in studio applications

• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.

• Easily switch mounting options from jr pin to omega bracket

• Drop-in slot for diffusers and intensifier filter (sold separately)

• Rugged design for years of rough use in the most extreme conditions.

• Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.

• USB port for fixture software updates

• 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Specifications:

• Optical

• Light Source: 120 LEDs (tri-color RGB) 1.5 W, (282 mA), 50,000 hours life expectancy.

• Light Source: 120 LEDs (WW) 0.5 W, (113 mA), 50,000 hours life expectancy.

• Color Temperature (range): 2800 to 8000 K

• Color Temperature (at full): 5527K

• CRI (3200 K): 91.2

• Beam Angle (No Optics): 111.3°

• Beam Angle (Light Filter): 96.7°

• Beam Angle (Medium Filter): 97.8°

• Beam Angle (Heavy Filter): 108.2°

• Beam Angle (Intensifier Filter): 74.4°

• Field Angle (No Optics): 153.9°

• Field Angle (Light Filter): 149°

• Field Angle (Medium Filter): 158.4°

• Field Angle (Heavy Filter): 162°

• Field Angle (Intensifier Filter): 135.2°

• Lumens (No Optics): 8080

• Lumens (Light Filter): 6896

• Lumens (Medium Filter): 6317

• Lumens (Heavy Filter): 5964

• Lumens (Intensifier Filter): 5498

• Illuminance (No Optics): 143 lux @ 5 m

• Illuminance (Light Filter): 134 lux @ 5 m

• Illuminance (Medium Filter): 110 lux @ 5 m

• Illuminance (Heavy Filter): 91 lux @ 5 m

• Illuminance (Intensifier Filter): 141 lux @ 5 m

• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

• Dynamic Effects

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Strobe Rate: 0 to 20 Hz

• Standalone Color Mixing: Yes

• Color Temperature Presets: Yes

• Dim Modes: 4

• Dim Curves: 4

• Built-in Automated Programs: Yes

• Construction/Physical

• Dimensions: 11.2 x 33.75 x 4.75 in (284.48 x 857.25 x 120.65 mm)

• Weight: 26 lb (12 kg)

• Exterior Color: Black

• Housing Material: Die-Cast Magnesium

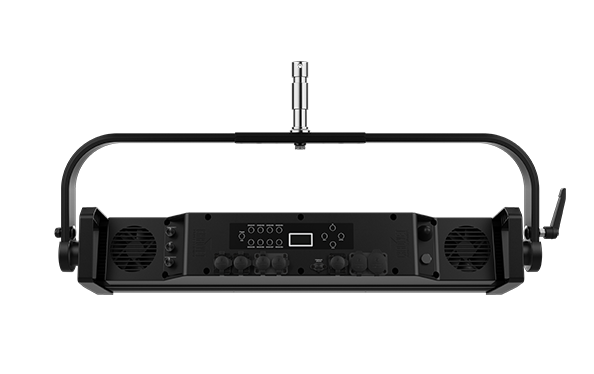

• Connections

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65

• Power Input: Seetronic Powercon IP65

• Power Output: Seetronic Powercon IP65

• Power Input: 28 VDC, 3-pin IP65 XLR

• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible

• Cable Length (power): 5 ft (1.5 m)

• Software Connection: Type-C USB

• Control

• Control Protocol: Art-Net, sACN, DMX, WDMX, CRMX, RDM

• DMX Channels: 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended

• Art-Net Channels: 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended

• Modes/Personalities: 14 personalities (1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended)

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 8 units @ 120 V; 14 units @ 208 V; 16 units @ 230 V

• Power and Current: 167 W, 1.392 A @ 120 V, 60 Hz

• Power and Current: 160 W, 0.823 A @ 208 V, 60 Hz

• Power and Current: 157 W, 0.747 A @ 230 V, 50 Hz

• Certifications/Qualifications

• CE, MET, FCC, UKCA

• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve

• Temperature (Ambient): -13 °F to 113 °F (-20 °C to 45 °C)

What’s Included?

• onAir Panel 3 Slim IP

• Seetronic Powercon IP65 power cord

• Omega bracket with mounting hardware

• onAir Panel 3 IP Medium Diffusion Filter

• TV Junior Spigot

Optional Accessories

• onAir Panel 3 IP Studio Barndoor

• onAir Panel 3 IP 60 deg Honeycomb

• onAir Panel 3 IP 30 deg Honeycomb

• onAir Panel 3 IP Medium, Light and Heavy Filters

• onAir Panel 3 IP Intensifier Filter

• onAir Panel 3 IP Pole Op Yoke

• Professional Clamps : CTC-50HC, CTC-50HCN

• Seetronic Powerkon power linking cables

• 5-pin IP DMX Cables

• Ethernet Cables
