Sku: ONAIRPANELMINIP

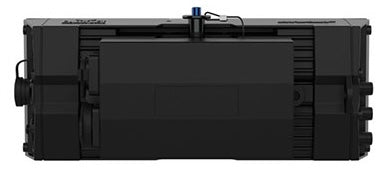

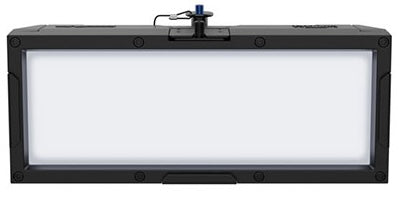

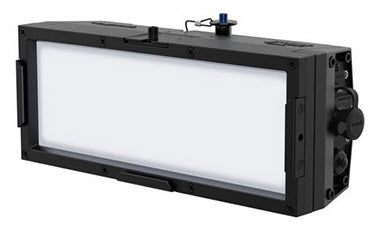

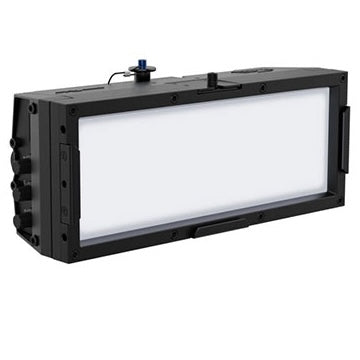

OnAir Panel Min IP

Regular price $1,209.00
Regular price Sale price $1,209.00
Sold out
Shipping calculated at checkout.
Vendor: Chauvet Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

A small rugged IP65 that produces a high quality white light with the ability to produce some color as well. This fixture can be a great option for video productions.

From the Manufacturer:

onAir Panel Min IP is a small and rugged IP65, full-spectrum LED soft light capable of facing all of the elements, outdoors or in. Ready to go on-location, or squeeze into any studio space with a low-trim, onAir Panel Min IP also features a superior quality of white light with high CRI/TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard LED menu.

Conveniently switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories.

DMX, RDM, CRMX and an onboard control option ensure camera-ready use. Its small size makes it super portable, and you can remove the main power supply for a 28 VDC input via 3-pin XLR to power the fixture from an external battery pack to add increased flexibility for all of your remote needs.

Features:

  • Full-spectrum LED mini soft light panel style fixture for broadcast, film, and special events

  • IP65 rating for all weather use indoors or out.

  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

  • Virtual color wheel with color matched to popular gel colors

  • +/- Green adjustment and emulated red-shift via DMX or on-board control

  • RDM (Remote Device Management) and CRMX Wireless Control for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Completely silent operation for use in studio applications

  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.

  • Easily switch mounting options from Clamp mount on a ball head to Baby Pin

  • Drop-in slot for accessories (sold separately)

  • Rugged design for years of rough use in the most extreme conditions.

  • Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.

  • USB port for fixture software updates

  • Compact design perfect for run-and-gun or indoor installation

  • 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Specifications:

  • Optical

    • Light source: 40 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy

    • Light source: 40 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy

    • Color temperature (range): 2800 to 8000 K

    • Color temperature (at max): 6367 K

    • CRI: 95

    • Beam Angle: 94.9°

    • Field Angle: 149.4°

    • Lumens: 2,573

    • Illuminance: 47 lux @ 5 m

    • Selectable PWM : 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 H

  • Dynamic Effects

    • Dimmer: Electronic

    • Shutter/Strobe: Electronic

    • Strobe Rate: 0 to 27 Hz

    • Independent color mixing: Yes

    • Color temperature presets: Yes

    • Dimming modes: 4

    • Dim Curves: 4

    • Built-in automated programs: Yes

  • Construction/Physical

    • Dimensions w/ PSU: 10 x 5.62 x 4.29 in (254 x 143 x 109 mm)

    • Dimensions w/o PSU: 10 x 4.13 x 4.29 in (254 x 105 x 109 mm)

    • Weight w/ PSU: 6.2 lb (2.9 kg)

    • Weight w/o PSU: 4.2 lb (2 kg)

    • Exterior Color : Black

    • Housing material: Aluminum Alloy

  • Connections

    • Power connection: Edison plug (local) to Seetronic Powerkon IP65

    • Power input: Seetronic Powerkon IP65

    • Power Input: 28 VDC, 3-pin IP65 XLR

    • Cable Length (power): 5 ft (1.5 m)

    • Software Connection: USB

  • Control

    • Control Protocol: CRMX, RDM

    • DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15

    • Modes/Personalities: 9 personalities (1, 3, 4, 5, 6, 8, 10, 11, 15Ch1)

  • Electrical

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current: 49 W, .419 A @ 120 V, 60 Hz

    • Power and Current: 52 W, .260 A @ 208 V, 60 Hz

    • Power and Current: 57 W, .246 A @ 230 V, 50 Hz

  • Certifications/Qualifications

    • CE, MET, FCC,

    • IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve

    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included?

  • Removable Power Supply

  • Ball Head Mount

  • Clamp Bolt

  • Threaded Insert

  • Baby Pin Receiver

  • IP PowerKon Cord

  • 3-pin XLR DC Power Jumper

  • mini-XLR to 5-Pin DMX connector

Optional Accessories:

  • onAir Panel Min IP Barndoor

  • onAir Panel Min IP 30deg Honeycomb

  • onAir Panel Min IP 60deg Honeycomb

  • Professional Clamps: CTC-50HC, CTC-50HCN

  • Seetronic Powerkon power linking cables

  • 5-pin DMX Cables
