onAir Flex Drive 2

A good quality all in one solution for your LED strip lights.

From the Manufacturer:

onAir Flex Drive 2 is an LED Driver ideal for TV studios seeking simple and impactful on-camera looks with integrated power supply and driver for a one-box modular solution. onAir Flex Drive 2 features 24v to allow longer run lengths for set pieces and light boxes, and 8 channels of output for complete flexibility with a choice of tapes and lengths. It also features adjustable PWM, making it ideal for broadcast compatibility. With two outputs, onAir Flex Drive 2 supports RGBW or generic 4-channel control for up to 350W of total power and assisted convection cooling perfect for studio environments. To ease installation, onAir Flex Drive 2 also features DMX 5pin and Phoenix connector for installation support.

Features:

• TV focused 24 VDC constant voltage LED Driver with integrated power supply

• Adjustable PWM makes this product ideal for broadcast compatibility

• Two outputs support RGBW or generic 4-channel control for up to 350W of total power

• Assisted convection cooling utilizes a quiet fan for studio environments

• Built in overcurrent and short circuit protection with indicator LEDs

• RDM supported for remote device management

• Scalable rack mount system, two per 1U space

• DMX 5pin and Phoenix connector for installation support

Specifications:

• Dynamic Effects

• Standalone Color Mixing: Yes

• Built-in Automated Programs: Yes

• Construction/Physical

• Dimensions: 5.4 x 4.3 x 0.8 in (137 x 109 x 20 mm)

• Weight: 5.4 lb (2.44 kg)

• Exterior Color: Black

• Housing Material: Steel

• Rackmount: 1U

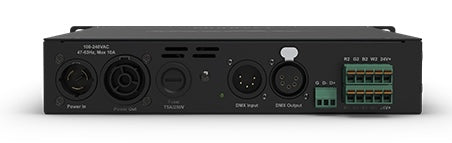

• Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON TRUE1 Compatible

• Power Input: Seetronic Powerkon (powerCON Compatible)

• Power Output: Seetronic Powerkon (powerCON Compatible)

• Device Outputs (5-pin Phoenix Connector): 2

• Physical Linking Per Port: 2 RGBW Tape

• Data Connectors: 5-pin XLR, 3 Pin Phoenix Connector

• Cable Length (power): 5 ft (1.5 m)

• Total Max Cable Extension Length Per Port: 100 ft (30.48m) 16 AWG

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V;

• Power and Current: 400 W, 3.34 A @ 120 V, 60 Hz

• Power and Current: 400 W, 1.93 A @ 208 V, 60 Hz

• Power and Current: 400 W, 1.74 A @ 230 V, 50 Hz

•  Control

• Control Protocol: DMX

• DMX Channels: 8 or 10

• Modes/Personalities: RGBW, RGBW+D

• Total Output Power (Per Port): 200 W

• Total Output Power (Total): 350 W

• Certifications/Qualifications

• CE

• US Safety: UL 8750

• Canadian Safety: CSA C22.22 No. 250.13

• IP Rating: IP20, dry location

• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included?

• onAir Flex Drive 2

• Neutrik powerCON TRUE1 power cord
