Sku:
NRP201
Netron RP2 Power Relay
Regular price
$360.00
Regular price
Sale price
$360.00
Unit price
per
Shipping calculated at checkout.
Vendor: OBSIDIAN Control Systems
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The Netron RP2 offers a high-value way to power down your DMX lighting when it's not in use...which by the way, is exactly what we recommend ANY permanent installation do!
This one is really nice because it offers a full 15amp load which can be split into (2) separate relays. It's really easy to configure, is well-built, and a great choice!
From the Manufacturer:

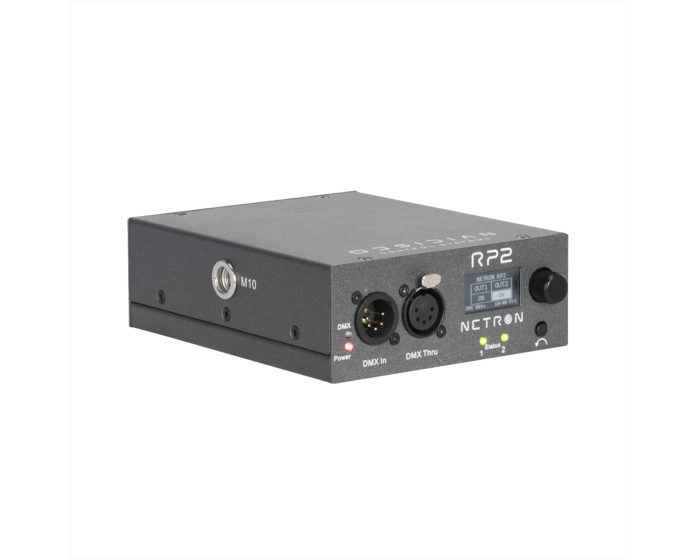

The NETRON RP2 is an intelligent 2-way DMX Power Relay that is an ideal tool to protect fixtures from damage, lower power consumption, and reducing the overall wear and tear of any lighting system.
The device is configurable via the integrated OLED display and encoder with real time status and power consumption feedback.
RP2 features optional smart power sequencing and DMX traffic detection to allow complete automation of fixture power based on DMX status. Simply turn the console on or off, and the system will follow along.
An internal clock allows standalone use of the RP2 or automating the power outputs to specific days and times. For example, a system could be turned off every day at midnight to prevent excessive power on time of devices.
Two independent power outputs are controlled by high current dual pole relays, ensuring complete removal of power from the circuit.
Current sensing per output allows to monitor power consumption on the display, and the RP2 keeps track of peak power consumption of the ports. The power information can be accessed on the display or remotely monitored over the RDM protocol. Additionally, actual, highest and lowest voltage received are available for diagnostics.
The device is configurable via the integrated OLED display and encoder with real time status and power consumption feedback.
RP2 features optional smart power sequencing and DMX traffic detection to allow complete automation of fixture power based on DMX status. Simply turn the console on or off, and the system will follow along.
An internal clock allows standalone use of the RP2 or automating the power outputs to specific days and times. For example, a system could be turned off every day at midnight to prevent excessive power on time of devices.
Two independent power outputs are controlled by high current dual pole relays, ensuring complete removal of power from the circuit.
Current sensing per output allows to monitor power consumption on the display, and the RP2 keeps track of peak power consumption of the ports. The power information can be accessed on the display or remotely monitored over the RDM protocol. Additionally, actual, highest and lowest voltage received are available for diagnostics.
In the Box:
- (1) Netron RP2
- (1) Locking Power Cable
- (2) Wall Mount Plates
- (1) DIN Rail Adapter
Video Review:
Features:
- Two independent DMX Relay Circuits
- RDM support
- High Current Dual Pole Relays
- Support for 208V and Delta Power Systems
- Voltage and Power Status and Logging on display or via RDM
- 24h / 7 Day Event Scheduler
- DMX Signal Sensing for automated relay control
- Auto Power Sequencing with adjustable time delay

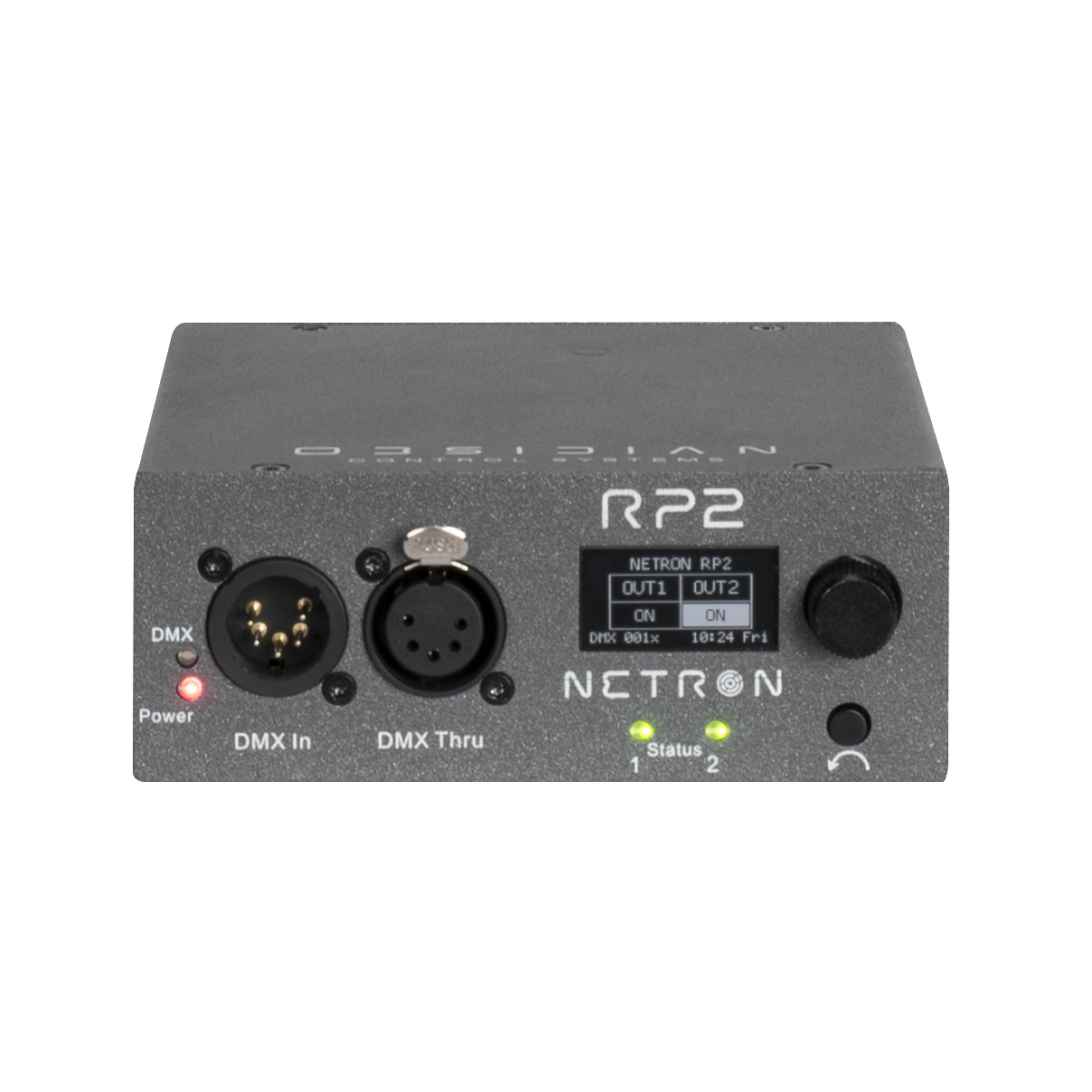

- 1.3” OLED Display with rotary encoder
- Powder-coated compact metal housing

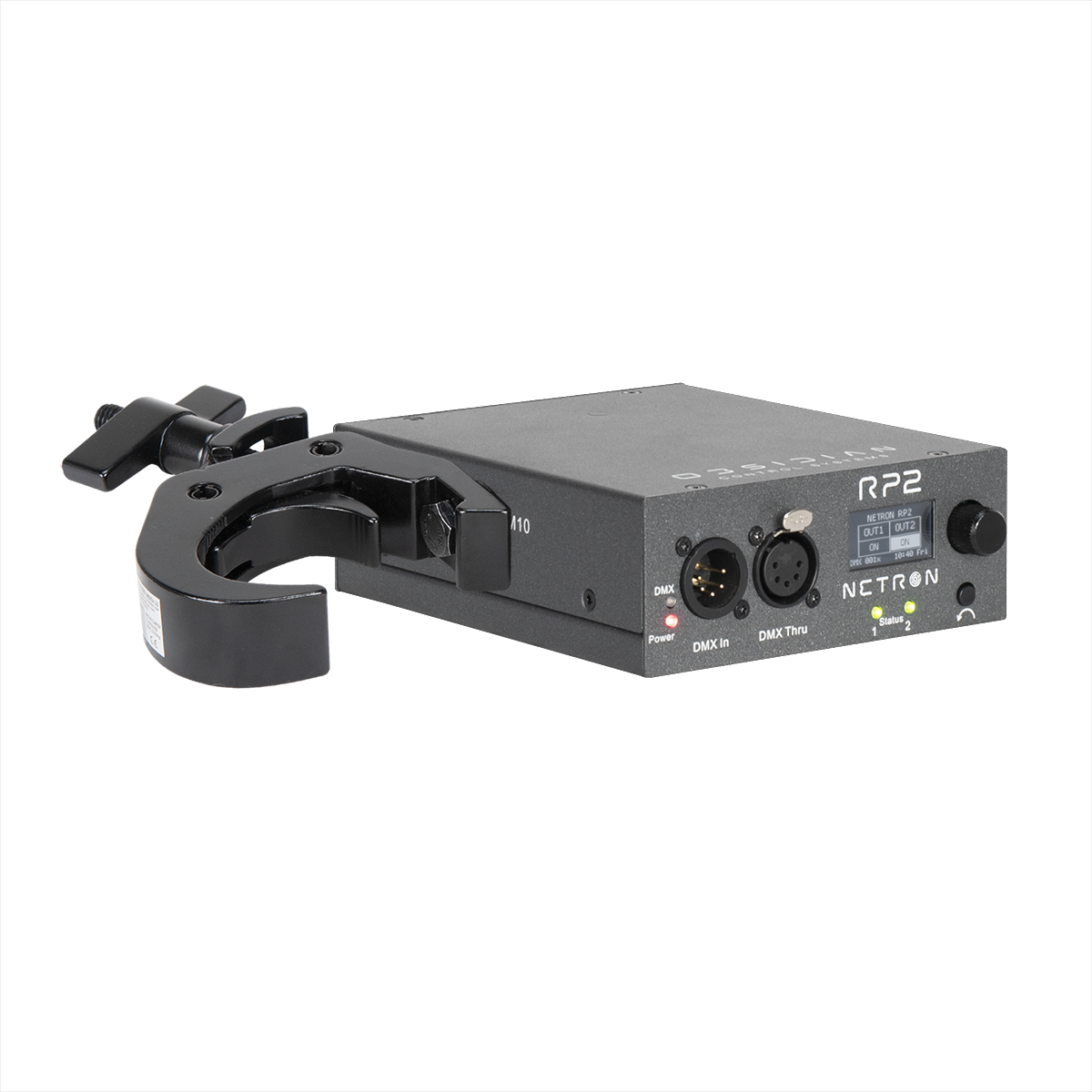

- Surface, Truss, DIN-Rail and Standalone mounting
Tech Specs
Control
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: Yes
Physical:
Length: 6 in
Width: 6.5 in
Height: 1.97 in
Weight: 1.77 lb
Electrical
Voltage Range: 100 - 240 VAC 50/60Hz
Maximum Wattage: 1800w

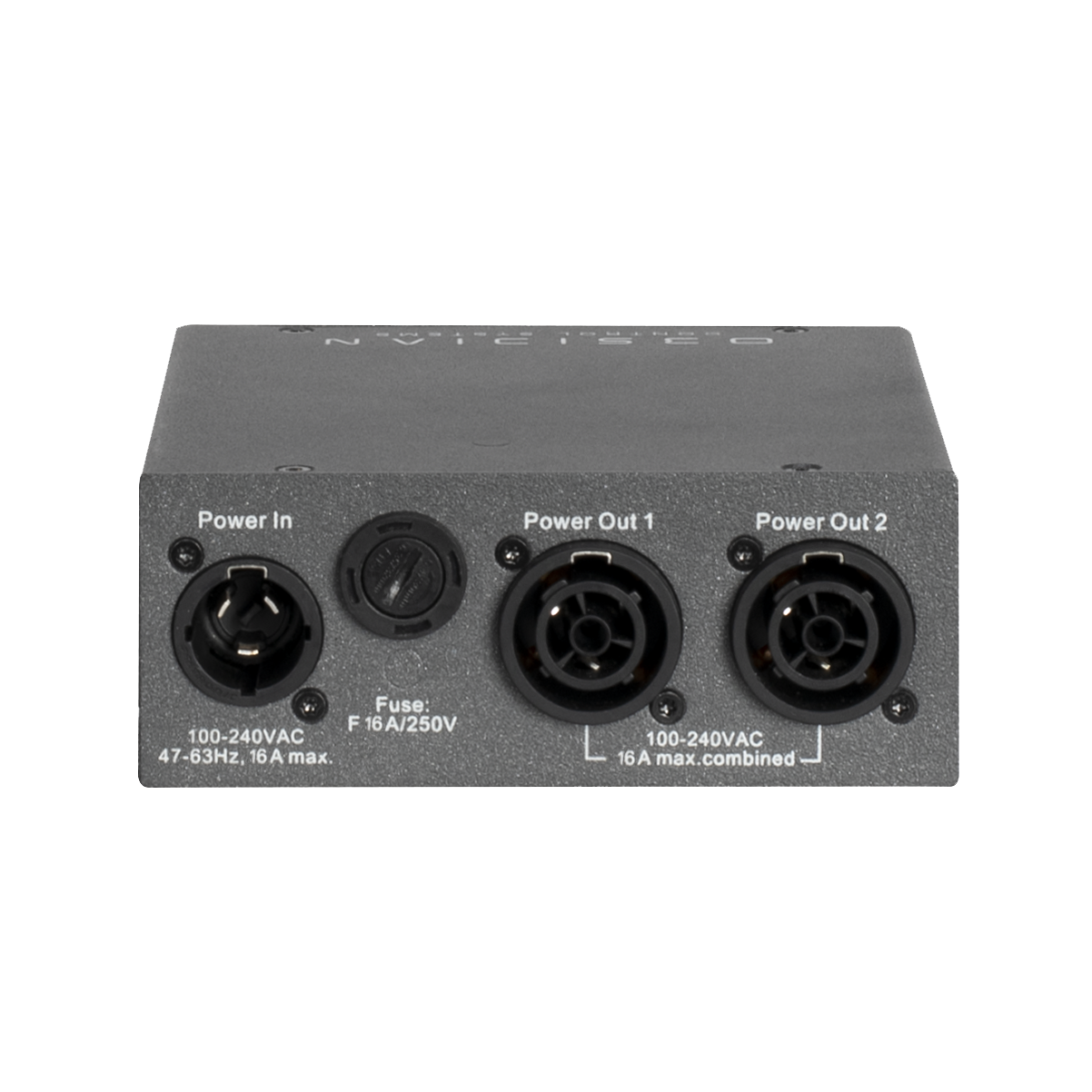

Power Cable Connector - Fixture Side: PowerCON True1
Main Power Connector on Included Cable: Edison
Warranty
Warranty: 2 Years
