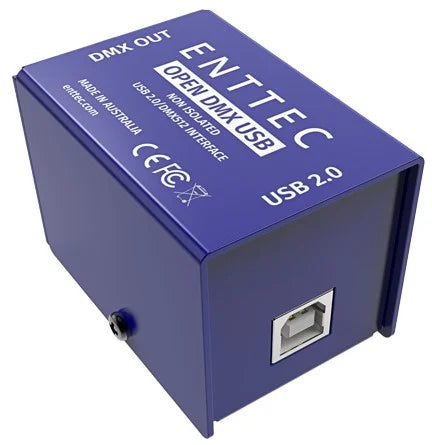

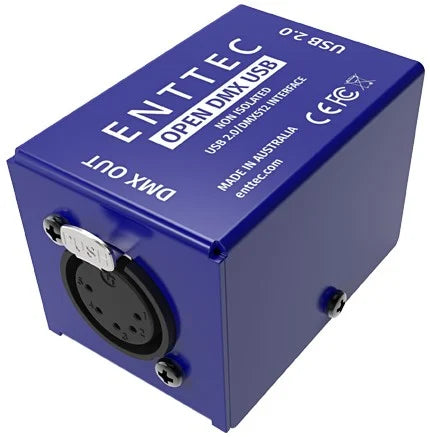

Open DMX USB

Enttec's 70303 USB to DMX interface gives you the most DMX control from one, cost-effective, and powerful unit. Compatible with most software found in architectural, community theatre, and educational environments, the Open DMX USB provides no-fuss control for DMX lighting, up to 512 channels.

Enttec Open DMX USB Applications:

Architectural

Entertainment

ToolBox

Students/Educational

Community Theatre

Enttec Open DMX USB Features:

• Extremely portable and convenient
• Power provided over USB from computer
• Standard 5pin DMX port (output only)
• Control up to 512 channels
• Compatible with a wide range of 3rd Party Software
• Includes USB cable

Enttec Open DMX USB Specifications:

• Input Voltage: 5vDC (Supplied through USB)
• Power Requirements 300mA
• Wattage: 1.5 W
• Output Type: Data
• Max Output Channels: 1 Universe (512 ch.)
• Supported Protocols: DMX512

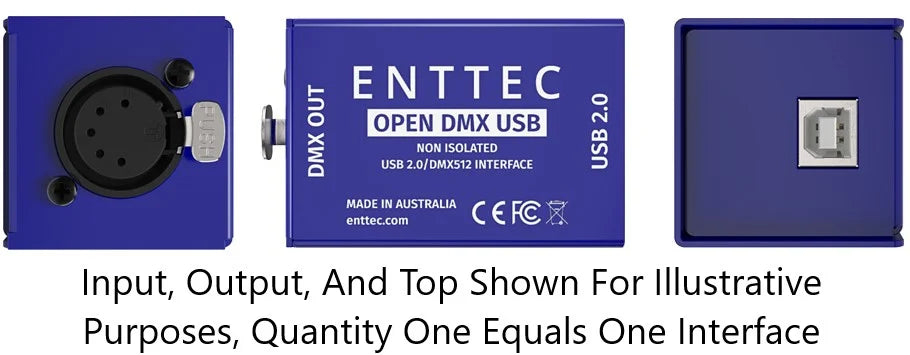

• Connectors: Female XLR and USB 2.0 B
• Certifications: CE & FCC
• Operating Environment: 0°-50°C in noncondensing environment
• Dimensions: 2.48" x 1.58" x 1.73"
• Weight 0.44 lbs
