1 2
Sku: ES297500

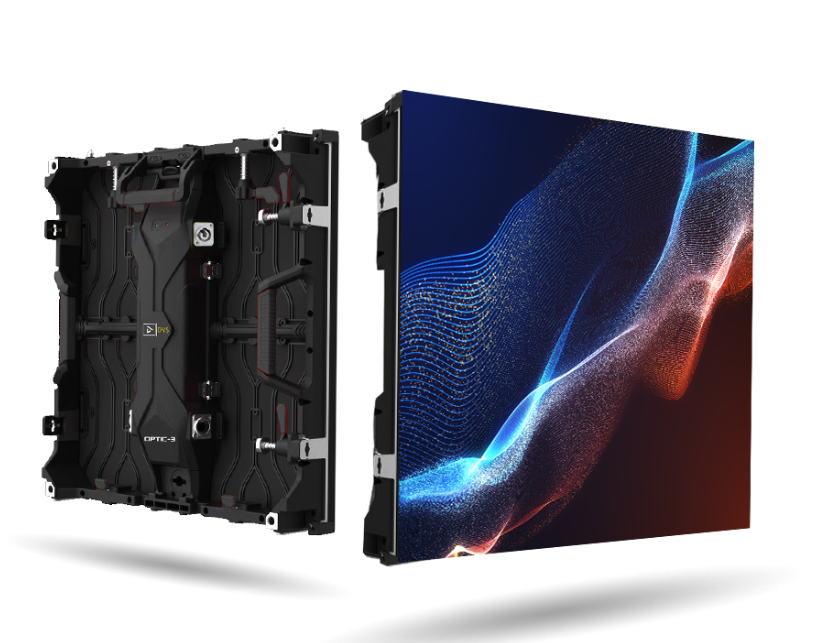

Optic 2E, 2.9mm Video Panel

$449.00
$449.00
Shipping calculated at checkout.
Vendor: DVS LED
Please email us at gear@aboveavl.com or fill out our LED wall calculator for a quote.

LED wall packages are often in stock and can ship fairly quickly, but may not. If you have a specific need-by date, contact us first to ensure we can guarantee that date! We LOVE to help!

Description

Caret Down

Optic 2E is our bare-bones, but high quality LED wall panel that allows you to get into an LED wall for a price comparable to LED walls that you really don't want to buy from places that offer packages online, with a 2.9mm pixel pitch.

It carries DVS's signature 5-year warranty, and every package comes with spare parts.  It's a really great LED wall for around 20% less than their Vizra walls, with a quality level that will still look pretty good on camera and to the eye.

Don't buy an LED wall from a random, cheap place online!  Buy this instead!

From the Manufacturer:

Optic 2E is an economically-drive indoor LED Video Panel with a focus on delivery a highly cost-effective, reliable, module video wall solution for stage installations and light rental applications.  It offers a 2.9mm pixel pitch with a standard 3,840 Hz refresh rate (or greater) for optimal image performance with Novastar Processing

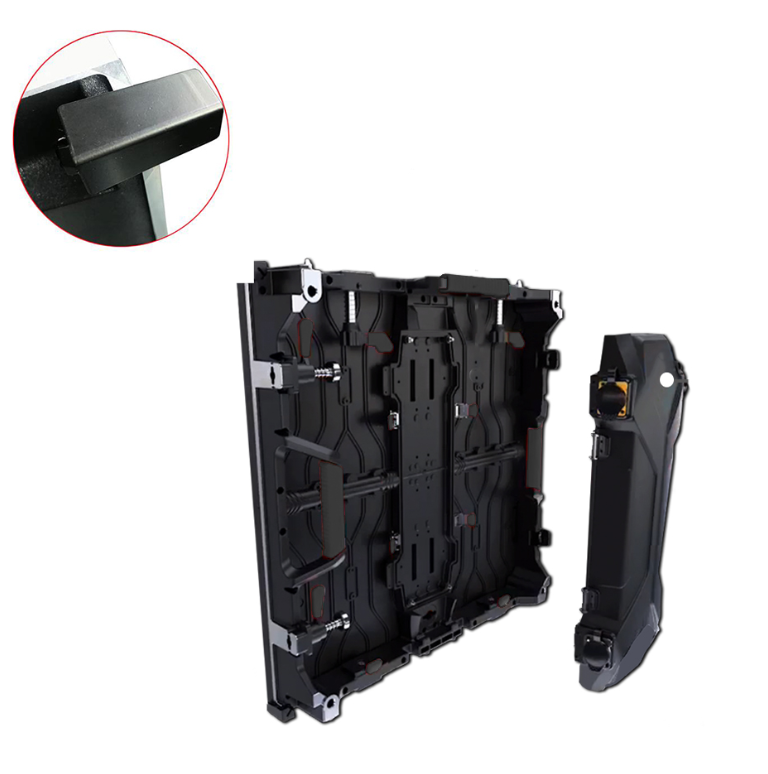

Optic E Series is lightweight with a modular component design.  Using hard connection, free of flat-ribbon cables to provide a greater level or reliability and lower mainenance.  It is front and rear serviceable with magnetic modules for easy service and features a detachable, easy-swap power/control unit housing internal components that make user-level serviceability easy and efficient.  All backed by an industry-leading 5-year warranty.

From the GEAR Pro's:

Here's the thing: there are a lot of brands out there selling packages of really cheap LED walls, and we've heard so many horror stories from customers of those brands who had major issue out of the gate, as well as down the road after a few years of ownership.

So when DVS approached us and wanted to introduce a LED wall that hits all of the essentials, but strips down some of the "nice to have's" that their Vizra panels have, in order to hit a lower pricepoint, we were so excited!

This is a solid panel that will beat most of the lower-cost panels on the market in both a visual "to the eye" look and especially on the camera.  It's not optimized for on-camera useage quite as much as the Vizra, but it's definitely going to beat a lot of the price-comparable walls out there.  It features a NovaStar A5S receiving card, a proper 3,840 refresh rate (very important), and a 4000:1 contrast ratio.

What's it missing compared to a LED wall like the Vizra?  Magnetic-assisted installation, ergonomic center handle, True1 power connectors, and the refresh rate and contrast ratio are not as good, but still good.  You also can't hang as many vertically (10 max), or 8 high when ground-stacking.  They're a little less efficient on power, and weight 1lb more.

Overall, it's a good-looking wall at a great price!  If you're not setting up and tearing down a LOT, and may be worth the cost savings to you!

A minimum order of 12 panels is required. If you haven't purchased an LED wall before, please request a quote or purchase a pre-built package to ensure you build a complete system.
In the Box:
  • (1) DVS Optic 2E LED Wall Tile
  • (1) PowerCon Jumper
  • (1) Ethernet Jumper

Full wall purchases will also include mains power and data cables as well the following spare parts:

  • 3% Spare Modules or 2 minimum
  • 1% Control/Power Module or 1 minimum

Specifications:

  • LED Type: SMD2020
  • Pixel Pitch: 2.9mm
  • Pixel Size: 2mm x 2mm
  • Panel Size: 500mm x 500mm
  • Max Hanging Height (Flown): 10 Panels
  • Main Stacking Height (Ground Stack): 8 Panels

Optical:

  • Brightness: 800 nits
  • View Angle: 140° Horizontal / 120° Vertical
  • Grayscale; 14 Bit
  • Contrast Ratio: 4000:1

Power:

  • Voltage: 110-230v
  • Max Power: 190w/panel
  • Avg. Power: 87w/panel
  • Certifications: ETL, FCC, CE, ROHS, EMC

Control:

  • Control: Novastar A5S or Equivalent
  • Refresh Rate: 3840Hz

Tech Specs

Physical:

Length: 500 mm

Width: 73 mm

Height: 500 mm

Weight: 15.4 lb

Electrical

Voltage Range: 120-240v

Maximum Wattage: 130w

Power Cable Connector - Fixture Side: True1

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 5 Years
