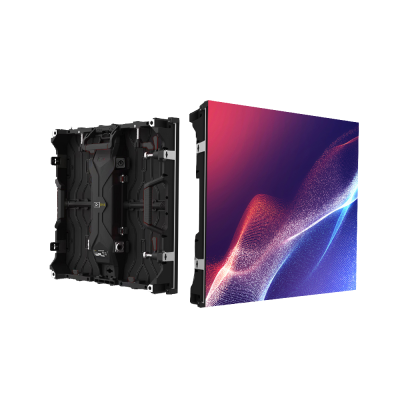

Optic-ER3

The Optic-ER3 is a 3.9mm pixel pitch LED video wall panel from DVS LED's Optic ER series, built for indoor stage, event, and rental applications.

From the Manufacturer

The Optic ER series from DVS LED is an entry-level line of LED video wall panels built to deliver a cost-effective yet dependable modular display solution for stage installations, mobile use, and rental applications. It features a lightweight, intuitive hardware design with hot-swappable modular components that are free of internal flat-ribbon cables, improving both reliability and ease of service. The panel is front- and rear-serviceable with magnetic modules, and its 3.91mm pixel pitch, 5,000:1 contrast ratio, and 4,880≥ Hz deliver clear, fluid, camera-friendly imagery suited to live streaming and broadcast use. Standard NovaStar processing and a detachable, easy-swap power/control unit keep setup and maintenance straightforward, and the panel is backed by DVS' 7-year warranty.

Features

• 3.91mm pixel pitch with 128×128 pixel density for sharp, close-viewing image quality
• 5,000:1 contrast ratio for vivid, life-size color reproduction
• 4,880≥ Hz refresh rate and 14-Bit grayscale for smooth, camera-friendly playback ideal for live streaming and broadcast
• Modular, hot-swappable design free of internal flat-ribbon cables for improved reliability and lower maintenance
• Front- and rear-serviceable with magnetic modules for fast, easy access
• Detachable, easy-swap power/control unit for simplified user-level serviceability
• NovaStar A5S receiving card for straightforward setup and programming
• PowerCON IN/THRU power and EtherCON IN/THRU signal connections for simplified daisy-chain looping
• Lightweight die-cast aluminum cabinet with simplified locking mechanisms for quick rigging and setup
• Backed by DVS' 7-year warranty
• Recommended use: Special events, trade shows, house of worship, hospitality, stage and touring production, rental and staging

Specifications

Optical

• Pixel Pitch: 3.91mm
• LED Type: SMD2020
• Pixel Density: 128×128
• Brightness: 800~ NITS
• Contrast Ratio: 5,000:1
• Viewing Angle: 140° H | 120° V
• Refresh Rate: 4,880≥ Hz
• Grayscale: 14-Bit

Physical

• Material: Die-Cast Aluminum
• Dimensions: 19.6 x 19.6 x 2.9″ (500x500x76mm)
• Weight: 16 lbs (7.2 kg)
• Serviceability: Front/Rear
• Mounting Options: Fly / Ground Stack
• Max Hanging (Flown): 10 Panels
• Max Stacking (Ground Stack): 8 Panels
• Ingress Protection Rating: IP30

Control System

• Control System: NovaStar
• Receiving Card: NovaStar A5S

Connections/Electrical

• Power Connection: PowerCON IN/THRU
• Signal Connection: EtherCON IN/THRU
• Voltage: 120-240v
• Average Power: 87w / panel
• Max Power: 190w / panel

Approvals

• Ingress Protection Rating: IP30 (Indoor Use Only)
• Certifications: cMETus, FCC, CE, ROHS, EMC
