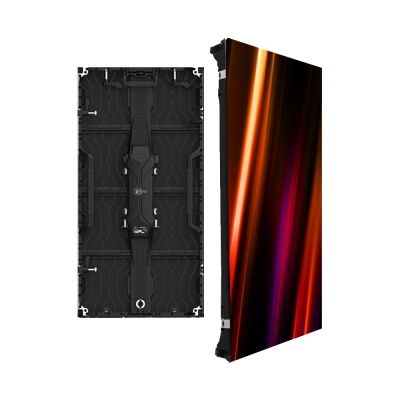

Optic-ER3IPX

The Optic-ER3IPX is a 3.9mm pixel pitch LED video wall panel from DVS LED's Optic ER series, built for outdoor stage, event, and rental applications.

From the Manufacturer

The Optic ER series from DVS LED is an entry-level line of LED video wall panels built to deliver a cost-effective yet dependable modular display solution for stage installations, mobile use, and rental applications. This outdoor-rated model offers a punchy 4,500~ NITS of output for daylight visibility, backed by an IP65 ingress protection rating for temporary outdoor use. It features a lightweight, intuitive hardware design and delivers a 5,000:1 contrast ratio with a 4,880≥ Hz refresh rate and 14-bit grayscale for clear, fluid, camera-friendly imagery. Standard NovaStar processing and a detachable, easy-swap power/control unit keep setup and maintenance straightforward, and the panel is backed by DVS' 7-year warranty.

Features

• 3.91mm pixel pitch with 128×256 pixel density for sharp, close-viewing image quality
• 5,000:1 contrast ratio for vivid, life-size color reproduction
• 4,880≥ Hz refresh rate and 14-Bit grayscale for smooth, camera-friendly playback ideal for live streaming and broadcast
• IP65 ingress protection rating for temporary outdoor use
• 4,500~ NITS brightness for strong daylight visibility
• Detachable, easy-swap power/control unit for simplified user-level serviceability
• NovaStar A5S receiving card for straightforward setup and programming
• PowerCON IN/THRU power and EtherCON IN/THRU signal connections for simplified daisy-chain looping
• Lightweight die-cast aluminum cabinet with simplified locking mechanisms for quick rigging and setup
• Backed by DVS' 7-year warranty
• Recommended use: Special events, trade shows, house of worship, hospitality, stage and touring production, rental and staging

Specifications

Optical

• Pixel Pitch: 3.91mm
• LED Type: SMD1415
• Pixel Density: 128×256
• Brightness: 4,500~ NITS
• Contrast Ratio: 5,000:1
• Viewing Angle: 140° H | 120° V
• Refresh Rate: 4,880≥ Hz
• Grayscale: 14-Bit

Physical

• Material: Die-Cast Aluminum
• Dimensions: 19.6 x 39.2 x 2.9″ (500x1000x76mm)
• Weight: 29 lbs (13.1 kg)
• Serviceability: Front/Rear
• Mounting Options: Fly / Ground Stack
• Max Hanging (Flown): 8 Panels
• Max Stacking (Ground Stack): 4 Panels
• Ingress Protection Rating: IP65

Control System

• Control System: NovaStar
• Receiving Card: NovaStar A5S

Connections/Electrical

• Power Connection: PowerCON IN/THRU
• Signal Connection: EtherCON IN/THRU
• Voltage: 120-240v
• Average Power: 120w / panel
• Max Power: 240w / panel

Approvals

• Ingress Protection Rating: IP65 (Temporary Outdoor Use Only)
• Certifications: cMETus, FCC, CE, ROHS, EMC
