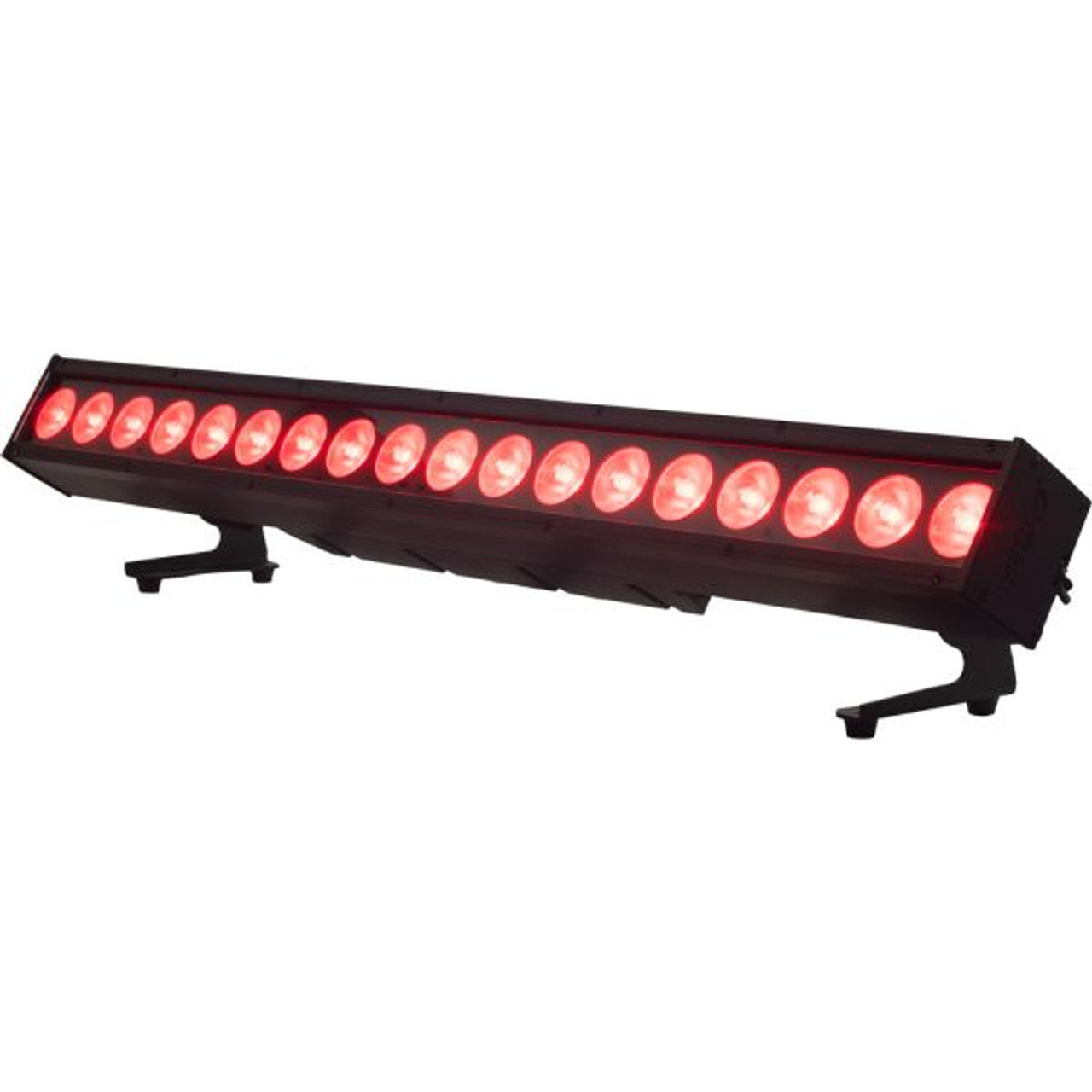

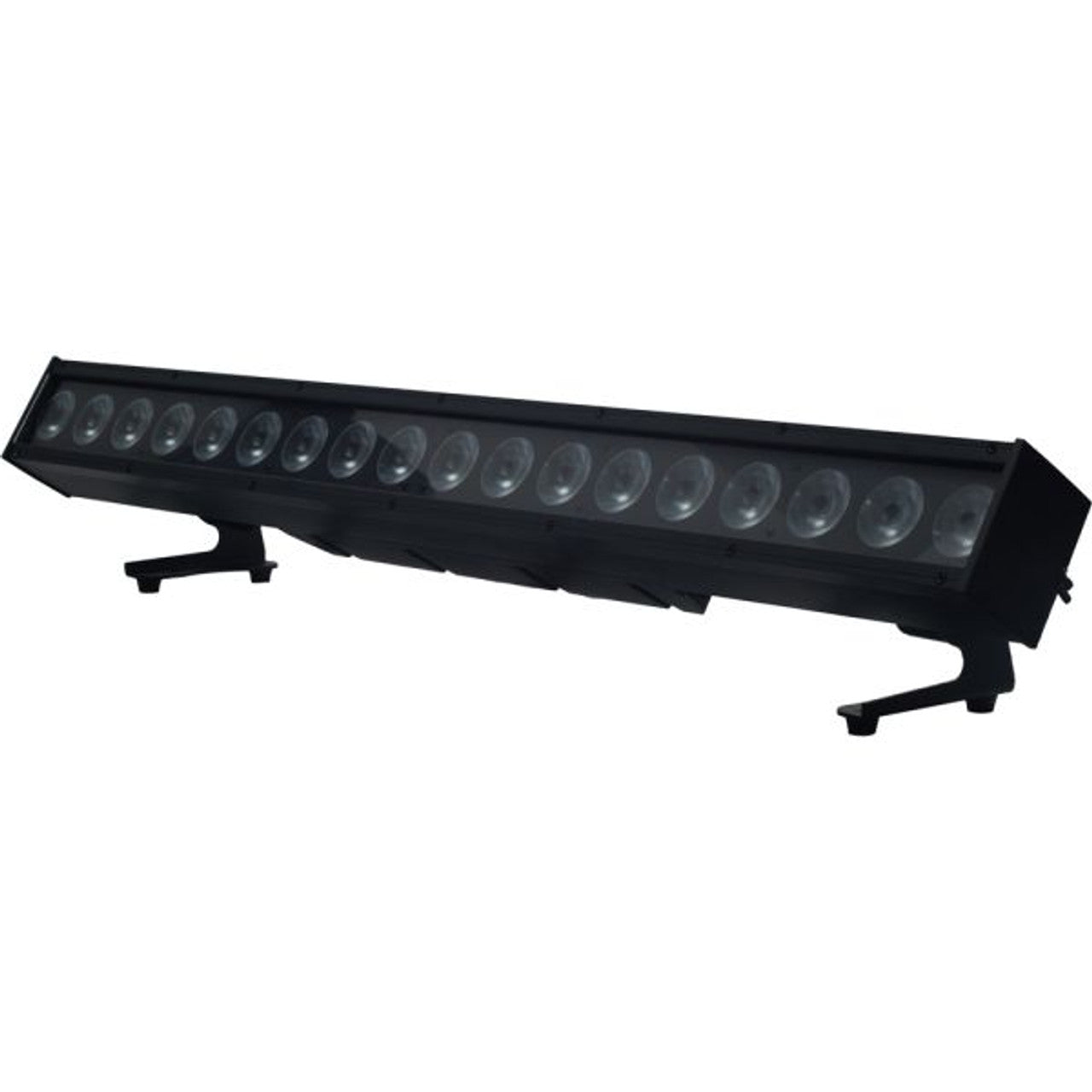

OUTSHINE PIXEL STRIP Q360

The Mega-Lite Outshine Pixel Strip Q360 features 18 pixels, powered by Tetra-colored LEDs for great beam coverage in indoor or outdoor applications.

From the Manufacturer:

The OUTSHINE PIXEL STRIP Q360 has 18 pixels, each powered by a Tetra-colored LED that uses Red, Green, Blue, and Warm White emitters in each pixel, covering 17º beam angle and 29º field angle per pixel. Create great beam coverage when uplighting walls, or I can pixel map your set. Add the included Diffuser and get a 109º beam angle and 157º field angle, great for washing catwalks. Or use your diffusers to get the perfect spread. It includes a fixture-to-fixture proprietary alignment system that gives you a continuous pixel look without losing any spacing between pixels. As an IP 65 unit, it is protected against inclement weather, making it ideal for temporary outdoor applications. Its adjustable mounting base makes it perfect when mounting between truss crossbeams, taking into account features requested by our industry friends.

Features:

• Quad 20W LEDs Red, Green, Blue, and WW: The Outshine Pixel Strip Q360 is equipped to deliver a vibrant and versatile color mixing with dynamic lighting effects.
• Outdoor use IP65: This fixture is designed to be resistant to dust and water, making it perfect for any weather conditions.
• Adjustable Slide Mount: This feature offers an adaptable and safe installation to ensure optimal positioning and alignment in any application.

Specifications:

Mechanical Specifications:

• IP Rating: IP65
• Housing: Extruded and cast aluminum
• Power Connection: Seetronics SAC3MPX Input (Nema 5-15 to SAC3FX-65 cable included)
• Signal Connection: 5 Pin XLR In and Out
• Lens Angle: Nominal Beam Angle 17°, Nominal Field Angle 29°
• Diffusion Angle: Nominal Beam Angle 109°, Nominal Field Angle 157°
• Fastening System: Slide adjusting mounting stands and clamp mounts

Electrical Specifications:

• Light Source: 18 X 20W RGBWW LEDs
• Color Temperature (Warm White): 3029K
• CRI (Warm White): 80
• Lumen Output (Single LED): Standard 346 Lm, With Diffuser 200 Lm
• Power Supply: Electronic 90-264V AC 50/60
• Power Consumption: 293 Watts 2.51 Amps @110V
• Power Link: 6 Units max @110V 15 Amp circuit

Control System:

• Control Protocols: DMX 512
• RDM: DMX Address, Channel Mode, Temperature Sensor, Device Hours
• Channel Modes: 5 Modes of Operation Mode 1: 4 Channel mode Mode 2: 10 Channel mode Mode 3: 24 Channel mode Mode 4: 72 Channel mode Mode 5: 82 Channel mode
• Display: LCD

Size & Weight:

• Fixture Size: 39.37” X 5.19” X 7.87” (1m x 13.18cm x 19.98cm)
• Fixture Weight: 19lb 12oz
• Packaged Size: 41.5” X 6.75” X 8.5”
• Packaged Weight: 20lbs
