Sku: OVATIONCYC3FC

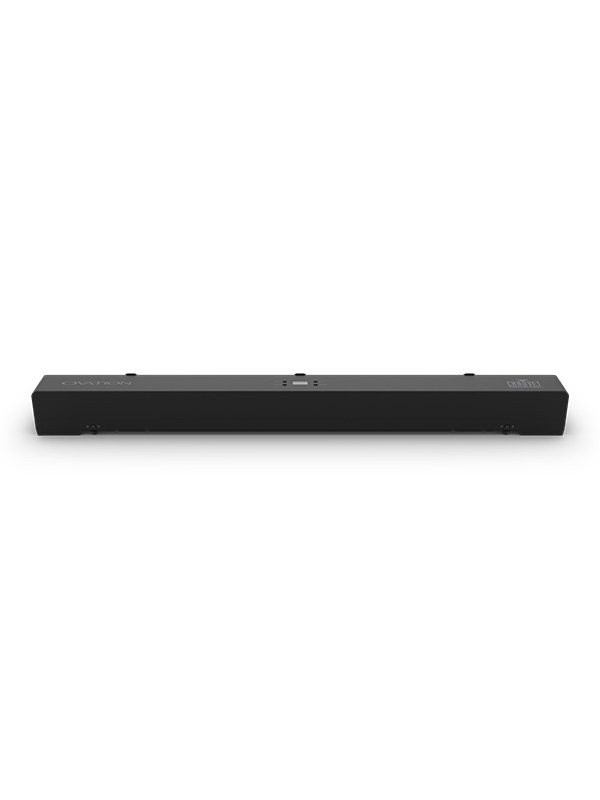

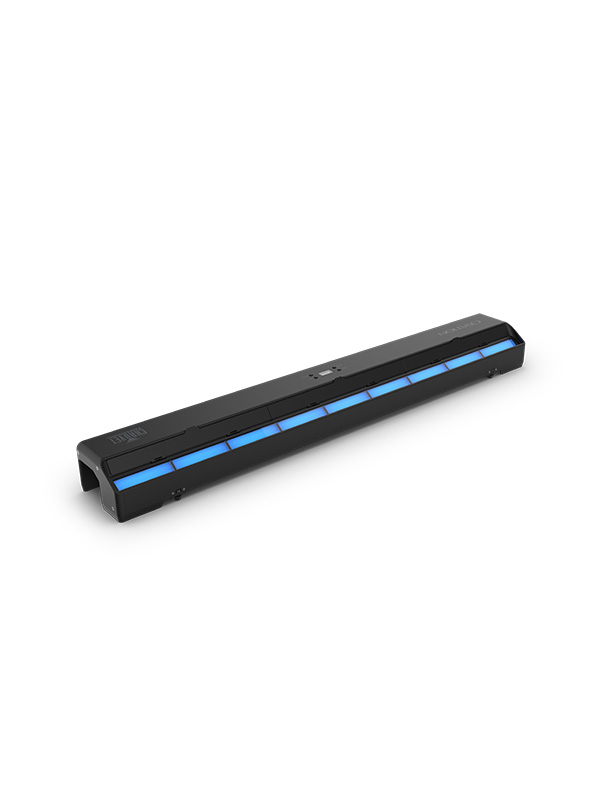

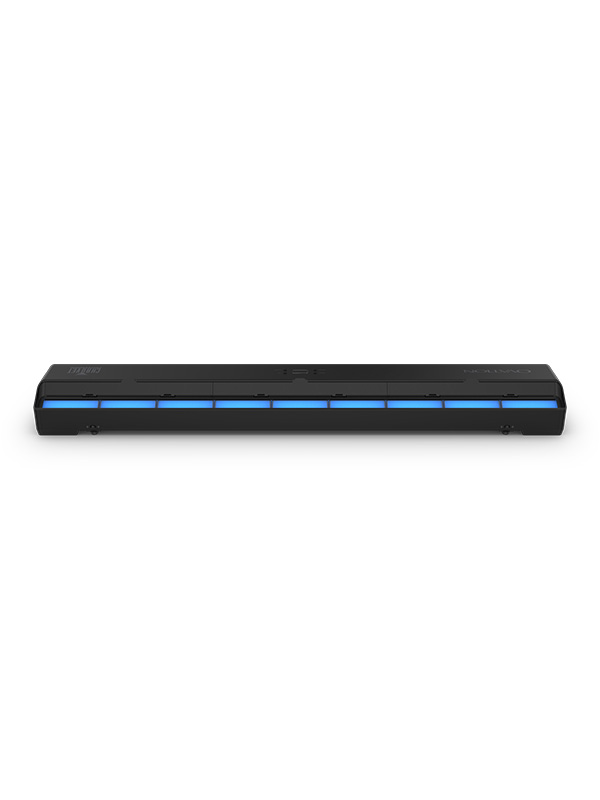

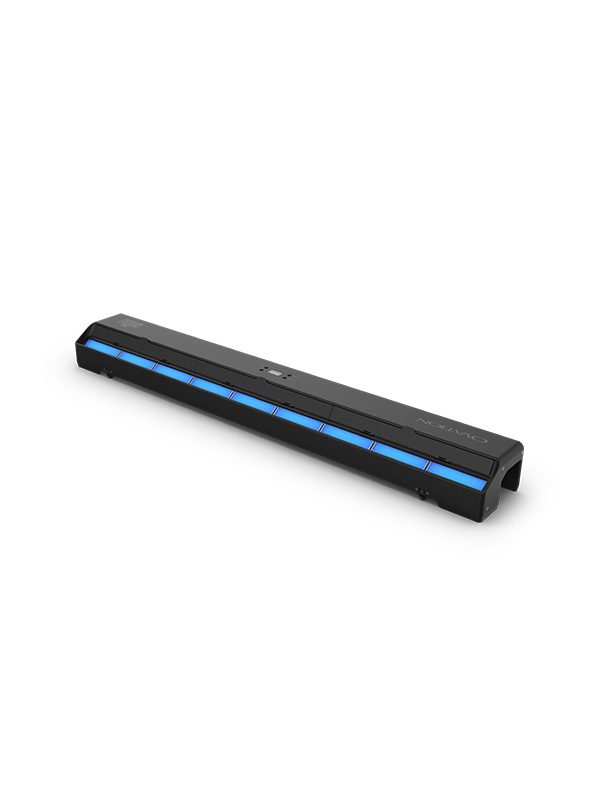

Ovation CYC 3FC

$1,700.00
$1,700.00
Shipping calculated at checkout.
Vendor: Chauvet Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

The Ovation CYC 3 FC is a high-efficiency lighting fixture that provides a uniform field of light with a long reach. Its slim, low profile is ideal for blending in quietly with stage sets, whether used as a cyc wash or a footlight, and it may be utilized in interchangeable configurations with the CYC 1 FC for extended coverage and seamless consistency. The device is totally convection cooled, making it perfect for applications requiring quiet operation.

This adaptable fixture, which features an innovative RGBAL color-mixing technology, can generate practically any color with incredible realism and saturation, and its low profile allows it to be used successfully as a footlight.

From the Manufacturer:

Ovation CYC 3 FC goes to new lengths to deliver a homogeneous field of light with significant reach. Its sleek low profile blends discreetly into stage sets as either a cyc wash or footlight and pairs perfectly with the CYC 1 FC to easily extend coverage with seamless consistency in interchangeable configurations. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation CYC 3 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low profile of the unit, it can also be used effectively as a footlight. This versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features included omega brackets.

At a glance

  • Low-profile and lightweight cyclorama wash or footlight fixture, in a 1m length to complement the Ovation CYC 1 FC

  • Display a full spectrum of hues with RGBAL LEDs for theatre, film, and production

  • Theatre-ready with 16-bit dimming of master dimmer and individual colors

  • Beam modification with built in “kick stands” and adjustable glare shield

  • Flat, even field of light with superior color mixing

  • Virtual Color wheel with color matched to popular gel colors and color temperature presets

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Silent operation for use in studio and theatre applications

In the Box:
  • (1) OVATION CYC-3 FC
  • (1) Seetronic Powerkon power cord
  • (1) Omega brackets with mounting hardware



     Features:

    • Light Source:  180 LEDs (36 red, 36 green, 36 blue, 36 amber, 36 lime) 2.5 W to 3.5, (725 mA)
    • Color Temperature:   2800 to 6500 K
    • CRI: 90
    • Beam Angle:  111.4°
    • Strobe: 0 to 29 Hz
    • Color:  RGBAL
    • Control Protocol:  DMX, RDM
    • Operating Modes: 11 personalities (1, 3, 5, 7, 10, 12, 13, 16, 17, 33, HSV)
    • IP Grade:  IP20, dry location

    Tech Specs

    Optics:

    Light Source Type: LEDs

    Light Source Wattage: 2.5 W to 3.5, (725 mA)w

    Minimum Beam Angle: 111.4°

    Control

    DMX Channel Modes: 11 personalities (1, 3, 5, 7, 10, 12, 13, 16, 17, 33, HSV)

    DMX 5-Pin Connectors?: Yes

    Physical:

    Length: 47.13 in

    Width: 6.3 in

    Height: 4.33 in

    Weight: 24.6 lb

    Electrical

    Voltage Range: 100 to 240 VAC

    Power Cable Connector - Fixture Side: Seetronic Powerkon IP65

    Main Power Connector on Included Cable: Edison (Local) plug to Seetronic Powerkon IP65
