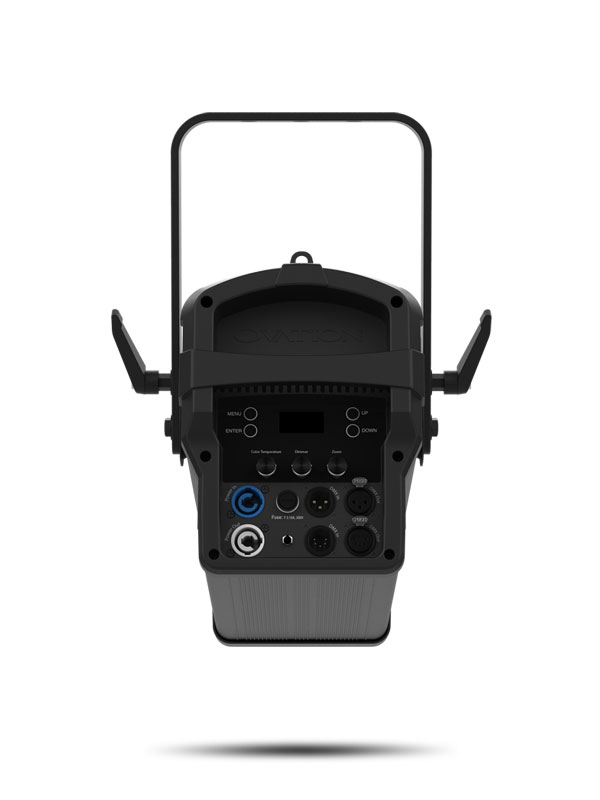

Ovation F-415FC

A 6" Fresnel-style fixture with RGBAL LED technology. Illuminate stages or event spaces with a dazzling, stunningly soft field of light that may range from subtle pastels to punchy, heavily saturated colors—and practically any temperature of white.

The motorized zoom features allow you to add light where you need it within a field angle range of 27° - 68°. Control using DMX or on-board dials, and quickly install as an RDM-enabled system.

From the Manufacturer:

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 14° – 68° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

At a glance

• ll Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production

• Soft and even field of light

• Smooth, motorized zoom from 14° to 68°

• Beautiful 16-bit dimming of master dimmer and individual colors

• Easy to use on board control of color, zoom and dimming

• Virtual Color wheel with color matched to popular gel colors

• Color Temperature Presets from 2800 K to 6500 K

• RDM (Remote Device Management) for added flexibility

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• Virtually silent operation for use in studio and theatre applications

In the Box:

• (1) Ovation F-415FC

• (1) Neutrik® powerCON® power cord

• (1) Gel frame (6.25 in / 158.75 mm accessories)

 Features:

• Light Source:  46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A)

• Color Temperature:  2800 to 6500 K

• CRI: 91

• Beam Angle:  14° to 43°

• Dimming:  Electronic

• Strobe:  Electronic

• Color:  RGBAL

• Control Protocol:  DMX, RDM

• Operating Modes:   9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

• IP Grade:  IP20, dry location
