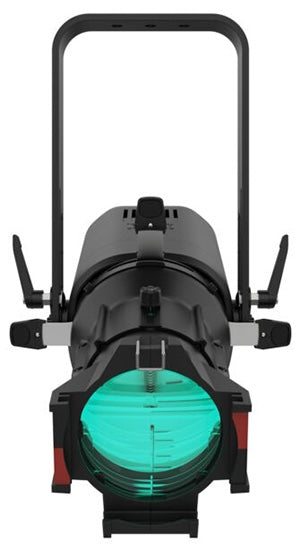

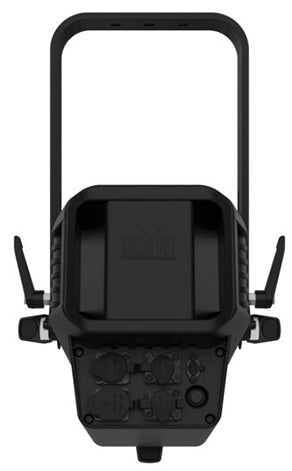

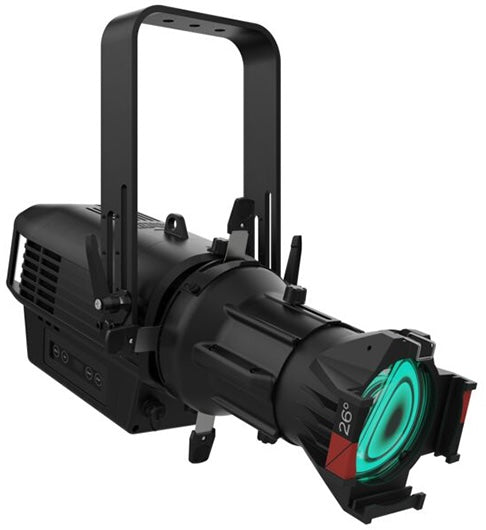

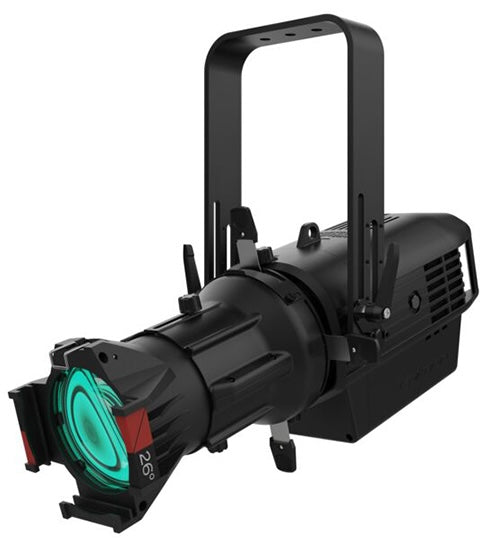

Ovation Rêve E-3 IP

The Ovation Rêve E-3 IP is an outdoor rated fixture. It is silent and a great front light fixture intended for medium sized stages. It also features a full-spectrum of color and tunable whites.

From the Manufacturer:

Ovation Rêve E-3 IP is an outdoor-ready, LED ERS-style lighting fixture. Virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications – both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme, anywhere.

Features:

• Full-spectrum, high-power LED ERS-style lighting fixture for theatre, film, and production

• Fully IP65 rated for seasonal use indoors or out

• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

• Virtual color wheel with color matched to popular gel colors

• +/- Green adjustment and emulated red-shift via DMX or on-board control

• RDM (Remote Device Management) for added flexibility

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• Virtually silent operation for use in studio, film, and theater applications

• Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.

• Innovative adjustable yoke for mounting in low clearance areas

• Direct power/data connection and control options for the Ovation GR-1 gobo rotator

• USB port for fixture software updates

Specification:

• Optical

• Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy

• Color Temperature (range): 2800 to 8000 K

• Color Temperature (at full): 6,428 K

• CRI: 93.5

• Beam Angle (w/5° lens): 6.7°

• Beam Angle (w/10° lens): 11.1°

• Beam Angle (w/14° lens): 14.2°

• Beam Angle (w/19° lens): 17.6°

• Beam Angle (w/26° lens): 26°

• Beam Angle (w/36° lens): 32.8°

• Beam Angle (w/50° lens): 50°

• Beam Angle (w/15°–30° lens)(Narrow): 14.3°

• Beam Angle (w/15°–30° lens)(Wide): 23.8°

• Beam Angle (w/25°–50° lens)(Narrow): 24.7°

• Beam Angle (w/25°–50° lens)(Wide): 41.1°

• Field Angle (w/5° lens): 7.9°

• Field Angle (w/10° lens): 12.8°

• Field Angle (w/14° lens): 16.9°

• Field Angle (w/19° lens): 20.8°

• Field Angle (w/26° lens): 28.2°

• Field Angle (w/36° lens): 37°

• Field Angle (w/50° lens): 54.2°

• Field Angle (w/15°–30° lens)(Narrow): 17.3°

• Field Angle (w/15°–30° lens)(Wide): 33.2°

• Field Angle (w/25°–50° lens)(Narrow): 27.3°

• Field Angle (w/25°–50° lens)(Wide): 44.7°

• Lumens (w/5° lens): 8,335

• Lumens (w/10° lens): 11,092

• Lumens (w/14° lens): 10,700

• Lumens (w/19° lens): 10,185

• Lumens (w/26° lens): 12,178

• Lumens (w/36° lens): 11,888

• Lumens (w/50° lens): 11,274

• Lumens (w/15°–30° lens)(Narrow): 9,166

• Lumens (w/15°–30° lens)(Wide): 11,395

• Lumens (w/25°–50° lens)(Narrow): 11,810

• Lumens (w/25°–50° lens)(Wide): 14,328

• Illuminance (w/5° lens): 28,740 lux @ 5 m

• Illuminance (w/10° lens): 15,108 lux @ 5 m

• Illuminance (w/14° lens): 8,823 lux @ 5 m

• Illuminance (w/19° lens): 5,377 lux @ 5 m

• Illuminance (w/26° lens): 3,300 lux @ 5 m

• Illuminance (w/36° lens): 1,977 lux @ 5 m

• Illuminance (w/50° lens): 864 lux @ 5 m

• Illuminance (w/15°–30° lens)(Narrow): 7,731 lux @ 5 m

• Illuminance (w/15°–30° lens)(Wide): 2,484 lux @ 5 m

• Illuminance (w/25°–50° lens)(Narrow): 3,174 lux @ 5 m

• Illuminance (w/25°–50° lens)(Wide): 1,502 lux @ 5 m

• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

• Dynamic Effects

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Focus: Manual

• Strobe Rate: 0 to 28.6 Hz

• Standalone Color Mixing: Yes

• Color Temperature Presets: Yes

• Dim Modes: 4

• Dim Curves: 4

• Built-in Automated Programs: Yes

• Construction/Physical

• Dimensions (fixture only, yoke up): 20.83 x 12.71 x 19.75 in (529.3 x 323 x 501.7 mm)

• Dimensions (w/5° lens extended, yoke up): 42.25 x 14.5 x 19.75 in (1073.15 x 368.3 x 501.7 mm)

• Dimensions (w/10° lens extended, yoke up): 33.5 x 12.71 x 19.75 in (850.9 x 323 x 501.7 mm)

• Dimensions (w/14° lens extended, yoke up): 30.25 x 12.71 x 19.75 in (768.35 x 323 x 501.7 mm)

• Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up): 27.5 x 12.71 x 19.75 in (698.5X 323 X 501.7 mm)

• Dimensions (w/15°–30° lens, yoke up): 33.75 x 12.71 x 19.75 in (857.25 x 323 x 501.7 mm)

• Dimensions (w/25°–50° lens, yoke up): 26.5 x 12.71 x 19.75 in (673.1x 323 x 501.7 mm)

• Weight: 20.6 lb (9.34 kg)

• Weight (w/5° lens): 25.2 lb (11.43 kg)

• Weight (w/10° lens): 23.8 lb (10.79 kg)

• Weight (w/14° lens): 26 lb (11.79 kg)

• Weight (w/26° lens): 24.4 lb (11.06 kg)

• Weight (w/15°–30° lens): 30.2 lb (13.69 kg)

• Weight (w/25°–50° lens): 26.8 lb ( 12.15 kg)

• Exterior Color: Black

• Housing Material: Magnesium alloy

• Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)

• Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)

• Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)

• Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)

• Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)

• Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)

• Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)

• Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

• Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

• Power Input: Seetronic Powerkon IP65

• Power Output: Seetronic Powerkon IP65

• Data Connectors: 5-pin XLR

• Cable Length (power): 5 ft (1.5 m)

• Software Connection: Type-C USB

• Control

• Control Protocol: DMX, RDM

• DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV

• Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V

• Power and Current: 354 W, 2.999 A @ 120 V, 60 Hz

• Power and Current: 345 W, 1.707 A @ 208 V, 60 Hz

• Power and Current: 342 W, 1.555 A @ 230 V, 50 Hz

• Certifications/Qualifications

• CE, MET, FCC, UKCA

• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included?

• Ovation Rêve E-3 IP

• Seetronic Powerkon power cable

• Ovation Metal Gobo Holder

• Soft Focus Filter

Required Accessories:

• Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°

Optional Accessories:

• Professional Clamps: CTC-50HC, CTC-50HCN

• Safety Cable: SC-07

• TRUE1 Style Power Extension Cables

• 5-pin IP65 DMX Cables

• RDM2go

• Ovation Glass Gobo Holder

• Ovation Metal Gobo Holder

• Ovation Iris

• Ovation GR-1 IP Gobo Rotator

• USB Jump Drive
