Ovation Reve F3

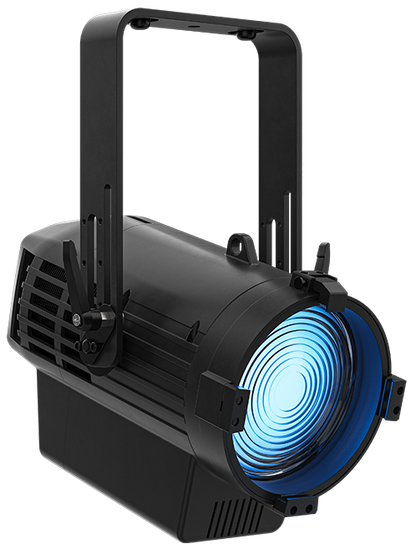

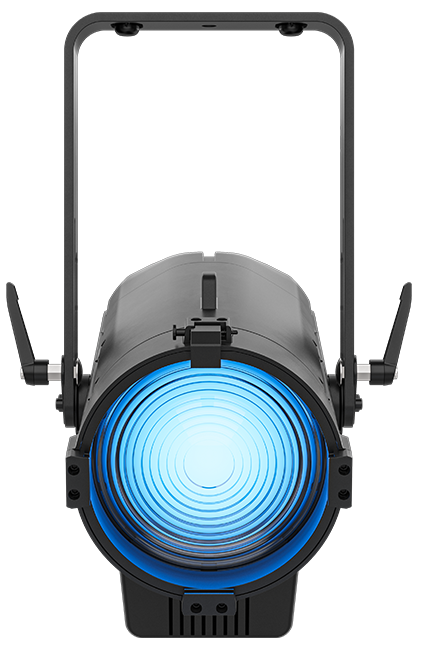

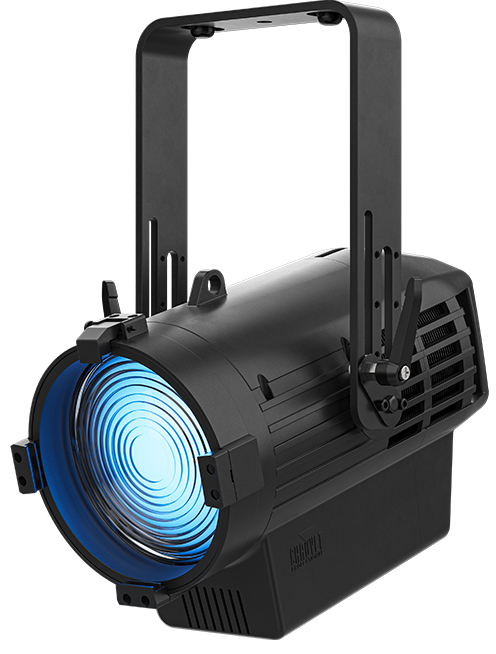

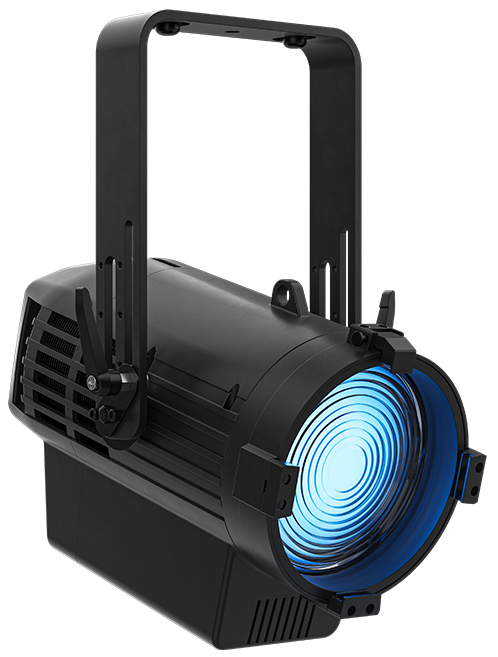

The Ovation Rêve F-3 is a motorized fresnel with a full spectrum (RGBAM) Engine made to be used in theaters, houses of worship, on TV and Film sets.

From the Manufacturer:

Ovation Rêve F-3 is a motorized fresnel incorporating our full spectrum (RGBAM) Rêve light engine. A welcome solution for applications and markets in need of soft controllable washes, Rêve F-3 features virtually silent operation, easy on-board control dials, and an innovative adjustable yoke that allows it to be mounted in low clearance areas. Featuring an optical system designed to answer the call for longer throws with an extended zoom range that can narrow from 60 degrees all the way down to 10 degrees in order to achieve impressive reach. A versatile lighting instrument at home in theaters, houses of worship, on TV and Film sets, as well as the rental and production world. Flawlessly smooth dimming, +/- green adjustment, linear CCT and adjustable Pulse Width Modulation ensure performance that looks as good on camera as it does live.

Features:

• Full-spectrum LED fresnel lighting fixture for theatre, film and production

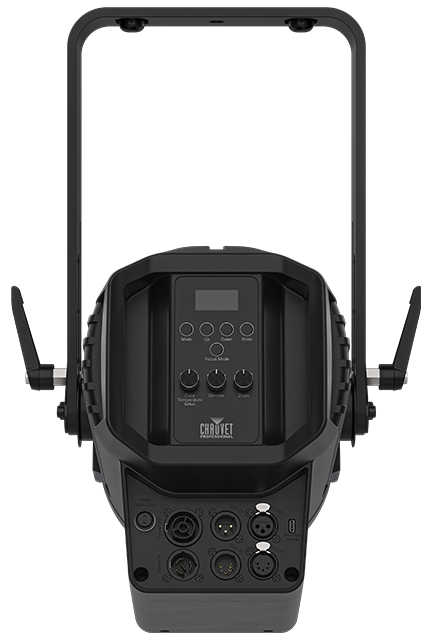

• Addition on-board control for multiple parameters via 3 control dials

• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

• Virtual color wheel with color matched to popular gel colors

• +/- Green adjustment and emulated red-shift via DMX or on-board control

• RDM (Remote Device Management) for added flexibility

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• Virtually silent operation for use in studio, film and theatre applications

• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.

• Innovative adjustable yoke for mounting in low clearance areas

• USB Port for Software updates

Specifications:

• Optical

  • Light Source: 126 LEDs (22 red, 14 green, 16 blue, 6 royal blue, 28 amber, 40 mint) 5.8 to 8 W, (1.82 A) 50,000 hours life expectancy.

  • Color Temperature (range): 2800 to 8000 K

  • Color Temperature (at full): 5249 K

  • Front lens diameters: 210.8 mm

  • CRI: 96

  • Beam Angle: 10.9° to 66.5°

  • Field Angle: 19.3° to 88.5°

  • Cutoff Angle: 26.2° to 97.3°

  • Zoom Range: 10.9° to 97.3°

  • Lumens (narrow) : 6179 lm

  • Lumens (wide) : 14302 lm

  • Lumens (50%) : 10330 lm

  • Illuminance (narrow) : 5375 lux @ 5 m

  • Illuminance (wide) : 539 lux @ 5 m

  • Illuminance (50%) : 1858 lux @ 5 m

  • Selectable PWM : 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

• Dynamic Effects

  • Dimmer: Electronic

  • Shutter/Strobe: Electronic

  • Zoom: Motorized

  • Strobe Rate: 0 to 30 Hz

  • Standalone Color Mixing: Yes

  • Color Temperature Presets: Yes

  • Dim Modes: 4

  • Dim Curves: 4

  • Built-in Automated Programs: Yes

• Construction/Physical

  • Dimensions: 15 x 13.5 x 15.7 in (381.4 x 342 x 399.3 mm)

  • Weight: 26.2 lb (11.9kg)

  • Exterior Color: Black

  • Housing Material: Aluminum die-cast

  • Accessory Holder/Gel Frame Size: 7.8 in (198 mm)

• Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

  • Power Input: Seetronic Powerkon IP65

  • Power Output: Seetronic Powerkon IP65

  • Data Connectors: 3- and 5-pin XLR

  • Cable Length (power): 5 ft (1.5 m)

  • Software Connection: USB

• Control

  • Control Protocol: DMX, RDM

  • DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, or 18

  • Modes/Personalities: 8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, or 18)

• Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V

  • Power and Current: 528 W, 4.39 A @ 120 V, 60 Hz

  • Power and Current: 517 W, 2.52 A @ 208 V, 60 Hz

  • Power and Current: 513 W, 2.22 A @ 230 V, 50 Hz

• Certifications/Qualifications

  • CE, MET, FCC

  • IP Rating: IP20, dry location

  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included?

• Ovation Reve F-3

• Seetronic Powerkon power cord

• Gel frame holder (7.5 in/191 mm accessories)

• Gel frame

• 140mm Omega bracket with mounting hardware

Optional Accessories:

• Professional Clamps: CTC-50HC, CTC-50HCN

• Safety Cable: SC-07

• TRUE1 Style Power Extension Cables

• 3-pin or 5-pin DMX Cables

• RDM2go

• USB Jump Drive
