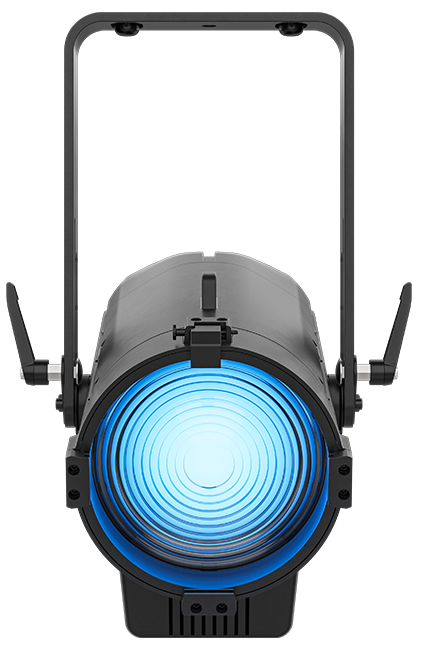

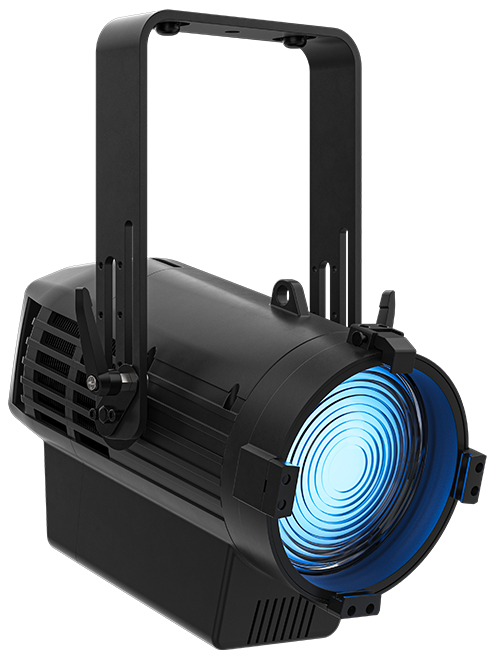

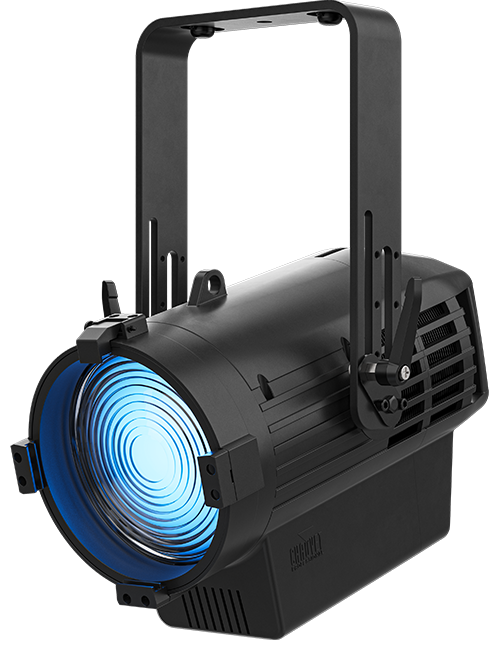

Ovation Reve F3 IP

The Ovation Rêve is an outdoor rated fixture ideal for medium sized stages. We like the motorized fresnel lens and the wide zoom range it has for creating a great stage wash effect.

From the manufacturer:

Ovation Rêve F-3 IP is an outdoor-rated motorized fresnel incorporating our full spectrum (RGBAM) Rêve light engine. With easy on-board control dials and quiet operation, Rêve F-3 IP represents a welcome solution for applications and markets in need of soft controllable washes. Ready to go anywhere, rain or shine, its innovative adjustable yoke also allows it to be mounted anywhere, even in low clearance areas. Featuring an optical system designed to answer the call for longer throws with an extended zoom range that can narrow from 60 degrees all the way down to 10 degrees in order to achieve impressive reach. A versatile lighting instrument at home in theaters, houses of worship, on TV and Film sets, as well as the rental and production world. Flawlessly smooth dimming, +/- green adjustment, linear CCT and adjustable Pulse Width Modulation ensure performance that looks as good on camera as it does live.

Features:

• Full-spectrum LED fresnel lighting fixture for theatre, film and production

• Fully IP65 rated for seasonal use indoors or out

• Addition on-board control for multiple parameters via 3 control dials

• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

• Virtual color wheel with color matched to popular gel colors

• +/- Green adjustment and emulated red-shift via DMX or on-board control

• RDM (Remote Device Management) for added flexibility

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• Virtually silent operation for use in studio, film and theatre applications

• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.

• Innovative adjustable yoke for mounting in low clearance areas

• USB Port for Software updates

Specification:

• Optical

• Light Source: 1 LED (WW) 400W, 50,000 hours life expectancy

• Color Temperature (at full): 3200 K

• CRI: 97.8

• Beam Angle (w/5° lens): 6.9°

• Beam Angle (w/10° lens): 9.9°

• Beam Angle (w/14° lens): 13.6°

• Beam Angle (w/19° lens): 17°

• Beam Angle (w/26° lens): 18.9°

• Beam Angle (w/36° lens): 25.2°

• Beam Angle (w/50° lens): 38.7°

• Beam Angle (w/15°–30° lens)(Narrow): 12.3°

• Beam Angle (w/15°–30° lens)(Wide): 20.1°

• Beam Angle (w/25°–50° lens)(Narrow): 21.2°

• Beam Angle (w/25°–50° lens)(Wide): 29.2°

• Field Angle (w/5° lens): 9.3°

• Field Angle (w/10° lens): 12.5°

• Field Angle (w/14° lens): 16.6°

• Field Angle (w/19° lens): 21°

• Field Angle (w/26° lens): 27.1°

• Field Angle (w/36° lens): 36.1°

• Field Angle (w/50° lens): 53.1°

• Field Angle (w/15°–30° lens)(Narrow): 17.1°

• Field Angle (w/15°–30° lens)(Wide): 30.4°

• Field Angle (w/25°–50° lens)(Narrow): 28.1°

• Field Angle (w/25°–50° lens)(Wide): 41.4°

• Dimming Modes: 4

• Lumens (w/5° lens): 13,989

• Lumens (w/10° lens): 16,250

• Lumens (w/14° lens): 17,524

• Lumens (w/19° lens): 16,766

• Lumens (w/26° lens): 21,213

• Lumens (w/36° lens): 21,219

• Lumens (w/50° lens): 20,831

• Lumens (w/15°–30° lens)(Narrow): 15,302

• Lumens (w/15°–30° lens)(Wide): 19,171

• Lumens (w/25°–50° lens)(Narrow): 21,049

• Lumens (w/25°–50° lens)(Wide): 20,936

• Illuminance (w/5° lens): 45,552 lux @ 5 m

• Illuminance (w/10° lens): 25,479 lux @ 5 m

• Illuminance (w/14° lens): 15,080 lux @ 5 m

• Illuminance (w/19° lens): 9,627 lux @ 5 m

• Illuminance (w/26° lens): 8,883 lux @ 5 m

• Illuminance (w/36° lens): 4,983 lux @ 5 m

• Illuminance (w/50° lens): 2,199 lux @ 5 m

• Illuminance (w/15°–30° lens)(Narrow): 15,632 lux @ 5 m

• Illuminance (w/15°–30° lens)(Wide): 6,829 lux @ 5 m

• Illuminance (w/25°–50° lens)(Narrow): 7,668 lux @ 5 m

• Illuminance (w/25°–50° lens)(Wide): 3,733 lux @ 5 m

• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25KHz

• Dynamic Effects

• Dimmer: Electronic

• Shutter/Electronic

• Strobe Rate: 0 to 30 Hz

• Color Temperature Presets: No

• Dim Modes: 4

• Dim Curves: 4

• Built-in Automated Programs: Yes

• Construction/Physical

• Dimensions (fixture only): 19.5 x 11.2 x 19.2 in (496 x 284.9 x 487 mm)

• Dimensions (w/5° lens extended): 40.4 x 14.5 x 19.2 in (1026 x 368 x 487 mm)

• Dimensions (w/10° lens extended): 32.2 x 12.4 x 19.2 in (817 x 314 x 487 mm)

• Dimensions (w/14° lens extended): 28.9 x 11.9 x 19.2 in (734 x 302 x 487 mm)

• Dimensions (w/19° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)

• Dimensions (w/26° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)

• Dimensions (w/36° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)

• Dimensions (w/50° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)

• Dimensions (w/15°–30° lens): 32.3 x 11.9 x 19.2 in (820 x 302 x 487 mm)

• Dimensions (w/25°–50° lens): 25.1 x 11.9 x 19.2 in (637 x 302 x 487 mm)

• Weight (fixture only): 21.6 lb (9.79 kg)

• Weight (w/5° lens): 26.4 lb (11.9 kg)

• Weight (w/10° lens): 24.8 lb (11.2 kg)

• Weight (w/14° lens): 26.8 lb (12.1kg)

• Weight (w/19° lens): 25.6 lb (12.1kg)

• Weight (w/26° lens): 25.6 lb (12.1kg)

• Weight (w/36° lens): 25.6 lb (12.1kg)

• Weight (w/50° lens): 25.6 lb (12.1kg)

• Weight (w/15°–30° lens): 30.4 lb (13.7kg)

• Weight (w/25°–50° lens): 27.4 lb (12.4kg)

• Exterior Color: Black

• Housing Material: Aluminum die-cast

• Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)

• Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)

• Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)

• Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)

• Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)

• Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)

• Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)

• Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

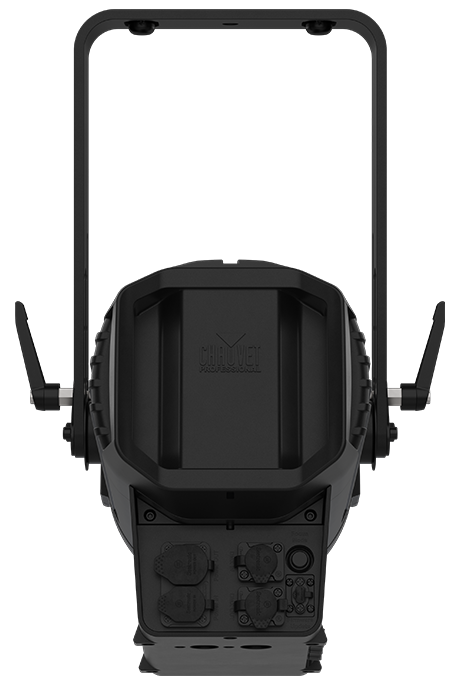

• Connections

• Power Connection: Edison (local) plug to Seetronic Powerkon IP65

• Power Input: Seetronic Powerkon IP65

• Power Output: Seetronic Powerkon IP65

• Data Connectors: 5-pin XLR

• Cable Length (power): 5 ft (1.5 m)

• Control

• Control Protocol: DMX, RDM

• DMX Channels: 2, 3, 4, or 7

• Modes/Personalities: 4 personalities (2, 3, 4, 7)

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 2 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 6 units @ 230 V; 7 units @ 240 V

• Power and Current: 433 W, 4.34 A @ 100 V, 60 Hz

• Power and Current: 428 W, 3.57 A @ 120 V, 60 Hz

• Power and Current: 416 W, 2.0 A @ 208 V, 60 Hz [

• Power and Current: 416 W, 1.81 A @ 230 V, 50 Hz

• Power and Current: 413 W, 1.73 A @ 240 V, 60 Hz

• Certifications/Qualifications

• CE, MET, UKCA, RoHS

• IP Rating: IP65, temporary outdoor/wet use

What’s Included:

• Ovation E-4WW IP

• Seetronic Powerkon IP65

Required Accessories:

• Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN

• Safety Cable: SC-07

• TRUE1 Style Power Extension Cables

• 5-pin IP65 DMX Cables

• RDM2go

• Ovation Glass Gobo Holder

• Ovation Metal Gobo Holder

• Ovation Iris

• Ovation GR-1 IP Gobo Rotator
