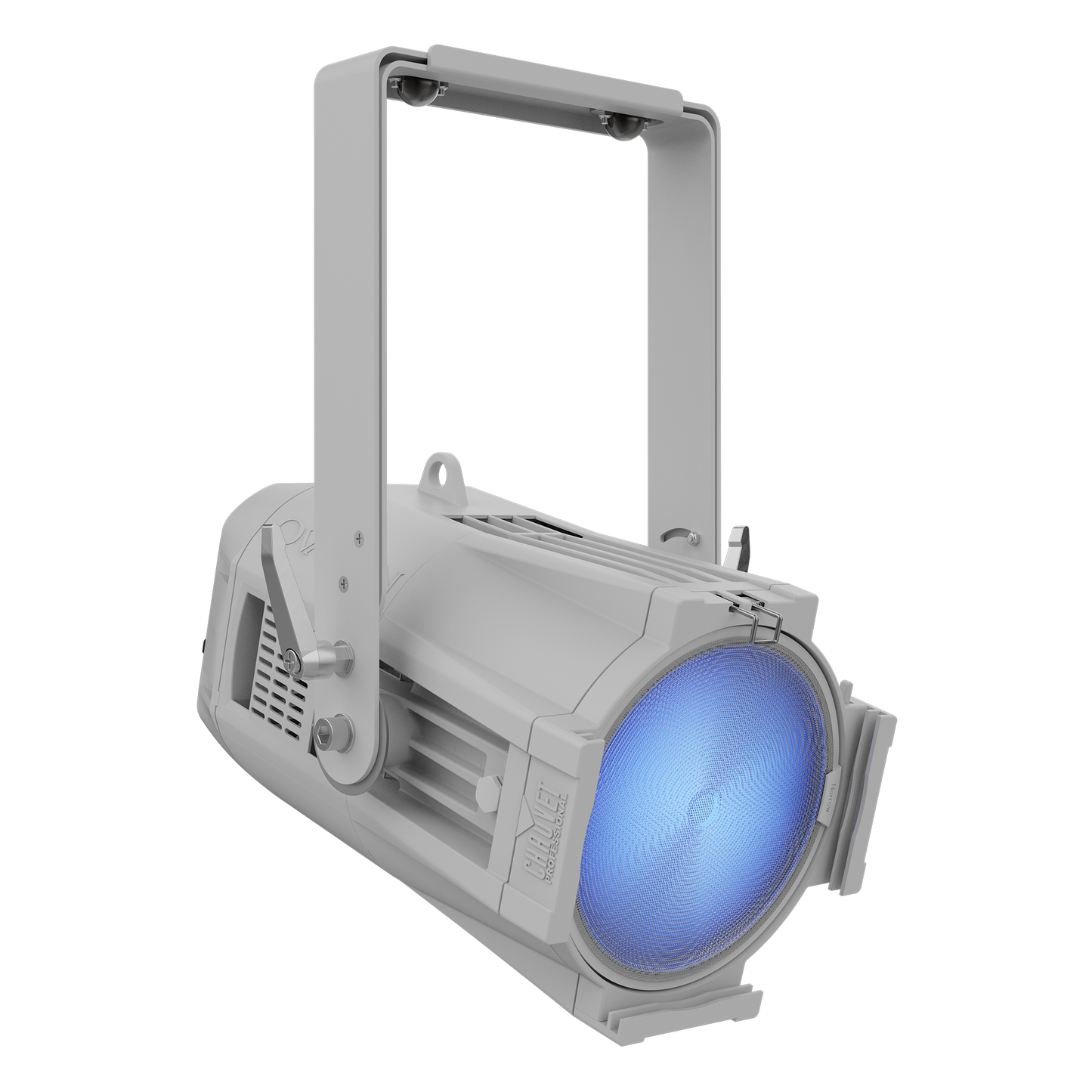

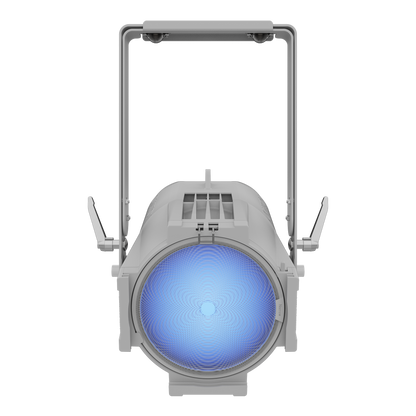

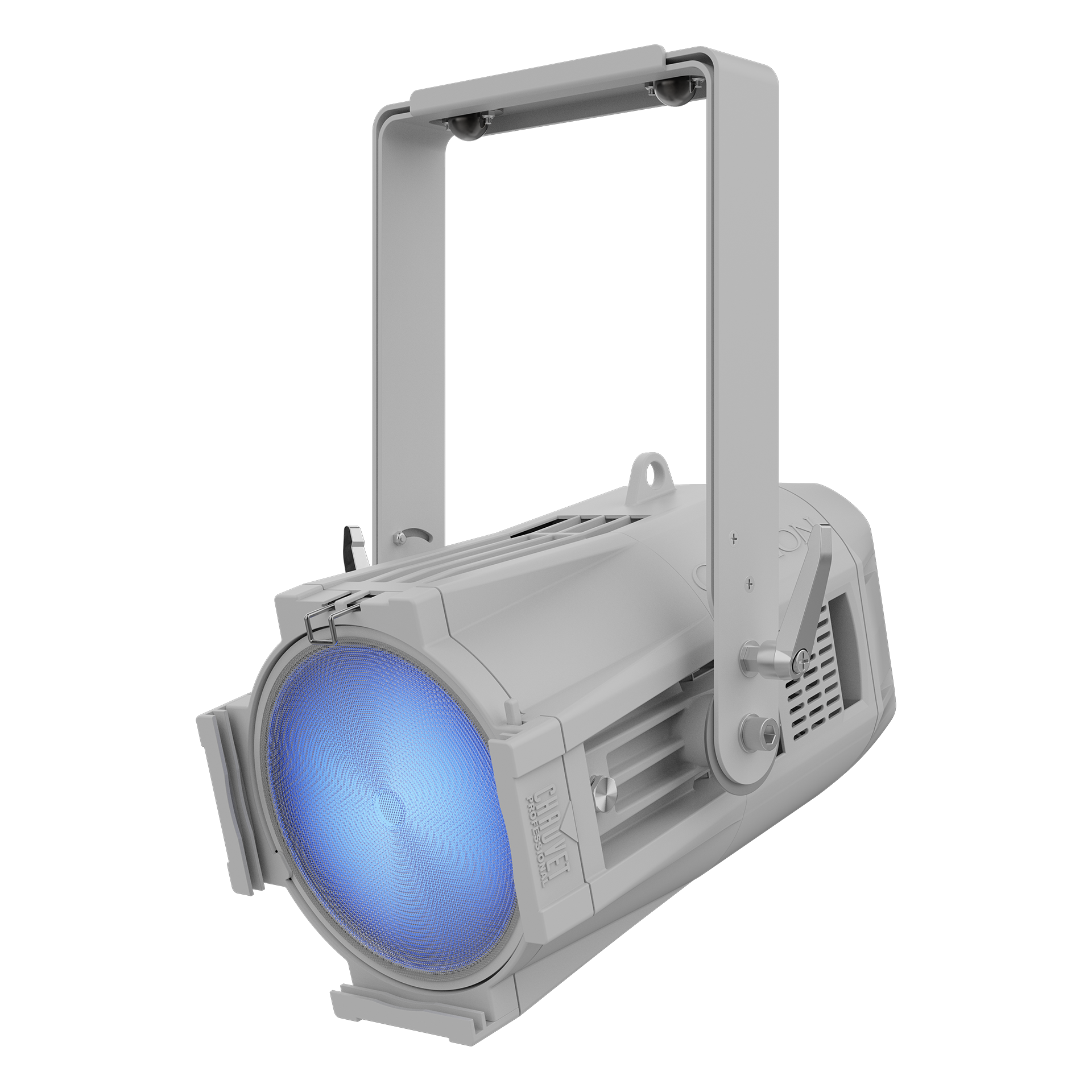

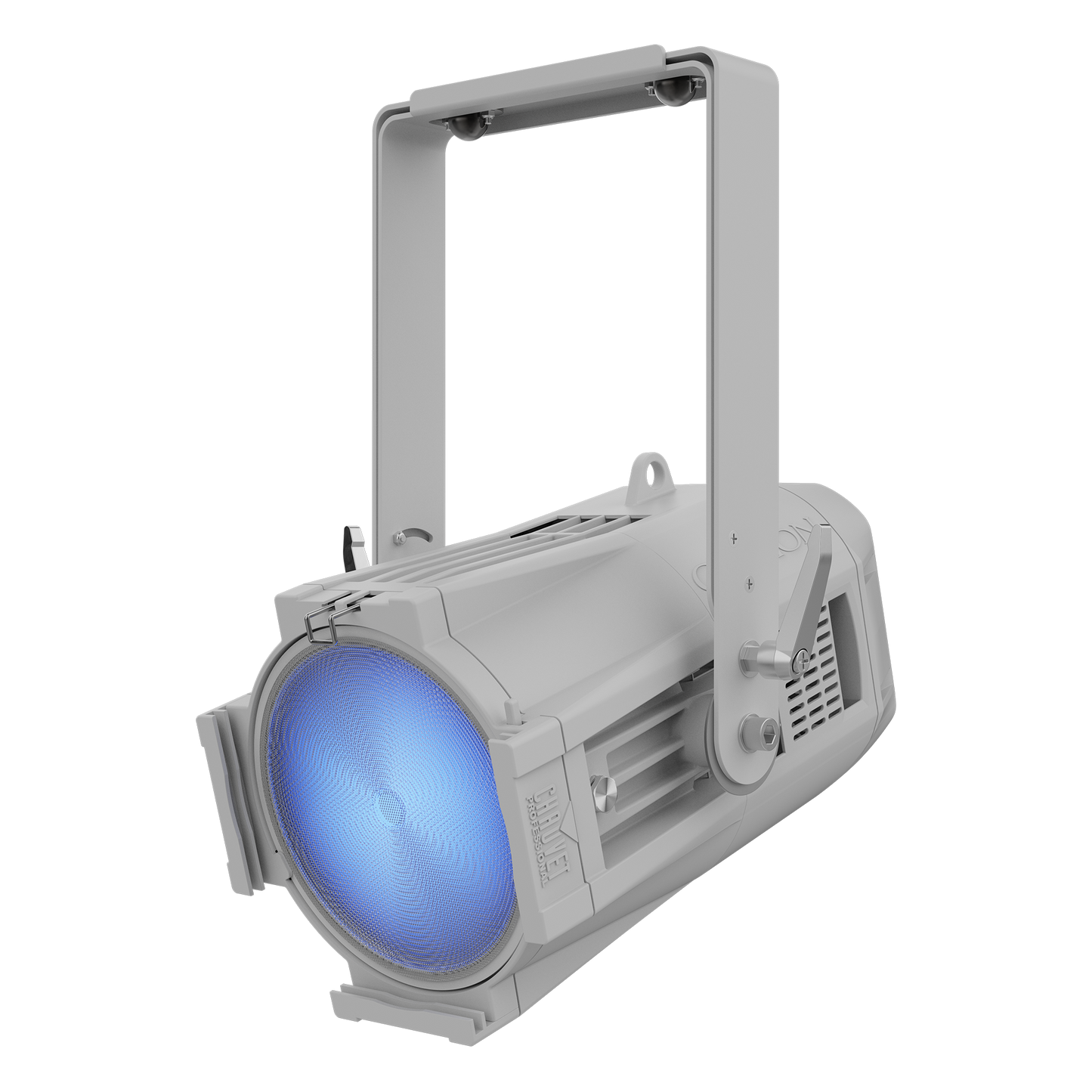

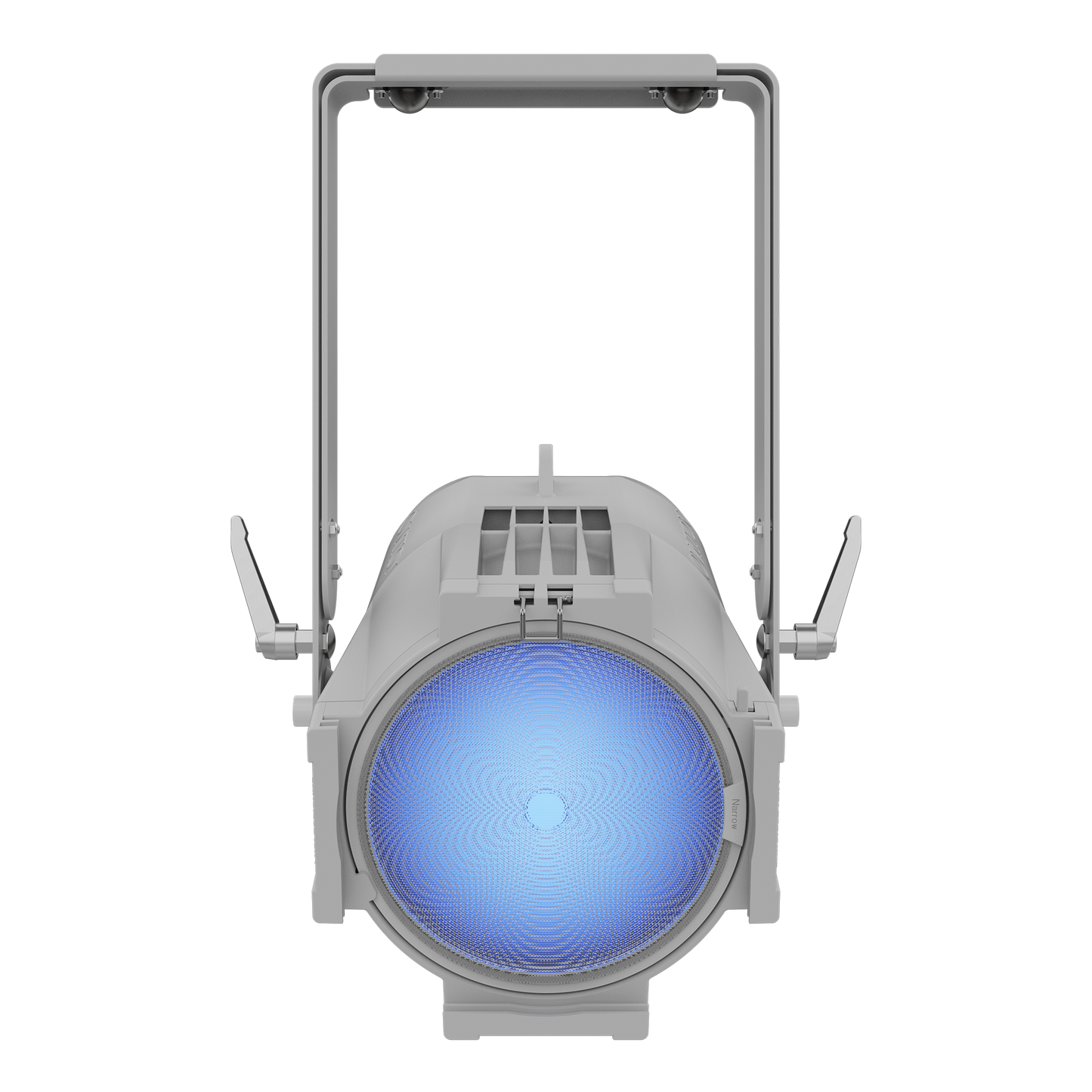

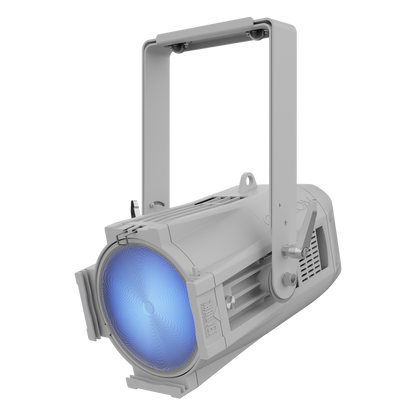

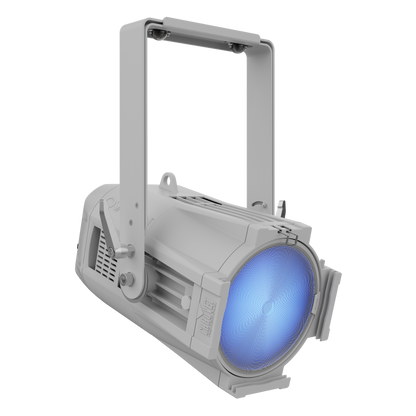

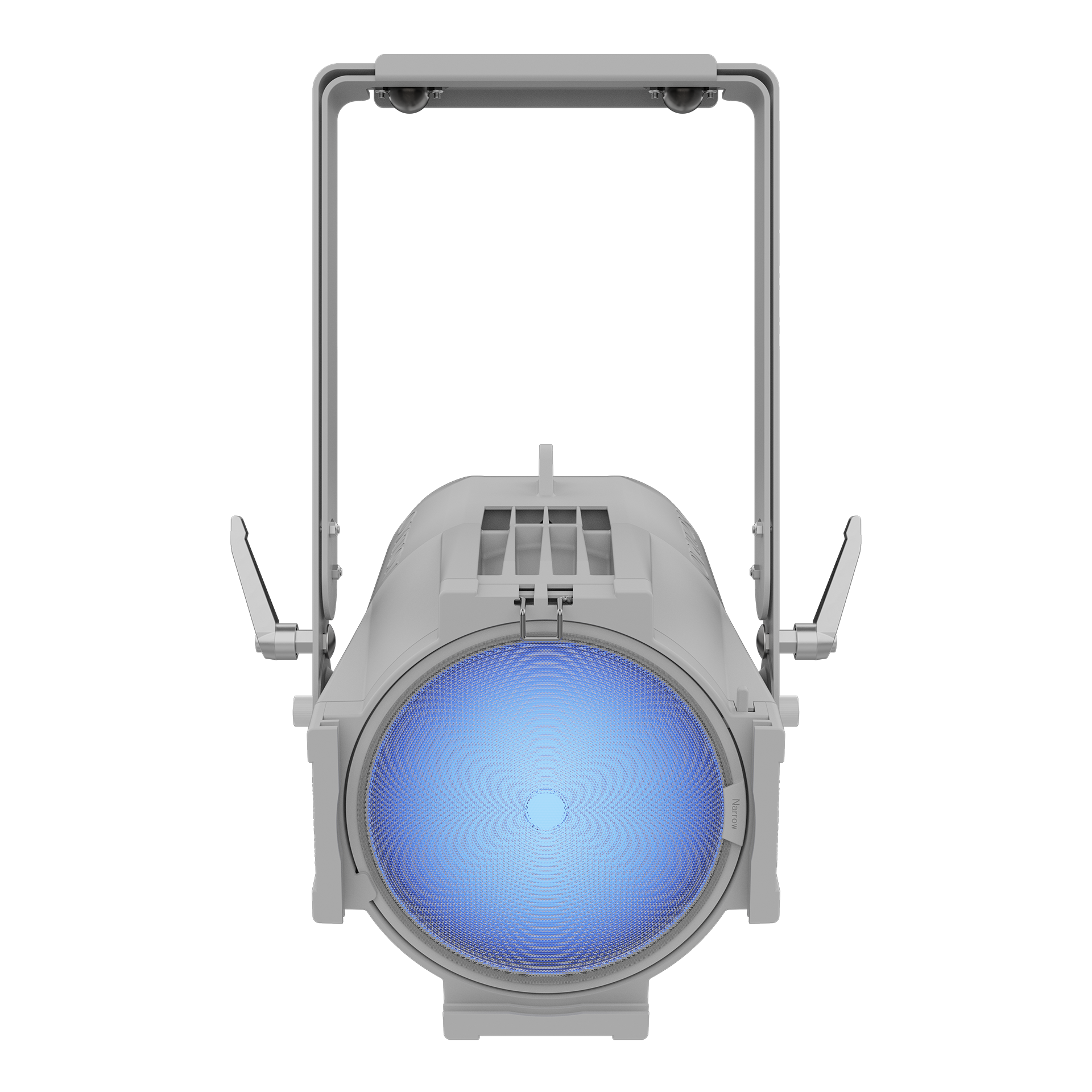

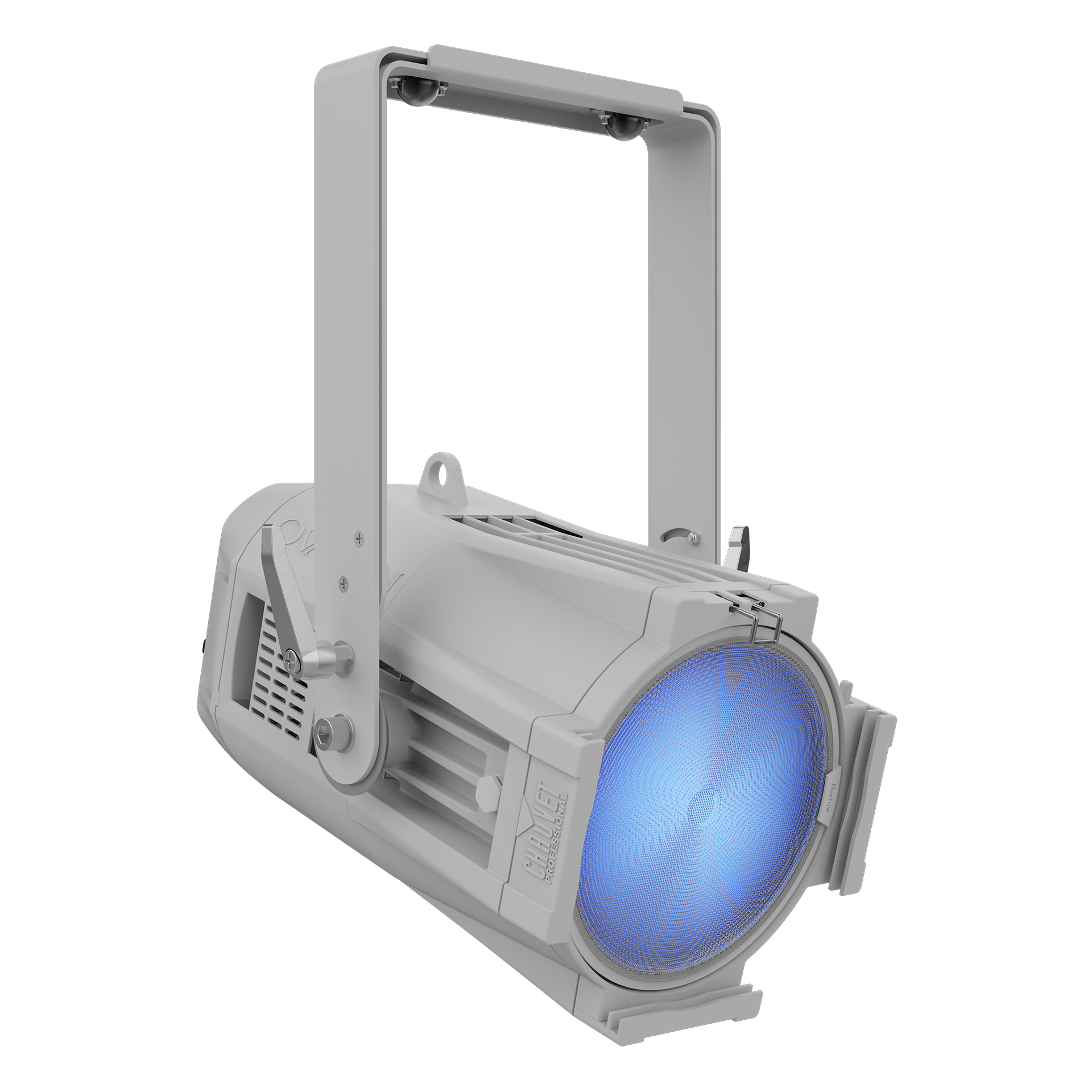

Ovation Rêve P-3 IP (White Housing)

The CHAUVET Professional Ovation Rêve P-3 IP (White Housing) is a high-output, IP65-rated RGBAM LED PAR fixture delivering multi-color and full-spectrum-white light with exceptional color rendering and four interchangeable lenses for versatile beam shaping.

From the Manufacturer

The Ovation Rêve P-3 IP is CHAUVET Professional’s brightest IP65-rated multi-color, full-spectrum-white LED PAR. Built around an advanced RGBAM LED engine, it delivers a homogenized, single-source, flat and even field of light with high CRI across the full color spectrum. Linear color temperature presets from 2800 K to 8000 K maintain outstanding brightness and quality of light, with emulated red shift for a tungsten feel when needed. Adjustable PWM avoids on-camera flicker, and four interchangeable lenses — Narrow, Medium, Wide, and Very Wide — give designers full control over beam angle without changing fixtures. Indoors or out, this is a powerful instrument for theatrical, house of worship, special events, rental, and production use. This listing is for the white housing version.

Features

• RGBAM LED engine delivers full-spectrum color mixing and superior white light output
• IP65 weatherproof rating for dependable indoor and outdoor use in any environment
• Four interchangeable lenses (Very Narrow, Narrow, Medium, Wide) adapt beam angle from spot to flood
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• Adjustable PWM (600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz) for flicker-free broadcast and film use
• Plus/minus green adjustment and emulated red-shift accessible via DMX or on-board controls
• 9 DMX personalities including HSV mode for flexible integration
• 4 dim modes and built-in automated programs
• USB port for simple field firmware updates
• Auto-ranging power input (100–240 VAC) with power-linking for up to 9 units
• White housing finish
• Recommended use: Theatre, broadcast, house of worship, special events, outdoor events, rental and production

Specifications

Optical

• Light Source: 80 LEDs (10 red, 10 green, 10 blue, 20 amber, 30 mint), 4.4 to 7.8 W; L70 rating: 55,000 hours
• Color Temperature Range: 2800 to 8000 K
• Color Temperature (at full): 5399 K
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• Narrow Lens — Beam / Field / Lumens: 11.9° / 20.8° / 10,051 lm
• Medium Lens — Beam / Field / Illuminance / Lumens: 25.6° / 37.8° / 1,950 lux @ 5 m / 10,079 lm
• Wide Lens — Beam / Field / Illuminance / Lumens: 29.3° / 43.1° / 1,475 lux @ 5 m / 9,936 lm
• Very Wide Lens — Beam / Field / Illuminance / Lumens: 43.5° / 87.9° / 401 lux @ 5 m / 8,380 lm

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Construction

• Dimensions: 18.82 x 11.81 x 8.27 in (478 x 300 x 210 mm)
• Weight: 21.4 lb (9.8 kg)
• Exterior Color: White
• Housing Material: Aluminum die-cast
• IP Rating: IP65 (with pressure-equalizing M12 GORE valve)
• Gel Frame Size: 7.5 in (191 mm)

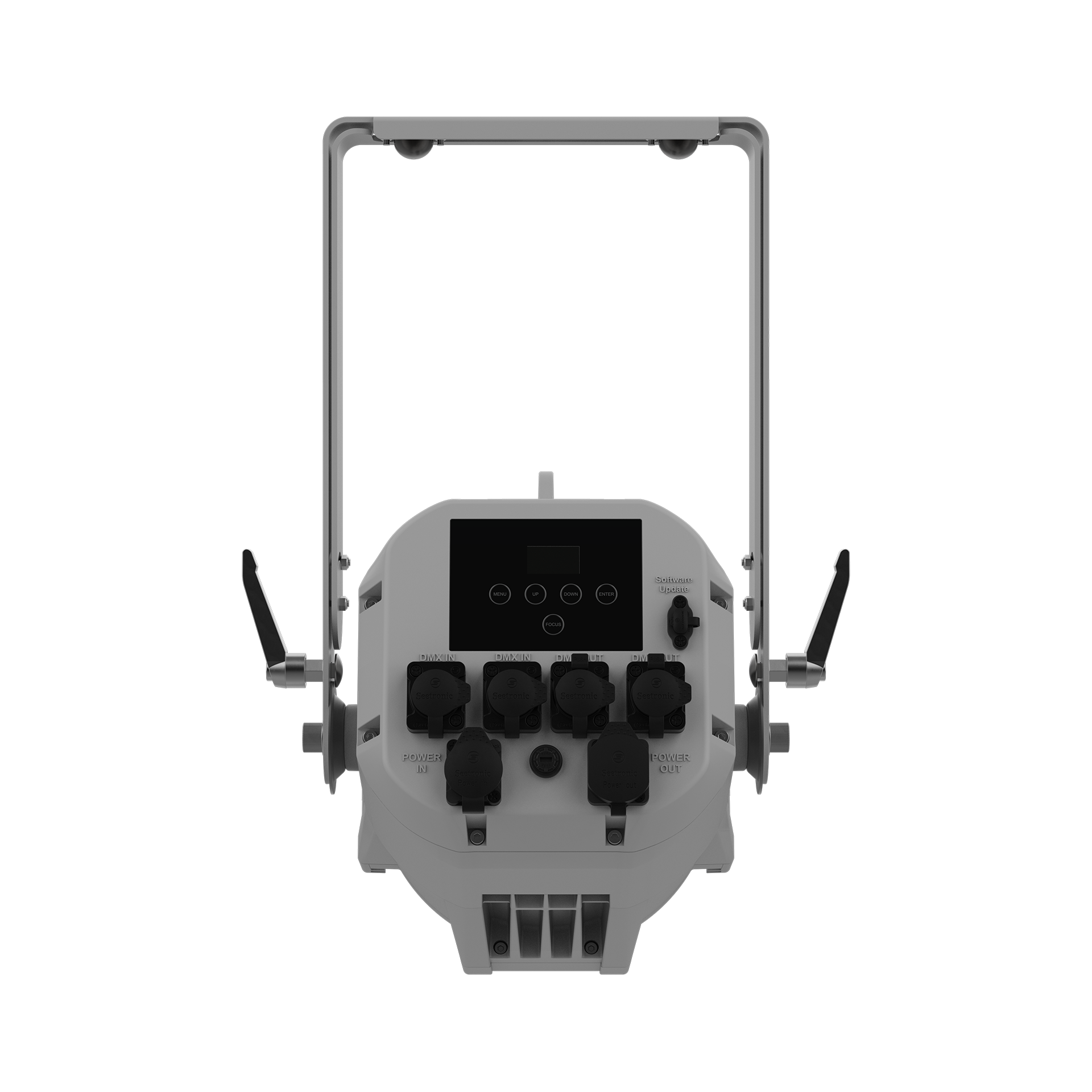

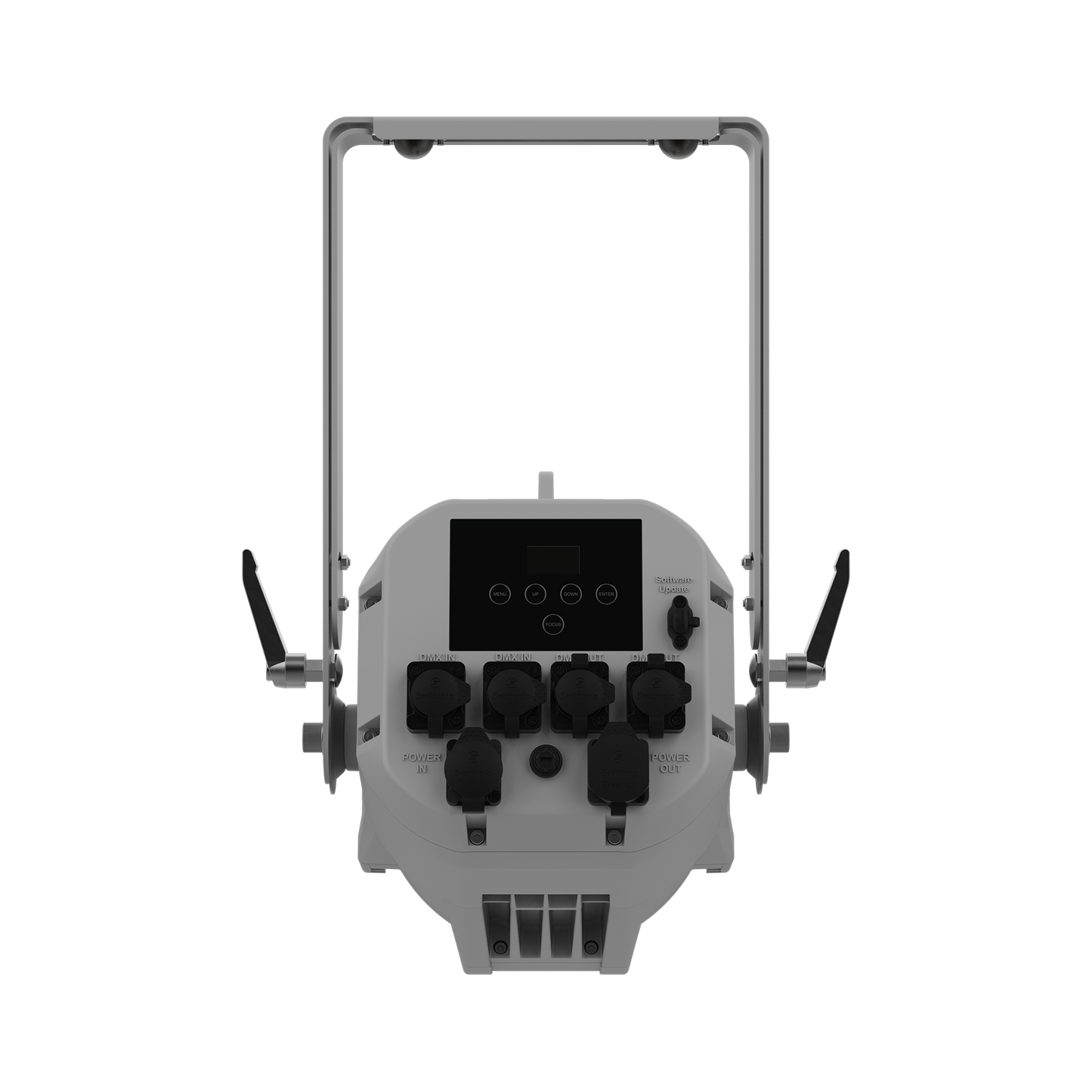

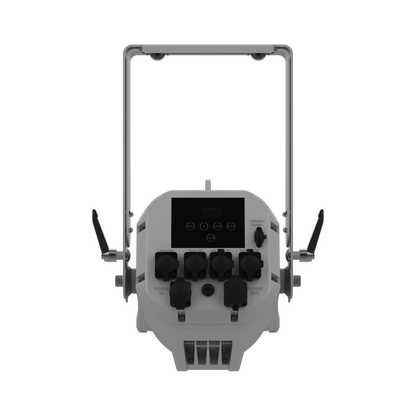

Connections

• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

Control

• Control Protocol: DMX, RDM
• DMX Personalities: 9 (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 274 W @ 120 V / 267 W @ 208 V / 265 W @ 230 V
• Power Linking: 5 units @ 120 V  |  8 units @ 208 V  |  9 units @ 230 V

Certifications

• Compliance: CE, MET, FCC, UKCA
• Operating Temperature: −4°F to 113°F (−20°C to 45°C)

Optional Accessories

• CTC-50HC – Professional Clamp
• CTC-50HCN – Professional Clamp, Narrow Profile
• SC-07 – Safety Cable
• RDM2go
• Ovation F 7.5" Barndoor V2
• RIGLINK IP65 DMX Cables
• RIGLINK 4-Pin Cables (IP65 hybrid power/DMX)

What's in the Box

• Ovation Rêve P-3 IP (White Housing)
• Seetronic Powerkon power cord
• Omega bracket with mounting hardware
• Narrow, Medium, Wide, and Very Wide lenses
• Gel frame
