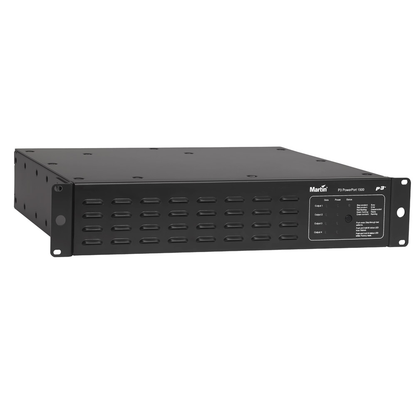

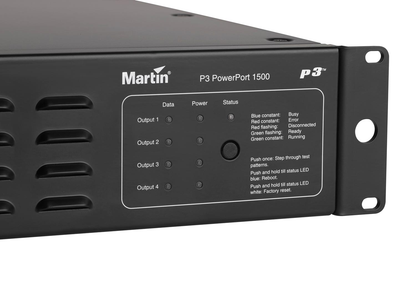

P3 PowerPort 1500

The P3 PowerPort 1500 is an integrated indoor power supply and data processor for Martin's creative LED video products like VDO Sceptron™ and Exterior PixLines™. It ensures stable power delivery and high-speed video processing when used with Martin's P3™ System Controllers, featuring easy setup and flexible remote integration options.

From The Manufacturer:

The P3 PowerPort 1500 is an integrated power supply and data processor for the Martin™ range of creative LED video products, including the VDO Sceptron™, Exterior PixLines™, VC-Grids™, VC-Strips™ and VC-Dots™. When driven by one of Martin’s award-winning P3™ System Controllers, it combines stable power delivery with high-speed, high-capacity video processing. Setup and configuration are easy and intuitive.

• Indoor power and data processor for all Martin™ creative LED video products
• Flexible integration: can be located remotely from video display products
• Easy cabling and configuration

Features:

• P3 image processing technology
• Set-up and addressing via P3 System Controller family
• P3 input and thru to allow daisy-chaining

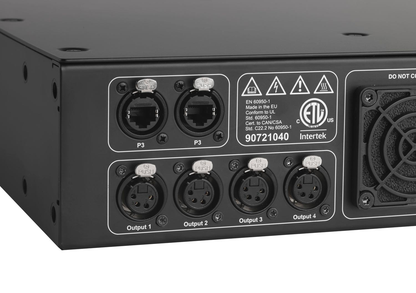

• 4 hybrid power/data output ports

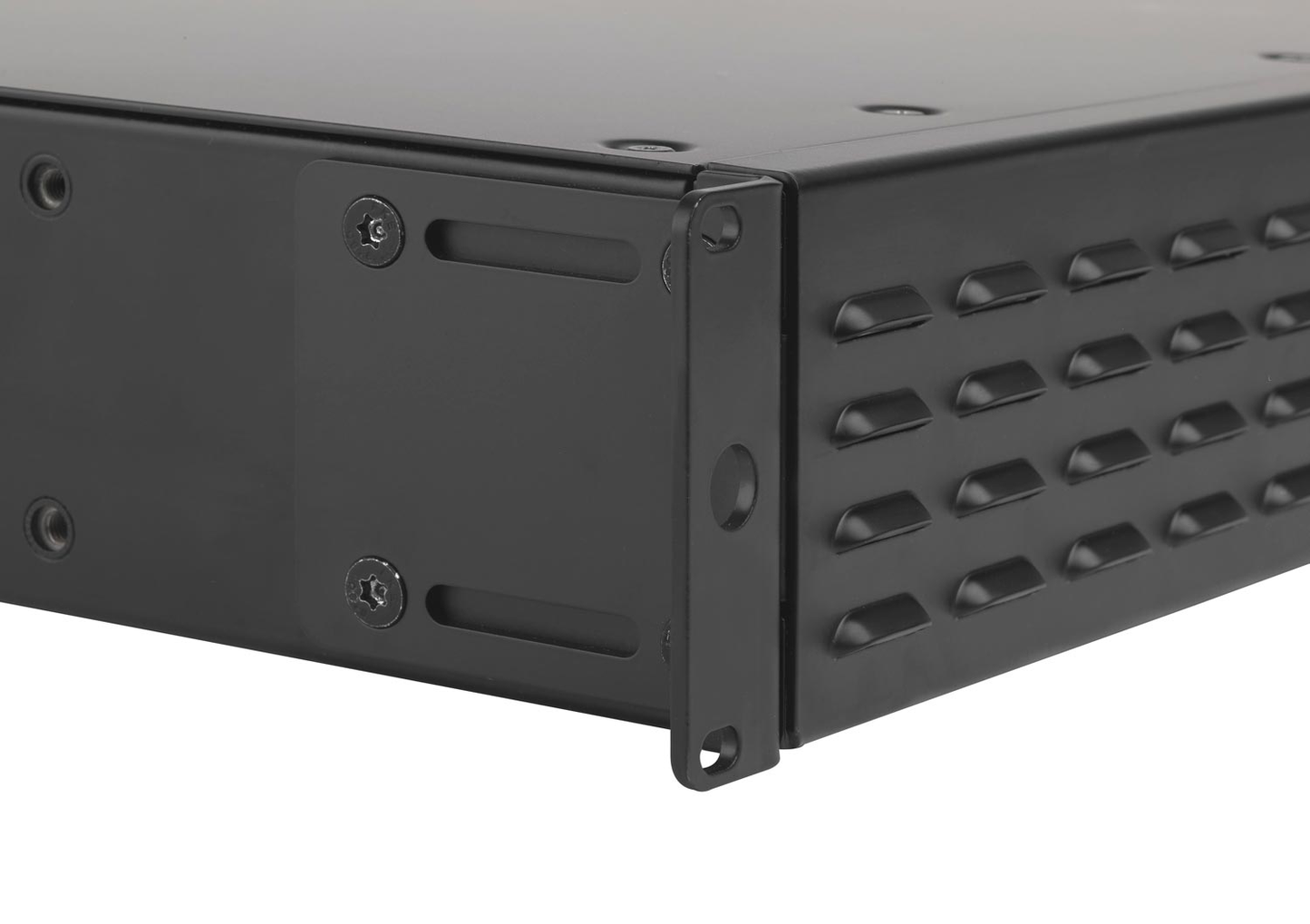

• Wall-, truss- and rack-mountable
• Can be located up to 50 m away from the creative LED video products

Physical:

• Width: 482 mm (19.0 in.)
• Height: 88 mm (3.5 in.) rackmount 2U
• Depth: 335 mm (13.2 in.)
• Weight: 10 kg (22.1 lbs.)

Electrical:

• AC power: 100-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Typical total power consumption: 1540 W (including full load of connected display devices, all at full intensity)

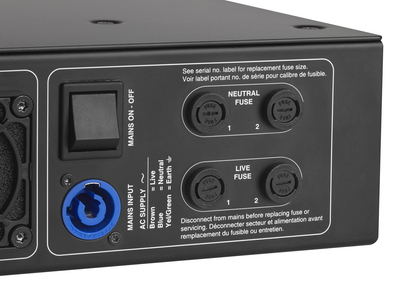

• Main fuse: 10 AT (slow blow) x 4
