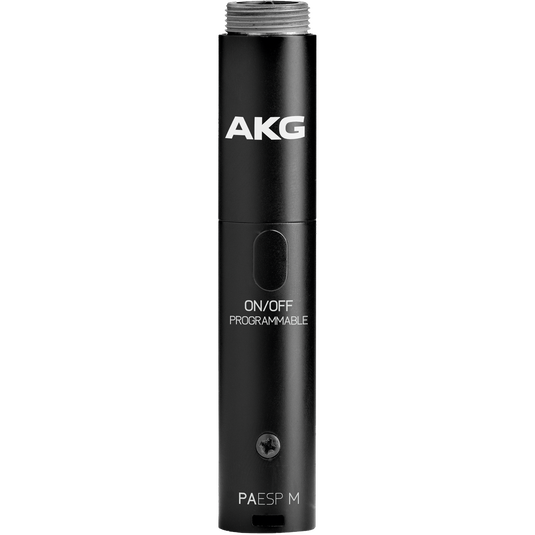

PAESP M

The DAM+ Series PAESP M is a programmable phantom power module for fixed or mobile use, compatible with most mixers. It offers adjustable mic functions and noiseless switching, with a gold-plated connector for secure DAM+ system integration.

From The Manufacturer:

The DAM+ Series PAESP M is a programmable phantom power module for fixed and mobile installation. With its wide voltage range the module will fit most available microphone mixers. It comes with a unique BCD (binary coded decimal) switch to recall one of the operating modes. Several functions can be adjusted, e.g. bass roll off, LED ring mode (on, off, follow mic function) as well as the mic switch mode (push to mute, push to talk, push on - push off). The PAESP M features a completely noiseless microphone switch. Rather than actually disconnecting the signal, it reduces the level by 26dB, thus avoiding the irritating crackling sound when phantom powering is interrupted. The switch is inconspicuously placed but easily accessible for simple handling even by inexperienced talkers. The integrated system connector with gold-plated contacts securely fits all available mounting modules of the DAM+ Series.

Features:

• Programmable on/mute/off switch

• Selectable operating modes

• DFi Shield Technology

• Accepts 9-52V Input

• Feeds all Modular Plus Series Capsules

Specification:

• Audio frequency bandwidth

• 20 - 20000 Hz

• Bass cut filter

• 150 Hz

• Electrical impedance

• < 600 Ohms

• Recommended load impedance

• > 2000 Ohms

• Height

• 100.5 mm (3.96 in)

• Diameter

• 19.1 mm (0.75 in)

• Net Weight

• 63 g (2.22 oz)

• Audio Output

• Balanced XLR (Male}

• Contacts

• 3-pin

• Voltage

• 9 to 52 V

• Current

• 4 mA
